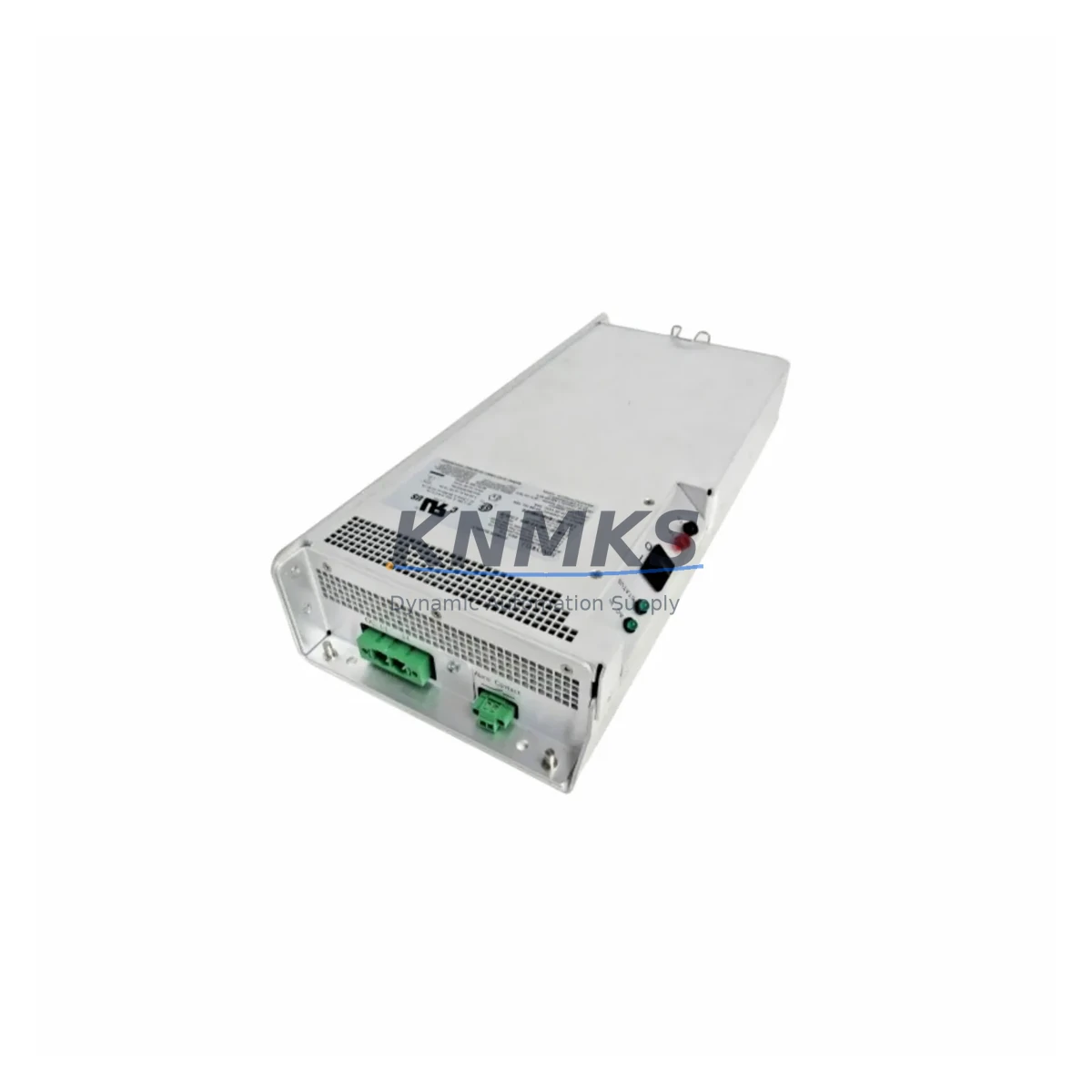

Honeywell FC-PSUNI2424 Migration-Ready Power Supply for Legacy DCS

Overview

Honeywell FC-PSUNI2424 Migration-Ready Power Supply for Legacy DCS: Retrofit and Compatibility Upgrade

The Honeywell FC-PSUNI2424 is a universal 24 VDC/24 VAC input power supply module engineered for direct integration into Experion PKS Series C and Series D control cabinets. As legacy Honeywell TDC 3000 and PlantScape systems approach end-of-support milestones, plant engineers face increasing pressure to source certified replacement power supplies that preserve existing wiring infrastructure, maintain backplane compatibility, and eliminate the need for full cabinet redesigns. The FC-PSUNI2424 addresses each of these constraints with a form-factor-matched, drop-in replacement profile that reduces retrofit engineering hours and minimizes unplanned downtime exposure.

When planning a power supply replacement within an Experion PKS chassis, engineers must verify several critical parameters before committing to a swap. Input voltage range and phase configuration must match the existing cabinet feed — the FC-PSUNI2424 accepts both 24 VDC and 24 VAC inputs, making it compatible with a wide range of legacy panel wiring schemes without requiring transformer modifications. Output current capacity must be evaluated against the aggregate load of all installed I/O modules, communication cards, and controller blades sharing the same power rail. In high-density cabinets housing FC-AI16 analog input modules, FC-DO16 digital output modules, or FC-SDO16 supervised digital output modules, the total draw can approach the supply’s rated ceiling, and a load audit is recommended prior to installation.

Backplane connector alignment is a frequent source of delay during power supply retrofits. The FC-PSUNI2424 uses the standard Experion PKS Series C backplane interface, which is mechanically and electrically compatible with the C300 Controller and associated I/O link modules. Engineers migrating from older Series A or Series B chassis should confirm backplane revision levels and, where necessary, plan for a chassis carrier upgrade alongside the power supply replacement. This is particularly relevant in sites where the existing rack also houses FC-CIOL-0001 I/O Link Interface modules or legacy FIM4 Field Interface Modules, as these components may impose additional compatibility constraints on the power distribution architecture.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A structured retrofit plan for an Experion PKS power supply replacement begins with a full cabinet audit. Before the FC-PSUNI2424 is installed, the site team should document the current power consumption of every module in the affected chassis. In a typical Series C cabinet, this includes the C300 Controller itself, any FC-AI16 or FC-AO08 analog I/O modules, FC-DI16 digital input modules, and communication interface cards such as the FC-CIOL-0001 I/O Link Interface. Each of these modules draws a defined current from the 24 V rail, and the aggregate load must remain within the FC-PSUNI2424’s rated output to ensure stable operation under all process conditions.

Terminal wiring is the next critical checkpoint. The FC-PSUNI2424 uses the same terminal block pinout as its predecessor modules in the Experion PKS power supply family, which means field wiring from the existing cabinet feed can typically be reconnected without modification. However, engineers should inspect terminal torque values and conductor cross-sections, particularly in older installations where wiring may have been sized for a different supply’s inrush characteristics. In cabinets where a Honeywell CC-PWRR01 redundant power controller is installed, the interconnect cabling between the primary and redundant supply slots must also be verified for continuity and correct polarity before energizing the new module.

For sites migrating from TDC 3000 or PlantScape architectures to Experion PKS, the power supply replacement is often one step in a broader platform migration that also involves replacing legacy Highway Gateway modules, updating HMI graphics in Experion Station, and re-mapping I/O addresses in the Control Builder engineering environment. In these scenarios, the FC-PSUNI2424 installation should be sequenced after the chassis and backplane have been confirmed compatible, and before the C300 Controller and I/O modules are powered up for the first time in the new configuration. This sequencing ensures that the power rail is stable before any module initialization diagnostics are executed, reducing the risk of false fault alarms that can complicate the commissioning record.

Downtime Control During System Migration

Minimizing production downtime during a power supply retrofit requires a combination of pre-work preparation, staged execution, and a validated rollback plan. For the FC-PSUNI2424 replacement, the recommended approach is to complete all pre-installation checks — load audit, wiring inspection, firmware version confirmation on the C300 Controller, and spare module verification — during a scheduled maintenance window before the actual swap is attempted. This pre-work phase typically requires two to four hours and can be performed while the existing supply remains in service.

During the actual replacement, the process control loop should be placed in manual mode at the DCS operator station to prevent automatic control actions from responding to the momentary power interruption. If the cabinet supports N+1 redundant power, the replacement can be performed with the redundant supply carrying the full load, eliminating any process impact entirely. In non-redundant configurations, the outage window is limited to the time required to remove the old module, seat the FC-PSUNI2424, reconnect terminals, and confirm module recognition in the Experion server — typically under fifteen minutes for an experienced technician.

After power-up, the Experion server’s System Status Display should be monitored for module health alarms. The FC-PSUNI2424 reports its operational status to the Experion server via the backplane diagnostic bus, and any wiring or load issues will generate a specific fault code that can be cross-referenced in the Experion PKS Hardware Planning and Installation Guide. Once the module is confirmed healthy, control loops can be returned to automatic mode and the commissioning record updated. A post-installation load measurement using a clamp meter on the output terminals is recommended to verify that actual draw matches the pre-installation audit, providing a documented baseline for future maintenance cycles.

Retrofit Support FAQ

Q: Is the FC-PSUNI2424 a direct replacement for the FC-PSUNI2424E or other variants in the Experion PKS power supply family?
A: The FC-PSUNI2424 is the current production variant for 24 VDC/24 VAC input applications in the Experion PKS Series C chassis. Engineers should confirm the exact part number suffix against the existing module label and the Experion PKS Hardware Compatibility Matrix before ordering. In most Series C installations, the FC-PSUNI2424 is a direct form-fit-function replacement with no wiring or chassis modification required.

Q: What commissioning steps are required after installing the FC-PSUNI2424?
A: No firmware configuration is required. The module is recognized automatically by the Experion server upon power-up. The commissioning checklist should include: (1) visual inspection of terminal connections, (2) confirmation of module status in the Experion System Status Display, (3) verification of output voltage at the backplane test points, and (4) a load measurement to confirm operation within rated capacity. If the module is installed in a redundant pair, load-sharing balance should also be verified.

Q: Can the FC-PSUNI2424 be used in cabinets that also house Profibus or FOUNDATION Fieldbus communication modules?
A: Yes. The FC-PSUNI2424 is a passive power supply with no protocol dependency. It is compatible with all Experion PKS Series C I/O and communication configurations, including those using Profibus DP, FOUNDATION Fieldbus H1, HART pass-through, and FTE (Fault Tolerant Ethernet) network interfaces. The only constraint is total load — engineers should confirm that the aggregate current draw of all installed modules, including communication cards, remains within the supply’s rated output.

Q: What support terms and pre-shipment testing does the FC-PSUNI2424 include?
A: Every FC-PSUNI2424 unit supplied by KNMKS includes a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes a pre-shipment functional test to verify input voltage acceptance, output voltage regulation, and backplane connector integrity before dispatch. In-stock units are available for same-week shipment. For volume orders or urgent retrofit requirements, contact the KNMKS sales team to confirm lead time and reserve allocation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

FC-PSUNI2424
Experion PKS Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: Honeywell FC-PSUNI2424
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
