Honeywell FC-IOCHAS-0001R Spare Part for Factory Uptime

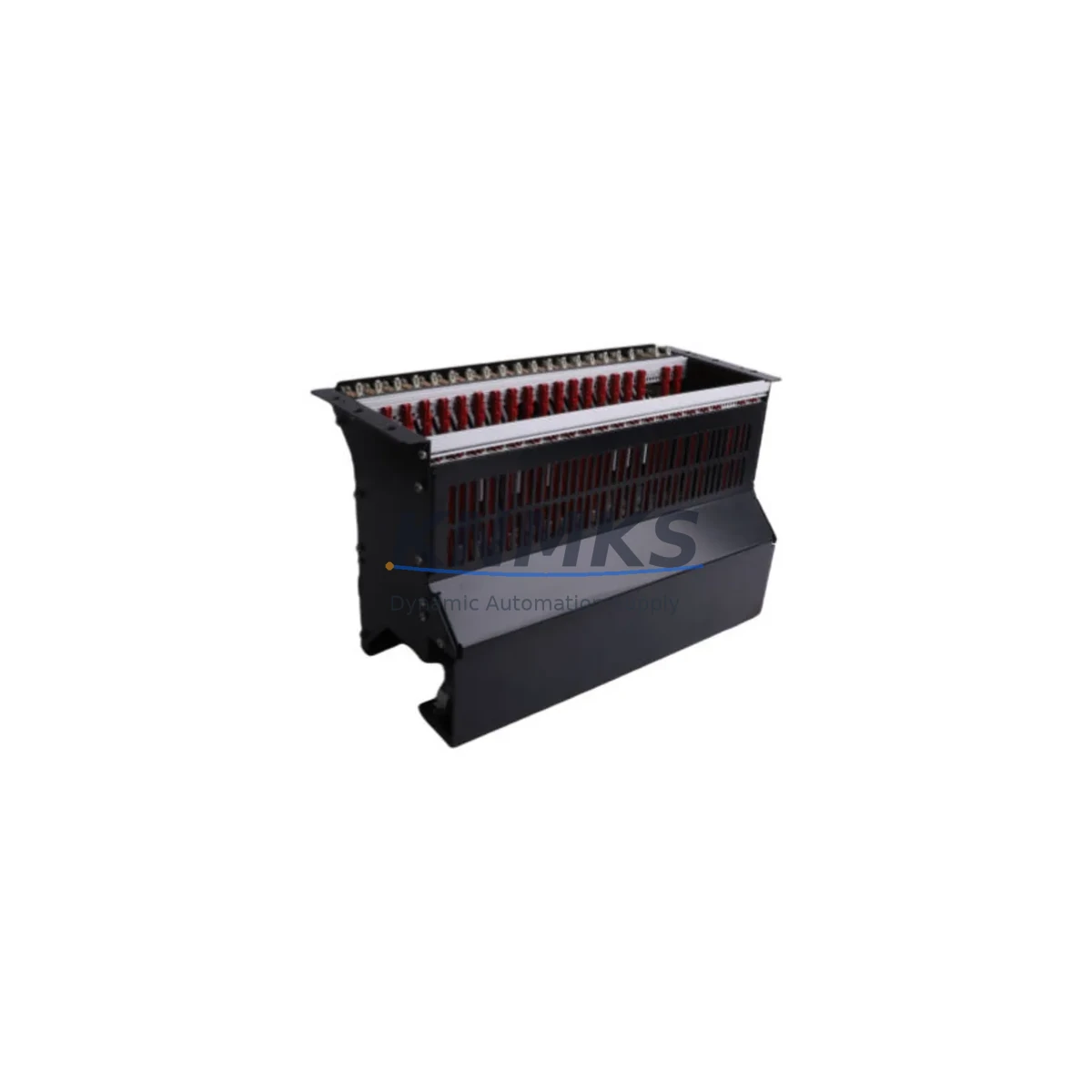

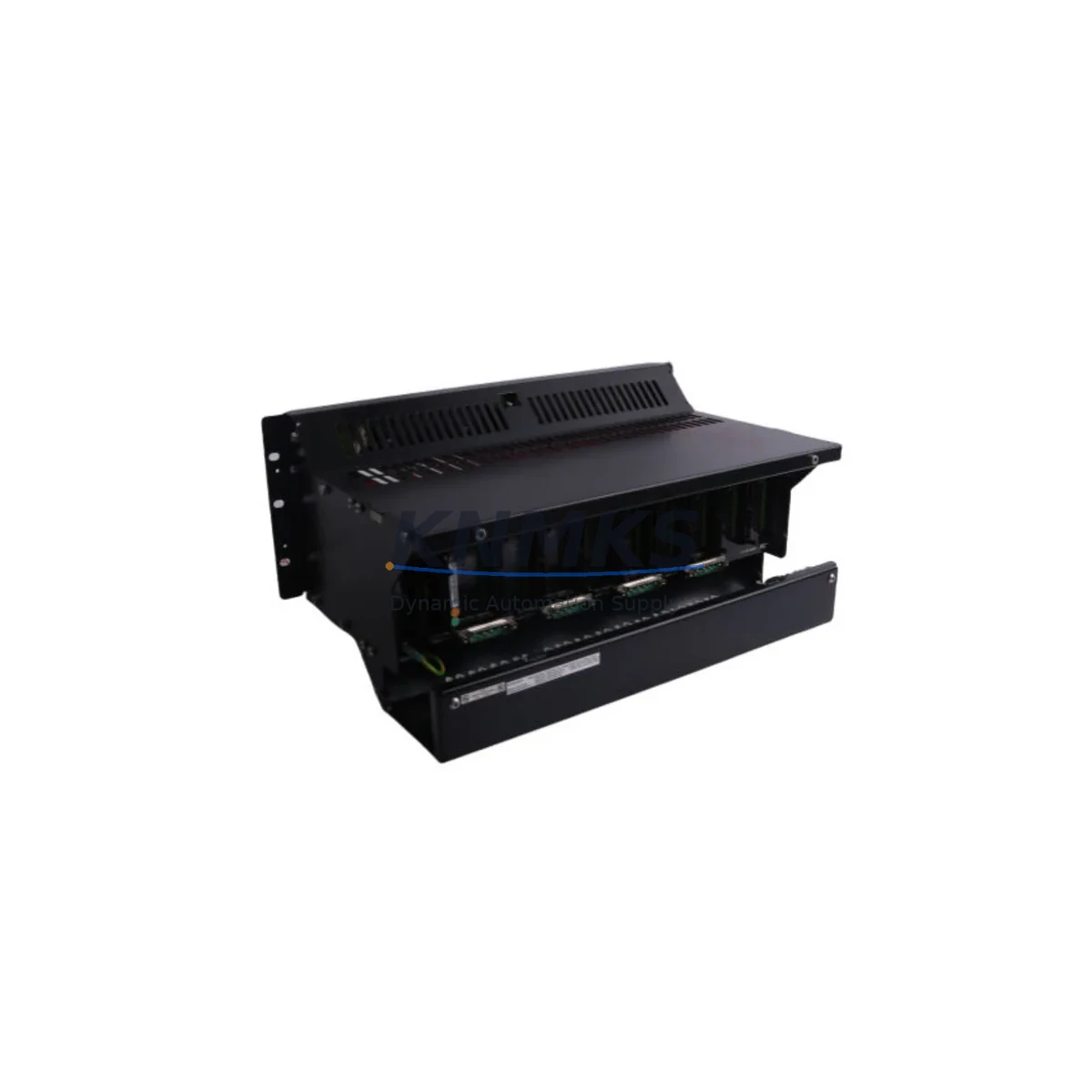

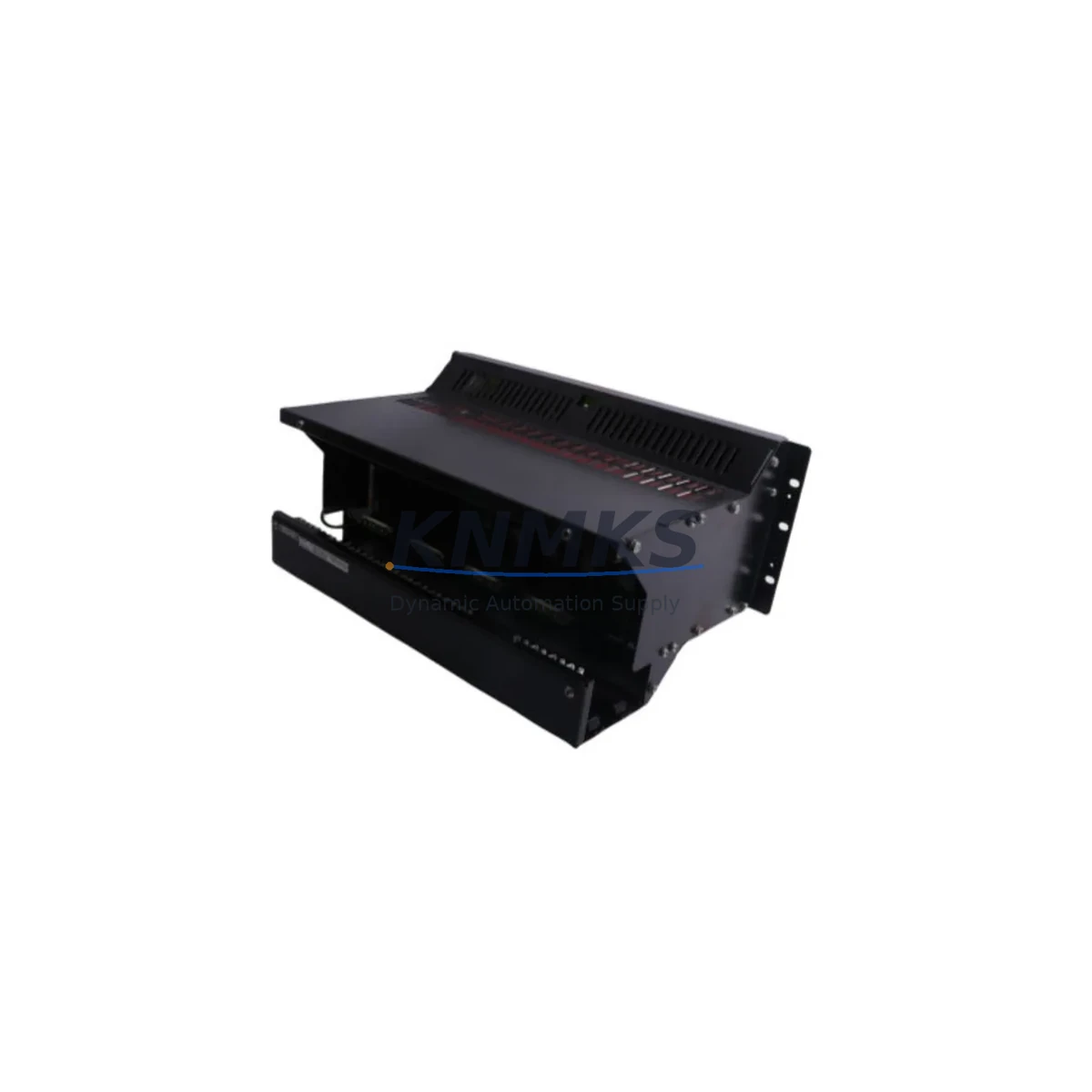

The Honeywell FC-IOCHAS-0001R is a redundant I/O chassis module designed for the Experion PKS (Process Knowledge System) distributed control platform — one of the most widely deployed DCS architectures in refining, petrochemical, power generation, and continuous process industries. As a maintenance-proven spare part, the FC-IOCHAS-0001R plays a central role in sustaining I/O subsystem integrity across control cabinets that must remain operational 24/7.

For maintenance engineers managing aging Experion PKS installations, the I/O chassis is a structural backbone component. It houses field I/O modules, supports redundant communication paths, and provides the mechanical and electrical interface between field wiring terminations and the DCS controller. When a chassis develops faults — whether from vibration fatigue, connector wear, backplane signal degradation, or power rail instability — the consequences can cascade rapidly into unplanned shutdowns. Stocking a verified FC-IOCHAS-0001R spare is a standard risk mitigation measure in any serious spare parts program for Experion PKS sites.

At KNMKS, every FC-IOCHAS-0001R unit is sourced as an original Honeywell component, subjected to pre-shipment functional verification, and shipped with a support terms confirmed by quotation. Our inventory supports emergency replacement orders, planned annual turnaround procurement, and long-term spare parts stocking programs for maintenance teams across Asia, the Middle East, and Europe.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the FC-IOCHAS-0001R in an Experion PKS control cabinet, a disciplined maintenance engineer will not stop at the chassis alone. The I/O chassis sits at the intersection of power distribution, field wiring, and controller communication — meaning adjacent components must be inspected and, where necessary, replaced concurrently to avoid repeat failures and secondary shutdowns.

Power supply integrity is the first checkpoint. The Honeywell CC-PWR01 or equivalent Experion PKS cabinet power supply module should be verified for output voltage stability and ripple within specification. A degraded power supply is a common root cause of intermittent chassis faults and I/O module resets. If the chassis is being replaced due to power rail anomalies, the power supply module should be replaced simultaneously.

Field I/O modules seated in the chassis — including analog input modules such as the FC-SDO-0824 series digital output modules and FIM (Field Interface Modules) — should be removed, inspected for connector pin wear, and reseated or replaced as part of the chassis swap. Backplane connector oxidation is a known failure mode in high-humidity or coastal industrial environments.

Communication and controller links must also be validated. The Experion PKS C300 Controller or C200 paired with this chassis relies on stable backplane communication for I/O scanning. After chassis replacement, controller-to-chassis communication should be verified through the Experion Station HMI, confirming all I/O points are online and no fault codes are active.

Terminal blocks and field wiring connected to the I/O modules should be inspected for loose terminations, insulation degradation, and correct labeling. In long-running installations, terminal block screws can loosen due to thermal cycling, leading to intermittent field signal faults that are often misdiagnosed as chassis or module failures.

Signal isolators and fuse protection in the field wiring circuit — particularly for analog 4–20 mA loops — should be checked. A blown fuse or failed signal isolator upstream of the I/O module can cause the chassis to log spurious faults. Replacing the chassis without addressing these upstream components will result in repeat fault conditions.

For sites running extended maintenance intervals, KNMKS recommends stocking the FC-IOCHAS-0001R alongside compatible I/O modules, a spare power supply module, and a set of terminal block assemblies as a coordinated Experion PKS cabinet spare kit. This approach minimizes diagnostic time during emergency shutdowns and supports a structured annual turnaround spare parts strategy.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the fault is isolated to the FC-IOCHAS-0001R chassis using Experion Station diagnostics. Log all active I/O module assignments, redundancy status, and field wiring termination labels before beginning physical work.

Step 2 — Safe isolation: Follow site lock-out/tag-out (LOTO) procedures. De-energize the cabinet power supply feeding the chassis. Confirm zero voltage on the chassis power rail before handling.

Step 3 — Module removal: Remove all I/O modules from the chassis slots in sequence, labeling each module with its slot position. Disconnect field wiring termination assemblies carefully, preserving wire labeling.

Step 4 — Chassis swap: Remove the faulty FC-IOCHAS-0001R and install the replacement unit. Verify mechanical seating and DIN rail or panel mount security. Reconnect power rail and backplane communication cables.

Step 5 — Module reinstatement: Reinstall I/O modules in their original slot positions. Reconnect field wiring terminations. Verify all connections against the as-built wiring diagram.

Step 6 — Power-up and commissioning: Restore cabinet power. Monitor Experion Station for chassis online status, I/O module recognition, and absence of fault codes. Perform a loop check on critical analog and digital I/O points before returning the system to automatic control.

Step 7 — Documentation: Update the maintenance record with the replacement date, new chassis serial number, and post-replacement test results. Flag the faulty chassis for return-to-vendor analysis or controlled disposal.

This workflow is applicable to both emergency unplanned replacements and scheduled annual turnaround maintenance. For sites with redundant chassis configurations, the replacement can often be performed online without a full process shutdown — consult the Experion PKS engineering documentation for online replacement procedures specific to your system revision.

Spare Parts Support FAQ

Q1: Is the FC-IOCHAS-0001R compatible with both C200 and C300 Experion PKS controller families?
The FC-IOCHAS-0001R is designed for the Experion PKS I/O subsystem and is compatible with standard Experion PKS I/O module families used across C200 and C300 controller configurations. Compatibility should always be confirmed against your specific system revision and Experion PKS engineering documentation before installation. KNMKS technical support can assist with compatibility verification prior to order.

Q2: What pre-shipment testing does KNMKS perform on the FC-IOCHAS-0001R?
Every FC-IOCHAS-0001R unit dispatched by KNMKS undergoes functional verification prior to shipment. This includes power rail continuity checks, backplane connector inspection, and where test equipment permits, module slot communication verification. Units that do not pass functional testing are not dispatched. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can KNMKS support long-term supply agreements for FC-IOCHAS-0001R and related Experion PKS spare parts?
Yes. KNMKS supports long-term spare parts supply programs for maintenance teams managing Experion PKS installations. We can provide scheduled delivery agreements, multi-unit inventory reservations, and coordinated procurement of related components including I/O modules, power supply modules, and controller spares. Contact our sales team to discuss a tailored spare parts support program for your site.

Q4: What is the recommended spare parts stocking strategy for the FC-IOCHAS-0001R?
For sites with multiple Experion PKS cabinets, industry best practice recommends stocking a minimum of one FC-IOCHAS-0001R chassis per cabinet type in the installation. For critical process units where unplanned shutdown costs are high, a two-unit buffer stock is advisable. The chassis should be stored in a dry, temperature-controlled environment and inspected annually for connector condition. Coordinate chassis spares with I/O module and power supply spares to ensure a complete cabinet recovery kit is available for emergency response.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

FC-IOCHAS-0001R
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell FC-IOCHAS-0001R
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
