Honeywell DC-TFB402 51307616-176 Maintenance-Proven Spare for Factory Uptime

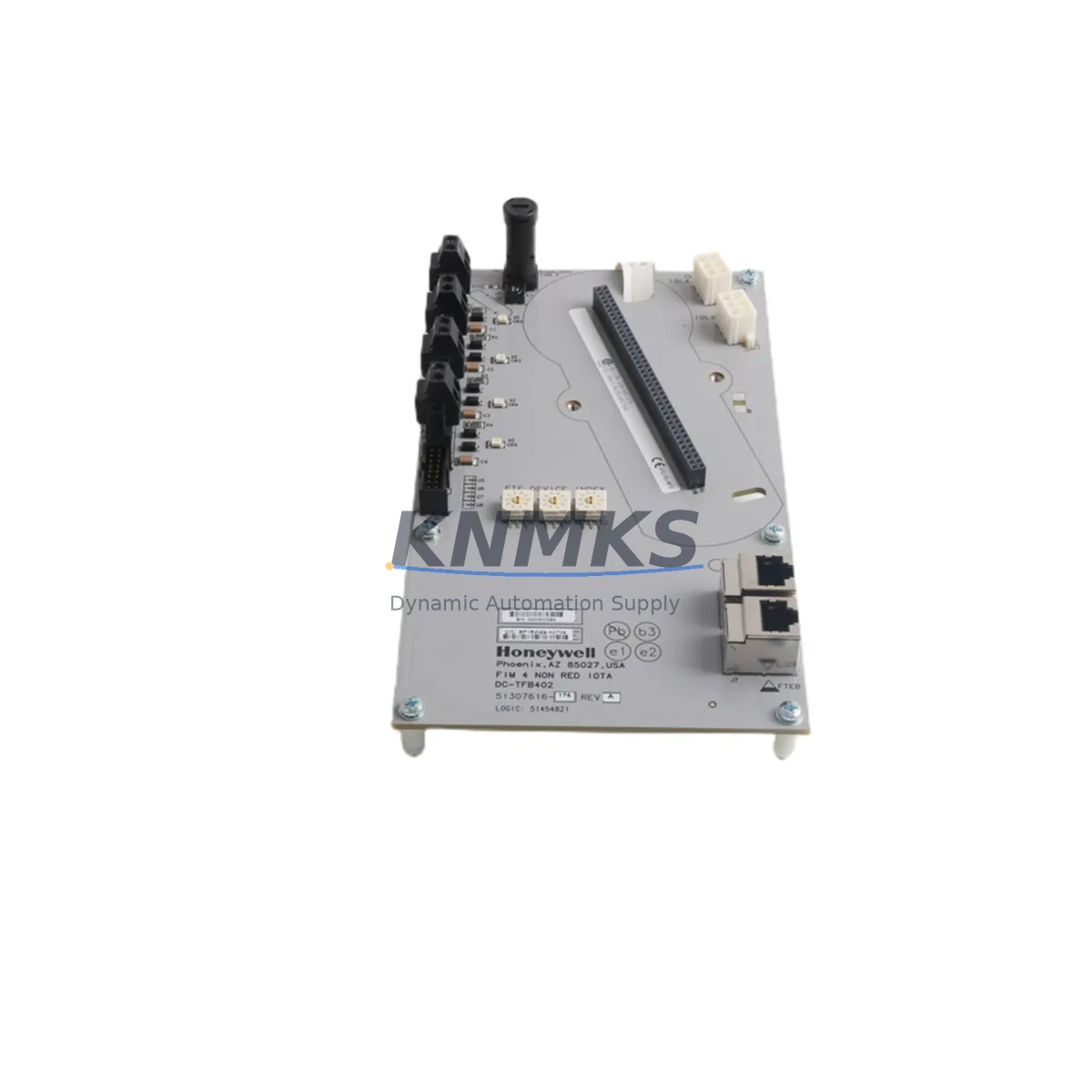

The Honeywell DC-TFB402 (P/N 51307616-176) is a FIM4 Non-Redundant IOTA (I/O Termination Assembly) designed for use within the Honeywell Experion PKS and TotalPlant Solution (TPS) distributed control systems. As a critical field interface component, this IOTA serves as the physical termination point between field wiring and the FIM4 Field Interface Module, enabling reliable signal routing across analog and digital I/O channels in process-critical environments such as oil refining, petrochemical plants, power generation facilities, and continuous manufacturing lines.

For maintenance engineers managing aging Experion PKS control cabinets, the DC-TFB402 51307616-176 represents a high-priority spare. Its role in the I/O subsystem means that a failed or degraded IOTA can interrupt field signal integrity across an entire I/O cluster, triggering process alarms, forcing manual overrides, or causing unplanned shutdowns. Stocking a verified replacement unit eliminates the risk of extended downtime caused by sourcing delays on obsolete or long-lead Honeywell components.

Each unit supplied by KNMKS is sourced from original Honeywell production, individually inspected for physical integrity, connector condition, and board-level cleanliness before dispatch. All units are covered by a support terms confirmed by quotation and shipped with full traceability documentation to support your maintenance records and audit requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the DC-TFB402 51307616-176 in an Experion PKS cabinet, a thorough maintenance inspection of the surrounding I/O infrastructure is essential to prevent repeat failures and ensure long-term system stability. Maintenance engineers should begin by verifying the condition of the FIM4 Field Interface Module itself — the DC-FIM001 or equivalent — which interfaces directly with this IOTA. A degraded FIM4 module can cause intermittent signal loss even after a new IOTA is installed.

Field wiring termination integrity is equally critical. Inspect all terminal blocks and field cable connectors on the IOTA for signs of corrosion, loose crimps, or insulation breakdown, particularly in high-humidity or chemically aggressive environments. The 24VDC power supply rail feeding the I/O chassis should be load-tested; a sagging supply voltage is a common root cause of IOTA communication faults that are often misdiagnosed as module failures.

For cabinets running mixed I/O configurations, also inspect adjacent Honeywell CC-TAIX11 or CC-TDIL01 I/O modules sharing the same backplane segment. A shorted field device on one channel can propagate fault conditions across the IOTA bus. If the system uses FOUNDATION Fieldbus or HART communication overlays, verify that the Honeywell CC-PCF901 or equivalent fieldbus interface card is operating within normal diagnostic parameters.

Procurement engineers building annual spare parts lists for Experion PKS sites should treat the DC-TFB402 51307616-176 as a Tier-1 critical spare alongside the FIM4 module, the C300 Controller (CC-PCNT01), and the associated power supply modules (CC-PWR001). For older TPS installations being extended beyond their original design life, maintaining a buffer stock of two to three IOTA units per cabinet cluster is a widely adopted industry practice to support rapid swap-out during scheduled turnarounds or emergency callouts.

Site Replacement Workflow

Before removing the DC-TFB402 51307616-176 from service, document all field wiring termination assignments using the as-built drawings or a direct photograph of the terminal block layout. This step is critical in legacy TPS installations where wiring documentation may not reflect field modifications made over years of operation.

Power down the affected I/O channel group following your site’s lockout/tagout (LOTO) procedure. Disconnect field cables systematically, labeling each conductor if labels are absent or illegible. Remove the IOTA from the backplane mounting, taking care not to stress adjacent modules or the backplane connector. Install the replacement DC-TFB402 51307616-176, reconnect field wiring in sequence, and restore power. Perform a channel-by-channel I/O verification from the Experion Station or Engineering Console before returning the loop to automatic control.

For sites migrating from older PlantScape or TDC 3000 hardware to current Experion PKS architecture, the DC-TFB402 series IOTAs provide a compatible termination interface that simplifies the transition without requiring full field wiring rework — a significant advantage in brownfield upgrade projects where minimizing cable replacement cost is a priority. This compatibility also supports phased migration strategies where legacy and current-generation I/O coexist within the same control room infrastructure.

Spare Parts Support FAQ

Q1: Is the DC-TFB402 51307616-176 compatible with both Experion PKS and TPS systems?
Yes. The DC-TFB402 IOTA is designed for use across Honeywell’s Experion PKS and TotalPlant Solution (TPS) platforms. Always cross-reference your system’s I/O configuration drawing and the FIM4 module variant installed to confirm termination compatibility before installation.

Q2: What testing is performed before shipment?
Every DC-TFB402 51307616-176 unit is visually inspected for physical damage, connector integrity, and board condition. Units are verified against original Honeywell part number markings and shipped in ESD-safe packaging with a support terms confirmed by quotation. Test reports are available upon request for critical process applications.

Q3: How should we manage long-term inventory for this IOTA in an aging Experion system?
Given the obsolescence risk associated with legacy DCS hardware, we recommend maintaining a minimum of two units per active cabinet cluster. KNMKS offers long-term supply agreements and reserved stock programs to support multi-year maintenance contracts, ensuring availability even as original manufacturer production winds down.

Q4: Can KNMKS support urgent replacement orders for unplanned shutdowns?
Yes. KNMKS maintains ready stock of the DC-TFB402 51307616-176 and can process emergency orders with same-day or next-day dispatch to most global destinations. Contact our team directly for expedited shipping options and lead time confirmation.
