Honeywell CC-TDOD51 Maintenance-Proven Spare Part for Factory Uptime

Overview

Honeywell CC-TDOD51 Maintenance-Proven Spare Part for Factory Uptime

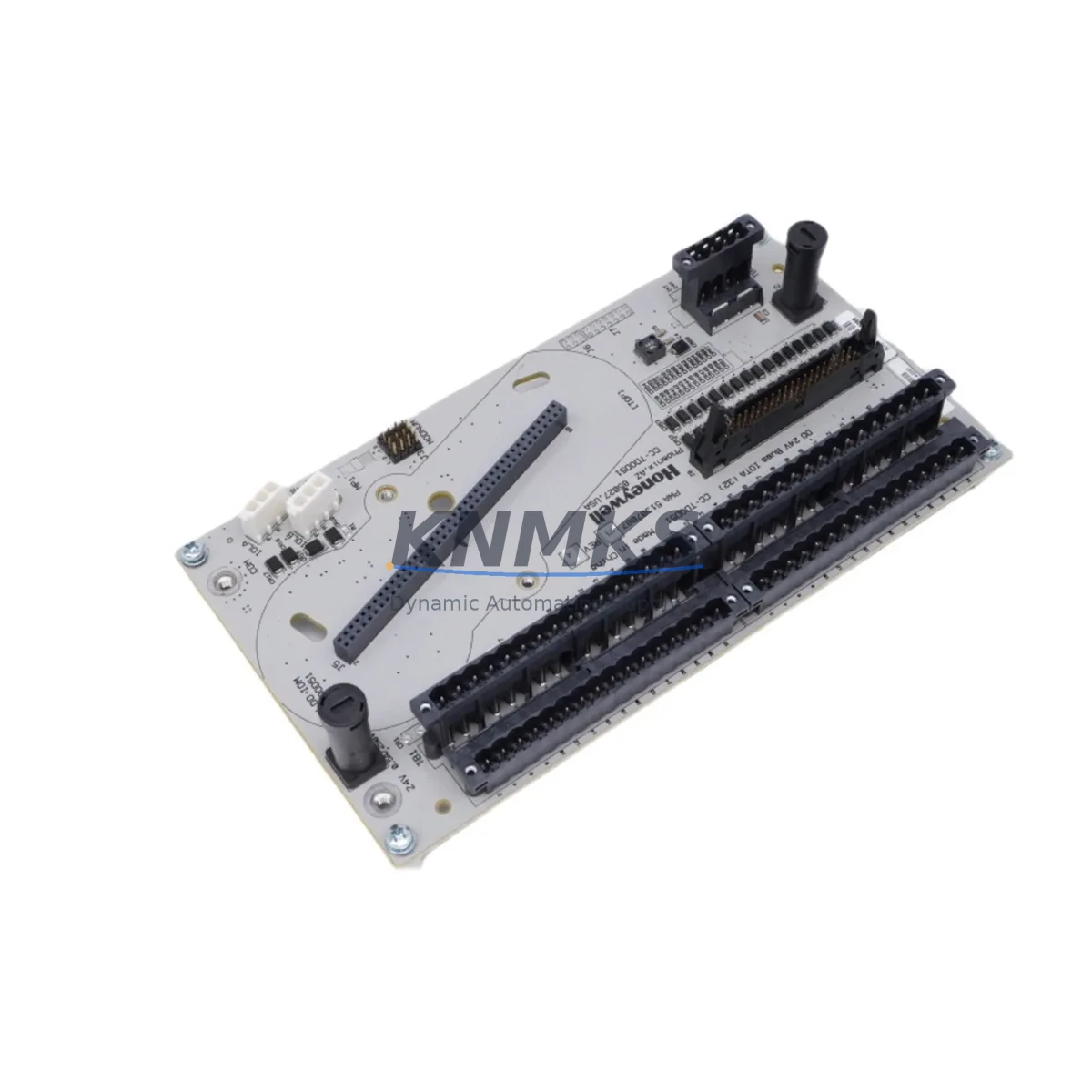

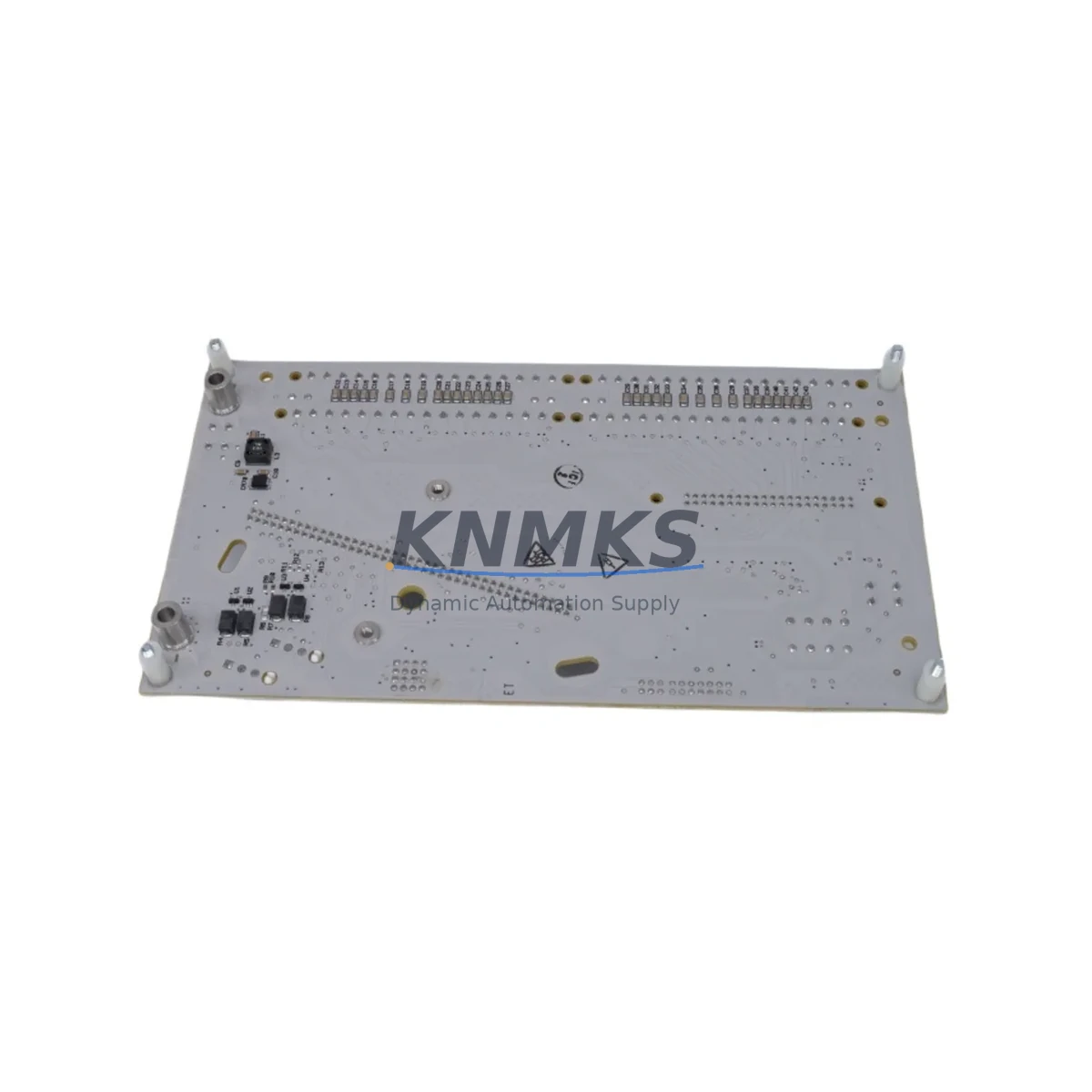

The Honeywell CC-TDOD51 is a 32-channel digital output IOTA (I/O Termination Assembly) designed for the Experion PKS (Process Knowledge System) distributed control platform. As a field-proven component in continuous process industries — including refining, petrochemical, power generation, and pulp and paper — the CC-TDOD51 serves as the critical interface between the Experion PKS controller and field-side actuators, solenoid valves, motor starters, and discrete output devices. Maintaining a qualified spare of this module is a fundamental requirement for any maintenance program targeting zero unplanned downtime.

KNMKS supplies the CC-TDOD51 as an original, fully tested spare part backed by a support terms confirmed by quotation. Each unit undergoes functional verification prior to shipment, ensuring that the module you receive is ready for immediate installation without additional bench testing. Our global logistics network supports delivery details confirmed by RFQ to refineries, chemical plants, and power facilities across Asia, the Middle East, Europe, and the Americas.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CC-TDOD51 digital output IOTA is flagged during a routine control cabinet inspection or a fault isolation exercise, the replacement workflow extends beyond the IOTA itself. Maintenance engineers should treat the event as a trigger for a broader cabinet health review to prevent secondary failures and reduce the risk of repeat callouts.

Begin by verifying the field power supply feeding the 24 VDC bus on the IOTA terminal strip. A degraded or undersized power supply — such as the Honeywell CC-PWR001 or a third-party 24 VDC DIN rail unit — can cause intermittent output faults that mimic IOTA hardware failure. Confirm voltage stability under load before condemning the CC-TDOD51.

Next, inspect the associated CC-PDOB01 or CC-PDOB11 Digital Output Field Interface Module (FIM). The FIM communicates with the IOTA over the Experion PKS I/O link and is the logical counterpart to the CC-TDOD51. A failed or degraded FIM will produce output channel errors that appear identical to IOTA faults in the Experion Station alarm list. Stocking a spare FIM alongside the CC-TDOD51 IOTA is standard practice in high-availability maintenance programs.

Review the terminal wiring on the IOTA field connector blocks. Over time, vibration and thermal cycling can loosen screw terminals on the 32-channel output connector, causing intermittent open-circuit faults on individual output channels. Inspect and re-torque all field wiring connections during the replacement procedure. If the plant uses marshalling cabinets with intermediate terminal blocks — such as Phoenix Contact or Weidmüller DIN rail terminal strips — verify continuity from the IOTA terminal to the field device.

For plants running Experion PKS with redundant controller configurations, also check the status of the CC-PCNT01 or CC-PCNT11 Process Controller Node module. A controller node approaching end-of-life can generate spurious output commands that stress the IOTA and connected field devices. Including the controller node in the annual spare parts review cycle is recommended for systems with more than seven years of continuous operation.

Where the CC-TDOD51 drives solenoid valve outputs in safety-related circuits, verify that the associated safety relay modules and fuse protection on each output channel remain within specification. Individual channel fuses on the IOTA terminal assembly should be inspected and replaced on a scheduled basis — typically during annual turnaround — to prevent nuisance trips caused by aged fuse elements.

Finally, if the plant uses Experion PKS with an integrated HMI running on an Experion Station or a dedicated operator workstation, confirm that the I/O diagnostic screens reflect the correct channel status after the CC-TDOD51 replacement. A mismatch between the physical output state and the HMI display may indicate a configuration download is required following module swap.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement CC-TDOD51 part number matches the installed unit. Check the revision label on the existing IOTA and compare with the spare. For Experion PKS, the CC-TDOD51 is backward-compatible across standard revisions; however, confirm with your site’s Honeywell system documentation if the installation predates R310.

Step 2 — Safe state and isolation: Place the associated output channels in a safe state via the Experion Station operator interface before disconnecting field wiring. For solenoid valve outputs, coordinate with the process team to confirm that the process is in a hold or safe condition. De-energize the 24 VDC field power supply feeding the IOTA terminal strip.

Step 3 — Field wiring documentation: Photograph or record the field wiring layout on the 32-channel terminal connector before removal. Label each wire if not already tagged. This step is critical for multi-shift maintenance teams where the technician performing the reconnection may differ from the one who removed the wiring.

Step 4 — Module removal and installation: Remove the field connector block from the CC-TDOD51 IOTA. Unclip the IOTA from the DIN rail or cabinet mounting. Install the replacement CC-TDOD51, reconnect the field connector block, and restore the 24 VDC field power supply.

Step 5 — Functional verification: From the Experion Station, perform a channel-by-channel output test for all 32 channels. Confirm that each output drives the correct field device and that the HMI status reflects the expected state. Log the replacement in the plant CMMS (Computerized Maintenance Management System) with the module serial number and installation date.

Step 6 — Spare replenishment: Initiate a purchase order for a replacement CC-TDOD51 spare immediately after installation to restore the site’s minimum spare holding. KNMKS maintains standing stock of the CC-TDOD51 and can fulfill replenishment orders within 3–5 business days for most regions.

Spare Parts Support FAQ

Q1: Is the CC-TDOD51 supplied by KNMKS an original Honeywell part?
Yes. KNMKS supplies original CC-TDOD51 units sourced through established industrial spare parts channels. Each unit is functionally tested prior to shipment and is not a counterfeit, refurbished-without-disclosure, or third-party compatible substitute. The support terms confirmed by quotation cover functional defects identified under normal operating conditions.

Q2: How do I confirm compatibility with my installed Experion PKS system revision?
The CC-TDOD51 is compatible with Experion PKS systems from R210 onward. Provide your system revision and the part number of the installed FIM (CC-PDOB01 or CC-PDOB11) when placing your order, and our technical team will confirm compatibility before shipment. For systems running pre-R310 firmware, we recommend requesting a revision-specific unit.

Q3: What testing is performed before shipment?
Each CC-TDOD51 undergoes a functional output verification test covering all 32 channels, power-on self-test confirmation, and visual inspection for physical damage. A test report is available upon request for quality-critical procurement programs. Units that do not pass functional testing are not shipped.

Q4: Can KNMKS support long-term or blanket stock agreements for the CC-TDOD51?
Yes. KNMKS offers blanket purchase order arrangements for maintenance programs requiring guaranteed stock availability over a 12- to 36-month horizon. This is particularly relevant for plants operating aging Experion PKS installations where the CC-TDOD51 is approaching end-of-availability from the OEM. Contact our sales team to discuss minimum order quantities, pricing, and consignment stock options.
