Honeywell CC-TDIL01 51308386-175 Maintenance-Proven Spare

Overview

Honeywell CC-TDIL01 51308386-175 Maintenance-Proven Spare Part for Factory Uptime

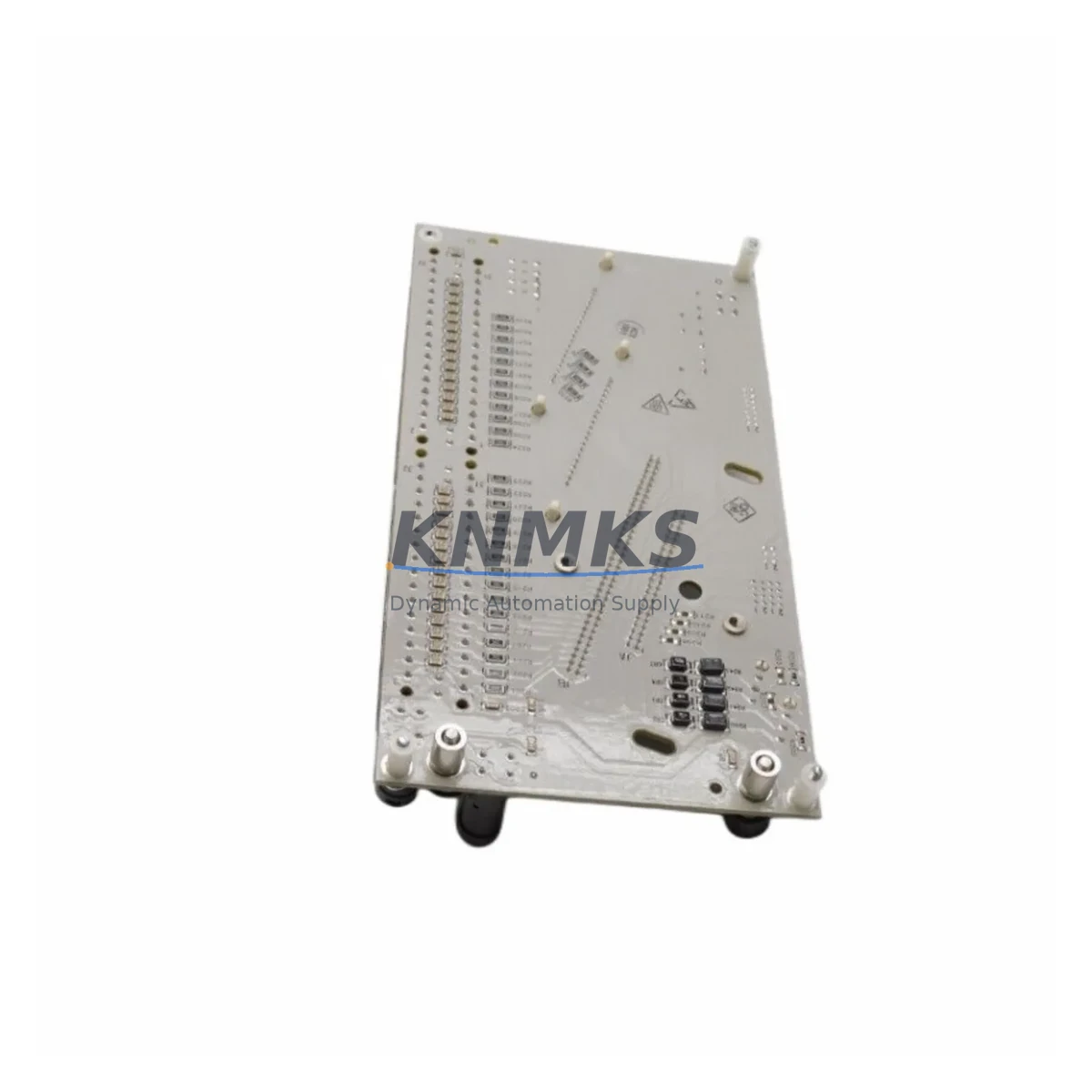

The Honeywell CC-TDIL01 (Part No. 51308386-175) is a 32-channel isolated digital input module designed for the Experion PKS C300 controller platform. As a critical field interface component within Honeywell’s distributed control system architecture, this module handles discrete signal acquisition from field devices including limit switches, proximity sensors, valve position feedback, and process interlock circuits. Maintaining a verified spare of the CC-TDIL01 in your on-site inventory is a foundational practice for any facility running Experion PKS — minimizing unplanned downtime and protecting production continuity.

For maintenance engineers managing aging DCS infrastructure, the CC-TDIL01 represents one of the highest-priority modules to stock. Its role in safety-critical and process-critical I/O loops means that a single failed channel — or a module-level fault — can trigger a full loop shutdown, isolate a control zone, or force a manual override. Fast access to a tested replacement unit is the difference between a 30-minute swap and a multi-day outage waiting for factory lead times.

Procurement engineers sourcing replacement modules for Experion PKS systems should verify compatibility with the installed C300 controller firmware revision and confirm that the replacement module carries the correct part suffix (-175) to match the existing hardware configuration. KNMKS supplies only original Honeywell-branded modules, each inspected and function-tested prior to shipment, backed by a support terms confirmed by quotation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement or inspection of the CC-TDIL01 51308386-175, a thorough maintenance engineer will treat the module swap as an opportunity to audit the surrounding control cabinet and I/O subsystem. The CC-TDIL01 does not operate in isolation — its reliability depends on the health of the components it interfaces with.

Begin with the field wiring termination carrier (CC-TAIX01 or equivalent termination assembly) that mates with the CC-TDIL01. Loose or corroded terminal connections are a common root cause of intermittent channel faults that are incorrectly attributed to the module itself. Inspect all 32 field wiring terminations for continuity and insulation integrity before condemning the module.

Next, verify the C300 controller module (CC-PCF901 or CC-PCF902) and its redundant partner are operating normally. A degraded controller can generate false I/O fault alarms that implicate the CC-TDIL01 when the actual fault lies upstream. Check the FIM (Field Interface Module) — typically a CC-FIM001 or CC-FIM002 — for communication errors on the FTE (Fault Tolerant Ethernet) network, as FIM faults can mask or misreport DI module status.

Power supply integrity is equally critical. The Experion PKS I/O chassis is powered by a dedicated 24 VDC rail; inspect the chassis power supply module (such as the CC-PWR001) for output voltage stability and ripple. An under-voltage condition on the I/O bus can cause multiple modules to report faults simultaneously, creating a misleading picture of widespread hardware failure.

For facilities running mixed I/O configurations, also inspect adjacent analog input modules (such as the CC-TAIM01 series) and digital output modules sharing the same chassis. A failing module in a neighboring slot can introduce backplane noise that affects DI channel readings. Finally, review the system’s surge protection and fusing on the 24 VDC field power circuits — blown fuses or degraded surge suppressors on field device circuits are a frequent cause of DI channel loss that is resolved at the field level rather than by module replacement.

Stocking the CC-TDIL01 alongside its associated termination carrier, a spare FIM module, and at least one C300 controller module constitutes a minimum viable spare parts kit for Experion PKS sites committed to sub-hour recovery targets.

Site Replacement Workflow

Replacing the CC-TDIL01 51308386-175 in a live Experion PKS system follows a structured sequence to minimize process impact and ensure a clean handover. Before beginning, confirm with the control room that all 32 DI channels on the target module are in a safe state — either the associated process loops are in manual mode, or the field devices are confirmed in their fail-safe positions.

Power down the I/O chassis slot if hot-swap is not supported by your installed firmware revision. Remove the CC-TDIL01 by releasing the module locking lever and sliding it clear of the termination carrier. The termination carrier remains in place, preserving all field wiring connections — this is a key advantage of the Honeywell C300 I/O architecture, as it eliminates the need to re-terminate field wiring during module replacement.

Insert the replacement CC-TDIL01 51308386-175, ensuring the module seats fully on the carrier and the locking lever engages. Power the slot and observe the module status LEDs: a solid green RUN indicator confirms successful initialization and communication with the C300 controller. In the Experion Station, navigate to the module’s hardware status display and verify that all 32 channels are reporting correctly against known field device states.

Document the replacement in your CMMS (Computerized Maintenance Management System) with the module serial number, installation date, and pre/post replacement channel status. This record supports support requests and provides traceability for future audits. The replaced module should be tagged, bagged, and returned for evaluation — many modules condemned for channel faults are recoverable through cleaning or minor repair, extending the useful life of your spare parts inventory.

Spare Parts Support FAQ

Q1: Is the CC-TDIL01 51308386-175 compatible with all Experion PKS revisions?
The CC-TDIL01 with part suffix -175 is compatible with Experion PKS R400 and later releases running the C300 controller platform. For systems on earlier releases (R300 or below), compatibility should be verified against the Honeywell hardware compatibility matrix for your specific firmware build. KNMKS can assist with compatibility verification prior to order confirmation.

Q2: How is the module tested before shipment?
Each CC-TDIL01 unit supplied by KNMKS undergoes functional inspection including visual examination, channel continuity verification, and power-on self-test validation. Modules are shipped with a test report and are covered by a support terms confirmed by quotation from the date of shipment. Any unit that fails to perform as specified within the confirmed support period will be replaced or refunded.

Q3: What is the recommended inventory strategy for Experion PKS DI modules?
For facilities with 10 or more CC-TDIL01 modules installed, a minimum stock of 2 spare units is recommended. Sites with critical process loops — particularly those tied to safety instrumented functions or high-availability production lines — should maintain at least one spare per controller cluster. Annual inventory reviews aligned with planned shutdown schedules help ensure spare availability without excessive carrying costs.

Q4: Can KNMKS support long-term supply for legacy Experion PKS hardware?
Yes. KNMKS maintains ongoing sourcing relationships for Honeywell Experion PKS components including C300 I/O modules, FIM units, controller modules, and termination assemblies. For facilities managing end-of-life DCS systems or planning multi-year maintenance contracts, KNMKS can provide volume pricing, reserved stock agreements, and priority fulfillment to support your long-term operational continuity.
