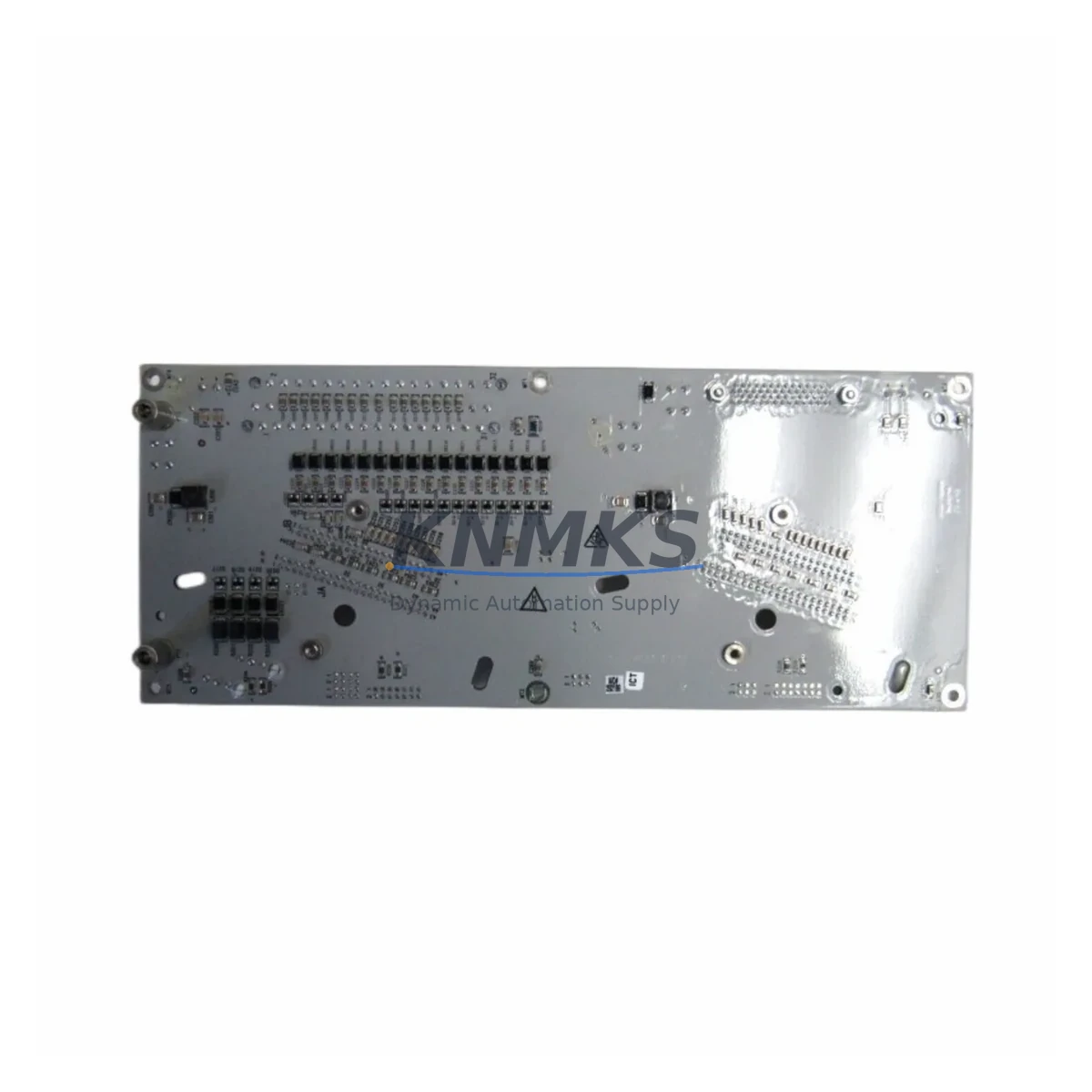

Honeywell CC-TD0B11 51308373-175 Fail-Safe Analog Output

Overview

Honeywell CC-TD0B11 51308373-175 Fail-Safe Analog Output: Fault-Protected Reliability for Critical Industrial Control

The Honeywell CC-TD0B11 (P/N 51308373-175) is a high-integrity analog output module engineered for the Experion PKS C300 distributed control system platform. Designed to meet the demanding requirements of continuous process industries, this module delivers deterministic 4–20 mA signal output with built-in fail-safe behavior, ensuring that control loops remain stable and predictable even under abnormal operating conditions. Whether deployed in a petrochemical reactor control cabinet, a power plant turbine bypass loop, or a water treatment dosing system, the CC-TD0B11 is built to protect both process integrity and personnel safety.

In critical industrial environments, an analog output module is far more than a signal conduit — it is the final command link between the control system and the field actuator. Signal drift, output freeze, or uncontrolled excursion in this link can trigger valve misoperation, process runaway, or emergency shutdown. The CC-TD0B11 addresses these risks through hardware-enforced output clamping, watchdog-supervised communication with the C300 controller, and galvanic isolation that prevents ground loops and surge propagation from reaching the control backplane. When the module detects a loss of communication or an internal fault, it drives its outputs to a pre-configured fail-safe state — protecting downstream actuators from receiving erroneous commands during controller restart or network interruption.

The module’s surge and transient protection circuitry is rated to absorb high-energy spikes common in heavy industrial environments — including those generated by large motor starts, arc flash events, and capacitor bank switching near the control cabinet. This makes it particularly well-suited for installation alongside variable frequency drives, high-current contactors, and power distribution equipment where electromagnetic interference (EMI) and conducted transients are persistent threats to signal accuracy. In facilities where the control cabinet is located close to high-voltage switchgear or in areas with poor grounding infrastructure, the CC-TD0B11’s isolation architecture provides a critical barrier that preserves output fidelity and prevents nuisance faults.

Within the Experion PKS architecture, the CC-TD0B11 operates as part of a tightly integrated I/O subsystem. It communicates with the C300 Controller via the FTE (Fault Tolerant Ethernet) backbone, and is typically installed in conjunction with the CC-TCNT01 FIM (Field Interface Module) and CC-PWRR01 redundant power supply to form a fully fault-tolerant control node. In redundant configurations, the module supports bumpless transfer — ensuring that a controller switchover does not produce a transient output disturbance that could upset a sensitive control loop. For applications requiring SIL-rated safety instrumented functions, the CC-TD0B11 is often deployed alongside the Honeywell FSC (Fail Safe Controller) safety system, with the Experion PKS providing supervisory integration and alarm management.

Thermal management is a key reliability factor in densely populated control cabinets. The CC-TD0B11 is rated for continuous operation across an extended temperature range, with low self-heating characteristics that reduce the thermal load on cabinet cooling systems. In high-ambient-temperature environments — such as outdoor substations in tropical climates, or control rooms adjacent to furnaces and kilns — this thermal stability translates directly into reduced derating risk and longer mean time between failures (MTBF). The module’s conformal-coated PCB provides additional protection against condensation, corrosive gases, and fine particulate contamination in dusty or humid plant environments.

For maintenance teams managing aging DCS infrastructure, the CC-TD0B11 offers a direct replacement path for earlier Honeywell analog output modules used in legacy Experion R2xx and R3xx system revisions. Its backward-compatible form factor and firmware auto-negotiation eliminate the need for configuration changes during hot-swap replacement, minimizing planned maintenance windows and reducing the risk of configuration errors during module exchange. Spare module inventory management is simplified by the module’s broad compatibility across C300 controller generations, allowing a single spare to cover multiple cabinet positions.

Every CC-TD0B11 unit supplied by KNMKS undergoes pre-shipment functional verification, including output accuracy testing across the full 4–20 mA range, isolation resistance measurement, and communication handshake validation with a reference C300 controller. This ensures that the module arrives ready for installation without requiring bench calibration or firmware updates. All units are covered by a support terms confirmed by quotation from the date of shipment, with technical support available for installation guidance, compatibility verification, and fault diagnosis.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust Experion PKS control node requires more than a single high-quality I/O module — it demands a coordinated protection architecture across power, communication, and field interface layers. The CC-TD0B11 is most effective when deployed as part of a complete cabinet solution. The CC-PWRR01 redundant power supply module provides dual-feed power conditioning that eliminates single-point power failure risk, ensuring the analog output channels maintain stable excitation voltage even during utility supply disturbances. Upstream, a Honeywell UDC3500 loop controller or equivalent supervisory device can provide an independent watchdog layer for critical analog loops, issuing override commands if the DCS output deviates beyond defined safety limits.

For field wiring protection, marshalling cabinets housing the CC-TD0B11 should incorporate Phoenix Contact TRABTECH surge protection terminal blocks or equivalent DIN-rail surge arresters on all 4–20 mA field cables entering from outdoor or long-run installations. This prevents lightning-induced surges and ground potential differences from reaching the module’s output terminals. The CC-TCNT01 Field Interface Module provides the physical and logical bridge between the C300 controller and the I/O modules, and its health status should be monitored continuously via Experion’s system status display to detect any FTE communication degradation before it affects output integrity.

In safety instrumented system (SIS) architectures where the Experion PKS operates in conjunction with a Honeywell Safety Manager SC or legacy FSC safety controller, the CC-TD0B11 analog outputs are typically used for non-SIL-rated regulatory control loops, while the safety controller handles the hardwired final elements. Proper segregation of SIS and BPCS (Basic Process Control System) wiring within the cabinet — using separate cable trays, grounding buses, and terminal strip sections — is essential to prevent common-cause failures and maintain SIL integrity of the safety loop. The CC-SCMB02 system cabinet module bus provides the structured backplane interconnect that supports this segregation within the Experion I/O chassis.

Critical Industrial Safety Applications

The Honeywell CC-TD0B11 51308373-175 is deployed across a wide range of critical process industries where analog output reliability directly impacts safety and production continuity. In petrochemical and refinery applications, the module controls flow control valves, pressure regulators, and heat exchanger bypass valves in distillation columns and reactor feed systems — where an output freeze or excursion could trigger a process safety event. Its fail-safe output configuration ensures that valves move to a safe position on controller fault, consistent with the process hazard analysis (PHA) requirements of the installation.

In thermal power generation, the CC-TD0B11 is used in boiler combustion control, turbine governor interface, and feedwater flow regulation loops. These applications demand sub-second response to setpoint changes and zero tolerance for spurious output transients that could cause turbine trip or boiler flame-out. The module’s bumpless transfer capability is particularly valuable in power plant DCS redundancy schemes, where controller switchover must not disturb the combustion air-to-fuel ratio or steam pressure control loops.

In mining and mineral processing environments, the module is installed in flotation cell reagent dosing systems, conveyor speed control interfaces, and crusher load management loops. These environments are characterized by extreme vibration, heavy dust loading, and frequent electrical transients from large drive systems — conditions that the CC-TD0B11’s conformal coating and surge protection are specifically designed to withstand. Water and wastewater treatment facilities use the module for chemical dosing pump control, aeration blower speed regulation, and filter backwash sequencing — applications where output accuracy directly affects effluent quality compliance and regulatory reporting.

In metallurgical and steel production facilities, the CC-TD0B11 controls electric arc furnace electrode positioning, rolling mill tension regulation, and continuous casting mold level control — among the most demanding analog control applications in industry, requiring both high accuracy and absolute output reliability under severe electromagnetic interference from high-current bus systems. Port and marine terminal automation systems use the module in ship-to-shore crane drive interfaces and bulk material handling conveyor control, where the combination of outdoor exposure, salt-laden air, and high-cycle operation demands the full protection capability of the module’s environmental hardening features.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the CC-TD0B11 51308373-175?
All CC-TD0B11 units supplied by KNMKS are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, functional failures under normal operating conditions, and firmware-related issues. Support requests are supported by our technical team with replacement dispatch within 3 business days upon fault confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every unit undergoes a full functional verification protocol prior to shipment, including: output accuracy testing across the 4–20 mA range at 0%, 25%, 50%, 75%, and 100% of span; channel-to-channel isolation resistance measurement; FTE communication handshake validation with a reference C300 controller; and visual inspection for physical damage, connector integrity, and conformal coating coverage. A test record is available upon request.

Q3: Is the CC-TD0B11 compatible with all Experion PKS C300 system revisions?
The CC-TD0B11 (51308373-175) is compatible with Experion PKS R210, R300, R400, R410, R430, R500, and R510 system revisions when used with C300 controllers. Firmware auto-negotiation is supported for hot-swap replacement in existing installations. For specific revision compatibility questions or mixed-revision cabinet configurations, our technical team can provide a compatibility confirmation prior to order.

Q4: Can long-term supply continuity be guaranteed for this module?
KNMKS maintains dedicated inventory of the CC-TD0B11 51308373-175 to support both planned maintenance programs and emergency replacement requirements. We supply both new and factory-refurbished units with full test certification, providing supply continuity for installations where the module may no longer be available through standard distribution channels. Customers with ongoing maintenance contracts can arrange reserved stock allocation to ensure availability for scheduled turnaround events.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

51308373-175 CC-TD0B11
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 51308373-175 CC-TD0B11
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
