Honeywell CC-TAID11 51306731-175 Maintenance-Proven Spare Part

Overview

Honeywell CC-TAID11 51306731-175 Maintenance-Proven Spare Part for Factory Uptime

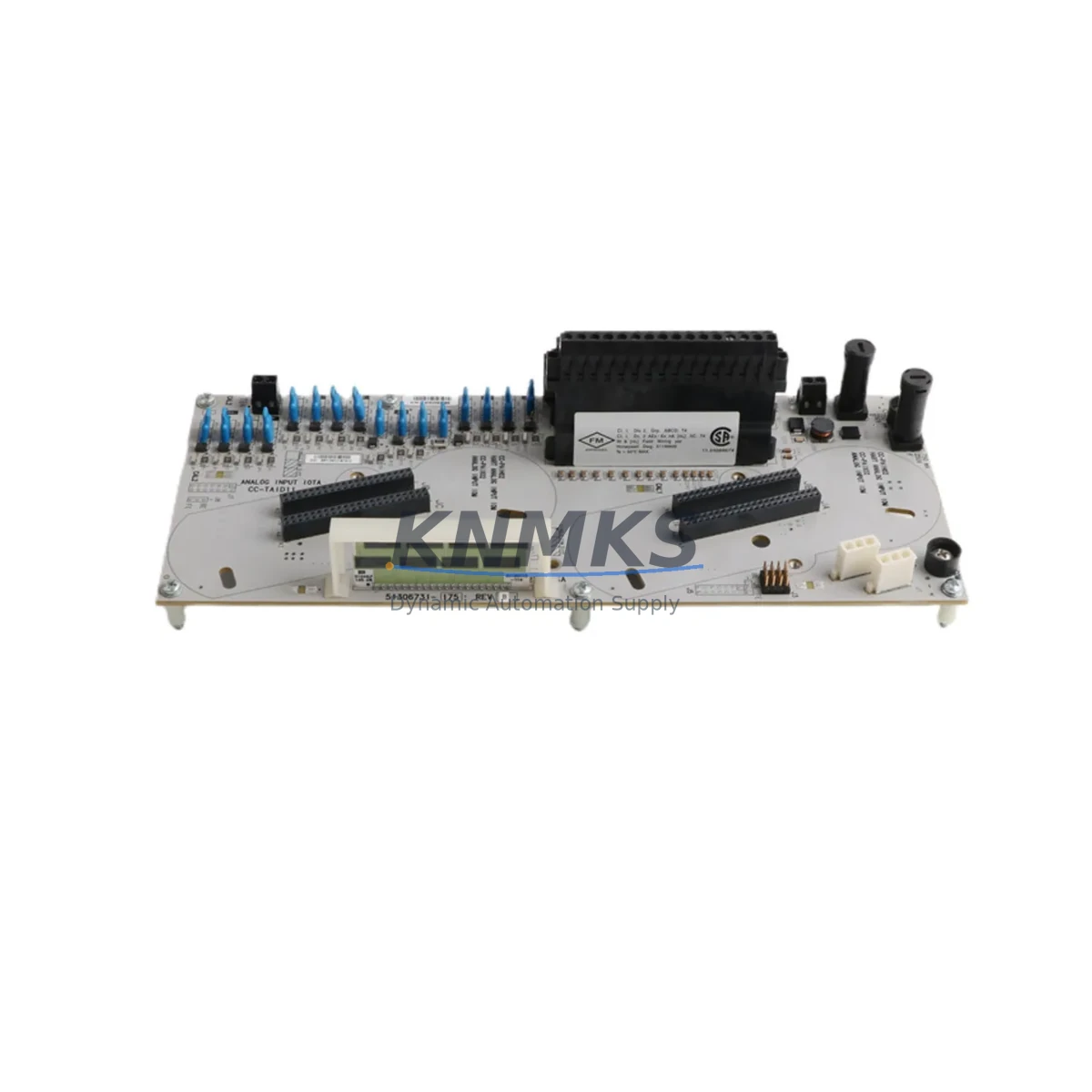

The Honeywell CC-TAID11 (P/N 51306731-175) is a differential analog input IOTA (I/O Termination Assembly) designed for the Experion PKS C300 Controller platform. As a critical field-side termination component, it provides the physical interface between field instrumentation — including 4–20 mA transmitters, RTDs, and thermocouple inputs — and the C300 process controller’s I/O subsystem. Maintaining a verified spare of the CC-TAID11 in your cabinet inventory is a fundamental requirement for any facility running continuous or batch processes on Honeywell Experion PKS.

For maintenance engineers managing aging DCS infrastructure, the CC-TAID11 represents one of the highest-priority analog I/O spares to stock. Field failures in analog input IOTAs typically manifest as signal drift, loss of channel readings, or complete I/O card communication faults — all of which can trigger unplanned shutdowns in process-critical environments such as refining, petrochemical, power generation, and pharmaceutical manufacturing. Having a tested, original replacement on-site reduces mean time to repair (MTTR) and supports rapid restoration of loop integrity without waiting on extended lead times from distribution channels.

Every CC-TAID11 51306731-175 unit supplied by KNMKS is sourced as an original Honeywell component, subject to pre-shipment functional verification, and backed by a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a CC-TAID11 replacement during a planned outage or responding to an unplanned I/O fault, experienced maintenance engineers treat the IOTA swap as an opportunity to inspect the full analog input loop — not just the termination assembly itself. A systematic cabinet inspection at the time of replacement significantly reduces the risk of repeat failures and callback maintenance events.

Begin by verifying the condition of the paired analog input card — typically the CC-PAID01 or equivalent C300 AI FIM — since IOTA faults and AI card faults can present with overlapping symptoms in Experion PKS diagnostics. Confirm that the C300 controller module itself, such as the CC-PCF901 or CC-PCF902 controller, is operating within normal CPU and memory utilization thresholds before restoring the loop to service.

Inspect all field wiring terminations at the IOTA screw terminals for signs of corrosion, loose connections, or insulation degradation — particularly in high-humidity or chemically aggressive environments. Check the cabinet’s 24 VDC field power supply (commonly a Honeywell or third-party DIN rail PSU) for output voltage stability, since marginal supply voltage is a frequent root cause of intermittent analog signal errors that are misdiagnosed as IOTA or AI card failures.

For cabinets with signal isolation requirements, verify the integrity of any installed signal isolators or loop-powered barriers in the field circuit. Zener barriers and galvanic isolators in intrinsically safe loops should be tested for correct resistance and isolation values whenever an analog IOTA is replaced. Additionally, inspect the terminal blocks and marshalling strips adjacent to the CC-TAID11 for proper torque and labeling — loose marshalling connections are a common source of intermittent channel faults that survive initial post-replacement testing but recur under vibration or thermal cycling.

If the C300 system includes redundant I/O or a CC-TAIX11 redundant IOTA configuration, confirm that the redundancy switchover logic is functioning correctly after the replacement. Review the Experion PKS system event log for any latent communication alarms on the associated FTE (Fault Tolerant Ethernet) network or C300 I/O link that may indicate upstream issues beyond the IOTA itself. Maintaining a documented spare parts list that includes the CC-TAID11, its paired AI card, and associated power and communication components ensures that your facility can execute a complete loop restoration within a single maintenance window.

Site Replacement Workflow

The CC-TAID11 51306731-175 is a direct form-fit-function replacement for earlier Honeywell Experion PKS analog input IOTA assemblies used in C300 I/O subsystems. No firmware changes or controller configuration modifications are required when replacing a like-for-like IOTA, provided the paired AI card type and channel assignments remain unchanged.

Step 1 — Pre-Replacement Verification: Confirm the exact part number (CC-TAID11 / 51306731-175) against the cabinet drawing and Experion PKS hardware configuration. Verify that the replacement unit’s revision level is compatible with the installed AI card and C300 firmware version.

Step 2 — Loop Isolation: Place all affected analog input channels in manual mode at the Experion PKS operator station. Notify the control room of the planned I/O interruption. Isolate field power to the affected IOTA if required by site safety procedures.

Step 3 — Physical Replacement: Disconnect field wiring from the IOTA terminal blocks, noting wire labels and positions. Remove the faulty CC-TAID11 from the DIN rail or chassis mounting. Install the replacement unit and reconnect field wiring per the original termination drawing.

Step 4 — Loop Restoration and Verification: Restore field power and confirm that all channels return to expected signal values in Experion PKS. Check for any active alarms or diagnostic faults on the replaced IOTA in the system hardware display. Perform a loop check on at least a representative sample of channels before returning the I/O to automatic control.

Step 5 — Documentation: Record the replacement in the site maintenance management system (CMMS), including the removed unit’s serial number, replacement unit’s serial number, and post-replacement loop check results. Update the spare parts inventory to trigger reorder of a replacement CC-TAID11 for future use.

Spare Parts Support FAQ

Q1: Is the CC-TAID11 51306731-175 compatible with all C300 analog input configurations in Experion PKS?
The CC-TAID11 is designed for use with the Honeywell Experion PKS C300 I/O subsystem as a differential analog input IOTA. Compatibility depends on the paired AI card type and the specific C300 hardware revision installed at your site. KNMKS recommends confirming the cabinet drawing and Experion PKS hardware configuration before ordering to ensure a direct fit-for-purpose replacement.

Q2: What pre-shipment testing does KNMKS perform on the CC-TAID11?
Each unit undergoes functional verification prior to shipment, including visual inspection, connector integrity checks, and where applicable, powered operational testing. Units are shipped with protective packaging to prevent ESD damage and physical stress during transit. A support terms confirmed by quotation is provided from the date of delivery.

Q3: How should the CC-TAID11 be stored as a long-term cabinet spare?
Store the unit in its original anti-static packaging in a climate-controlled environment: temperature 0°C to 40°C, relative humidity below 75% non-condensing. Avoid storage near strong electromagnetic fields or corrosive atmospheres. Inspect the unit annually for any signs of connector oxidation or physical damage, and rotate stock on a first-in, first-out basis to maintain spare readiness.

Q4: Can KNMKS support long-term supply of the CC-TAID11 for multi-year maintenance contracts?
Yes. KNMKS maintains sourcing relationships that support ongoing supply of Honeywell Experion PKS spare components including the CC-TAID11 series. For facilities with multi-year maintenance agreements or annual shutdown planning requirements, KNMKS can provide volume pricing, reserved inventory arrangements, and scheduled delivery programs. Contact our technical sales team to discuss your site’s long-term spare parts strategy.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

CC-TAID11 51306731-175
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell CC-TAID11 51306731-175
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
