Honeywell CC-PDOB01 51405043-175 Migration-Ready Digital Output Module for Legacy Control Systems

Overview

Honeywell CC-PDOB01 51405043-175: Migration-Ready Digital Output Module for Legacy Control System Upgrades

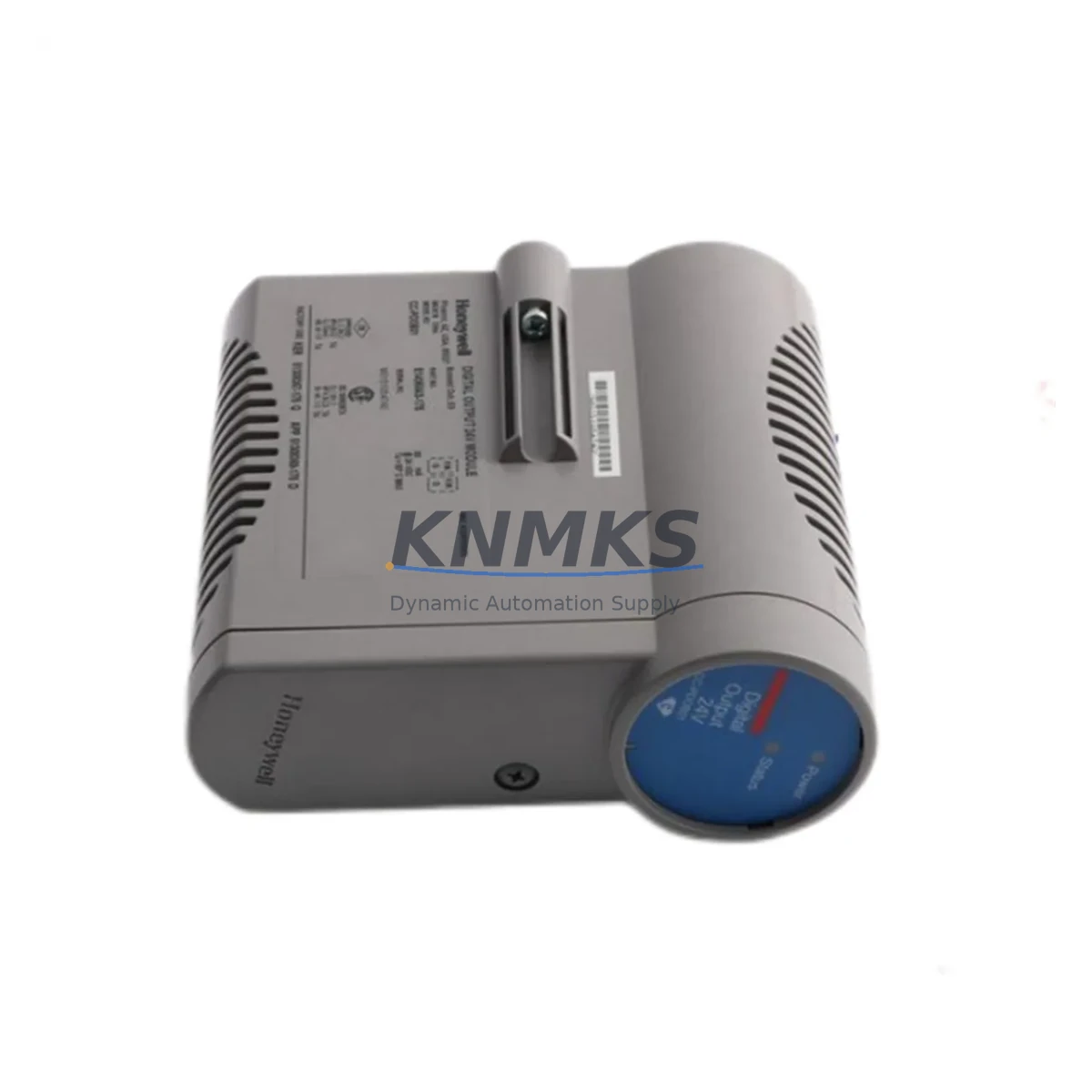

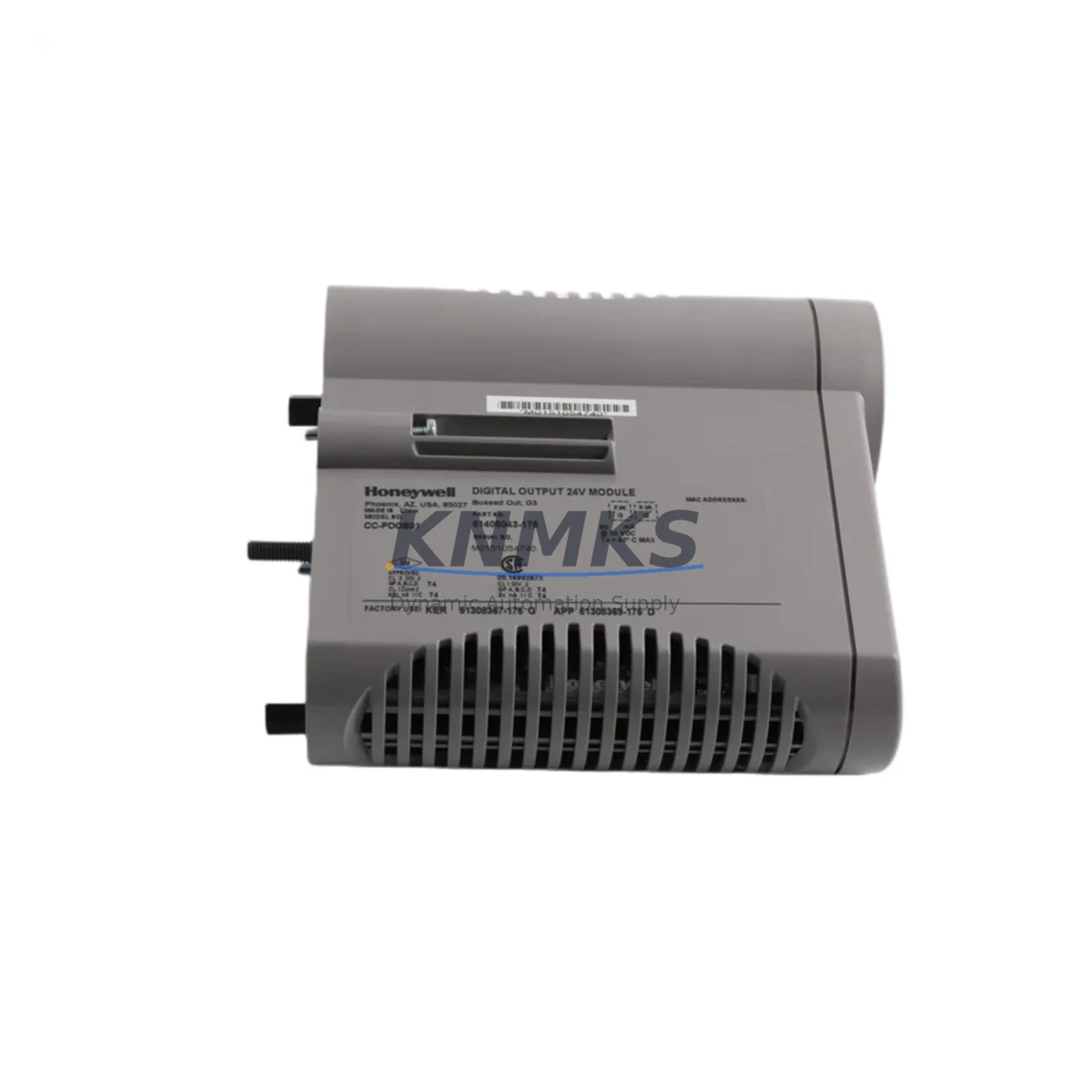

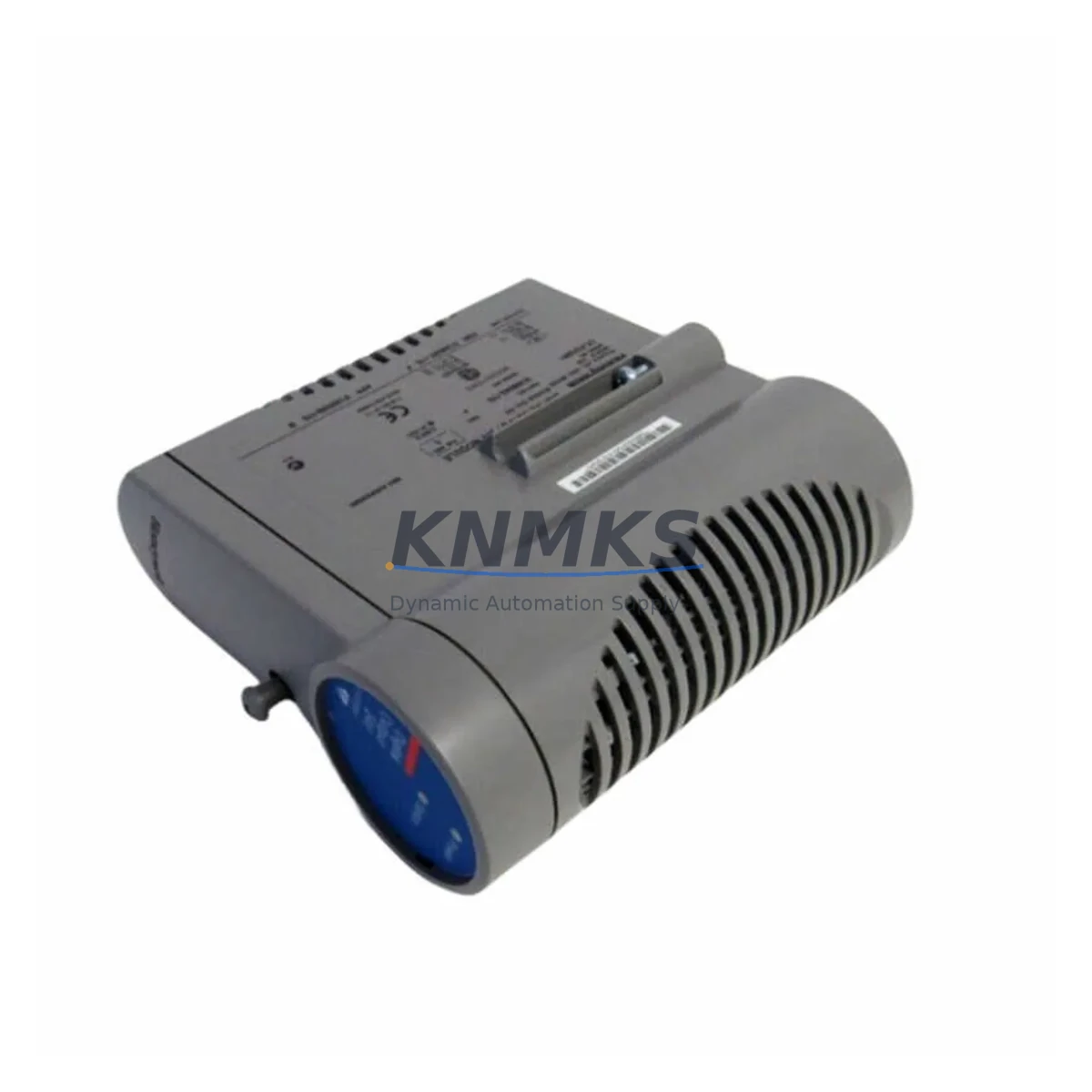

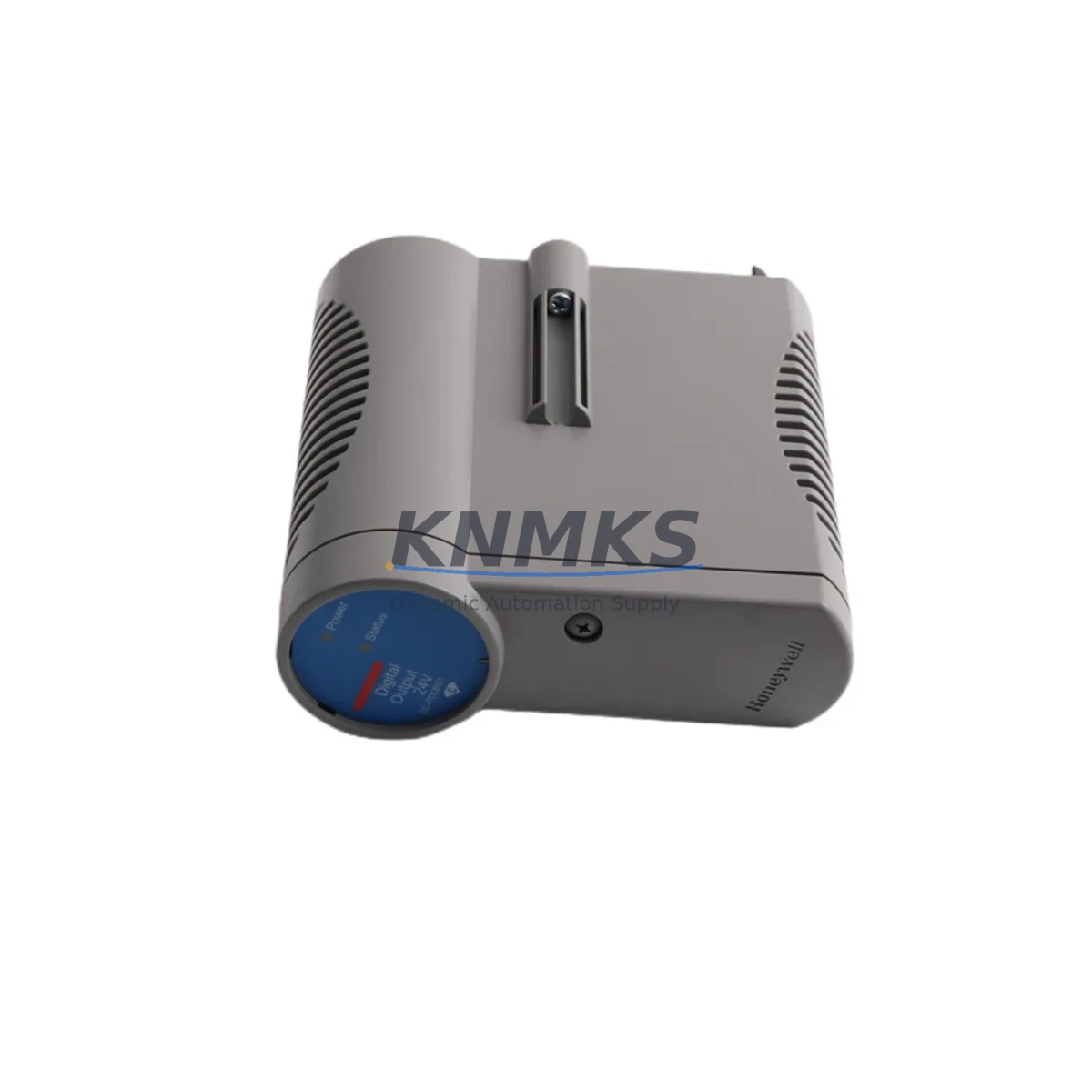

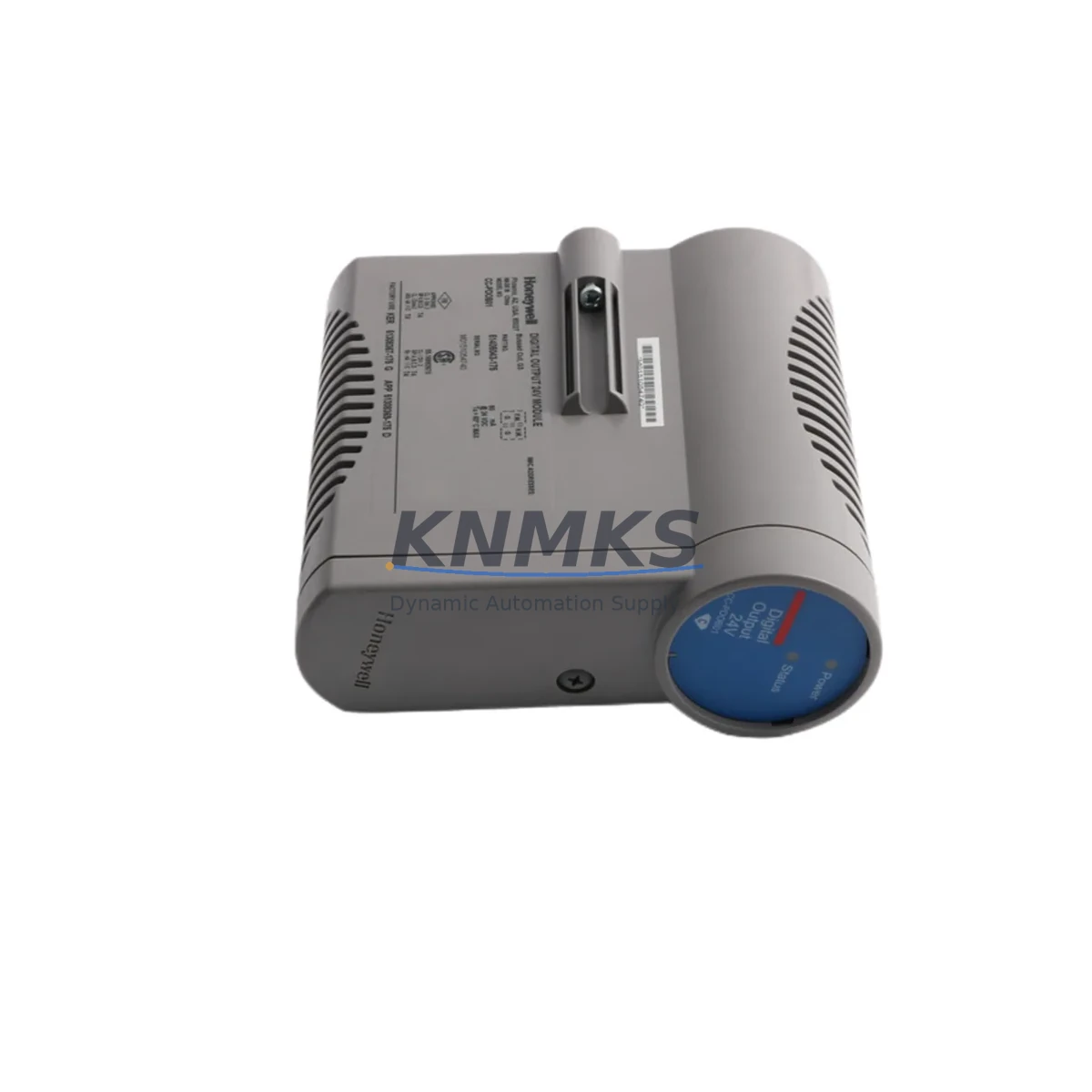

The Honeywell CC-PDOB01 (part number 51405043-175) is a process digital output module engineered for the Experion PKS C300 controller platform. As legacy Honeywell TDC 3000 and HPM (High-Performance Process Manager) systems approach end-of-life, the CC-PDOB01 serves as a validated migration path for facilities undertaking DCS modernization, control cabinet upgrades, and I/O subsystem replacements. This module is stocked, tested, and shipped with a support terms confirmed by quotation, making it a reliable choice for both emergency spare procurement and planned retrofit projects.

Before integrating the CC-PDOB01 into an existing control architecture, engineers must confirm several critical parameters. Power supply capacity on the CPPM (C300 Process Power Module) rail must support the additional load of the new output module — typically 24 VDC field power with isolated commons. Terminal block wiring must be mapped against the legacy HPM FTA (Field Termination Assembly) layout, as signal assignments and common references may differ between generations. Backplane slot addressing in the C300 chassis must be configured correctly in Experion Builder to avoid I/O address conflicts with existing CC-PAIM01 analog input modules or CC-PDIL01 digital input modules already installed in the same rack.

Program compatibility is a key concern during migration. Control strategies built in Experion PKS using Function Block Diagrams (FBD) or Sequential Function Charts (SFC) that previously referenced HPM point tags must be re-mapped to the new C300 I/O point addresses. HMI display faceplates linked to legacy DI/DO point names will require updates in the Experion Station graphics environment to reflect the new module’s tag structure. Communication link integrity between the C300 controller and the Experion server over the FTE (Fault Tolerant Ethernet) network should be validated before and after module insertion to confirm no disruption to the supervisory data highway.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the CC-PDOB01 begins well before the module arrives on site. The project team should audit the existing HPM I/O chassis to identify all digital output points currently served by legacy modules, cross-referencing each point against the control narrative and cause-and-effect matrix. Where the HPM system used a dedicated FTA panel for field wiring termination, the new C300 architecture will require a CC-TCNT01 IOTA carrier mounted in a C300 I/O chassis, with field cables re-terminated to the new terminal block layout.

Power distribution within the control cabinet must be reassessed. The CC-PDPM11 C300 Process Power Module supplies regulated power to the I/O bus; engineers should verify that the total current draw of all installed modules — including any CC-PAIM01 analog input modules, CC-PDIL01 digital input modules, and the new CC-PDOB01 digital output modules — does not exceed the CPPM rail capacity. Where power budgets are tight, an additional CC-PDPM11 may be required.

Communication infrastructure is equally important. The C300 controller communicates over FTE using a dual-redundant Ethernet topology. If the existing plant network was built around the legacy UCN (Universal Control Network) used by TDC 3000, a parallel FTE switch infrastructure must be commissioned before the C300 and its I/O modules — including the CC-PDOB01 — can be brought online. The CC-LINK01 communication module or equivalent FTE interface components should be verified as part of the network readiness assessment.

For facilities running Honeywell Safety Manager or Safety Builder alongside the DCS, the migration team must confirm that any safety-rated digital output functions are handled by the appropriate SIL-rated modules and are not inadvertently assigned to the standard CC-PDOB01, which is a non-safety process I/O module. Programming cables and Experion Builder workstation access should be arranged in advance to allow offline configuration and simulation before the physical cutover window opens.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any legacy DCS migration. When replacing HPM digital output modules with the CC-PDOB01, the recommended approach is a phased cutover: configure and test the new C300 I/O module in parallel with the live HPM system, validate all point tags and HMI faceplates in a shadow mode, and execute the physical field wiring transfer during a planned maintenance window.

Before the cutover window, the control team should export and archive the current HPM control strategy and point database as a baseline. All DO point states — valve positions, motor run/stop commands, interlock outputs — should be documented so that the field can be returned to a known safe state if the cutover must be aborted. The C300 controller’s redundancy features, including the redundant controller module pair and FTE dual-path network, should be confirmed as fully operational before the HPM is taken offline.

During the cutover, field loop checks on each digital output circuit connected to the CC-PDOB01 should be performed with the field device in a safe, de-energized state where possible. After wiring transfer and module insertion, each DO point should be exercised from the Experion Station operator console to confirm correct field response before the process is returned to automatic control. Firmware version compatibility between the CC-PDOB01 and the installed C300 controller should be confirmed in advance to avoid unexpected module rejection or communication faults on first power-up.

Post-cutover, a 72-hour monitoring period is recommended to observe module diagnostics, FTE link status, and field device response under normal operating conditions. All findings should be documented in the site’s maintenance management system to support future spare parts planning and support terms claim processing within the 12-month coverage period.

Retrofit Support FAQ

Q1: Is the CC-PDOB01 51405043-175 a direct drop-in replacement for HPM digital output modules?
No. The CC-PDOB01 is designed for the Experion PKS C300 platform and requires a C300 I/O chassis, CC-TCNT01 IOTA carrier, and FTE network infrastructure. It is not physically or electrically interchangeable with HPM I/O modules. Field wiring must be re-terminated and point tags must be re-configured in Experion Builder as part of the migration.

Q2: What commissioning steps are required after installing the CC-PDOB01?
After physical installation, confirm the module is recognized in Experion Builder with the correct slot address. Verify FTE communication link status on the C300 controller. Perform individual loop checks on each digital output circuit. Update HMI faceplates to reference the new point tags. Confirm firmware compatibility between the module and the C300 controller before enabling automatic control.

Q3: How is field wiring adapted from the legacy HPM FTA to the CC-PDOB01 IOTA carrier?
The HPM FTA terminal layout differs from the C300 IOTA carrier. A wiring mapping exercise must be completed using the HPM I/O drawing set and the CC-PDOB01 installation manual. In most cases, field cables can be re-terminated directly to the new IOTA carrier terminals, but common references, shield grounding, and isolated power commons must be verified for each circuit to avoid ground loops or incorrect output states.

Q4: What support terms and pre-shipment testing does this unit include?
All CC-PDOB01 51405043-175 units are functionally tested prior to shipment. Each unit is covered by a support terms confirmed by quotation from the date of delivery. Units are available from stock for immediate dispatch to support emergency spare requirements and planned retrofit schedules. Contact admin@knmks.com or +86 18359268345 for availability and lead time confirmation.
