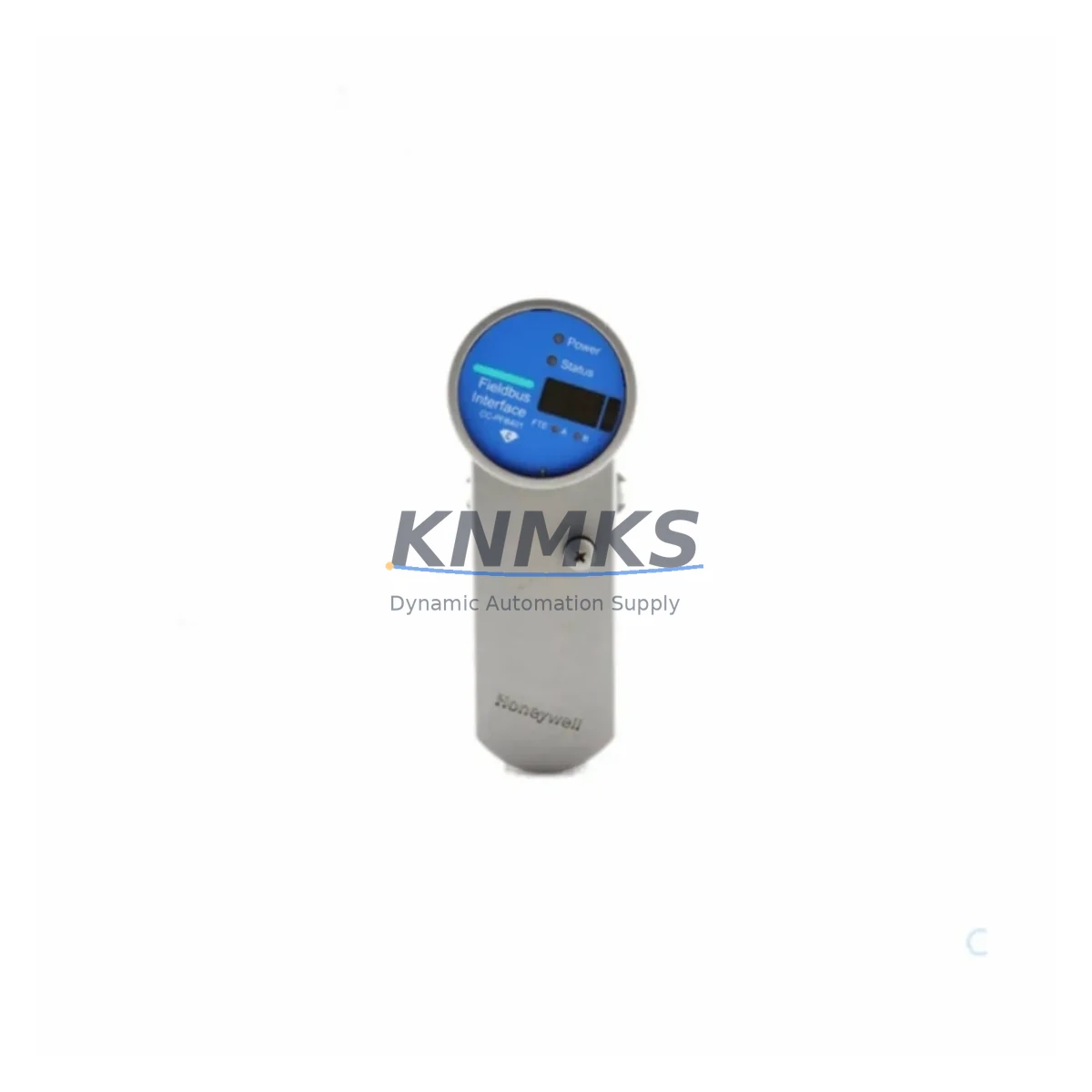

Honeywell CC-PDIL51/CC-TDIL51 Maintenance-Proven Spare Part

Overview

Honeywell CC-PDIL51/CC-TDIL51 Maintenance-Proven Spare Part for Factory Uptime

The Honeywell CC-PDIL51/CC-TDIL51 is a matched pair of 24-channel digital input modules designed for the Experion PKS C300 Controller platform. In continuous-process and batch manufacturing environments — refining, petrochemical, power generation, and advanced manufacturing — this module pair forms a critical node in the plant’s field I/O architecture. When a CC-PDIL51 (process-side DI module) or its companion CC-TDIL51 (termination assembly) degrades or fails, the associated control loop loses field signal visibility, triggering alarms, forcing manual override, and risking unplanned shutdown. Maintaining a verified spare on the shelf is the single most effective strategy to contain mean-time-to-repair (MTTR) and protect production continuity.

KNMKS stocks the CC-PDIL51/CC-TDIL51 pair as a pre-tested, serialized spare unit. Each assembly undergoes functional verification prior to dispatch, and is shipped with full support terms confirmed by quotation coverage. Our global inventory program supports rapid fulfillment for emergency breakdown orders and planned annual turnaround kits alike.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the CC-PDIL51/CC-TDIL51 pair in a live C300 cabinet is rarely an isolated task. Maintenance engineers and procurement teams should treat this module swap as a trigger for a broader cabinet health review. The following associated components warrant inspection or pre-staged sparing whenever a DI module replacement is planned:

Power Supply and Distribution: The C300 I/O chassis relies on a dedicated 24 V DC bus fed through the CC-PWRR01 or equivalent C300 power supply module. Verify bus voltage stability and check for ripple or brownout conditions that may have contributed to the DI module fault. A degraded power supply is a common root cause of intermittent digital input errors.

Field Termination and Wiring: The CC-TDIL51 termination assembly connects directly to field cable marshalling. Inspect terminal block torque, check for corroded or loose field wiring, and verify that cable shields are properly grounded at the cabinet entry point. Damaged termination assemblies — including the companion CC-TCNT01 cable assembly — should be replaced simultaneously to avoid repeat faults.

FIM and Backplane Communication: The CC-FIM01 Field Interface Module manages IOLINK communication between the C300 controller and the I/O modules. A failing FIM can present as a DI module fault. Confirm FIM firmware version compatibility with the installed Experion PKS release and check for backplane connector wear on the I/O carrier.

Signal Isolation and Surge Protection: For field loops exposed to long cable runs or outdoor marshalling, verify that signal isolators and surge protection devices (SPDs) upstream of the CC-PDIL51 inputs are functional. Degraded isolators can inject noise that causes false DI state changes, masking the true source of the fault.

Fusing and Protection: Inspect the field-side fuse blocks associated with the 24 V DC DI input circuits. Blown or high-resistance fuses are a frequent cause of channel-level failures that are misdiagnosed as module faults. Replace any suspect fuses and document the event in the maintenance log.

HMI and Alarm Validation: After module replacement, validate that the Experion Station HMI correctly reflects restored DI channel states. Confirm that no latched alarms or suppressed points remain active in the Alarm Manager that could mask future faults on the restored loop.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a valid work permit and confirm with the control room that the affected DI channels are in manual or bypassed state. Do not remove the CC-PDIL51 while field signals are live unless the system supports hot-swap under the installed firmware revision.

Step 2 — Module Identification: Record the slot address, chassis number, and FIM assignment of the failed CC-PDIL51. Cross-reference with the Experion PKS hardware configuration in Control Builder to confirm the replacement module will be recognized at the same node address.

Step 3 — Physical Replacement: Remove the faulty CC-PDIL51 from the carrier. Inspect the backplane connector for bent pins or contamination. Seat the replacement module firmly and verify the locking latch engages. Reconnect the CC-TDIL51 termination assembly and torque all field terminals to specification.

Step 4 — System Commissioning: Power the chassis and observe the module status LEDs. In Experion Control Builder, perform a hardware scan to confirm the new module is recognized. Download the I/O configuration if required. Verify all 24 DI channels report correct field states against known field conditions.

Step 5 — Return to Service: Remove bypasses and manual overrides in sequence. Confirm alarm states are clear and that the HMI displays correct process values. Document the replacement in the CMMS with the new module serial number and support terms start date.

This workflow is compatible with Experion PKS R310 through R520+ and supports direct replacement of legacy CC-PDIL01 and CC-PDIL11 variants where hardware generation permits. No re-engineering of the control strategy is required for like-for-like module substitution.

Spare Parts Support FAQ

Q1: Is the CC-PDIL51/CC-TDIL51 pair compatible with all C300 chassis generations?
The CC-PDIL51/CC-TDIL51 is designed for the Experion PKS C300 I/O platform and is compatible with standard C300 I/O carriers across R310 to R520+ releases. Compatibility with specific chassis revisions should be confirmed against the Honeywell hardware compatibility matrix for your installed Experion PKS version. KNMKS can provide pre-sale compatibility verification upon request.

Q2: What does the support terms confirmed by quotation cover, and when does it start?
The support terms confirmed by quotation cover functional defects in the module pair under normal operating conditions. The confirmed support period begins on the date of shipment from KNMKS. Support requests require the original invoice and a fault description. Modules showing evidence of field damage, incorrect installation, or voltage exceedance are evaluated on a case-by-case basis.

Q3: Can KNMKS support long-term or blanket purchase orders for this module?
Yes. KNMKS supports long-term supply agreements and buffer stock programs for high-demand Honeywell Experion PKS spare parts including the CC-PDIL51/CC-TDIL51. Blanket orders with scheduled releases are available for maintenance teams managing annual turnaround or multi-site DCS standardization programs. Contact our sales team to discuss volume pricing and lead-time guarantees.

Q4: How is the module tested before shipment?
Each CC-PDIL51/CC-TDIL51 unit is subject to a pre-shipment functional test that includes power-on verification, channel-level I/O state checking, firmware version confirmation, and visual inspection of connectors and termination hardware. Test records are retained and available upon request. Units that do not pass functional verification are not dispatched.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

CC-PDIL51/CC-TDIL51
Assorted Series

Product Family

I/O Modules

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

I/O range

Digital, analog and remote I/O modules

Common needs

Channel count, signal and bus type

Project support

PLC expansion and distributed control

Inquiry Support

• Digital and analog signal matching
• Remote station and rack expansion support
• Spare module inquiry for downtime recovery

What to Send Us

• Brand and exact model number: Honeywell CC-PDIL51/CC-TDIL51
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
