Honeywell CC-PDIL01 51405040-175 Spare Part for Factory Uptime

Overview

Honeywell CC-PDIL01 51405040-175 Spare Part for Factory Uptime

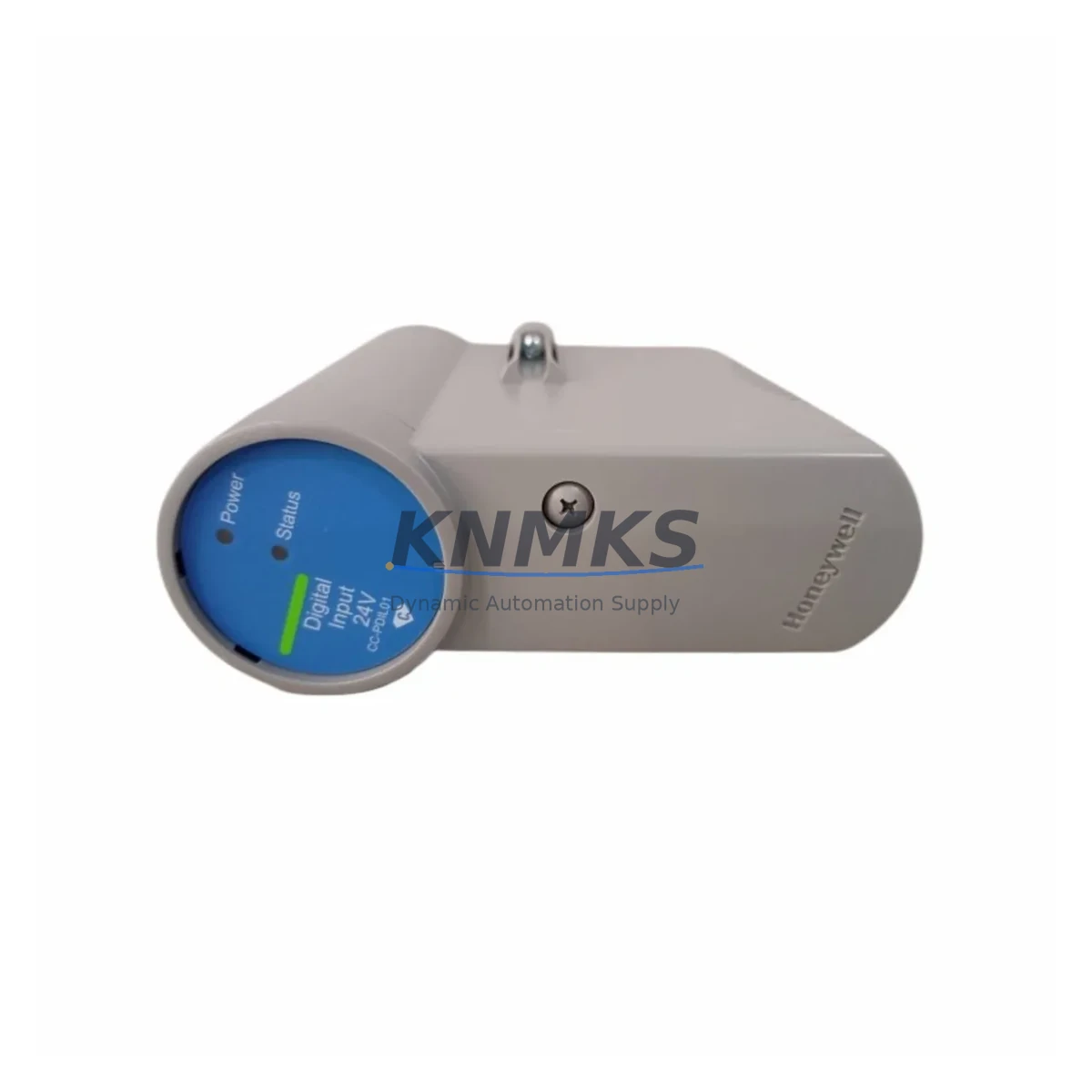

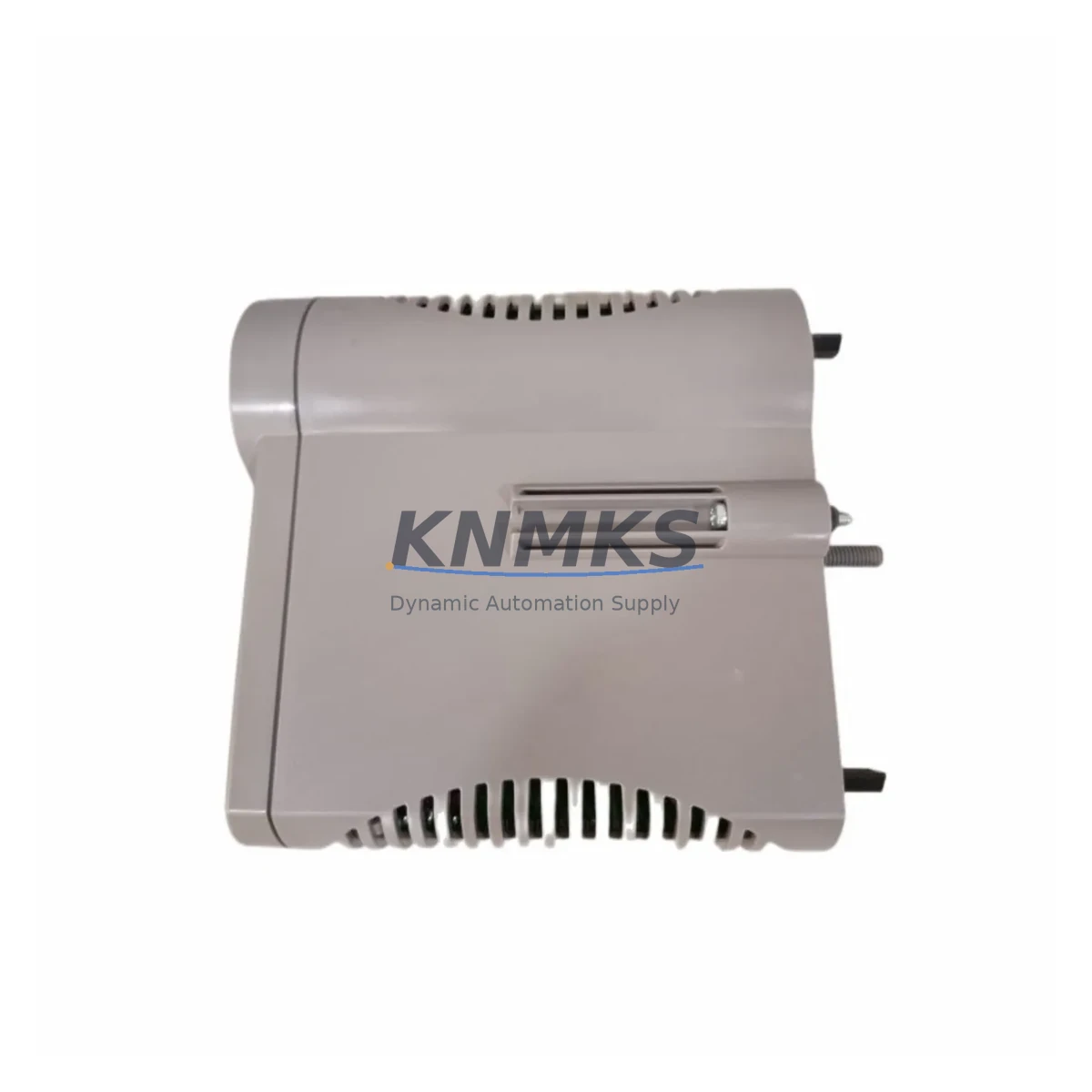

The Honeywell CC-PDIL01 (P/N 51405040-175) is an original 24 VDC digital input module engineered for the Experion PKS C300 process automation platform. As a field-proven spare, it enables maintenance teams to restore DCS functionality within a single shift, eliminating extended production outages caused by I/O module failures. Whether you are managing a scheduled turnaround, responding to an unplanned trip, or building a strategic spare-parts inventory, the CC-PDIL01 delivers the electrical compatibility and firmware alignment required for seamless drop-in replacement in C300 controller cabinets.

Each unit shipped by KNMKS undergoes pre-shipment functional verification covering channel isolation, input threshold response, and backplane communication handshake. A support terms confirmed by quotation is included on every order, providing procurement engineers with the confidence needed to approve the purchase against long-term maintenance budgets. Global logistics support ensures delivery to refineries, chemical plants, power generation facilities, and discrete manufacturing sites that depend on Honeywell Experion PKS for continuous process control.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A digital input module failure in a C300 cabinet can cascade quickly: field signals go dark, the controller loses process visibility, and operators are forced into manual mode or emergency shutdown. Proactive spare-parts planning around the CC-PDIL01 should extend to the full I/O subsystem to ensure a single component swap restores full functionality without secondary delays.

When replacing the CC-PDIL01, maintenance engineers should simultaneously inspect the CC-SCMB01 / CC-SCMB02 CIOM-A backplane for corrosion on the module connector pins and verify that the chassis power rail is delivering stable 24 VDC. The CC-PWR01 / CC-PWR02 redundant power supply modules feeding the I/O chassis are a common root cause of intermittent DI faults and should be load-tested during the same maintenance window. Field wiring terminating at the CC-TBRC01 or CC-TBRE01 terminal blocks must be checked for loose ferrules, moisture ingress, and correct polarity before the replacement module is powered on.

For sites running mixed I/O, the adjacent CC-PDOB01 digital output modules and CC-PAIM01 analog input modules in the same chassis should be inspected for similar wear indicators — particularly if the cabinet has been in service for more than five years without a scheduled overhaul. Communication integrity between the C300 controller and the CIOM-A chassis depends on the C300 controller module (CC-PCF901 / CC-PCF902) firmware version; confirm compatibility before inserting the replacement CC-PDIL01 to avoid configuration mismatch alarms. Where signal conditioning is required upstream of the DI module, verify that any signal isolators or Zener barriers in the field junction box are within calibration and not contributing to false-open readings that may have triggered the original fault.

Stocking one or two CC-PDIL01 units alongside a matched set of terminal block assemblies and a spare backplane connector kit is the minimum recommended inventory posture for facilities operating more than four C300 cabinets. This approach reduces mean time to repair (MTTR) from hours to minutes and supports annual inspection cycles without requiring emergency procurement at premium freight costs.

Site Replacement Workflow

Step 1 — Isolate and document. Place the affected C300 controller in a safe state per your site MOC procedure. Record the current module slot address, I/O tag assignments, and firmware revision displayed in Experion Station before removing the faulty CC-PDIL01.

Step 2 — Physical swap. With cabinet power confirmed stable on the redundant supply, extract the failed module by releasing the locking lever. Insert the replacement CC-PDIL01 into the same slot. The CIOM-A backplane will auto-detect the module type; no jumper changes are required for a like-for-like replacement.

Step 3 — Configuration restore. In Experion Control Builder, perform a module download to push the stored I/O configuration to the new module. Verify that all 16 input channels report correct ON/OFF states against known field conditions before releasing the controller to automatic mode.

Step 4 — Functional verification. Walk the field loop for a representative sample of channels, confirming that pushbutton, proximity switch, or valve position signals match the Experion faceplate display. Document the replacement in your CMMS with the new module serial number and support terms expiry date.

Step 5 — Spare replenishment. Initiate a purchase order for a replacement spare immediately after installation to maintain your buffer stock. KNMKS supports standing-order and blanket-PO arrangements for sites with recurring Honeywell Experion PKS maintenance programs.

Spare Parts Support FAQ

Q1: Is the CC-PDIL01 51405040-175 compatible with all C300 chassis revisions?
The CC-PDIL01 is designed for the Honeywell Experion PKS C300 platform using the CIOM-A I/O chassis. It is compatible with standard C300 controller revisions that support the Series C I/O Link protocol. For sites running early-generation C200 or C200E controllers, compatibility should be verified against your Experion release notes before ordering. KNMKS technical support can assist with cross-reference confirmation prior to shipment.

Q2: What pre-shipment testing does KNMKS perform on this module?
Every CC-PDIL01 unit is tested for channel-level input threshold response, optical isolation integrity, and backplane communication handshake before dispatch. Test records are available on request. The support terms confirmed by quotation cover functional failure under normal operating conditions and begins from the shipment date confirmed on the commercial invoice.

Q3: How quickly can the CC-PDIL01 be delivered for emergency maintenance?
KNMKS maintains ready stock of high-demand Honeywell Experion PKS spare modules. Standard orders ship within 1–3 business days. Emergency same-day dispatch is available for confirmed in-stock items when orders are placed before the daily logistics cutoff. Contact admin@knmks.com or call +86 18359268345 to confirm availability and arrange expedited freight.

Q4: Can KNMKS support long-term supply agreements for this part?
Yes. KNMKS offers blanket purchase orders, annual supply contracts, and consignment stock arrangements for maintenance teams managing multi-cabinet Honeywell Experion PKS installations. Long-term agreements include price stability commitments and priority allocation during periods of market shortage, reducing procurement risk for facilities with planned 5–10 year maintenance horizons.
