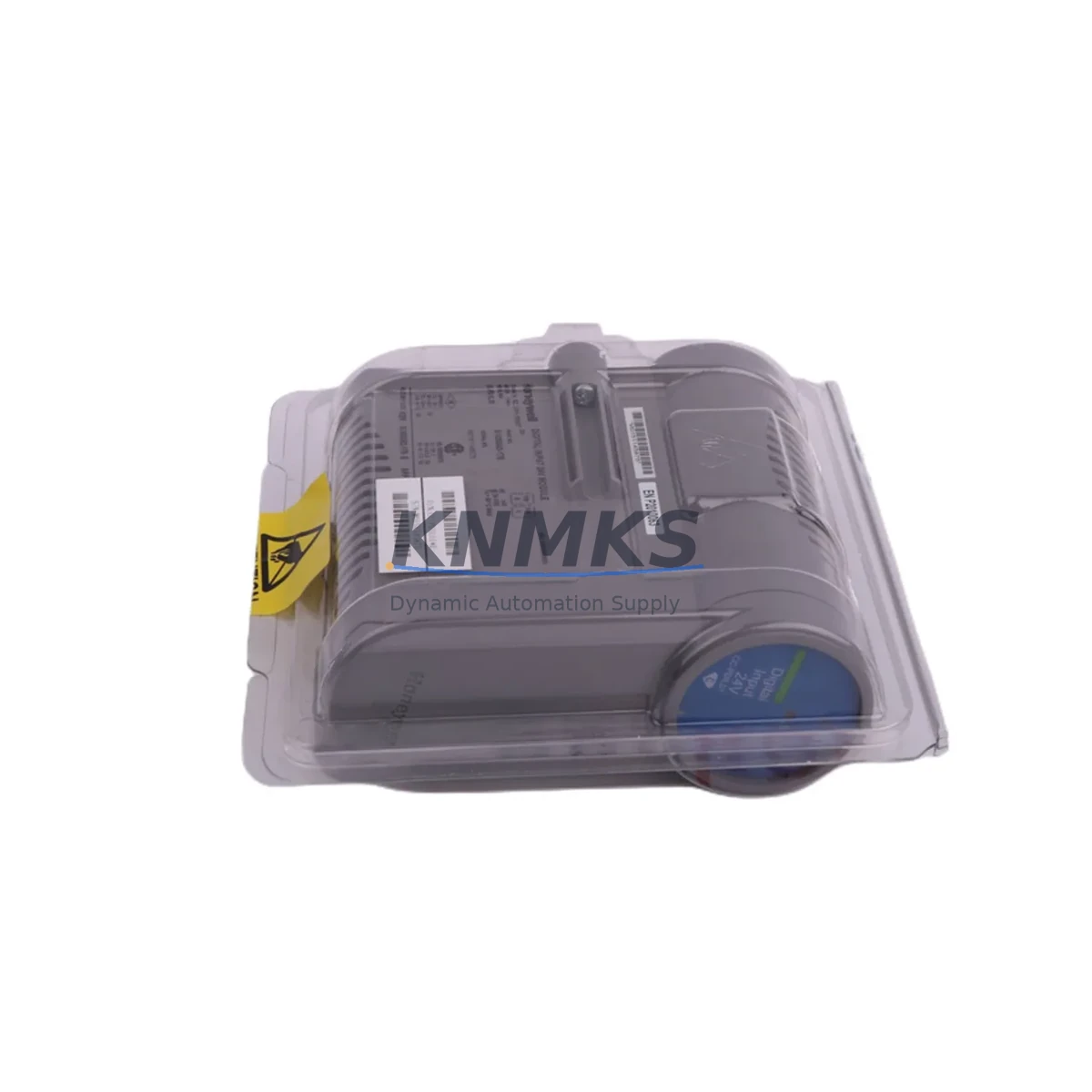

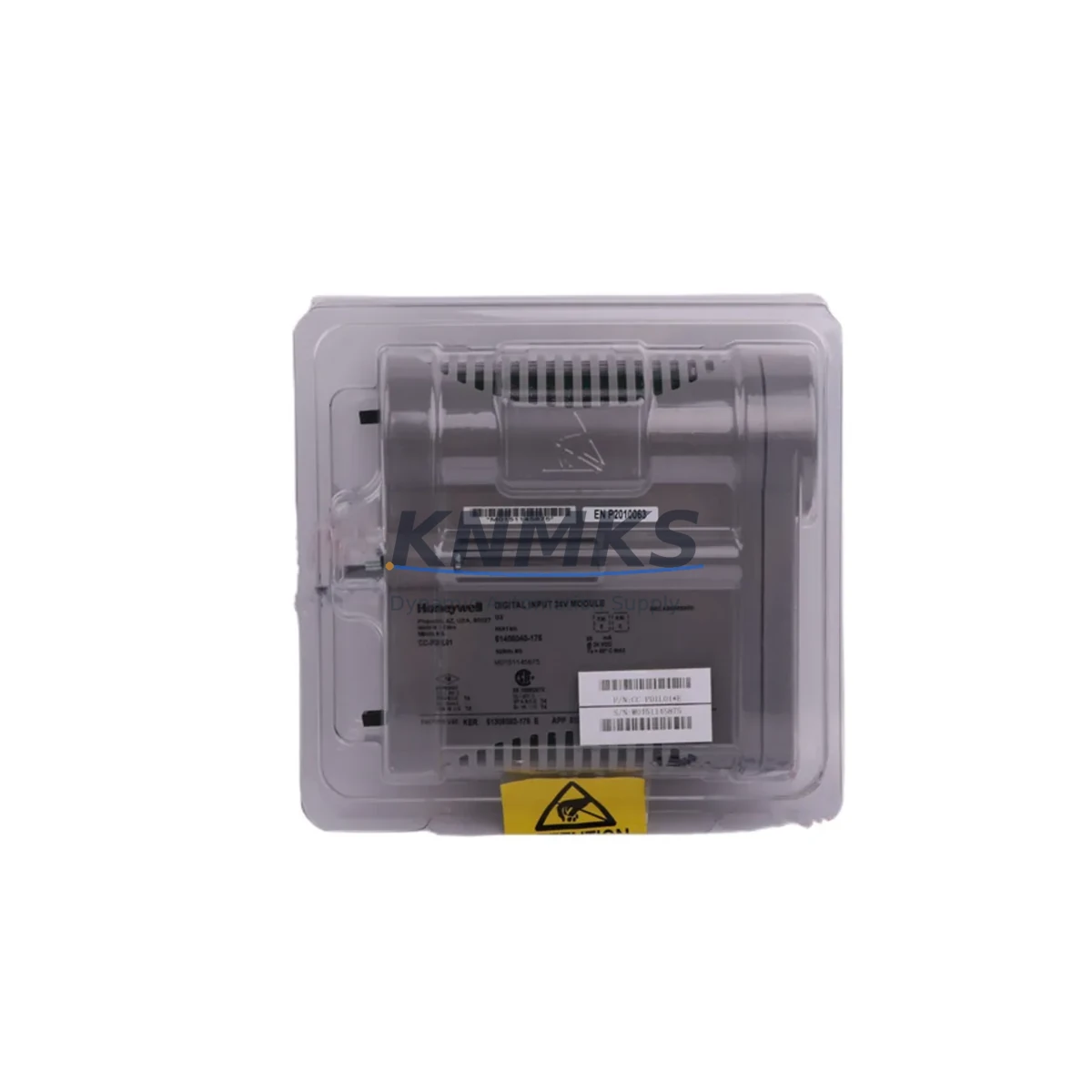

Honeywell CC-PDIL01 51405040-175 Fail-Safe Digital Input Module

Overview

Honeywell CC-PDIL01 51405040-175 Fail-Safe Digital Input Module: Fault-Tolerant Control for Critical Industrial Sites

The Honeywell CC-PDIL01 (51405040-175) is a ruggedized 24 VDC Digital Input Module engineered for the Experion PKS C300 Controller platform. Designed to operate continuously in demanding process environments — including petrochemical plants, power generation facilities, mining operations, and water treatment systems — this module delivers the signal integrity, fault isolation, and diagnostic transparency that safety-critical control loops demand.

In continuous production environments where unplanned shutdowns carry six-figure costs per hour, the CC-PDIL01 provides the deterministic input scanning and channel-level diagnostics needed to detect field wiring faults, signal loss, and sensor degradation before they escalate into process trips. Its isolated input architecture prevents ground loops and cross-channel interference, ensuring that a fault on one field device does not propagate into adjacent control logic — a fundamental requirement for SIL-rated interlock systems and emergency shutdown (ESD) circuits.

The module’s wide operating temperature range and conformal-coated PCB make it suitable for deployment in high-humidity, dusty, and vibration-prone enclosures common in metallurgical plants, port crane control cabinets, and offshore marine automation panels. When paired with the Honeywell CC-PWRR01 redundant power supply module and CC-TCNT01 controller node, the CC-PDIL01 forms part of a fully redundant I/O subsystem that maintains process visibility even during single-point hardware failures.

For control cabinet builders integrating this module into high-density marshalling panels, the CC-PDIL01’s CHARM-based I/O architecture eliminates the need for traditional junction boxes and simplifies field termination. When used alongside CC-TAIX11 analog input CHARMs and CC-TDOB11 digital output CHARMs, it enables a mixed-signal cabinet layout that reduces wiring complexity and accelerates commissioning timelines on greenfield and brownfield projects alike.

In safety instrumented systems (SIS) and process safety management (PSM) environments, the CC-PDIL01 supports the diagnostic coverage requirements of IEC 61511-compliant loop designs. Its ability to report channel health status to the Experion PKS historian enables maintenance teams to implement predictive replacement strategies — reducing the risk of latent failures in voting logic circuits (1oo2, 2oo3) used in burner management systems, compressor protection, and reactor interlock applications.

Every unit supplied by KNMKS undergoes pre-shipment functional verification, including input channel continuity checks, isolation resistance testing, and firmware version confirmation. Units are shipped in anti-static packaging with full traceability documentation. A support terms confirmed by quotation covers all hardware defects from the date of delivery, with advance replacement support available for critical-path projects.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust Experion PKS control cabinet integrating the CC-PDIL01 should be designed with layered protection across power, signal, and communication domains. On the power side, the Honeywell CC-PWRR01 redundant power supply ensures that input module scanning continues uninterrupted during primary power source failures — a non-negotiable requirement in continuous process plants where a momentary loss of field status can trigger spurious shutdowns.

For analog measurement loops running in parallel with digital interlock circuits, the CC-TAIX11 analog input CHARM provides 4–20 mA signal conditioning with open-wire detection, complementing the CC-PDIL01’s discrete status monitoring. On the output side, CC-TDOB11 digital output CHARMs close the control loop by driving solenoid valves, motor starters, and relay coils based on the input states processed by the C300 controller.

In high-EMI environments — such as variable frequency drive (VFD) rooms, arc furnace control buildings, or substations — the CC-TCNT01 controller node module provides the communication backbone that maintains data integrity between the I/O subsystem and the Experion server, even under severe electromagnetic interference. For cabinets requiring physical separation of safety and basic process control (BPCS) circuits, the CC-SCMB02 system cabinet module supports the structural segregation required by IEC 61511 and NFPA 72 guidelines.

Critical Industrial Safety Applications

The CC-PDIL01 is deployed across a broad spectrum of safety-critical industries where control interruption is not an option:

Petrochemical & Refining: Used in emergency shutdown (ESD) and fire-and-gas (F&G) systems to monitor valve position feedback, pressure switch states, and flame detector outputs. Its channel isolation prevents a single field fault from masking adjacent interlock signals in SIL 2-rated loops.

Power Generation: Integrated into turbine protection and boiler management systems where discrete input scanning must remain deterministic under high-frequency electrical noise from generator excitation systems and bus transfer switching events.

Mining & Mineral Processing: Deployed in conveyor interlock systems, crusher protection panels, and ventilation control cabinets where dust ingress, vibration, and wide temperature swings demand a module with conformal coating and robust mechanical mounting.

Water & Wastewater Treatment: Monitors pump run/fail status, valve open/close confirmation, and level switch states in SCADA-integrated treatment plants, where reliable digital input data is essential for regulatory compliance and overflow prevention.

Metallurgy & Steel: Supports ladle transfer interlocks, furnace door position monitoring, and cooling water flow confirmation in environments with extreme thermal gradients and high electromagnetic interference from induction heating equipment.

Port & Marine Automation: Used in crane control systems and ship-to-shore equipment where salt-air corrosion resistance, vibration tolerance, and reliable communication to the supervisory system are mandatory for safe cargo handling operations.

Safety and Quality FAQ

Q1: What support terms does KNMKS provide for the CC-PDIL01 51405040-175?
All CC-PDIL01 units supplied by KNMKS carry a support terms confirmed by quotation from the date of delivery. This covers hardware defects in materials and workmanship. Advance replacement units are available for critical-path projects to minimize process downtime during any support terms claim.

Q2: What pre-shipment testing is performed on each unit?
Every unit undergoes a structured pre-shipment inspection that includes input channel functional verification, channel-to-channel isolation resistance testing, firmware version confirmation against the customer’s specified revision, and visual inspection for physical damage. Full test documentation is available upon request.

Q3: Is the CC-PDIL01 compatible with all Experion PKS C300 system revisions?
The CC-PDIL01 is designed for the Honeywell Experion PKS CHARM I/O architecture and is compatible with C300 controller revisions supporting CHARM-based I/O assemblies. KNMKS recommends confirming the target firmware revision with your system integrator prior to ordering. Our technical team can assist with revision compatibility verification at no charge.

Q4: Can KNMKS support long-term or repeat supply of this module?
Yes. KNMKS maintains standing inventory of the CC-PDIL01 and other Honeywell Experion PKS components to support both emergency replacement and planned maintenance programs. We offer scheduled supply agreements for customers managing multi-site DCS standardization programs, ensuring consistent part availability without lead-time risk.
