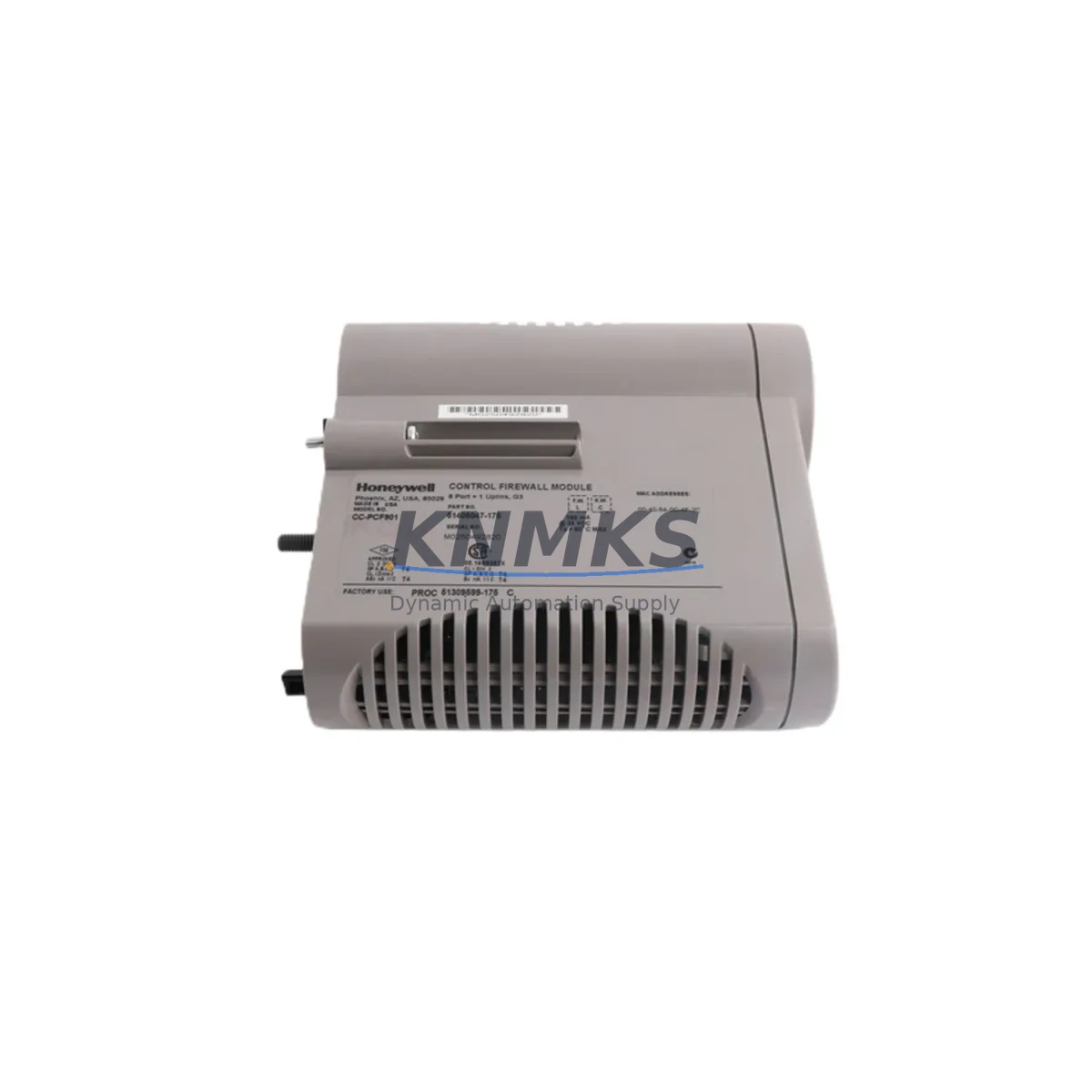

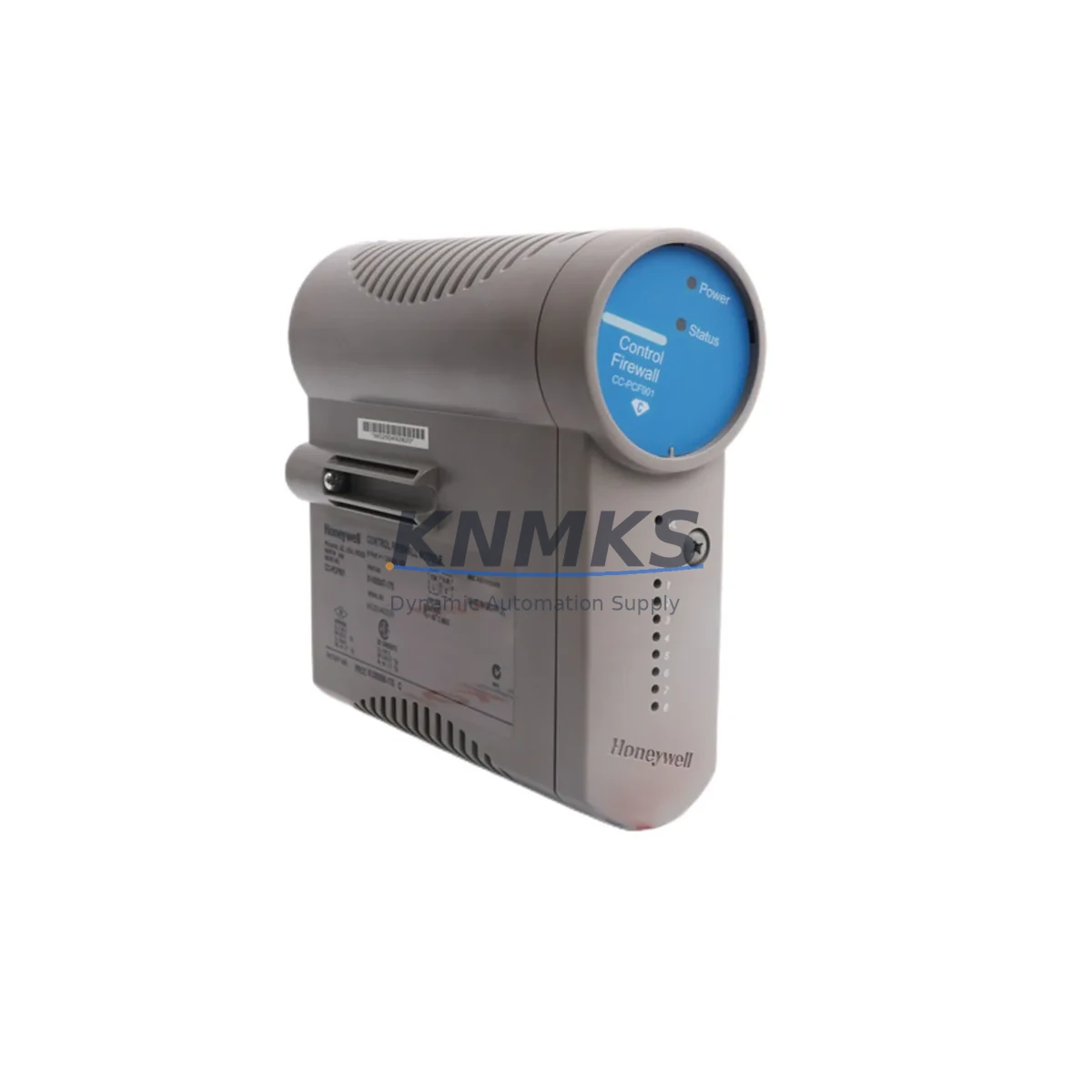

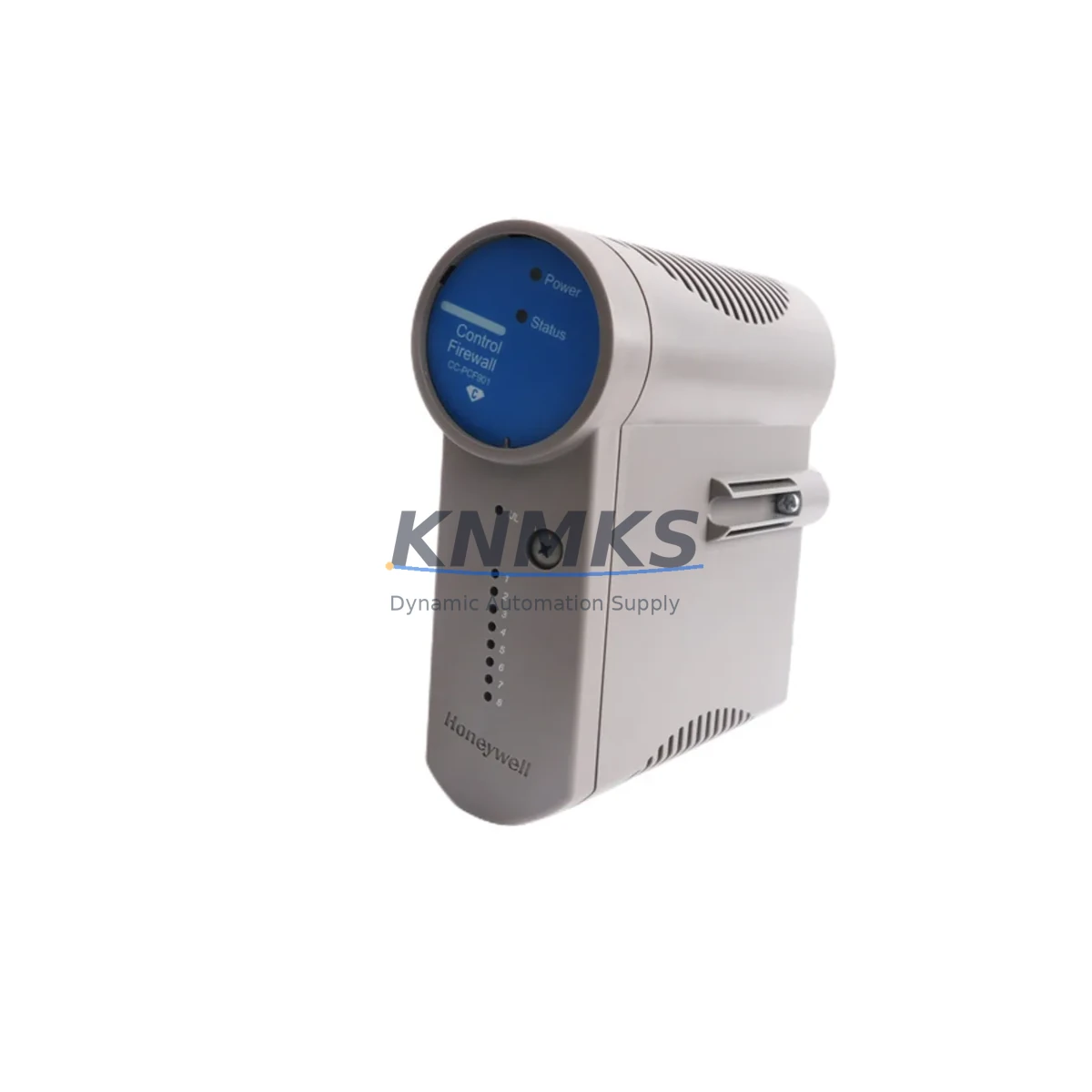

Honeywell CC-PCF901 51405047-175 Fail-Safe Control Firewall

Overview

Honeywell CC-PCF901 51405047-175 Fail-Safe Control Firewall: Fault Protection and Critical Industrial Reliability

The Honeywell CC-PCF901 51405047-175 is a safety-grade control firewall module engineered for the Experion PKS Distributed Control System platform. Designed to operate continuously in demanding industrial environments, this module provides deterministic network segmentation and fail-safe communication isolation between the process control network and higher-level supervisory layers. In continuous production facilities where an unplanned control interruption can cascade into a full-line shutdown, the CC-PCF901 serves as a hardened boundary device that maintains system integrity even under abnormal operating conditions.

Industrial control cabinets in petrochemical, power generation, and metallurgical plants are routinely exposed to high electromagnetic interference, voltage transients, and ground potential fluctuations. The CC-PCF901 is built to withstand these conditions without signal drift or communication anomalies. Its internal architecture enforces strict traffic filtering, preventing unauthorized data packets from reaching the controller layer — a critical safeguard in safety instrumented systems where a single spurious command can trigger an unintended actuator response or disable a protective interlock.

In high-availability control architectures, this module is typically deployed alongside the Honeywell CC-PCNT01 process controller node and the CC-PWRR01 redundant power supply module, forming a resilient cabinet assembly capable of sustaining operation through single-point hardware failures. The firewall’s passive fail-safe design ensures that a module fault does not propagate a control-disabling condition to the connected process network — the system defaults to a known safe state rather than an indeterminate one.

For facilities operating under IEC 61511 or IEC 62443 cybersecurity frameworks, the CC-PCF901 provides the physical and logical network boundary required to maintain zone and conduit integrity. When paired with the Honeywell CC-SCMB02 system cabinet module bus and the CC-TAIX11 analog input termination assembly, the complete I/O and communication chain achieves the isolation depth necessary for SIL-rated loop verification. This is particularly relevant in water treatment, mining extraction, and offshore platform control systems where safety loop integrity is subject to third-party audit.

Vibration, thermal cycling, and condensation are persistent threats in outdoor switchgear enclosures and ship-board control rooms. The CC-PCF901’s conformal-coated PCB and industrial-grade connector system are rated for extended operation across a wide temperature range, resisting the mechanical fatigue and corrosion that degrade standard commercial networking hardware in these environments. Field experience in port crane control systems and continuous casting lines confirms stable operation across multi-year deployment cycles without requiring recalibration or firmware intervention.

Surge protection is a frequently overlooked failure mode in control cabinet design. Inductive load switching, nearby lightning strikes, and utility grid disturbances can inject transient energy into the control network through improperly bonded cable shields or inadequate surge suppression. The CC-PCF901’s internal transient voltage suppression circuitry provides a secondary line of defense, complementing upstream surge protection devices such as the Honeywell CC-PWRR01 power conditioning module. This layered protection strategy reduces the probability of communication hardware damage during electrical events that would otherwise require emergency module replacement and unplanned downtime.

Spare parts availability is a critical operational consideration for facilities running Experion PKS systems beyond their original commissioning lifecycle. KNMKS maintains verified stock of the CC-PCF901 51405047-175 with full pre-shipment functional testing, ensuring that replacement units arrive ready for installation without requiring additional bench verification. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Global logistics support is available for urgent dispatch to minimize mean time to repair in critical process environments.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust Experion PKS control cabinet integrating the CC-PCF901 51405047-175 typically includes several complementary protection layers. The Honeywell CC-PCNT01 process controller node handles real-time scan execution and I/O arbitration, while the CC-PWRR01 redundant power supply module ensures uninterrupted DC bus voltage even during primary supply failures. Network traffic entering the controller domain passes through the CC-PCF901 firewall boundary, where unauthorized or malformed packets are filtered before reaching the control processor.

On the field I/O side, the Honeywell CC-TAIX11 analog input termination assembly and CC-TDOB01 digital output termination board connect process signals to the controller through the CC-SCMB02 system cabinet module bus. This structured wiring architecture, combined with the firewall’s network isolation, creates a defense-in-depth posture that addresses both cyber threats and electrical interference simultaneously. In high-vibration environments such as compressor stations or rolling mill control rooms, all modules are secured with locking rail clips and the cabinet is fitted with anti-vibration mounts to prevent connector fretting — a common cause of intermittent communication faults that are difficult to diagnose without systematic root cause analysis.

Critical Industrial Safety Applications

The CC-PCF901 51405047-175 is deployed across a broad range of critical industrial sectors. In petrochemical and refinery environments, it provides the network boundary between the basic process control system and the safety instrumented system, ensuring that a cybersecurity event on the business network cannot propagate commands to emergency shutdown valves or high-integrity pressure protection systems. In power generation facilities, it isolates turbine control networks from plant-wide SCADA infrastructure, preventing unauthorized polling traffic from introducing latency into time-critical governor control loops.

In mining and mineral processing operations, where control cabinets are exposed to conductive dust, high humidity, and frequent ground faults, the CC-PCF901’s robust isolation architecture prevents ground loop currents from corrupting communication signals between the DCS and remote I/O panels. Water and wastewater treatment facilities rely on this module to maintain separation between chemical dosing control networks and public-facing monitoring interfaces, a requirement increasingly mandated by national infrastructure protection regulations. In port and terminal automation systems, the firewall supports continuous crane and conveyor control operations by preventing network storms generated by IT systems from disrupting real-time motion control communications.

Safety and Quality FAQ

Q: What does the support terms confirmed by quotation cover?
A: The support terms covers manufacturing defects and functional failures occurring under normal operating conditions for 12 months from the date of shipment. Units that fail functional verification upon receipt or develop faults during the confirmed support period are eligible for replacement or repair at no additional cost. Contact admin@knmks.com to initiate a support terms claim.

Q: How is each CC-PCF901 tested before shipment?
A: Every unit undergoes full functional verification prior to dispatch, including communication interface testing and visual inspection for physical damage. This pre-shipment protocol ensures that replacement units are field-ready and eliminates the risk of receiving a non-functional module during an emergency repair situation.

Q: Is the CC-PCF901 51405047-175 compatible with all Experion PKS system versions?
A: The CC-PCF901 is designed for the Honeywell Experion PKS platform and is compatible with the standard C300 controller and associated cabinet infrastructure. For specific firmware version compatibility or integration with upgraded Experion R500+ environments, consult your system documentation or contact our technical team for pre-purchase verification.

Q: Can long-term supply be guaranteed for ongoing maintenance programs?
A: KNMKS maintains dedicated stock of critical Experion PKS spare modules including the CC-PCF901 to support long-term maintenance contracts and planned turnaround schedules. For facilities requiring guaranteed availability under a service agreement, contact admin@knmks.com to discuss reserved stock arrangements and lead time commitments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

CC-PCF901 51405047-175
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell CC-PCF901 51405047-175
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
