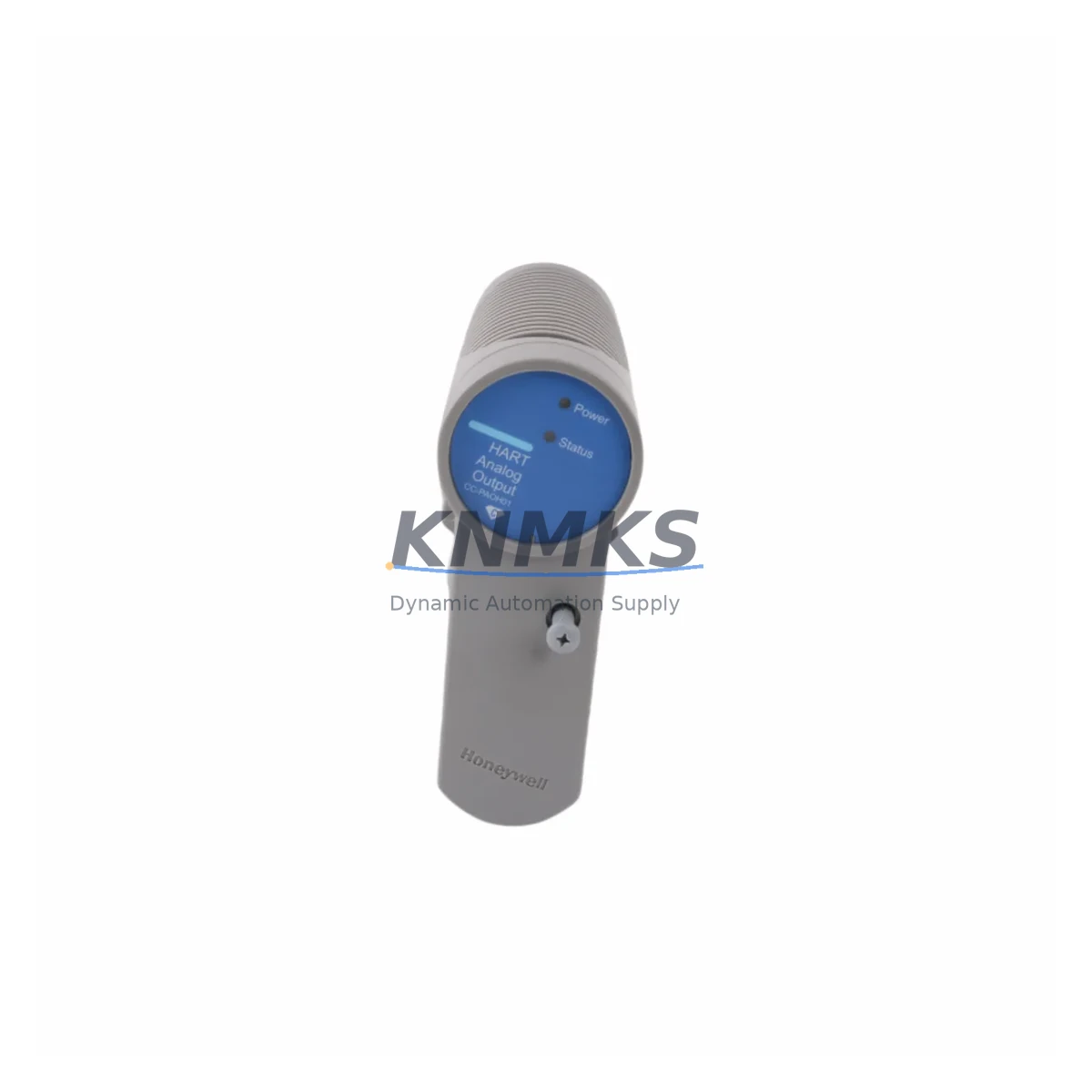

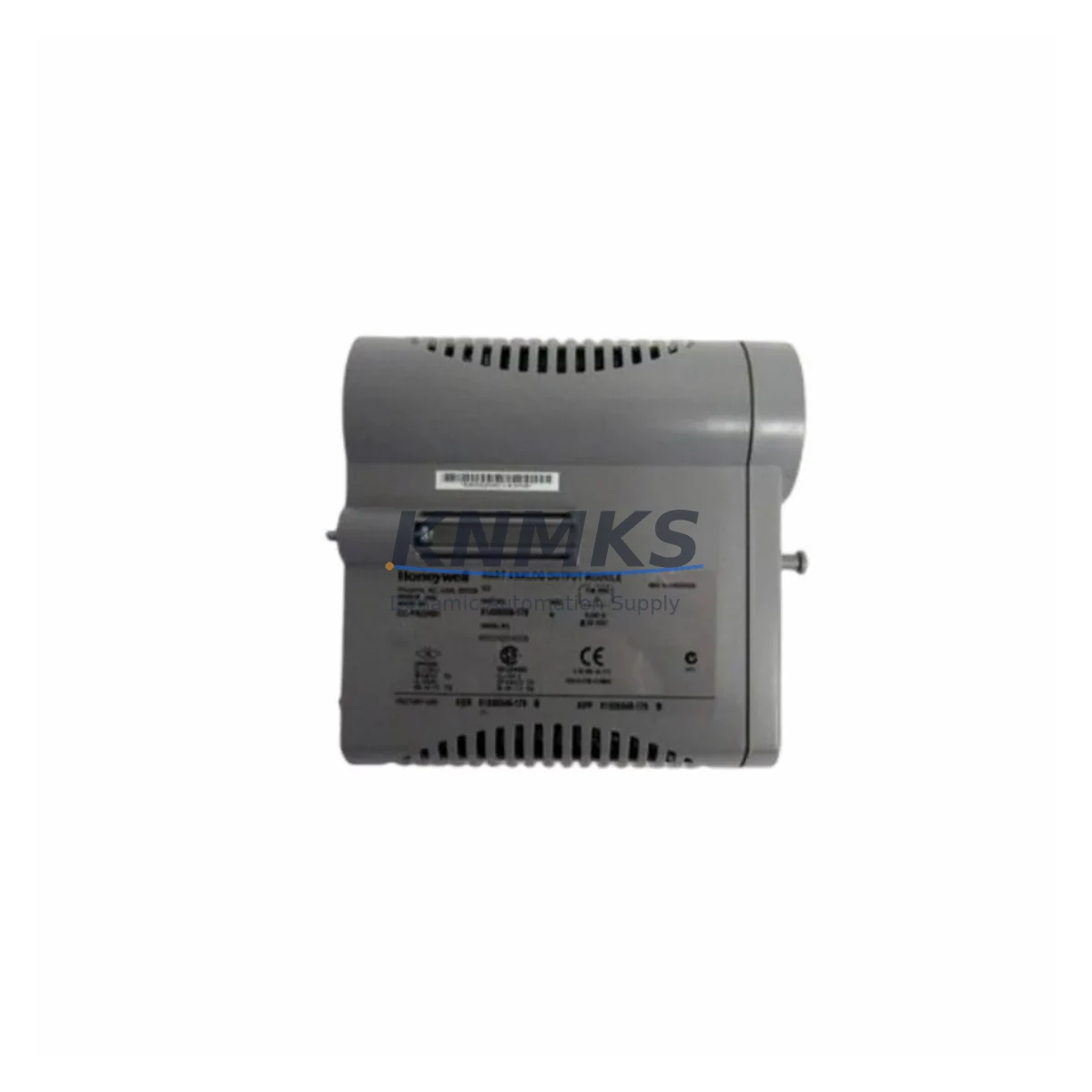

Honeywell CC-PAOH01 51405039-176 Migration-Ready Analog Output

Overview

Honeywell CC-PAOH01 51405039-176 Migration-Ready Analog Output for Legacy Control Systems

The Honeywell CC-PAOH01 (part number 51405039-176) is a migration-ready analog output module designed for the Experion PKS C300 Distributed Control System platform. As legacy DCS installations approach end-of-support milestones, engineering teams managing scheduled outages, emergency replacements, and phased control system upgrades rely on verified drop-in replacements to maintain process continuity. The CC-PAOH01 delivers 8-channel 4–20 mA analog output capability within the standard C300 I/O chassis, making it a direct retrofit candidate for aging TDC 3000, PlantScape, and early Experion R100–R310 installations transitioning to current Experion PKS R500 and above architectures.

Each unit shipped from KNMKS stock is pre-tested against Honeywell factory specifications, covering channel-to-channel isolation, output accuracy, loop power compliance, and HART pass-through integrity where applicable. A support terms confirmed by quotation is included with every shipment, backed by multi-region inventory maintained for fast global dispatch to support both emergency callouts and planned turnaround windows.

When planning a C300 analog output replacement, engineers must verify the existing CHARM I/O or traditional I/O architecture in use. In traditional C300 I/O configurations, the CC-PAOH01 mounts directly into the C300 I/O Link chassis alongside companion modules such as the CC-PAIM01 analog input module and the CC-PDOB01 digital output module. Backplane slot addressing must be confirmed against the current Control Builder configuration to avoid address conflicts during hot-swap or cold-replacement procedures. Terminal block wiring follows the standard Honeywell 16-pin field termination assembly; confirm the FTA model in use — typically the MC-TAOY22 or equivalent — before ordering to ensure terminal pitch and loop wiring compatibility.

For sites migrating from TDC 3000 High-Performance Process Manager (HPPM) or Advanced Process Manager (APM) architectures, the CC-PAOH01 is part of a broader I/O migration strategy that typically also involves replacing the CC-TCNT01 communication controller, updating the C300 controller firmware to the target release, and reconfiguring the Experion Server data acquisition points. HMI faceplates referencing legacy analog output tags must be updated in the Experion Station display builder to reflect the new module addressing and engineering unit scaling. Confirm firmware compatibility between the C300 controller revision and the I/O module firmware before commissioning — mismatched firmware versions can cause channel initialization failures that extend downtime beyond the planned maintenance window.

Power budget verification is a critical pre-installation step. The CC-PAOH01 draws supply current from the C300 I/O chassis power supply; when adding or replacing modules in a populated chassis, confirm that the total module load does not exceed the rated output of the installed power supply unit. In high-density cabinets where the CC-PWR001 or equivalent chassis power supply is already near capacity, a supplemental power supply or load redistribution across chassis may be required before the replacement module can be safely commissioned.

Communication link integrity between the C300 controller and the I/O chassis must be validated after module replacement. The C300 uses a proprietary I/O Link protocol over the backplane; after seating the CC-PAOH01, confirm that the module status LED sequence completes normally and that the Control Builder online diagnostic view shows the module in the expected healthy state before releasing the loop to automatic control. For sites using redundant C300 controllers, the switchover behavior of the analog output channels should be tested under simulated controller failover conditions prior to returning the loop to service.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful CC-PAOH01 retrofit begins well before the maintenance window opens. The following planning checklist covers the key integration touchpoints that engineering teams must address when replacing analog output capacity in a C300-based control system.

I/O Architecture Audit: Determine whether the target cabinet uses traditional C300 I/O or CHARM I/O. The CC-PAOH01 is a traditional I/O module and is not interchangeable with CHARM analog output modules. If the site has already partially migrated to CHARM, the replacement strategy must account for the mixed I/O architecture and the corresponding Control Builder configuration differences.

Companion Module Inventory: In most C300 I/O chassis, the CC-PAOH01 operates alongside the CC-PAIM01 analog input module, the CC-PDOB01 digital output module, and the CC-PDIB01 digital input module. Confirm the health status of all modules in the affected chassis before the outage — a failing neighbor module can cause bus errors that mask the root cause of the original fault and complicate post-replacement diagnostics.

Controller and Communication Verification: The C300 controller (CC-PCF901 or CC-PCF902 depending on revision) must be online and in a known-good state before the I/O module replacement begins. Verify the I/O Link cable connections between the controller and the I/O chassis, and confirm that the CC-TCNT01 communication controller (where present in legacy hybrid configurations) is not contributing to the fault condition being addressed.

FTA and Field Wiring: The field termination assembly connected to the CC-PAOH01 carries all loop wiring for the 8 output channels. Before removing the module, photograph or document the terminal assignments for each channel. After seating the replacement module, verify loop continuity on each channel before enabling automatic control output. In HART-enabled loops, re-establish HART communication from the Experion Asset Manager or a handheld HART communicator to confirm device recognition.

HMI and Historian Continuity: Analog output tag references in Experion Station displays and in the Uniformance PHD or equivalent historian must remain consistent across the replacement. If the module address changes for any reason, update all affected display faceplates, alarm setpoints, and historian collection tags before returning the loop to service. Coordinate with the control room operator to confirm that all affected displays are reading correctly before closing the work order.

Downtime Control During System Migration

Minimizing unplanned downtime during a CC-PAOH01 replacement requires a structured approach that protects the existing program logic, maintains field control continuity, and reduces the risk of commissioning errors extending the outage window.

Pre-Outage Preparation: Export and archive the current Control Builder configuration for the affected C300 controller before beginning any hardware work. This backup serves as the recovery baseline if the replacement module requires a configuration reload or if a firmware mismatch is discovered during commissioning. Store the backup on a local engineering workstation and on the site’s configuration management server.

Hot-Swap vs. Cold-Replacement Decision: The C300 I/O architecture supports online module replacement in some configurations, but analog output modules driving active control loops should be replaced during a planned process hold or with the affected loops placed in manual mode at the field device level. Confirm with the process engineer whether the loops served by the CC-PAOH01 can tolerate a brief output interruption or whether a bumpless transfer strategy is required.

Commissioning Sequence: After seating the replacement module, follow the standard Honeywell commissioning sequence: confirm module LED status, verify Control Builder online diagnostics, perform a channel-by-channel output check against a calibrated milliamp meter or loop calibrator, and confirm HART device recognition where applicable. Do not return loops to automatic control until all channels have been verified at both 4 mA (0%) and 20 mA (100%) output levels.

Post-Replacement Validation: Document the replacement in the site’s maintenance management system, including the module serial number, firmware version, installation date, and the name of the commissioning engineer. Update the spare parts inventory to reflect the consumed unit and initiate a replenishment order to maintain the site’s minimum stock level for CC-PAOH01 and related C300 I/O modules.

Retrofit Support FAQ

Q1: Is the CC-PAOH01 (51405039-176) a direct drop-in replacement for older Honeywell analog output modules in TDC 3000 or PlantScape systems?
The CC-PAOH01 is designed for the Experion PKS C300 I/O chassis and is not physically or electrically interchangeable with TDC 3000 HPPM or PlantScape I/O modules. A migration from TDC 3000 to C300 requires a structured I/O migration project that includes new chassis, FTAs, and Control Builder reconfiguration. Within the C300 platform, the CC-PAOH01 is a direct slot-compatible replacement for a failed or end-of-life CC-PAOH01 unit of the same part number revision.

Q2: What pre-shipment testing is performed on each CC-PAOH01 unit?
Every CC-PAOH01 shipped by KNMKS is tested for channel-to-channel isolation, output accuracy across the 4–20 mA range, loop power compliance, and HART pass-through integrity where applicable. A test report is available upon request. Each unit carries a support terms confirmed by quotation from the shipment date covering manufacturing defects and functional failures under normal operating conditions.

Q3: How do I confirm firmware compatibility before installing the replacement module?
Check the firmware version label on the module’s circuit board or housing and compare it against the Honeywell Experion PKS compatibility matrix for your installed C300 controller revision. The compatibility matrix is available in the Experion PKS I/O Module Installation and Maintenance Guide. If the firmware versions are mismatched, contact KNMKS before installation — in some cases, a firmware-matched unit can be sourced from stock to avoid an on-site firmware update procedure.

Q4: What is the lead time and stock availability for the CC-PAOH01 51405039-176?
KNMKS maintains multi-region stock of the CC-PAOH01 to support both emergency callouts and scheduled maintenance windows. Standard lead time for in-stock units is 1–3 business days for global dispatch. For sites requiring guaranteed availability for planned turnarounds, KNMKS offers advance reservation and long-term supply agreements. Contact admin@knmks.com or call +86 18359268345 to confirm current stock levels and arrange shipment.
