Honeywell CC-PAOH01 51405039-175 Migration-Ready AO Module

Overview

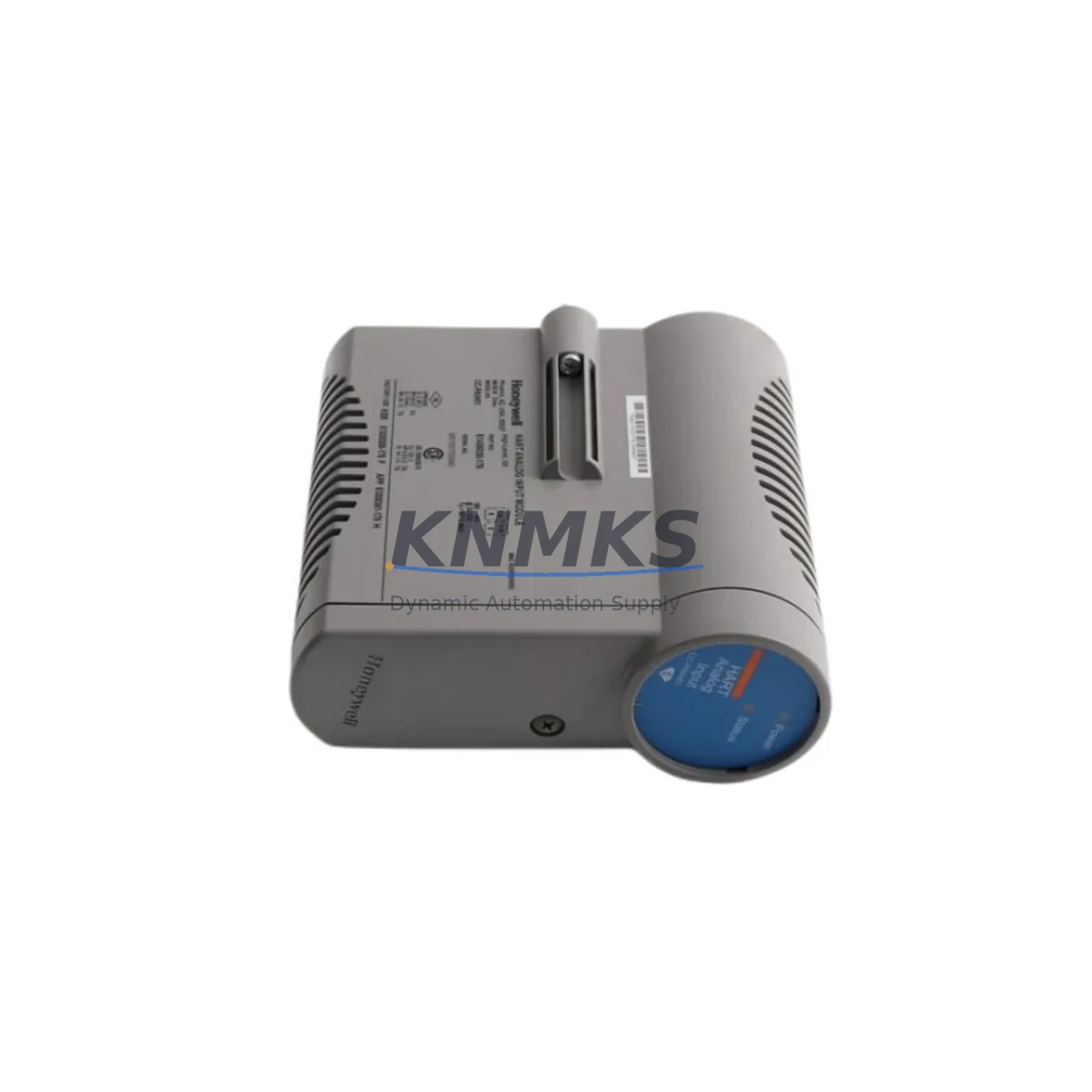

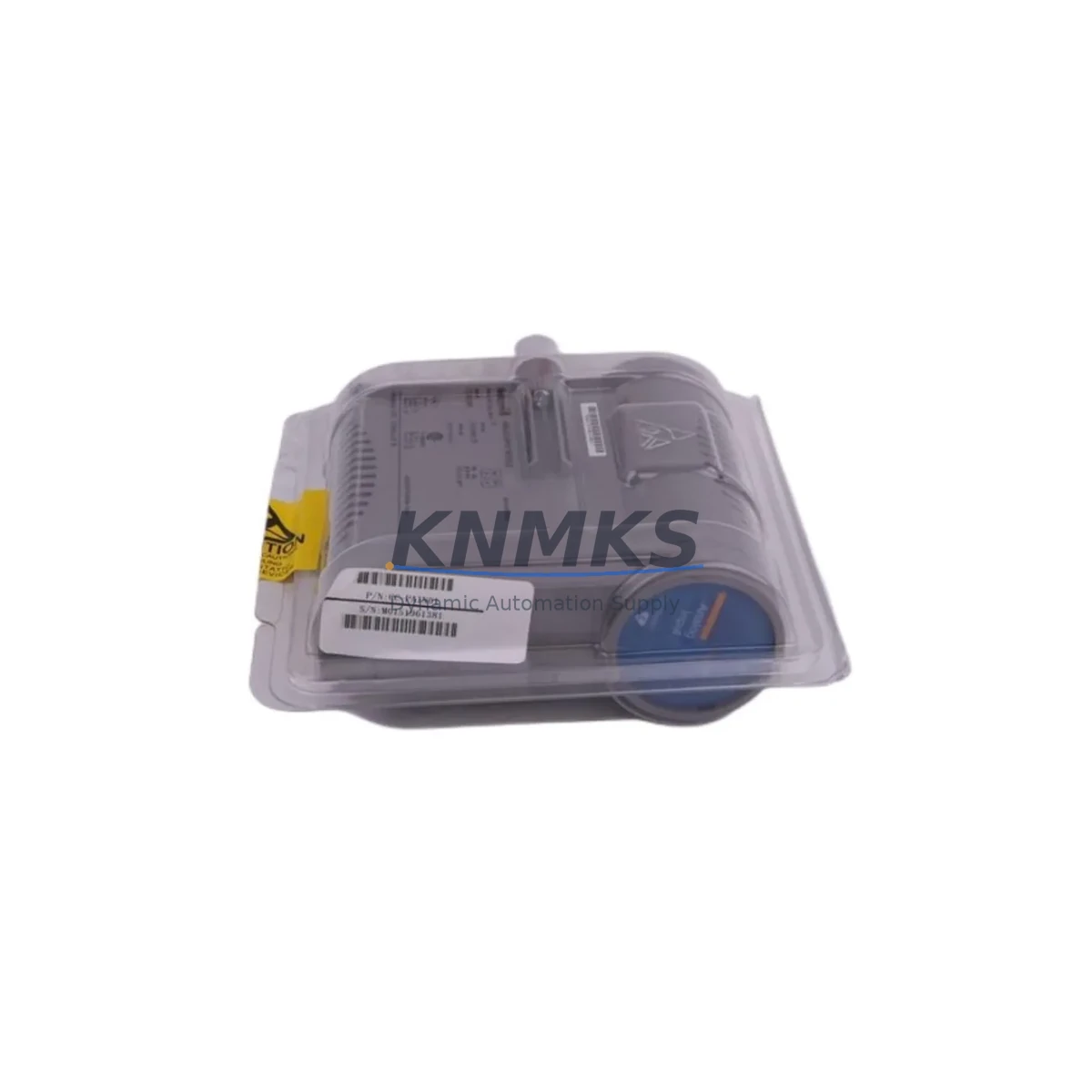

Honeywell CC-PAOH01 51405039-175 Migration-Ready Analog Output Module for Legacy DCS Systems

The Honeywell CC-PAOH01 (part number 51405039-175) is an 8-channel analog output module designed for the Experion PKS C300 distributed control system platform. As legacy DCS installations age and original spare parts become increasingly difficult to source, the CC-PAOH01 has become a critical component in retrofit and modernization projects across refining, petrochemical, power generation, and continuous process industries. This module provides 4–20 mA current output signals compatible with field-mounted control valves, variable frequency drives, and positioners, making it a direct functional replacement for aging or discontinued analog output hardware in C300-based control cabinets.

When planning a replacement of the CC-PAOH01 in an existing Experion PKS installation, engineers must verify several key parameters before committing to a swap. Power supply capacity within the C300 chassis is the first checkpoint — the module draws regulated 24 VDC from the backplane, and the chassis power budget must accommodate the full I/O load including any co-installed modules such as the CC-PAIM01 analog input module or CC-PDOB01 digital output module. Terminal block wiring must be confirmed against the existing field wiring schedule, as the CC-PAOH01 uses a 40-pin I/O termination assembly; mismatched termination types between the original and replacement unit can require field rewiring that extends downtime significantly.

Backplane slot addressing is another critical factor. In the C300 architecture, module slot assignments are defined in the Experion PKS Control Builder configuration. Before removing the original CC-PAOH01, the module address, channel assignments, and associated control strategy blocks must be documented. If the replacement module is installed in a different slot position, the Control Builder project must be updated and downloaded to the C300 controller — a process that may require a controller restart depending on the firmware version in use. Customers running older Experion R310 or R400 firmware should confirm compatibility with the replacement module’s hardware revision before installation.

HMI display continuity is often overlooked during analog output module replacements. Operator stations running Experion Station or third-party SCADA systems connected via OPC-DA or OPC-UA will continue to display the associated process variables without interruption, provided the Control Builder tag database remains unchanged. However, if the replacement requires a controller download, a brief interruption in data refresh may occur, and operators should be informed in advance. Communication link integrity between the C300 controller and the Experion server should be verified post-installation using the Experion System Status Display.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful CC-PAOH01 retrofit begins well before the module arrives on site. The first step is a full audit of the C300 chassis configuration, including the number of occupied slots, the mix of analog and digital I/O modules, and the available power headroom. In many aging installations, the C300 chassis may already be running near its power budget limit, particularly if additional modules such as the CC-PDIL01 digital input module or CC-TCNT01 pulse input module have been added over the years. Confirming available power margin prevents unexpected chassis faults during commissioning.

Field wiring documentation must be reviewed against the termination assembly currently installed. The CC-PAOH01 is typically paired with a 40-pin marshalling termination assembly; if the existing assembly has been modified or replaced with a non-standard variant, field wiring may need to be re-landed. Signal isolators installed between the module output and field devices should also be checked for compatibility with the 4–20 mA drive capability of the replacement module, as some older isolators have input impedance characteristics that can affect loop accuracy.

For sites where the C300 controller is also being upgraded — for example, migrating from an older C200 controller to a C300 — the CC-PAOH01 can be retained as part of the new I/O subsystem, provided the chassis and backplane are compatible. In these cases, the programming cable used to connect the engineering workstation to the controller for firmware updates and Control Builder downloads should be confirmed as compatible with the new controller hardware. The Experion PKS engineering workstation running Control Builder must also have the correct software version installed to support the target firmware revision.

Where the retrofit involves expanding the I/O count beyond the existing chassis capacity, additional C300 I/O chassis units can be added to the control cabinet. Each additional chassis requires its own power supply module and backplane communication link back to the C300 controller. Planning the physical installation space in the control cabinet — including DIN rail capacity, cable routing, and cooling airflow — is essential to avoid rework during commissioning.

Downtime Control During System Migration

Minimizing process downtime during a CC-PAOH01 replacement requires a structured pre-outage preparation process. Before the scheduled maintenance window, the existing Control Builder project should be exported and archived as a backup. All channel tag assignments, scaling parameters, and alarm limits associated with the analog output channels should be documented in a commissioning checklist. If the process allows, output channels can be placed in manual mode at the DCS operator station prior to module removal, allowing field devices to hold their last commanded position during the swap.

Physical module replacement in a C300 chassis is typically completed in under 15 minutes for a trained technician. However, the subsequent Control Builder verification, tag confirmation, and loop checkout steps are where the majority of commissioning time is spent. Having a pre-prepared commissioning checklist that maps each of the 8 output channels to its field device, engineering range, and expected mA value at 0% and 100% output significantly reduces the time required for loop verification. Post-installation, each channel should be exercised through its full output range and the corresponding field device response confirmed before returning the loop to automatic control.

For critical process loops where even brief interruptions are unacceptable, a hot-standby approach using a redundant C300 controller configuration can allow the module swap to be performed without process interruption. In this configuration, the redundant controller continues to drive the analog outputs through its own I/O chassis while the primary chassis module is replaced. Once the replacement module is installed and verified, control can be transferred back to the primary controller without a process upset.

Retrofit Support FAQ

Q: Is the CC-PAOH01 51405039-175 a direct replacement for the original Honeywell part?
A: Yes. The CC-PAOH01 with part number 51405039-175 is the standard Honeywell Experion PKS C300 8-channel analog output module. Our stock units are sourced, inspected, and tested to confirm full functional equivalence with the original factory specification. No hardware modification is required for slot-for-slot replacement.

Q: What pre-shipment testing is performed on each unit?
A: Every CC-PAOH01 unit undergoes functional output verification across all 8 channels prior to shipment. Channel-to-channel isolation, output accuracy at 4 mA and 20 mA reference points, and backplane connector integrity are all verified. A test report is available upon request.

Q: Do I need to update my Control Builder project after installing the replacement module?
A: If the replacement module is installed in the same chassis slot as the original, and the hardware revision is compatible with your current Experion firmware version, no Control Builder changes are required. If the slot address changes or a firmware update is performed concurrently, a Control Builder download to the C300 controller will be necessary. We recommend consulting your Experion system documentation or contacting our technical support team for firmware compatibility confirmation.

Q: What support terms and after-sales support is provided?
A: All CC-PAOH01 units are covered by a support terms confirmed by quotation from the date of shipment. Support terms coverage includes functional failure under normal operating conditions. Our technical team is available to assist with commissioning questions, wiring verification, and compatibility confirmation throughout the confirmed support period. Replacement or repair is provided at no charge for confirmed support requests.
