Honeywell CC-PAIX02 51405038-475 Migration-Ready Analog Input for Legacy DCS

Overview

Honeywell CC-PAIX02 51405038-475 Migration-Ready Analog Input for Legacy DCS

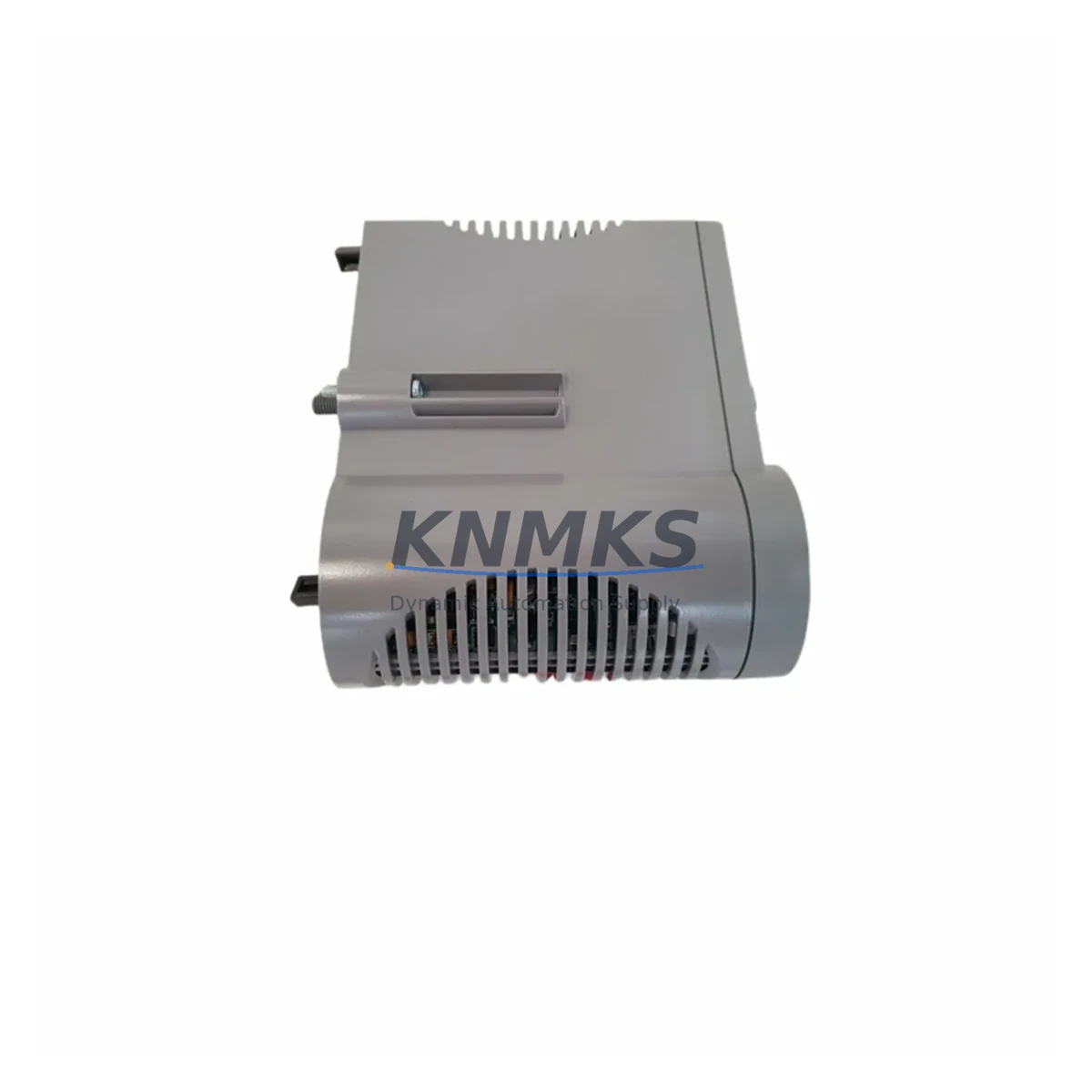

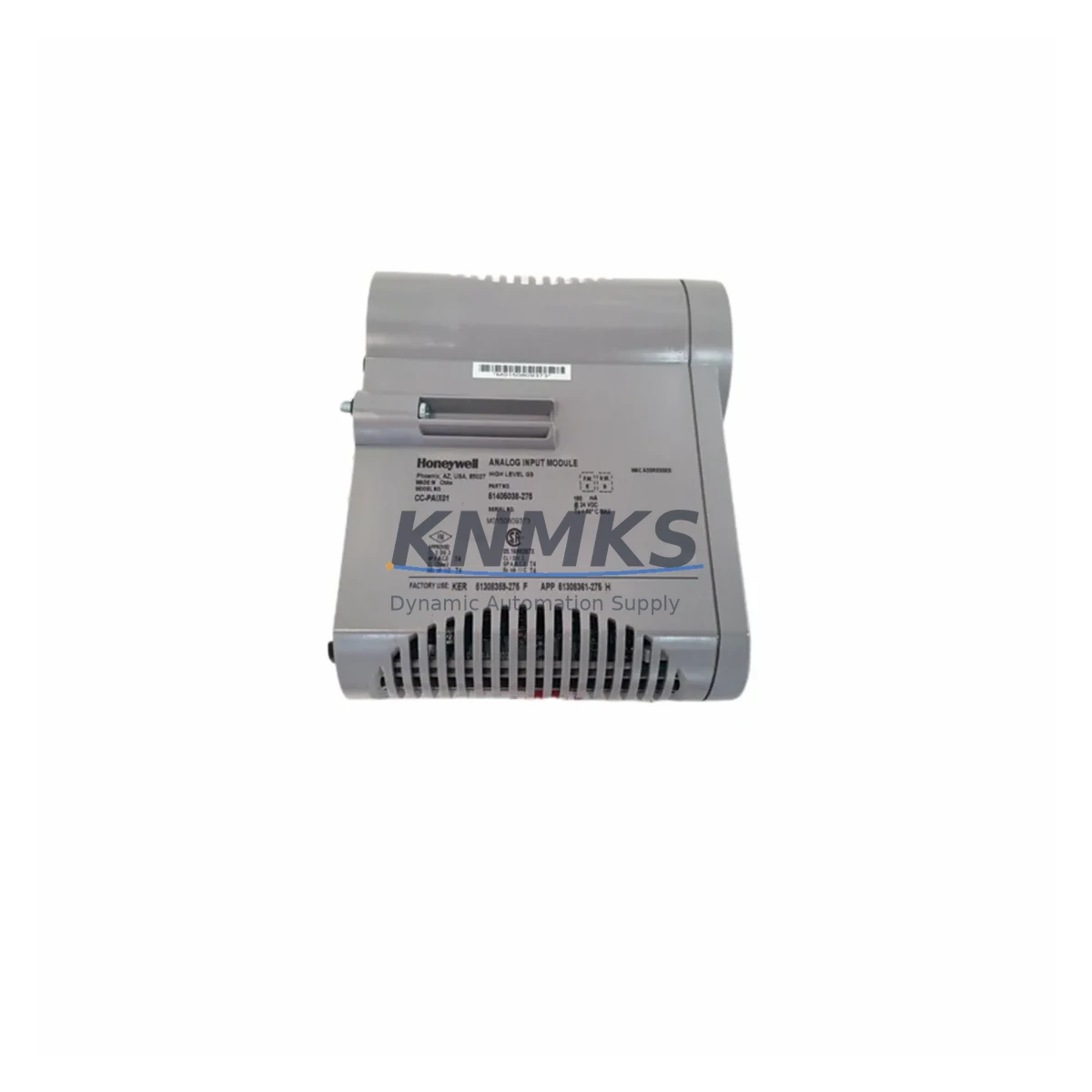

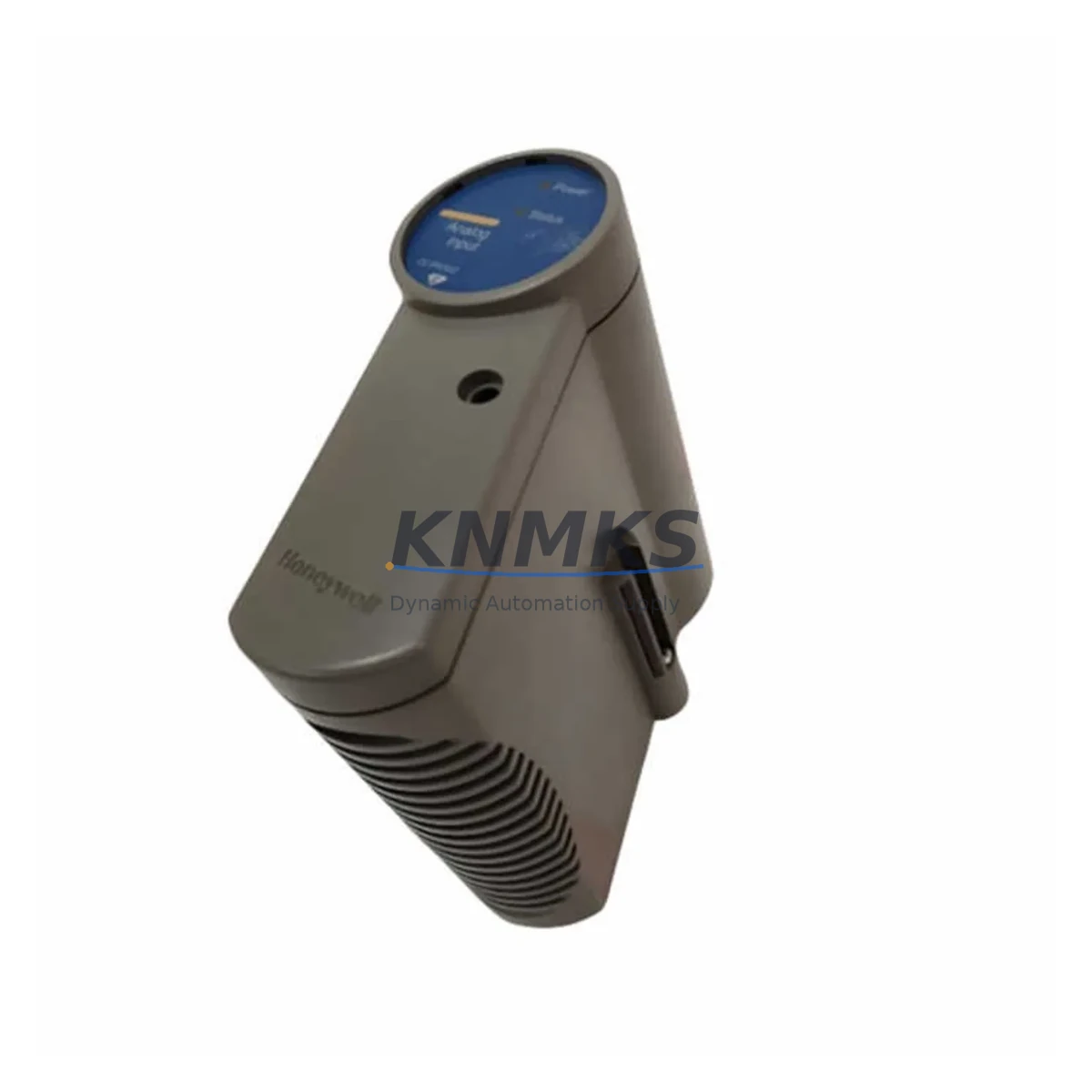

The Honeywell CC-PAIX02 (part number 51405038-475) is a process analog input module designed for the Experion PKS C300 controller platform. It supports 4–20 mA HART field instruments and integrates directly into the CIOM-A backplane via the standard C300 I/O chassis. For facilities running legacy TDC 3000, TPS, or early Experion R400 architectures, this module represents a validated migration path that preserves existing field wiring, instrument calibration, and control logic without requiring a full DCS overhaul.

In retrofit projects, the CC-PAIX02 is commonly deployed alongside the CC-PAON01 analog output module and CC-PDIL01 digital input module to complete a mixed I/O upgrade within a single C300 I/O enclosure. When migrating from TDC 3000 HPM racks, engineers typically retain the existing marshalling panels and re-terminate signal cables to the new CIOM-A backplane, reducing field wiring costs and minimizing the risk of mis-termination during cutover. The module’s HART pass-through capability allows continued use of existing HART-enabled transmitters — including pressure, flow, and temperature instruments — without reconfiguration at the field device level.

Before installation, maintenance teams should verify the C300 controller firmware version (R400.x through R510.x confirmed compatible), confirm available backplane slot addresses, and audit the FTE (Fault Tolerant Ethernet) network topology to ensure the new I/O node is correctly registered in Experion Configuration Studio. If the existing project database was built on an earlier Experion release, a database migration using the Experion Migration Utility is recommended prior to module commissioning. The CC-PAIX02 does not require a separate power supply module when installed in a standard CIOM-A chassis with a CC-PWR001 or equivalent power unit already in service.

For control cabinet upgrades where rack space is constrained, the CC-PAIX02’s compact form factor allows installation in standard 19-inch enclosures alongside the C300 controller module and associated communication components. Projects replacing obsolete Yokogawa CENTUM VP or ABB Freelance I/O nodes with Honeywell Experion infrastructure have successfully used the CC-PAIX02 as the primary analog input interface, leveraging its HART multiplexer compatibility for asset management integration via Honeywell’s Field Device Manager (FDM).

Downtime risk during migration is significantly reduced when a pre-tested, pre-configured CC-PAIX02 module is staged offline before the maintenance window. Our pre-shipment testing protocol covers channel-by-channel signal verification, HART communication handshake, backplane slot recognition, and firmware version confirmation — ensuring the module is ready for immediate installation upon arrival. Typical field commissioning time for a single CC-PAIX02 in a prepared slot is under 30 minutes, provided the Experion project database has been updated in advance.

Stock is maintained for immediate dispatch. All units carry a support terms confirmed by quotation covering manufacturing defects and functional performance under normal operating conditions.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful CC-PAIX02 retrofit begins with a structured audit of the existing I/O architecture. Maintenance engineers should document all active analog input channels, confirm HART device addresses, and map each signal to its corresponding Experion tag in the project database. Where the legacy system used a CC-PAON01 analog output module on the same backplane, the output channel configuration should be exported and re-imported after the new I/O node is commissioned to avoid tag mismatch errors.

In multi-cabinet installations, the CC-PDIL01 digital input module and CC-PDOB01 digital output module are frequently upgraded in the same maintenance window as the CC-PAIX02, allowing a complete I/O node refresh with a single planned outage. For facilities using Honeywell’s Safety Manager or FSC safety controllers in adjacent cabinets, signal isolation between the standard C300 I/O and the safety I/O layer must be verified — signal isolators or safety barriers may be required at the marshalling panel depending on the hazardous area classification.

Communication continuity during migration is maintained by keeping the FTE network active and ensuring the C300 controller remains online in the adjacent slot while the new CC-PAIX02 is installed. If the project uses a redundant C300 controller pair, the migration can be performed on the secondary controller first, with a controlled switchover before the primary is updated — eliminating process interruption entirely in most configurations.

Downtime Control During System Migration

Minimizing downtime during a CC-PAIX02 replacement requires preparation at three levels: database, hardware, and field. At the database level, the Experion project should be backed up and the new I/O assignment confirmed in Configuration Studio before the maintenance window opens. At the hardware level, the replacement module should be bench-tested and slot-addressed offline. At the field level, instrument loop checks should be completed on the new wiring before the old module is removed.

For hot-swap scenarios where the C300 chassis supports online module replacement, the CC-PAIX02 can be inserted into a powered CIOM-A backplane without shutting down adjacent modules — preserving control continuity for all other I/O points in the same chassis. After insertion, the module self-identifies to the C300 controller via the backplane bus, and Experion automatically re-establishes the HART communication link within seconds. HMI faceplates for the affected analog input tags will return to normal display without operator intervention once the module is recognized.

Our pre-shipment testing and same-week dispatch policy ensures that replacement modules reach site before the scheduled maintenance window, eliminating last-minute procurement delays as a source of extended downtime.

Retrofit Support FAQ

Q: Is the CC-PAIX02 51405038-475 a direct drop-in replacement for older Honeywell analog input modules used in TDC 3000 systems?
A: The CC-PAIX02 is designed for the C300 / Experion PKS platform and is not physically interchangeable with TDC 3000 HPM I/O cards. However, it is the correct migration target when upgrading a TDC 3000 or TPS system to Experion PKS. Field wiring can typically be re-terminated to the CIOM-A backplane without changes to the instrument side.

Q: What firmware version is required on the C300 controller to support the CC-PAIX02?
A: Experion PKS R400.x through R510.x are confirmed compatible. Earlier releases (R300.x) may require a controller firmware upgrade before the module is recognized. We recommend confirming the installed firmware version in Experion Server Manager before ordering.

Q: Does the module ship with pre-shipment testing documentation?
A: Yes. Each CC-PAIX02 unit is tested for channel signal accuracy, HART communication, and backplane slot recognition before dispatch. A test record is included with the shipment. All units carry a support terms confirmed by quotation from the date of shipment.

Q: What is the typical lead time and stock availability?
A: Stock is maintained for immediate dispatch. Standard orders ship within 3–5 business days. Express dispatch is available for urgent maintenance requirements. Contact our team to confirm current inventory levels before placing a time-critical order.
