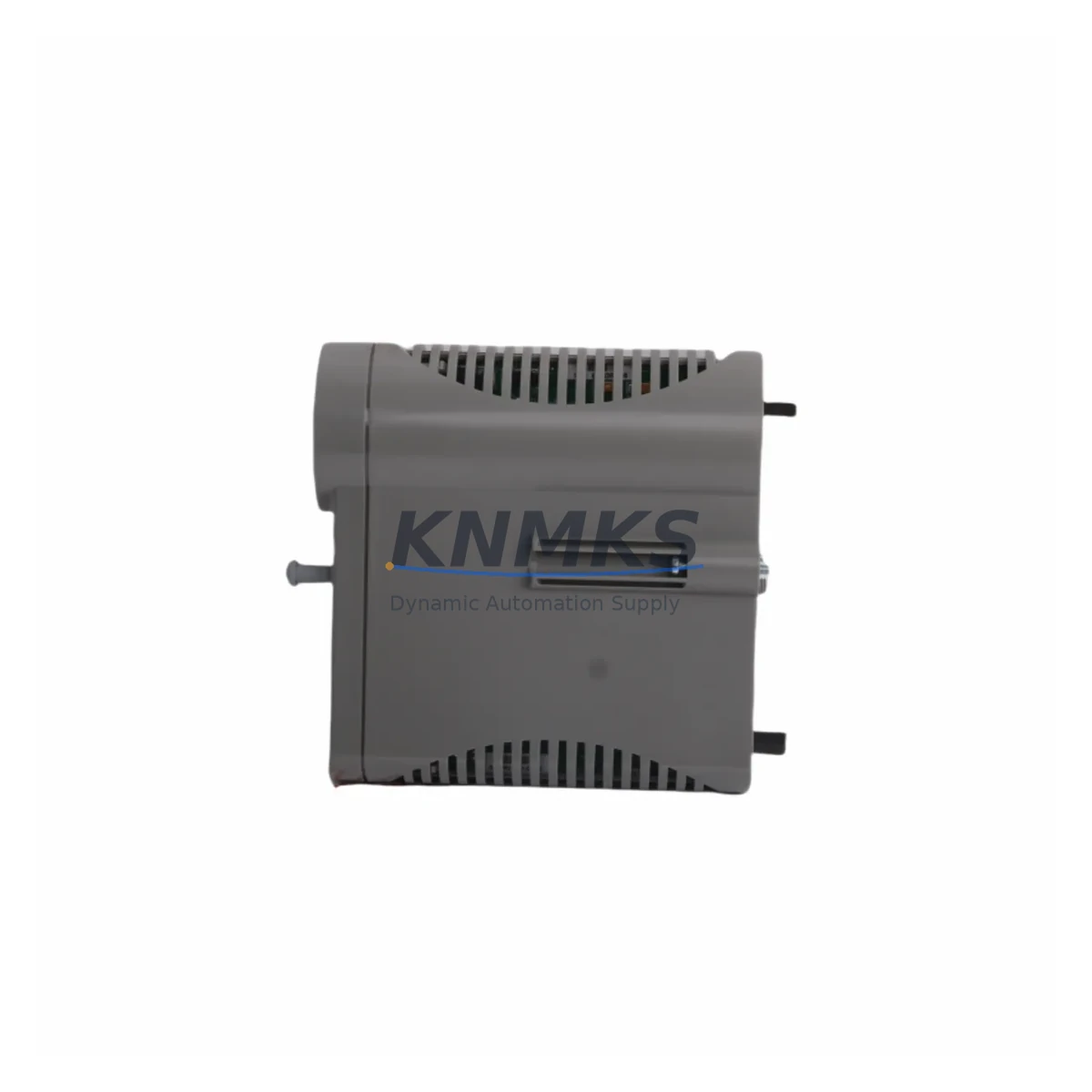

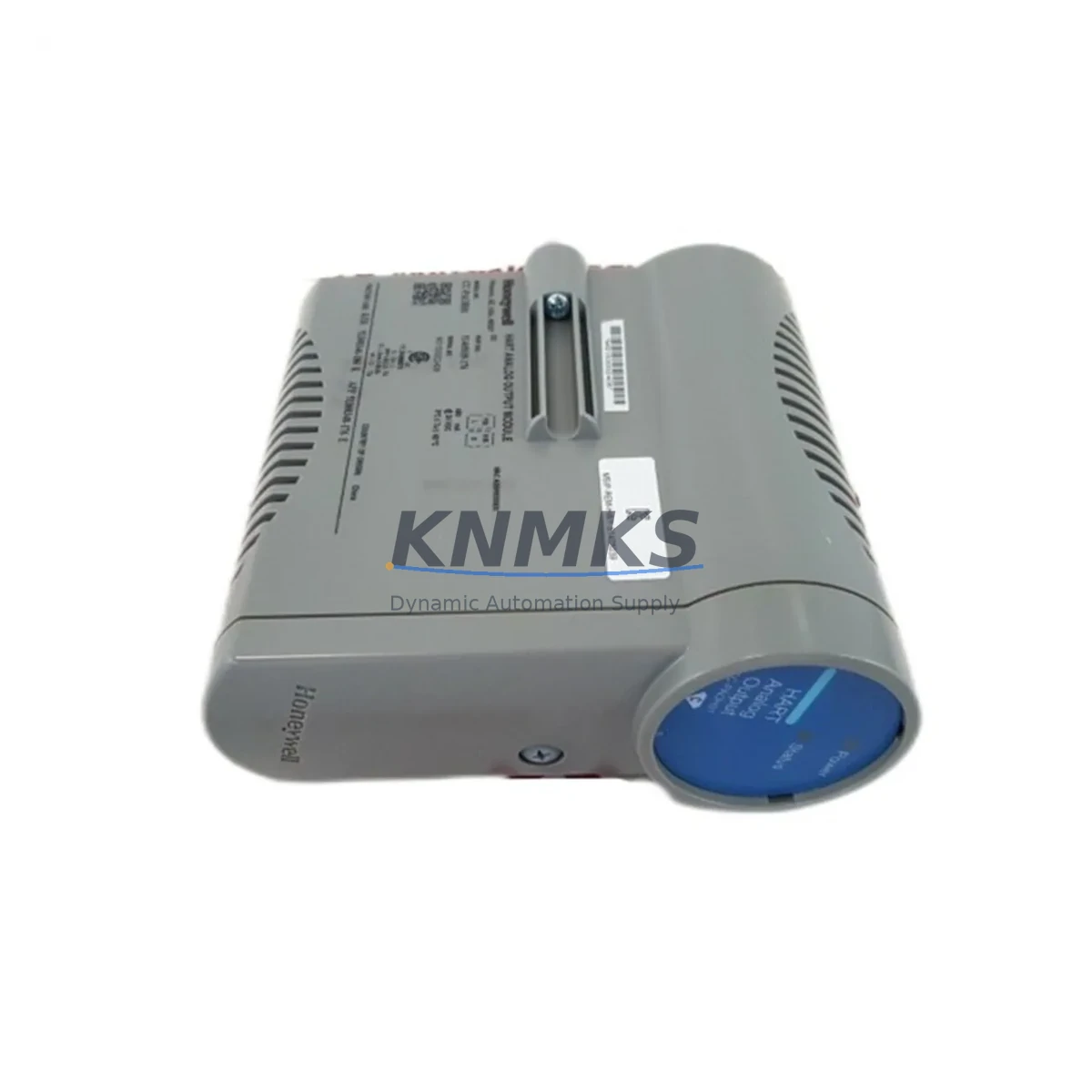

Honeywell CC-PAIN01 51410069-176 Fail-Safe Pulse Input Module

Overview

Honeywell CC-PAIN01 51410069-176 Fail-Safe Pulse Input Module: Fault-Protected Pulse Acquisition for Critical Industrial Control Reliability

The Honeywell CC-PAIN01 (Part No. 51410069-176) is a ruggedized, fail-safe pulse input module engineered for the Experion PKS C300 Distributed Control System (DCS). Designed to operate continuously in demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and heavy manufacturing lines — this module delivers precise, uninterrupted pulse signal acquisition even under extreme electromagnetic interference (EMI), voltage fluctuations, high ambient temperatures, mechanical vibration, and corrosive or dust-laden atmospheres.

In critical process control architectures, pulse input accuracy is non-negotiable. Flow meters, turbine speed sensors, and rotary encoders feeding into safety interlock loops depend on modules like the CC-PAIN01 to faithfully capture high-frequency pulse trains without signal drift, missed counts, or false triggering. Any degradation in pulse fidelity can cascade into erroneous flow calculations, unsafe speed readings, or spurious safety system activations — all of which carry severe operational and safety consequences. The CC-PAIN01 addresses these risks through hardware-level filtering, galvanic isolation, and onboard diagnostics that continuously verify channel integrity and report faults to the C300 controller before they can propagate into the control loop.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The CC-PAIN01 does not operate in isolation — its reliability is maximized when deployed within a well-engineered C300 control cabinet ecosystem. In high-stakes continuous production environments, the module works in concert with the Honeywell CC-TCNT01 51410070-175 Terminal Block, which provides the secure field-wiring interface that preserves signal integrity from sensor to module. Cabinet-level power stability is maintained by the Honeywell CC-PWR01 51405038-175 Power Supply Module, which conditions incoming AC/DC power and suppresses transient surges that could otherwise corrupt pulse counts or trigger nuisance faults in the CC-PAIN01’s input circuitry.

For installations in environments with significant conducted or radiated EMI — common in motor control centers, variable frequency drive (VFD) cabinets, and arc furnace proximity zones — the Honeywell CC-SCMB02 51307166-175 System Cabinet Module Bus provides the backplane communication backbone that isolates I/O module data traffic from high-noise power conductors. Where safety interlock integrity must be maintained across redundant control paths, the Honeywell CC-PAIH02 51410070-175 High-Level Analog Input Module complements the CC-PAIN01 by handling 4–20 mA process variable inputs on the same chassis, enabling unified fault management across both pulse and analog safety loops.

In applications requiring network-level redundancy and deterministic communication — such as turbine overspeed protection or compressor surge control — the Honeywell CC-PCF901 51405039-150 FTE Interface Module ensures that pulse-derived process data reaches the supervisory layer without latency or packet loss, even during partial network failures. For cabinet thermal management in high-ambient-temperature installations, pairing the CC-PAIN01 with properly rated enclosure cooling and the Honeywell CC-MCAR01 51410070-150 Marshalling Cabinet Assembly ensures that module junction temperatures remain within specification, preventing thermally induced signal drift or premature component aging.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the CC-PAIN01 is deployed in custody transfer flow measurement loops where turbine meter pulse outputs must be counted with zero tolerance for error. Incorrect pulse acquisition in these loops directly impacts product accounting, regulatory compliance, and — in high-pressure hydrocarbon service — process safety. The module’s galvanic isolation and onboard diagnostics ensure that ground loops and common-mode noise from adjacent high-voltage equipment cannot corrupt flow totalization.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the CC-PAIN01 monitors shaft speed and rotational frequency signals from turbine encoders. These signals feed directly into overspeed protection interlocks, where a missed or doubled pulse count could result in a spurious trip or, more critically, a failure to trip during an actual overspeed event. The module’s hardware filtering and fail-safe fault reporting provide the signal fidelity and diagnostic transparency required for SIL-rated safety function implementation.

In mining and mineral processing environments, conveyor belt speed monitoring, crusher rotation sensing, and slurry pump flow measurement all rely on pulse input modules operating reliably in high-dust, high-vibration, and high-humidity conditions. The CC-PAIN01’s robust mechanical design and sealed electronics make it suitable for these demanding field conditions without requiring additional protective enclosures at the module level.

In water and wastewater treatment plants, the module supports accurate flow measurement for chemical dosing control, where pulse input accuracy directly affects effluent quality and regulatory compliance. In metallurgical and steel production facilities, it monitors rolling mill speeds and cooling water flow rates in environments characterized by intense electromagnetic fields from induction furnaces and high-current bus bars — conditions where lesser modules exhibit signal drift or communication errors.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the CC-PAIN01 51410069-176?
The support terms confirmed by quotation cover all manufacturing defects, component failures, and functional performance deviations from Honeywell’s published specifications. If the module fails to perform its pulse input acquisition function correctly under normal operating conditions within the confirmed support period, a replacement or repair will be provided. The confirmed support period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on the CC-PAIN01 before dispatch?
Every CC-PAIN01 unit undergoes full functional verification prior to shipment. This includes channel-by-channel pulse input response testing, isolation resistance measurement, onboard diagnostic self-test validation, and physical inspection for connector integrity and labeling accuracy. Test records are retained and can be provided upon request for quality audit purposes.

Q3: Is the CC-PAIN01 51410069-176 compatible with existing Experion PKS C300 chassis without firmware upgrades?
Yes. The CC-PAIN01 is designed as a direct plug-in replacement for compatible C300 I/O chassis slots. It is recognized by the C300 controller using standard Honeywell I/O module configuration procedures in Experion Builder. In most cases, no firmware upgrade is required; however, it is recommended to verify chassis firmware revision compatibility against Honeywell’s published compatibility matrix for your specific system revision before installation.

Q4: Can long-term supply of the CC-PAIN01 be guaranteed for multi-year maintenance contracts?
Yes. We maintain dedicated stock of the CC-PAIN01 51410069-176 to support long-term maintenance, turnaround planning, and emergency replacement requirements. For customers with multi-year maintenance contracts or planned shutdown schedules, advance reservation of stock quantities is available. Contact our sales team to discuss volume commitments and lead time guarantees tailored to your facility’s spare parts strategy.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

CC-PAIN01 51410069-176
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell CC-PAIN01 51410069-176
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
