Honeywell CC-PAIM01 51405045-175 Maintenance-Proven Spare Part for Factory Uptime

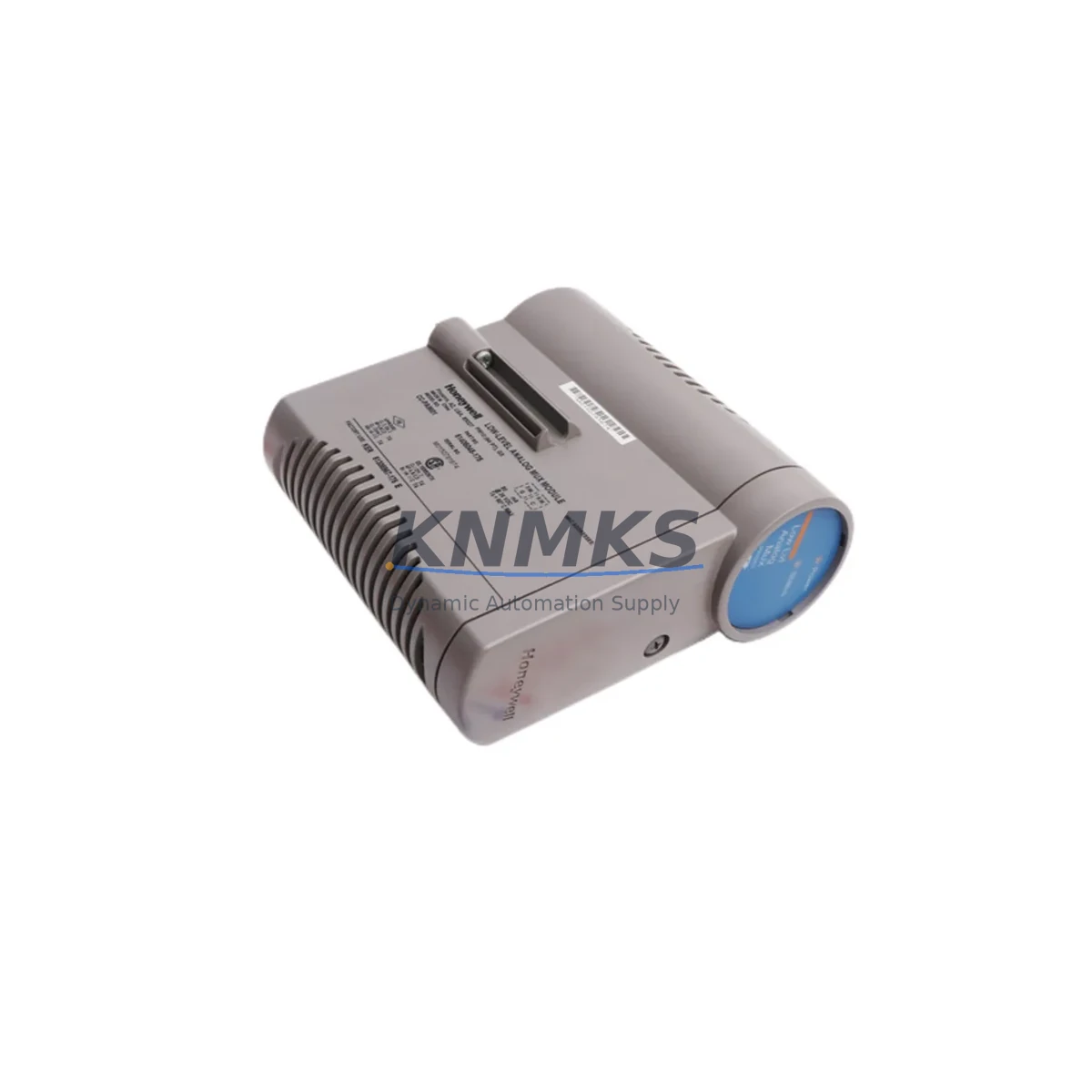

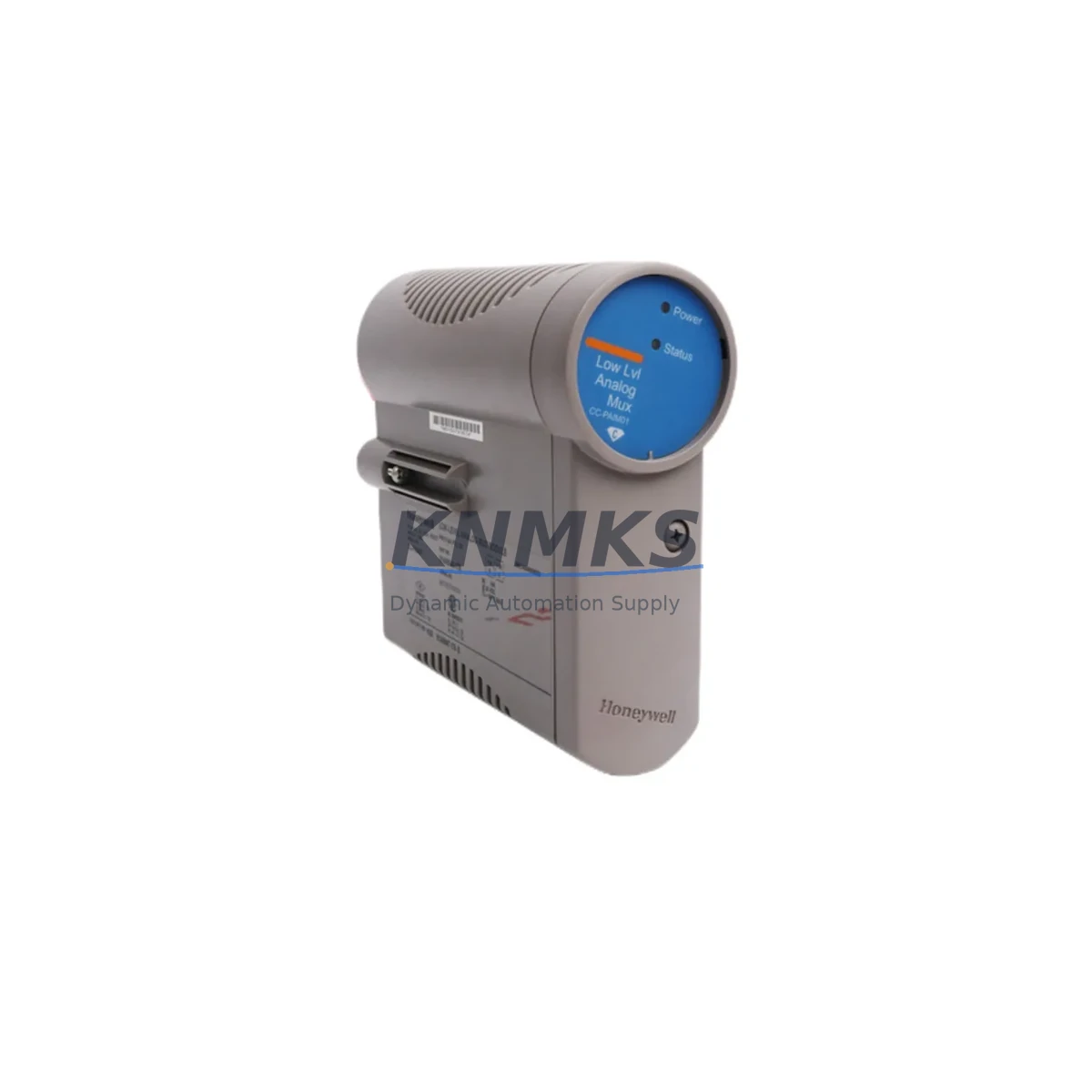

The Honeywell CC-PAIM01 (P/N 51405045-175) is an original analog input module designed for the Experion PKS distributed control system. For maintenance engineers managing continuous process operations — refinery units, chemical reactors, power generation loops, or pharmaceutical batch lines — this module is a critical field device that directly affects loop integrity and process visibility. Keeping a verified spare of the CC-PAIM01 on the shelf is not optional; it is a fundamental element of any credible maintenance strategy for Honeywell Experion PKS installations.

This spare is sourced, inspected, and tested prior to shipment. Each unit is verified for signal accuracy, channel isolation, and backplane communication before leaving our facility. A support terms confirmed by quotation is included with every order, covering both component failure and workmanship defects under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a CC-PAIM01 fails or degrades in service, the fault rarely exists in isolation. Experienced maintenance engineers know that analog input failures in Experion PKS systems are often symptomatic of broader issues in the I/O subsystem or field wiring. Before or alongside replacing the CC-PAIM01, a thorough site inspection should include the following associated components:

The CC-TCNT01 / CC-TCNT02 termination carrier should be inspected for corrosion, loose field wiring terminals, and proper seating of the module connector. A degraded carrier can cause intermittent signal faults that mimic module failure. Similarly, the CC-PWR01 or CC-PWR02 power supply module feeding the I/O cabinet should be checked for output voltage stability — a sagging 24 VDC rail will cause erratic analog readings across all channels before triggering a hard fault.

The C300 controller module managing the PAIM should be reviewed for firmware version compatibility and FTE link status. If the C300 is running an older firmware revision, a module swap may not resolve the fault without a corresponding controller update. Maintenance teams should also verify the CC-SCMB02 system cabinet module bus backplane for physical damage or oxidized contacts, as backplane integrity is essential for reliable module communication.

For field-side verification, inspect the signal isolators or barriers installed between the field transmitters and the PAIM input terminals. Zener barriers or galvanic isolators that have exceeded their service life can introduce offset errors or noise that appear as module faults. Additionally, check the field junction boxes and cable shields for grounding continuity — ungrounded shields on 4–20 mA loops are a common source of interference in analog input channels.

Finally, if the control cabinet houses CC-PDOB01 digital output modules or relay output cards in adjacent slots, verify that inductive switching transients from solenoid or relay loads are not coupling into the analog input wiring. Proper transient suppression at the output side protects the integrity of the entire I/O assembly.

Stocking one or two CC-PAIM01 spares alongside a matched termination carrier and a spare C300 controller module provides a complete rapid-recovery kit for the most common Experion PKS I/O failures. This approach reduces mean time to repair (MTTR) from hours to minutes and eliminates the risk of extended downtime while waiting for emergency procurement.

Site Replacement Workflow

Step 1 — Preparation: Before removing the failed module, download the current controller configuration from the C300 using Experion PKS Control Builder. Confirm the module address, channel assignments, and engineering unit scaling for all 8 channels. Save a backup to a local engineering workstation.

Step 2 — Safe Isolation: Place the affected control loops in manual mode at the DCS operator station. Notify the process operator and confirm that all downstream actuators are in a safe state. Do not remove the module under live loop conditions unless the system supports hot-swap without process impact.

Step 3 — Module Removal: Disengage the module latch on the I/O carrier and slide the CC-PAIM01 out of the backplane slot. Inspect the carrier connector pins for damage or contamination. Clean with isopropyl alcohol if required.

Step 4 — Spare Installation: Insert the replacement CC-PAIM01 into the same carrier slot. Confirm the module LED status sequence — a solid green RUN LED indicates successful backplane communication and configuration download from the C300.

Step 5 — Loop Verification: Return each loop to automatic mode one at a time. Verify live PV readings against field transmitter outputs using a calibrated loop calibrator. Confirm that all 8 channels are reading within ±0.1% of expected values before releasing the system to operations.

Step 6 — Documentation: Record the replacement in the plant CMMS (Computerized Maintenance Management System), including the failed module serial number, replacement date, and post-replacement test results. Update the spare parts inventory to trigger a replenishment order.

Spare Parts Support FAQ

Q1: Is this CC-PAIM01 compatible with both C200 and C300 Experion PKS controllers?
The CC-PAIM01 (51405045-175) is designed for use within the Experion PKS I/O subsystem and is compatible with C300 controller-based architectures. Compatibility with C200 configurations depends on the specific I/O carrier and firmware revision in use. We recommend confirming your controller model and firmware version before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: How is the module tested before shipment?
Each CC-PAIM01 spare undergoes functional testing that includes backplane communication verification, per-channel signal accuracy checks across the 4–20 mA input range, and channel isolation testing. Units that do not meet original Honeywell performance specifications are not shipped. A test report is available upon request for critical applications.

Q3: What is the lead time and long-term supply availability?
Standard orders ship within 3–7 business days from our warehouse. For planned annual maintenance or turnaround projects, we recommend placing blanket orders to secure allocation. The CC-PAIM01 is a mature product in the Experion PKS lifecycle; we maintain ongoing stock and can support long-term supply agreements for multi-year maintenance contracts.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover component failure and workmanship defects under normal operating conditions as defined by Honeywell’s environmental and electrical specifications. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a support terms claim, we provide a replacement unit or documented resolution support, with return shipping covered on our account.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

CC-PAIM01 51405045-175
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell CC-PAIM01 51405045-175
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
