Honeywell CC-PAIH01 51405038-175 Migration-Ready Analog Input

Overview

Honeywell CC-PAIH01 51405038-175 Migration-Ready Analog Input for Legacy Control Systems

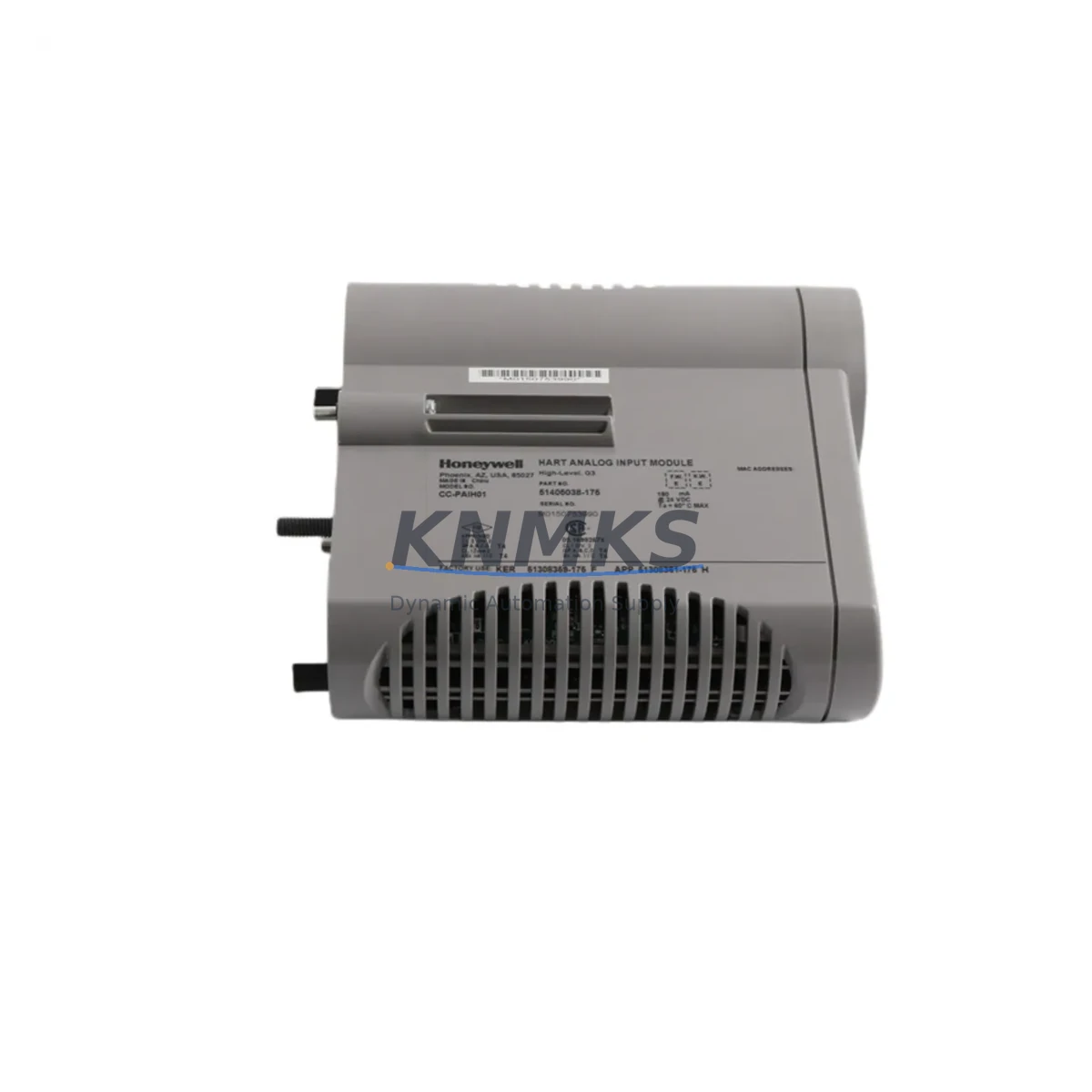

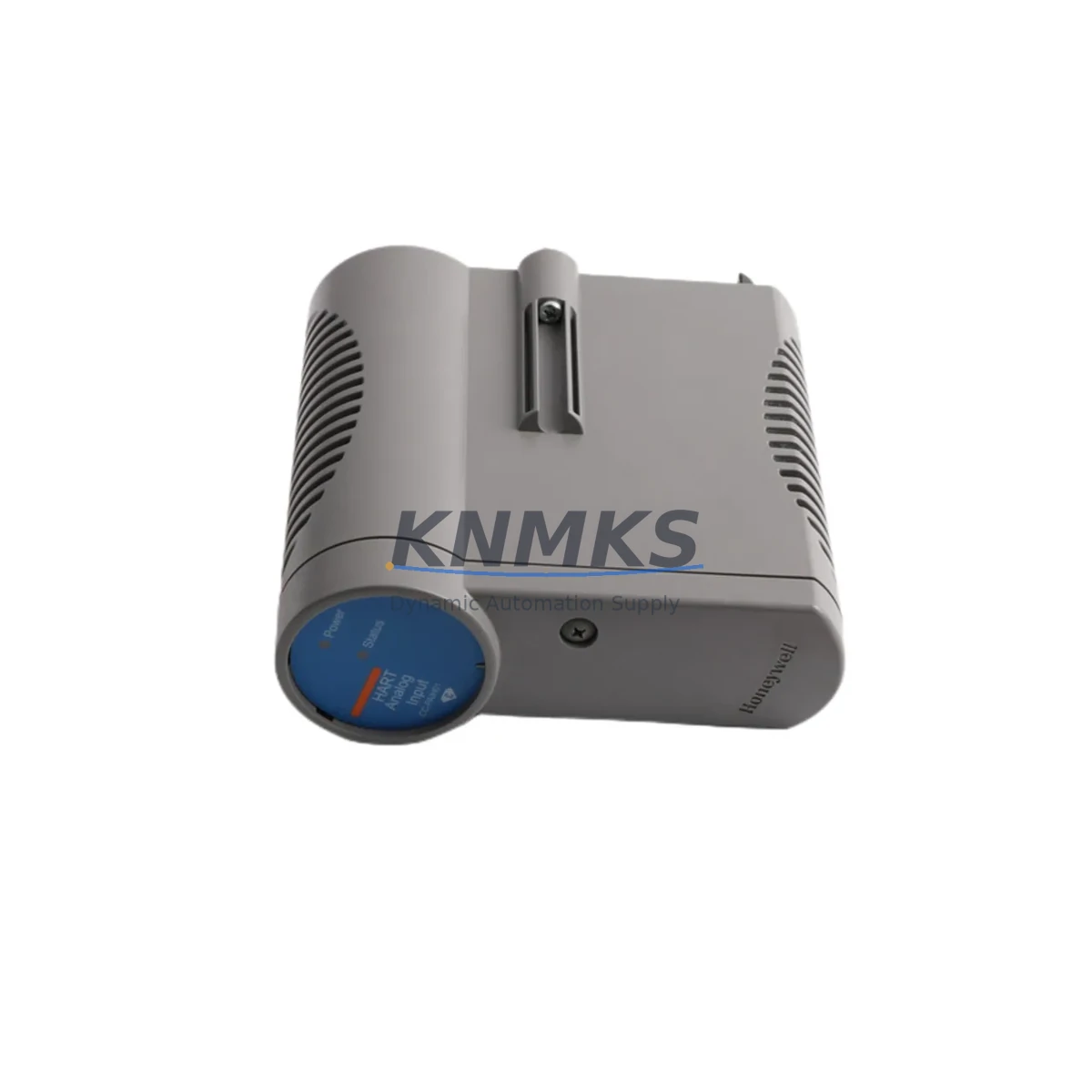

The Honeywell CC-PAIH01 (Part No. 51405038-175) is an 8-channel analog input module engineered for the Experion PKS C300 DCS platform. Designed as a migration-ready replacement for aging or discontinued DCS analog input cards, this module supports 4–20 mA and HART field device signals, making it a direct fit for legacy control system upgrades, panel retrofits, and brownfield automation projects where minimizing engineering rework is critical.

Industrial facilities operating legacy Honeywell TDC 3000, PlantScape, or early-generation Experion R100–R300 systems frequently encounter obsolete analog input modules that are no longer supported under active vendor maintenance. The CC-PAIH01 51405038-175 provides a validated upgrade path that preserves existing field wiring, terminal block layouts, and HART device configurations — significantly reducing the scope of control system migration projects.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the CC-PAIH01 51405038-175 begins well before the module arrives on site. Engineering teams should audit the existing C300 I/O chassis to confirm available slot positions and verify that the installed CIOM-A or CIOM-B carrier revision is compatible with the replacement module. In many legacy installations, carriers were installed during initial commissioning and may carry firmware or hardware revisions that predate current module specifications — a mismatch here can prevent module recognition without a carrier swap or firmware update.

Field termination assemblies connected to the existing wiring harness must be cross-referenced against the CC-PAIH01 terminal pinout. In most Experion PKS installations, the FTA-AI-8 or equivalent field termination assembly remains reusable, which eliminates the need to re-terminate field cables — a significant time saving during planned outage windows. Where HART-enabled transmitters such as pressure, temperature, or flow devices are connected, HART device descriptors stored in the Experion PKS Control Builder database should be exported and backed up before any module swap.

Power budget verification is a frequently overlooked step. The CC-PWRR01 or CC-PWRR02 power supply module serving the affected chassis must have sufficient headroom to support the replacement analog input module alongside any co-installed digital output or communication modules. Overloaded power supplies are a common root cause of intermittent module faults in retrofitted cabinets.

For facilities also upgrading communication infrastructure, the CC-PAIH01 operates within the Experion PKS Fault Tolerant Ethernet (FTE) architecture managed by the C300 controller. If the migration scope includes replacing the C300 controller itself — for example, transitioning from a C300 to a C300E — the I/O module configuration in Control Builder must be re-imported and validated. In parallel migrations involving Series C communication modules or CC-SCMB01 serial communication modules, protocol mapping tables should be reviewed to ensure no address conflicts arise from the expanded I/O count.

HMI screen updates are often scoped separately but should be planned concurrently. Experion PKS operator stations referencing analog input tags from the replaced module will require point database synchronization after the new module is commissioned. Facilities running Honeywell Experion Station or third-party SCADA systems via OPC-DA/OPC-UA should validate tag continuity before returning the loop to automatic control.

Downtime Control During System Migration

Minimizing unplanned downtime during a DCS analog input module replacement requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, all channel configurations, HART device parameters, and alarm setpoints associated with the CC-PAIH01 installation should be documented and exported from the Experion PKS historian and Control Builder environment. This ensures that if commissioning extends beyond the planned window, the original configuration can be restored rapidly.

Hot-swap capability within the C300 platform allows module replacement without a full controller restart in most firmware revisions — however, this must be confirmed against the specific Experion PKS release installed at the site. Attempting a hot-swap on firmware versions that do not support it can cause a controller fault and trigger a broader process shutdown. Where hot-swap is not supported, a controlled shutdown sequence should be prepared that isolates only the affected I/O chassis segment while maintaining control continuity on adjacent chassis through redundant C300 controller pairs.

Field loops connected to the CC-PAIH01 channels should be placed in manual mode at the DCS operator station before the module is physically removed. Transmitters should be verified as isolated or bypassed at the field junction box to prevent spurious signals during the swap. After the replacement module is seated and powered, each channel should be verified individually using a loop calibrator before returning to automatic control — a process that typically requires 15–30 minutes per chassis depending on channel count and HART device complexity.

Pre-shipment functional testing performed on each CC-PAIH01 51405038-175 unit prior to dispatch reduces the risk of receiving a non-functional module during a live outage. Units are tested against Honeywell factory acceptance criteria and shipped with test records available upon request. Combined with on-site spare inventory planning, this approach supports a target downtime window of under four hours for a single-chassis analog input module replacement in a typical Experion PKS installation.

Retrofit Support FAQ

Q1: Can the CC-PAIH01 51405038-175 directly replace a discontinued Honeywell TDC 3000 analog input module?
The CC-PAIH01 is a C300-platform module and is not a direct plug-in replacement for TDC 3000 High-Performance Process Manager (HPM) I/O cards. A migration from TDC 3000 to Experion PKS C300 requires a platform-level upgrade including controller, carrier, and FTA changes. However, existing field wiring and HART transmitters can typically be reused, and the CC-PAIH01 serves as the target analog input module in such migrations. Contact our technical team for a migration scope assessment.

Q2: What commissioning steps are required after installing the CC-PAIH01 in an existing C300 chassis?
After physical installation, the module must be recognized in Experion PKS Control Builder. If the module was previously configured in the project database, a download to the C300 controller is required to activate the new hardware. Channel tag assignments, HART device descriptors, engineering unit scaling, and alarm limits should be verified against the original configuration. A loop check on each channel using a calibrated signal source is recommended before returning to automatic control.

Q3: Is the CC-PAIH01 compatible with both CIOM-A and CIOM-B carriers?
Compatibility depends on the specific carrier revision and the Experion PKS firmware version installed. In general, the CC-PAIH01 is designed for use with C300-series CIOM carriers. Sites running older CIOM-A hardware should verify carrier firmware and consult the Honeywell Experion PKS I/O module compatibility matrix for their specific release. Our team can assist with compatibility verification based on your site’s firmware revision and carrier part numbers.

Q4: What does the support terms confirmed by quotation cover, and is pre-shipment testing included?
Every CC-PAIH01 51405038-175 unit supplied by KNMKS is covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment. Pre-shipment functional testing is performed on each unit to verify channel integrity, signal accuracy, and communication readiness. Test records are available upon request. In the event of a support terms claim, replacement units are dispatched from stock to minimize site downtime. Contact admin@knmks.com for support terms registration and claim procedures.
