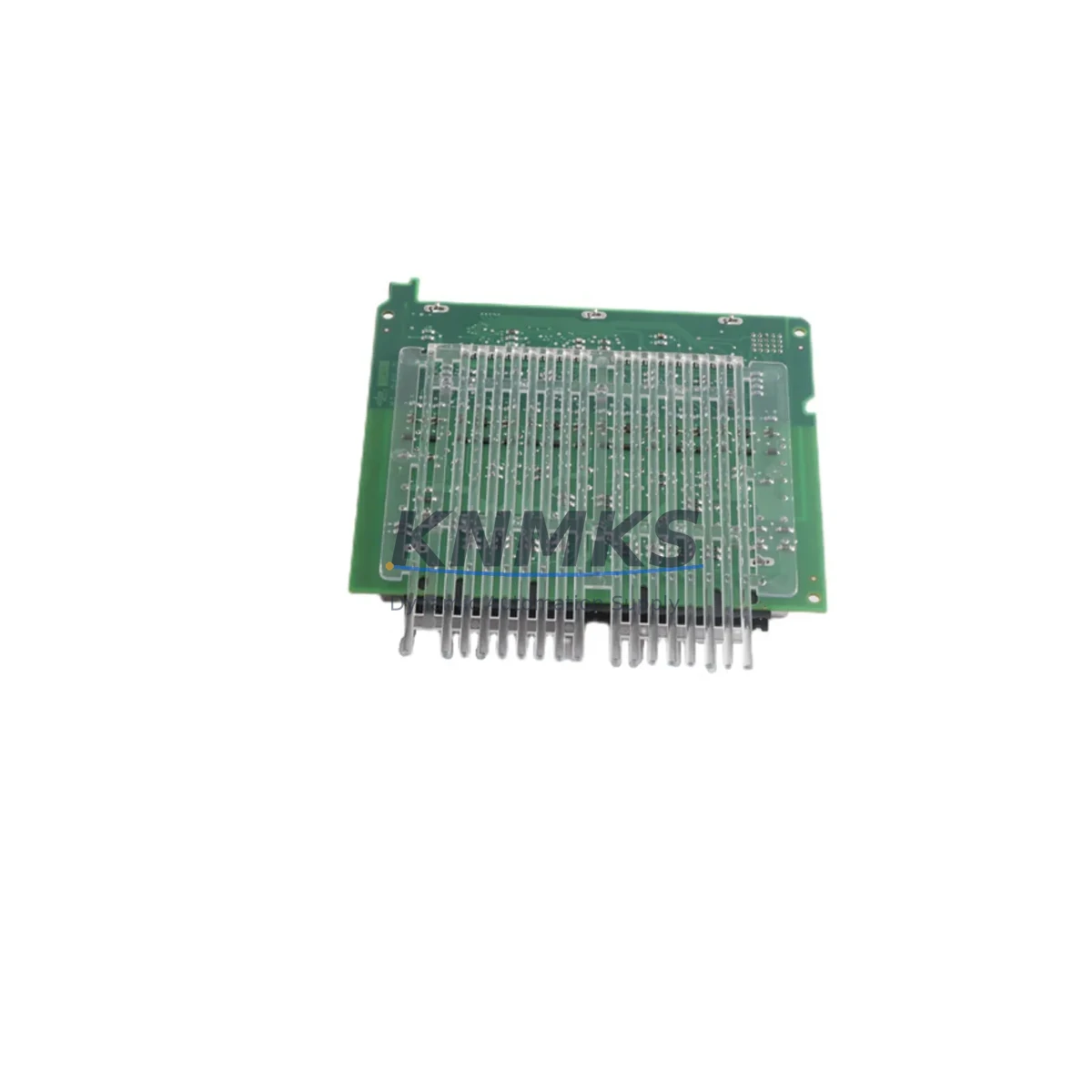

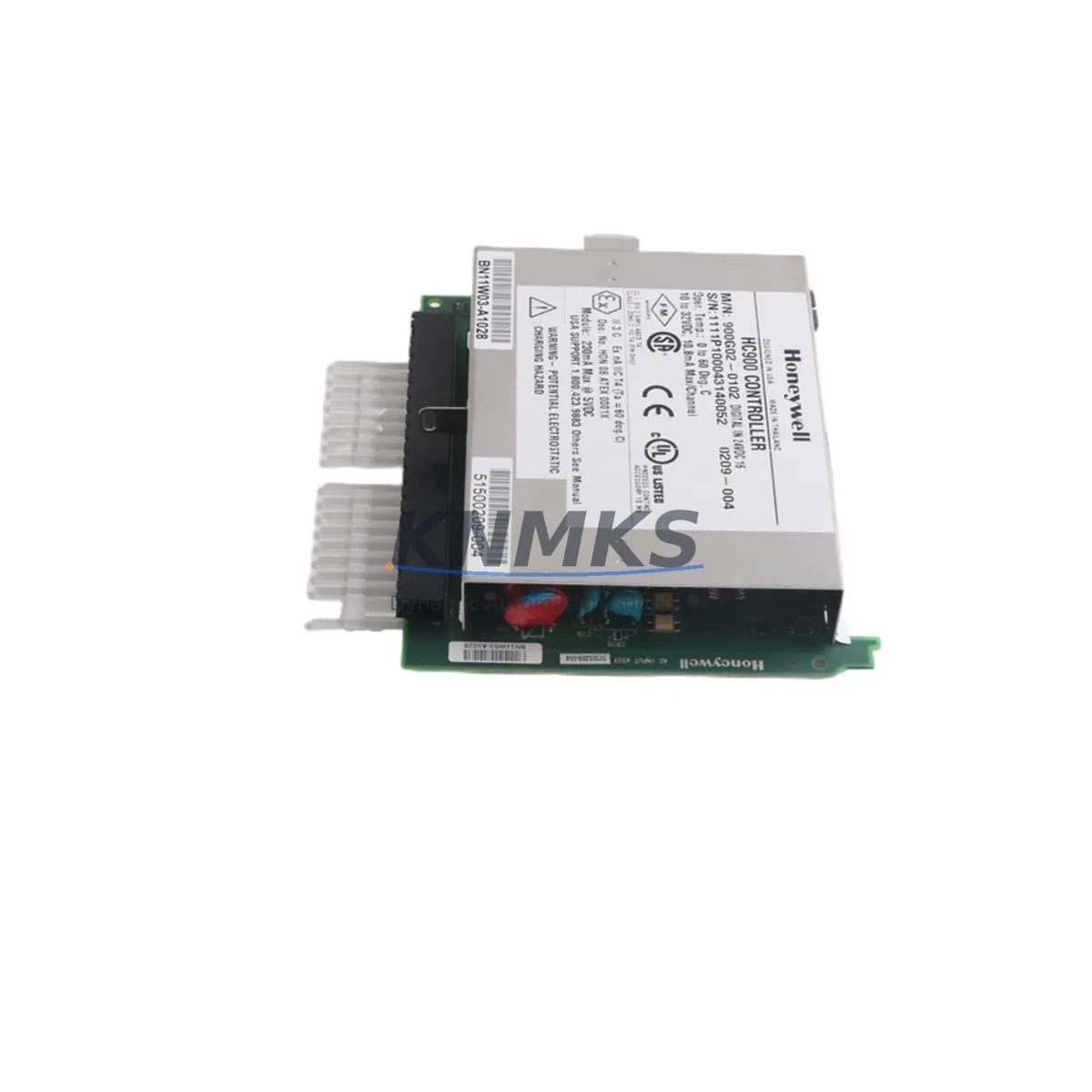

Honeywell 900G02-0102 Migration-Ready Analog Input Module

Overview

Honeywell 900G02-0102 Migration-Ready Analog Input Module: Legacy System Retrofit & Compatibility Upgrade

The Honeywell 900G02-0102 is a high-reliability analog input module engineered for the Honeywell PKS 900 Series distributed control system platform. Designed to accept standard 4–20 mA and 1–5 V analog field signals, this module serves as a direct migration-ready replacement for aging or discontinued analog input cards within Experion PKS, TDC 3000, and compatible legacy DCS architectures. For facilities managing aging control infrastructure, the 900G02-0102 provides a verified drop-in upgrade path that minimizes engineering rework, preserves existing field wiring, and reduces unplanned downtime during system modernization.

Industrial facilities operating legacy Honeywell DCS platforms frequently encounter obsolescence challenges: discontinued spare parts, degraded signal accuracy, unsupported firmware, and incompatible backplane interfaces. The 900G02-0102 addresses these challenges directly by maintaining backward compatibility with the PKS 900 Series rack and backplane architecture, allowing maintenance teams to swap modules without modifying terminal wiring, controller logic, or HMI display configurations. This compatibility is critical in process industries—refining, petrochemical, power generation, and pharmaceutical manufacturing—where control continuity and regulatory compliance cannot be compromised during retrofit operations.

Before deploying the 900G02-0102 as a replacement for an existing analog input module, engineers should verify several key parameters. Power budget confirmation is essential: the PKS 900 Series power supply module must have sufficient capacity to support the replacement card alongside all co-installed I/O modules in the same rack. Terminal wiring compatibility should be confirmed against the original field termination assembly (FTA) or marshalling cabinet layout to ensure signal polarity, shielding, and grounding practices remain consistent. Backplane slot addressing must be validated in the controller configuration to ensure the module address assignment matches the replacement position, preventing I/O mapping conflicts in the application program.

Program compatibility review is equally important. Control engineers should audit the Experion PKS Control Builder or equivalent engineering workstation project to confirm that the analog input channel scaling, engineering unit conversion, and alarm limit configurations are preserved after module replacement. If the legacy system uses a Honeywell 900C52-0243 controller module or similar PKS 900 Series CPU, the firmware revision should be cross-checked against the 900G02-0102 module compatibility matrix to avoid runtime initialization errors. HMI faceplate displays and historian tag assignments linked to the replaced module’s channel addresses should be reviewed and tested in simulation mode before live commissioning.

Communication link integrity is another critical checkpoint. In PKS 900 Series architectures, the 900G02-0102 communicates with the controller over the internal backplane bus. Any changes to rack configuration, module count, or slot assignment may require a controller download to update the I/O configuration table. Maintenance teams should coordinate with the control room to schedule a controlled download window that minimizes process impact, particularly in continuous process environments where a full controller restart is not feasible without a planned shutdown.

Installation space confirmation is straightforward for same-rack replacements, as the 900G02-0102 occupies a standard PKS 900 Series single-slot position. However, in retrofit scenarios where the original rack is being replaced with a new Honeywell 900R02-0001 or equivalent rack assembly, physical dimensions, DIN rail mounting, and cabinet depth must be verified against the existing control cabinet layout. Adequate clearance for field cable routing, module extraction, and ventilation should be maintained per Honeywell installation guidelines.

Firmware version compatibility should be confirmed prior to installation. The 900G02-0102 module firmware is factory-loaded and does not typically require field updates for standard replacement scenarios. However, if the host controller is running a non-standard or customized firmware build, the system integrator should verify module recognition and diagnostic reporting behavior during the pre-commissioning bench test. A Honeywell programming cable or FTE network connection to the Experion PKS server may be required to perform online diagnostics and confirm module health status after installation.

Field commissioning for the 900G02-0102 follows a structured sequence: physical installation and backplane seating confirmation, power-up and module LED status verification, controller I/O configuration download, channel-by-channel signal loop check against field instruments, alarm and interlock function test, and historian data validation. Commissioning teams should document as-found and as-left signal readings for each channel to support regulatory audit requirements and future maintenance reference.

KNMKS maintains verified stock of the Honeywell 900G02-0102 with full functional testing prior to shipment. Each unit is covered by a support terms confirmed by quotation against manufacturing defects and operational failure under normal service conditions. Units are shipped with original or equivalent packaging to protect against electrostatic discharge and mechanical damage during transit. Expedited shipping options are available to support emergency maintenance scenarios where extended downtime is not acceptable.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 900G02-0102 into an existing PKS 900 Series control system requires a coordinated review of the surrounding module ecosystem. In a typical PKS 900 rack assembly, the analog input module operates alongside a Honeywell 900P02-0001 power supply module, which must be assessed for available current headroom before adding or replacing I/O cards. If the power supply is operating near capacity due to accumulated module additions over the system’s service life, a power supply upgrade or load redistribution across multiple racks may be required before the retrofit can proceed safely.

Field signal integrity should be validated at the terminal level using a Honeywell 900T02-0001 or equivalent field termination assembly. Aging FTAs with corroded terminals, degraded shielding, or non-standard wiring modifications can introduce signal noise that masks the performance improvement delivered by a new analog input module. Cleaning or replacing the FTA as part of the retrofit scope is a recommended best practice for systems with more than ten years of continuous service.

For systems requiring expanded I/O capacity as part of the modernization project, the 900G02-0102 can be deployed alongside additional analog input or digital I/O modules within the same rack, subject to power budget and slot availability. Engineers planning I/O expansion should also evaluate the controller module’s scan cycle capacity to ensure that additional channels do not degrade control loop execution rates. In multi-rack configurations, the rack interconnect cables and backplane termination resistors should be inspected and replaced if degraded.

Where the retrofit scope includes communication protocol migration—for example, transitioning from legacy serial fieldbus to Ethernet-based FTE (Fault Tolerant Ethernet) network architecture—a Honeywell 900C52-0243 or equivalent FTE-capable controller module may be required in addition to the analog input module replacement. Protocol migration projects should include a full network topology review, switch configuration audit, and end-to-end communication latency test before cutover. HMI servers and historian nodes connected to the Experion PKS network should be updated to reflect any changes in controller node addressing or tag database structure resulting from the migration.

Signal isolators may be required in retrofit scenarios where field instruments operate at non-standard signal levels or where ground loop interference is present between the field device and the control cabinet. Installing a DIN-rail-mounted signal isolator between the field termination assembly and the 900G02-0102 input channel can resolve ground loop issues without requiring field cable replacement, preserving the existing wiring infrastructure and reducing retrofit cost and schedule risk.

Downtime Control During System Migration

Minimizing production downtime during analog input module replacement is a primary concern for operations and maintenance teams in continuous process environments. The 900G02-0102’s drop-in compatibility with the PKS 900 Series backplane allows physical module replacement to be completed in under fifteen minutes by a trained technician, provided that the replacement unit has been pre-tested and the controller I/O configuration has been prepared in advance on the engineering workstation.

To protect original program logic during the replacement process, the Experion PKS project database should be backed up to a secure network location before any hardware changes are initiated. Controller checkpoint files and historian configuration exports should be included in the backup scope. If the replacement requires a controller download, the download should be performed in a controlled sequence: first verify the new module is recognized by the controller in offline simulation, then perform the download during a low-production window with operations personnel informed and ready to respond to any process deviations.

For critical control loops where continuous operation is required, a manual bypass or field operator station should be established before the module is removed. Field operators should be briefed on the expected duration of the replacement window and the manual control procedures to be followed during the period when the analog input channel is offline. Interlock and safety instrumented system (SIS) interfaces associated with the affected input channels should be placed in bypass per the facility’s management of change (MOC) procedure before work begins.

Post-replacement commissioning should follow a documented checklist to ensure all channels are restored to normal operation before the bypass is lifted. Signal loop checks, alarm function tests, and historian data continuity verification should be completed and signed off by the responsible engineer before the control loop is returned to automatic mode. Retaining the replaced module as a tested spare—if it passes bench diagnostics—provides an additional layer of protection against future unplanned failures in the same system.

Retrofit Support FAQ

Q1: Is the 900G02-0102 a direct replacement for discontinued Honeywell analog input modules in TDC 3000 systems?
The 900G02-0102 is designed for the PKS 900 Series platform and is compatible with Experion PKS architectures. Compatibility with TDC 3000 legacy systems depends on the specific rack, backplane, and controller configuration in use. KNMKS recommends providing the existing module part number and system configuration details for a compatibility assessment before ordering. Each unit shipped by KNMKS is functionally tested prior to dispatch.

Q2: What wiring changes are required when replacing an existing analog input module with the 900G02-0102?
In standard same-slot replacement scenarios within a PKS 900 Series rack, no field wiring changes are required. The existing field termination assembly and marshalling cabinet wiring remain intact. Terminal labeling and signal polarity should be verified against the original wiring documentation before the replacement module is powered up. If the FTA has been modified from the original factory configuration, a wiring audit is recommended.

Q3: Does the 900G02-0102 require a controller firmware update or program download after installation?
In most standard replacement scenarios, the 900G02-0102 is recognized automatically by the PKS 900 Series controller without a firmware update. A controller I/O configuration download may be required if the module is installed in a new slot position or if the rack configuration has changed. KNMKS recommends consulting the Experion PKS engineering workstation project and performing a pre-installation simulation check before scheduling the download window.

Q4: What support terms and testing does KNMKS provide with the 900G02-0102?
All 900G02-0102 units supplied by KNMKS are covered by a support terms confirmed by quotation against manufacturing defects and operational failure under normal service conditions. Each unit undergoes functional testing prior to shipment to verify signal input performance, backplane interface integrity, and LED diagnostic behavior. Units are shipped in anti-static packaging with documentation. Expedited shipping is available for emergency maintenance requirements.
