Honeywell 900C32-0021 Maintenance-Proven Spare Part for Factory Uptime

Overview

Honeywell 900C32-0021 Maintenance-Proven Spare Part for Factory Uptime

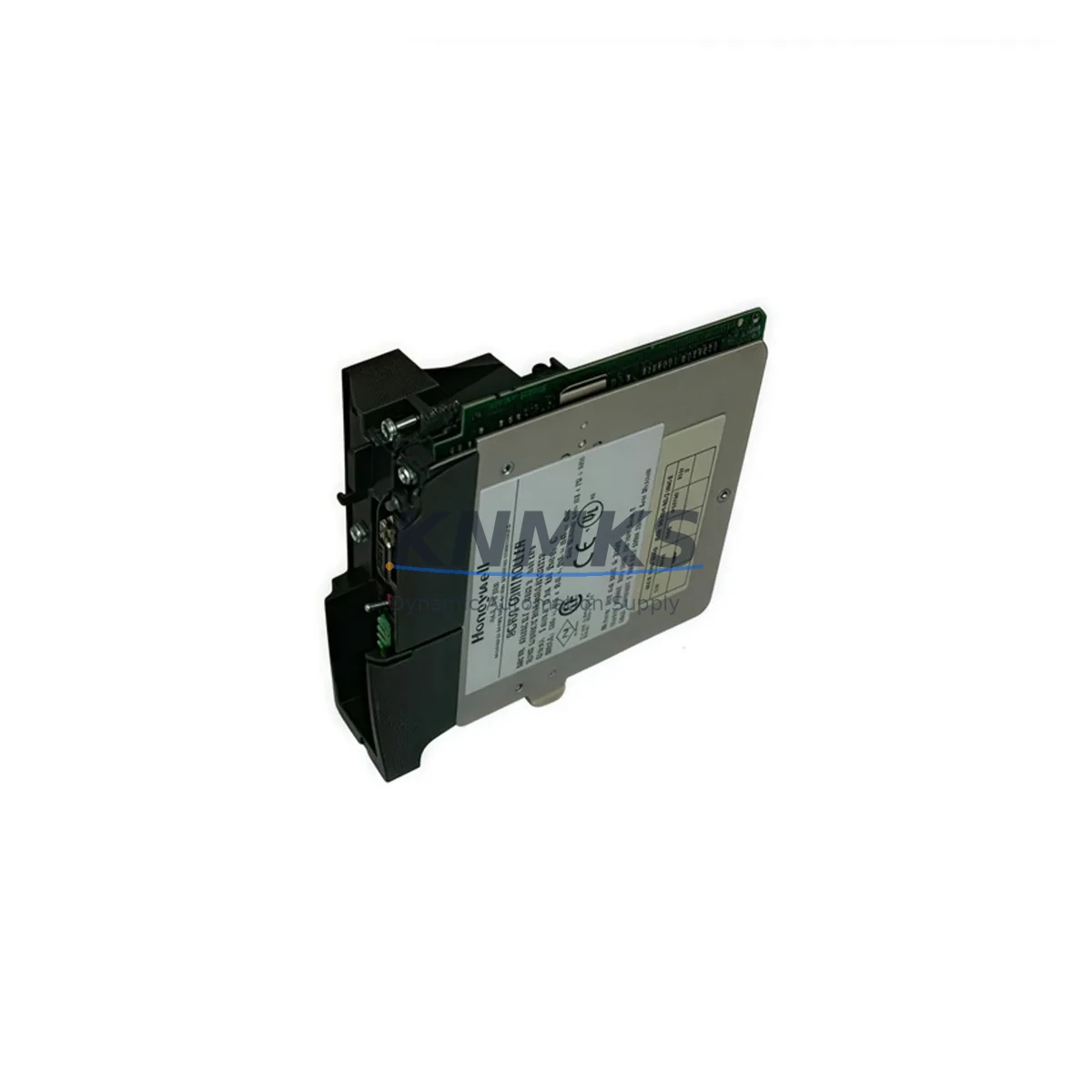

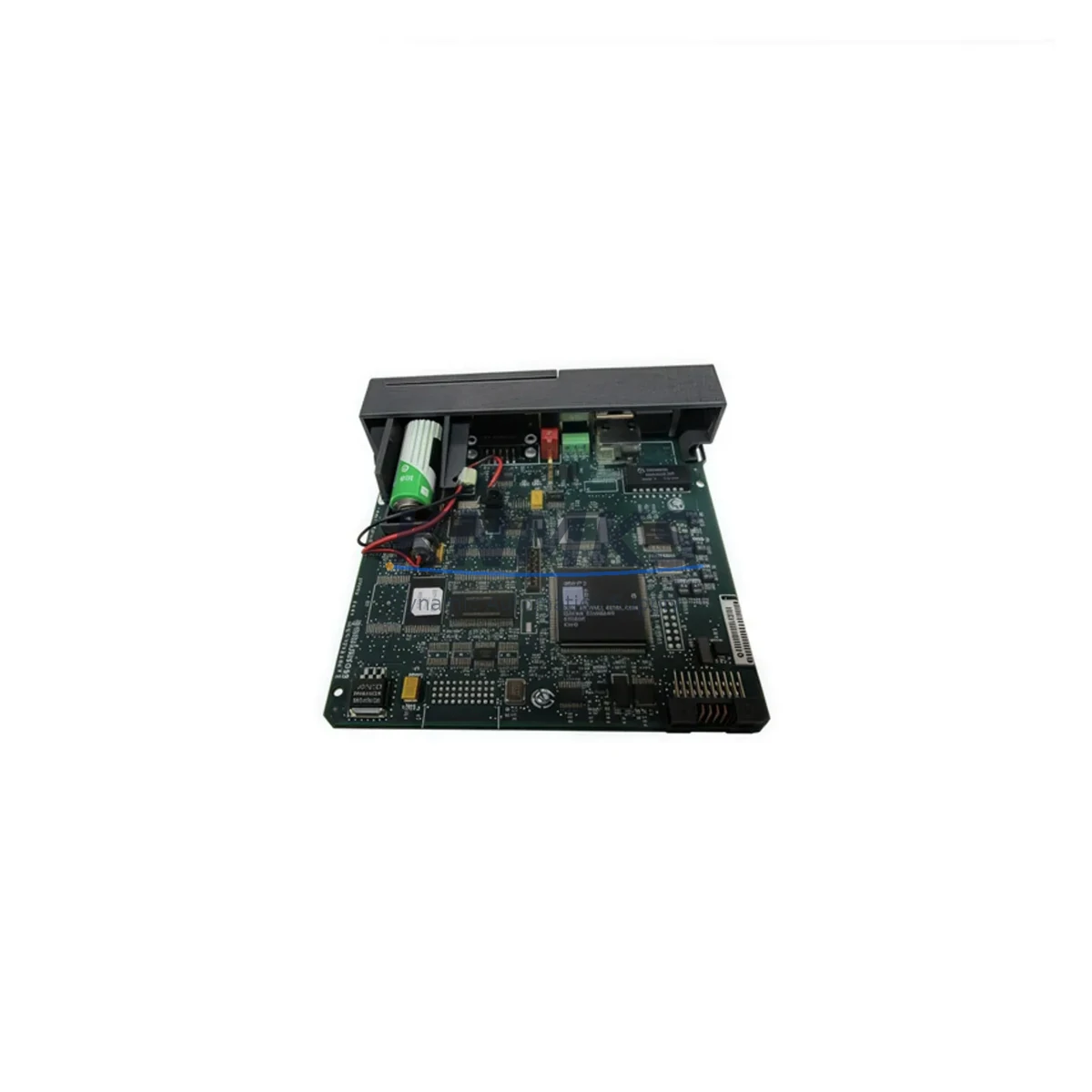

The Honeywell 900C32-0021 is a C300 Controller module designed for the Experion PKS distributed control system (DCS). As a core processing unit within the C300 automation architecture, this module handles real-time control execution, I/O coordination, and communication with the Experion server. For maintenance engineers and spare parts procurement teams managing continuous-process facilities — refineries, chemical plants, power generation sites, and pulp and paper mills — keeping a verified 900C32-0021 availability confirmed by RFQ is a fundamental element of any credible uptime strategy.

At KNMKS, every 900C32-0021 unit is sourced from original Honeywell supply channels, subjected to functional verification prior to shipment, and backed by a support terms confirmed by quotation. We support global delivery with documentation packages suitable for customs clearance and internal maintenance records.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a C300 controller fault triggers an unplanned shutdown, the clock starts immediately. Recovery time depends entirely on whether the maintenance team has a verified replacement module on hand and whether the surrounding infrastructure is also in serviceable condition. The 900C32-0021 does not operate in isolation — its performance is directly tied to the health of several adjacent components that should be inspected or replaced concurrently.

The C300 Controller Carrier (IOTA) provides the physical mounting and backplane power path for the 900C32-0021. A carrier with corroded terminals or damaged connectors will cause intermittent faults even with a new controller module installed. Inspect the carrier for mechanical damage and verify backplane voltage before commissioning the replacement module.

The Honeywell EPLCG2 or equivalent FTE network switch forms the communication backbone between the C300 and the Experion server. If the controller module is replaced but the FTE switch has degraded ports or firmware issues, the new module may fail to establish a stable server connection. Verify switch port status and link integrity as part of the replacement workflow.

The 900P01-0001 or equivalent C300 power supply module must deliver stable 24 VDC to the carrier. Voltage sags or ripple caused by an aging power supply can corrupt controller memory or cause unexpected resets. Measure output voltage under load before and after module replacement.

For facilities running redundant C300 pairs, the secondary 900C32-0021 controller should be inspected at the same time. Redundancy is only meaningful if both modules are in verified working condition. A failed secondary that has never been tested provides no protection during a primary fault event.

I/O modules connected to the C300 — including Honeywell 900G32-0001 Series C I/O Link Interface modules — should be checked for communication errors logged in the Experion Event Journal. Persistent I/O link faults may indicate wiring issues, module degradation, or address conflicts that will persist after the controller is replaced.

Finally, review the 24 VDC distribution fusing and terminal blocks within the control cabinet. Loose terminals and blown fuses are common root causes of controller faults that are misdiagnosed as module failures. Replacing the 900C32-0021 without addressing upstream power distribution issues will result in repeat failures.

Site Replacement Workflow

Step 1 – Pre-replacement documentation: Export the current controller configuration from Experion Control Builder. Confirm the firmware revision on the existing 900C32-0021 and ensure the replacement unit carries a compatible or higher firmware version. Document all I/O assignments and FTE network addresses.

Step 2 – Safe isolation: Place the controller in manual mode at the Experion operator station. Notify operations of the planned maintenance window. De-energize the carrier following site lockout/tagout procedures.

Step 3 – Physical replacement: Remove the faulty 900C32-0021 from the carrier. Inspect the carrier connector for damage. Install the replacement module and secure the locking mechanism. Re-energize the carrier and observe the module status LEDs during boot sequence.

Step 4 – Configuration restore and verification: Download the saved configuration to the replacement module via Control Builder. Verify all I/O points are communicating correctly. Confirm FTE network redundancy is active. Return the controller to automatic mode and monitor for 30 minutes before closing the work order.

Step 5 – Spare parts replenishment: Log the consumed spare and initiate a replenishment purchase order to maintain minimum stock levels. For critical continuous-process facilities, a minimum of one verified 900C32-0021 per control system should be maintained in the on-site spare parts store.

Spare Parts Support FAQ

Q1: Is the 900C32-0021 compatible with all Experion PKS revisions?
The 900C32-0021 is designed for Experion PKS R300 and later releases. Compatibility with specific server software revisions depends on the firmware version loaded on the module. KNMKS can advise on firmware compatibility based on your current Experion server revision. Contact admin@knmks.com with your system details before ordering if you are running a legacy Experion release.

Q2: How does KNMKS verify the 900C32-0021 before shipment?
Every unit undergoes functional verification on a compatible test bench prior to packaging. We check power-up behavior, communication port integrity, and module self-diagnostics. A test report is available upon request. Units that do not pass verification are not shipped.

Q3: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. In the event of a support terms claim, KNMKS will arrange replacement or repair with priority handling to minimize your downtime.

Q4: Can KNMKS support long-term supply for facilities with multiple C300 systems?
Yes. KNMKS maintains standing inventory of high-demand Honeywell Experion PKS spare parts and can establish framework supply agreements for facilities requiring regular replenishment. We support annual maintenance contracts, blanket purchase orders, and emergency spot supply. Contact +86 18359268345 or admin@knmks.com to discuss your site’s requirements.
