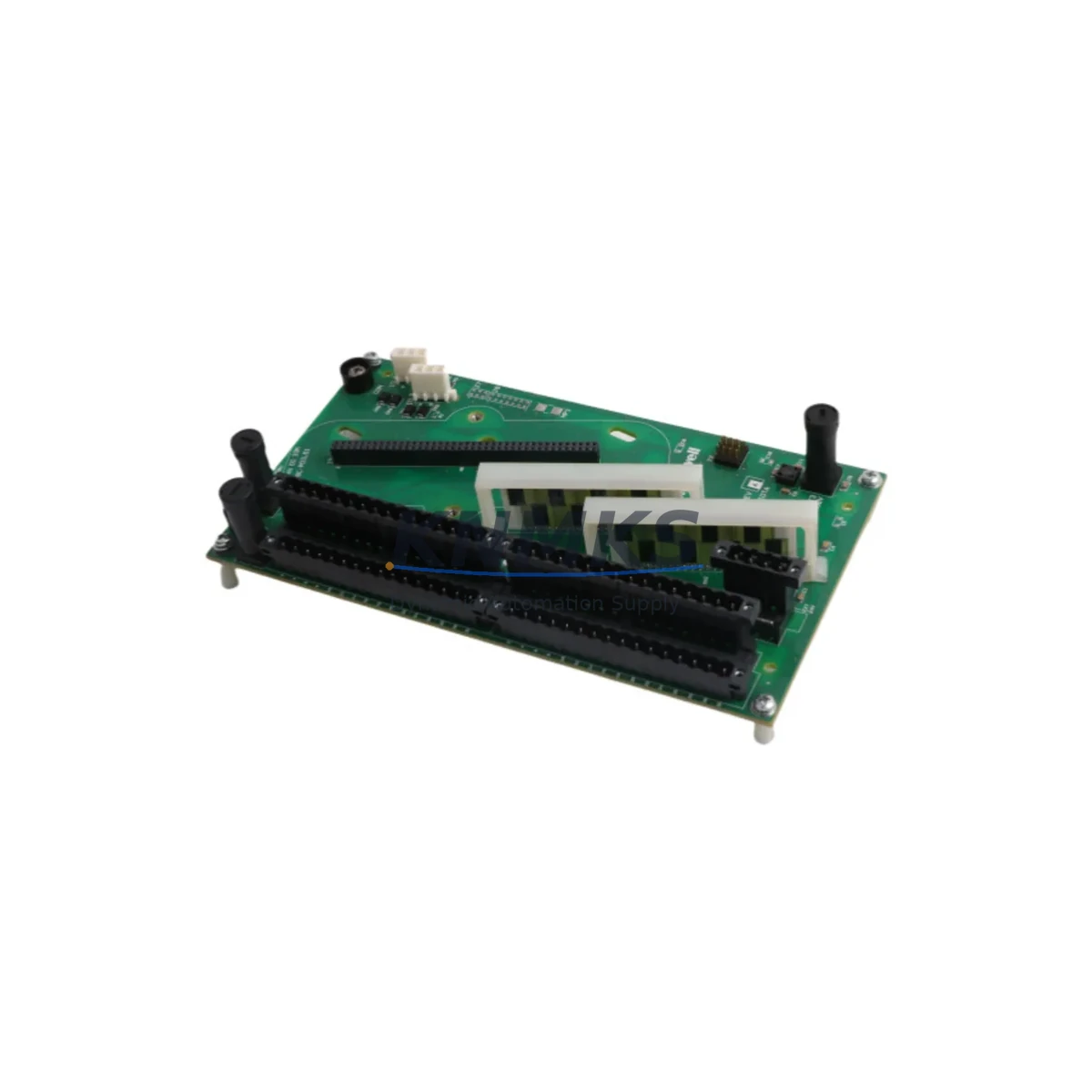

The Honeywell 8C-TDIL51 (P/N 51306969-175) is an original 8-channel Digital Input IOTA (Input/Output Termination Assembly) designed for the Experion PKS C300 Controller platform. As a field-proven component within Honeywell’s Series C I/O architecture, this module serves as a critical interface between field-level discrete signals and the C300 controller’s process logic. Maintaining a verified spare of the 8C-TDIL51 in your cabinet inventory is a foundational step in any proactive maintenance strategy for continuous process plants, refinery automation, power generation control, and chemical processing facilities.

When a digital input channel fails or an IOTA develops wiring faults, the impact on process visibility is immediate. Operators lose discrete signal feedback — limit switches, valve position indicators, motor run confirmations, and interlock status — creating blind spots that force conservative production decisions or unplanned shutdowns. Having a pre-tested 8C-TDIL51 on the shelf eliminates the procurement lead time that typically extends emergency downtime from hours to days. Our stock is sourced from authorized channels, pre-shipment tested under load, and dispatched with full traceability documentation to support your site acceptance procedures.

This spare is compatible with the Honeywell Experion PKS R400 through R520 software environments and integrates directly with the C300 Controller Module (8C-PCNT02) and the Series C I/O Link. No firmware re-flashing or configuration migration is required when replacing a like-for-like IOTA — the C300 controller automatically recognizes the module upon reinsertion, minimizing restoration time during emergency replacement scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 8C-TDIL51 in a live C300 cabinet is rarely an isolated task. Maintenance engineers conducting a planned or emergency replacement should use the opportunity to inspect the full I/O loop integrity of the affected control cabinet. Begin with the 8C-PDIL01 Digital Input FTA (Field Termination Assembly) — the companion field-side termination board that pairs with the IOTA. Wiring faults, corroded terminals, or damaged cable shields on the FTA are a common root cause of apparent IOTA failures and should be verified before condemning the IOTA itself.

Check the 24 VDC field power supply feeding the digital input loop. Voltage sag or ripple on the field supply rail can cause intermittent input state errors that mimic IOTA hardware failure. A calibrated multimeter measurement at the FTA terminal block will confirm supply integrity. If the cabinet uses a Honeywell 8C-PCNT02 C300 Controller Module, verify that the I/O Link communication between the controller and the IOTA carrier is active and error-free via the Experion Station diagnostic display before and after replacement.

For cabinets with high channel utilization, also inspect the Series C I/O Carrier backplane for signs of connector wear or oxidation at the IOTA seating contacts. A worn backplane connector can cause intermittent channel faults even with a new IOTA installed. Additionally, review the cabinet fusing arrangement — individual channel fuses or group fuses protecting the 24 VDC input loop should be tested for continuity and replaced if any show elevated resistance.

Where the 8C-TDIL51 is used in safety-adjacent interlock circuits, coordinate with your process safety team to verify that the signal isolators or Zener barriers in the field loop remain within calibration tolerance. Replacing the IOTA without re-verifying the full loop — from field device through isolator, FTA, IOTA, and into the C300 controller logic — risks masking a latent fault that could affect interlock response time. Finally, update your CMMS spare parts record to log the replacement date, the removed module’s serial number, and the new module’s traceability documentation to maintain audit-ready maintenance history.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed IOTA part number (8C-TDIL51 / 51306969-175) against the cabinet wiring diagram and the Experion Station I/O assignment list. Verify that the replacement unit carries the same revision level or a Honeywell-approved superseding revision.

Step 2 — Safe isolation: Place the affected C300 I/O module in manual override or bypass mode via the Experion Control Builder before physical removal. This prevents spurious interlock trips during the swap. De-energize the field power supply to the FTA terminal block.

Step 3 — Physical replacement: Disconnect the IOTA from the I/O carrier backplane by releasing the locking tab and sliding the module out. Insert the replacement 8C-TDIL51, ensuring full seating on the backplane connector. Re-energize the field supply.

Step 4 — Controller recognition and loop test: The C300 controller will automatically detect the new IOTA on the I/O Link. Confirm all 8 channels report correct input states in the Experion Station faceplate. Perform a point-by-point loop test by actuating each field device and verifying the corresponding channel state change in the DCS.

Step 5 — Return to service: Release the manual override, restore normal control mode, and document the replacement in your CMMS. Retain the removed IOTA for failure analysis or return-to-vendor evaluation.

This workflow is compatible with hot-standby C300 configurations where a redundant controller is active, allowing the replacement to be completed without a full process shutdown in most plant architectures.

Spare Parts Support FAQ

Q1: Is the 8C-TDIL51 compatible with all Experion PKS software versions?
The 8C-TDIL51 IOTA is compatible with Experion PKS R400 through R520. For installations running earlier releases (R300 or below), consult your Honeywell system integrator to confirm I/O Link protocol compatibility before installation. No firmware update is required on the IOTA itself — compatibility is managed at the C300 controller and Experion software level.

Q2: What pre-shipment testing is performed on this spare?
Each 8C-TDIL51 unit is functionally tested prior to dispatch: all 8 digital input channels are verified for correct state detection, optical isolation integrity is confirmed, and backplane connector contacts are inspected for oxidation or mechanical damage. A test report is available upon request for site acceptance documentation.

Q3: What is the support terms coverage and what does it include?
All units are covered by a support terms confirmed by quotation from the date of dispatch. The support terms covers hardware defects, channel failure, and backplane connector faults under normal operating conditions. It does not cover damage resulting from incorrect installation voltage, physical impact, or operation outside the specified temperature and humidity range. Support requests are processed with full replacement dispatch within 5 business days of fault confirmation.

Q4: Can you support long-term supply agreements for this part?
Yes. For facilities managing multi-year maintenance contracts or annual shutdown schedules, we offer forward stock reservation and long-term supply agreements for the 8C-TDIL51 and related Series C I/O components. Contact our team to discuss volume pricing, buffer stock programs, and scheduled delivery arrangements that align with your planned maintenance calendar.
