Honeywell 8C-TDIL11 Maintenance-Proven Spare Part for Factory Uptime

Overview

Honeywell 8C-TDIL11 Maintenance-Proven Spare Part for Factory Uptime

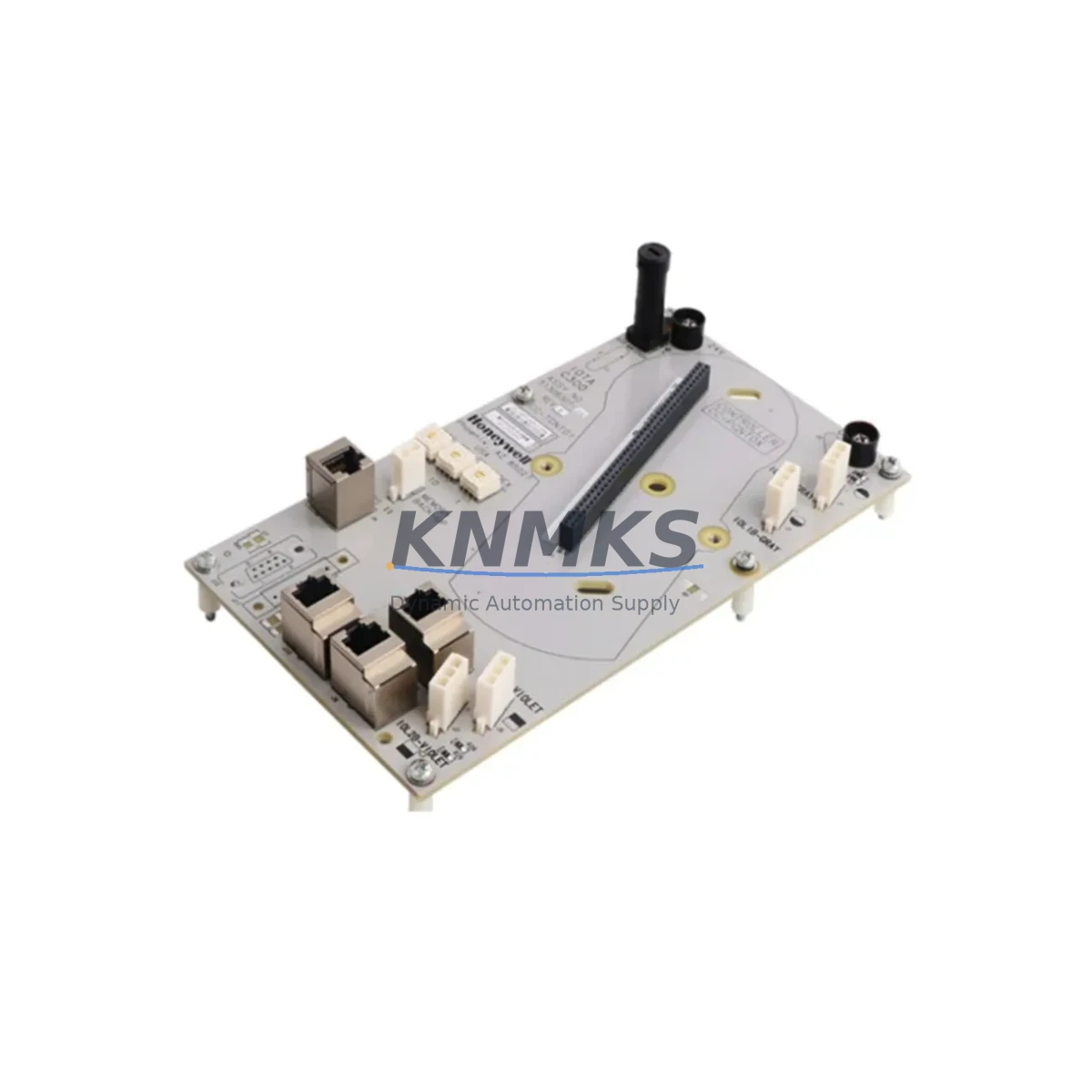

The Honeywell 8C-TDIL11 (part number 51306858-175) is an 8-channel 24VDC digital input module designed for the Experion PKS Series C I/O platform — one of the most widely deployed distributed control systems in refining, petrochemical, power generation, and continuous process industries. Maintaining an available stock of this module is a critical element of any serious spare parts strategy for facilities running Honeywell Experion PKS control cabinets.

This module interfaces directly with the Series C I/O backplane, receiving discrete 24VDC field signals from limit switches, proximity sensors, valve position feedback, motor run contacts, and safety interlock circuits. Its role in the control loop makes it a high-priority replacement candidate during both planned annual shutdowns and unplanned fault-isolation events. When a channel fails or the module reports a diagnostic fault in the Experion Station, production engineers require a verified replacement unit on hand — not a lead time of weeks from a distributor.

Each unit supplied is sourced as an original Honeywell component, subjected to pre-shipment functional testing, and dispatched with a support terms confirmed by quotation covering manufacturing defects and operational failure under normal service conditions. Global dispatch is available with typical lead times of 3–7 business days depending on destination region.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 8C-TDIL11 module, the scope of inspection should extend beyond the module itself. The Series C I/O architecture distributes I/O across carriers and backplanes, meaning a single module fault can mask upstream or downstream issues that will resurface after the swap if not addressed.

Begin by verifying the Series C I/O carrier (8C-TAIX11 or equivalent) for signs of backplane connector wear, corrosion on the gold contacts, or physical damage from vibration. The carrier is the mechanical and electrical interface between the module and the control network — a degraded carrier will cause intermittent faults even with a new module installed. Similarly, inspect the 24VDC field power distribution rail feeding the input circuits; voltage sag below 18VDC will cause false-off readings on all channels simultaneously, a symptom often misdiagnosed as module failure.

For facilities using marshalling cabinets, check the terminal blocks and field wiring terminations associated with each of the 8 input channels. Loose terminations on limit switch or valve feedback circuits are a leading cause of intermittent DI faults that appear as module errors in the Experion historian. If the plant uses signal isolators or intrinsic safety barriers between the field device and the DI module — common in Zone 1 or Zone 2 hazardous areas — verify that the barrier output voltage and current are within the module’s input threshold specifications.

The C300 Controller module that manages this I/O cluster should also be reviewed during the same maintenance window. Check the controller’s diagnostic page in Experion Control Builder for any latent I/O communication errors, and confirm that the I/O link between the C300 and the Series C backplane is operating without retries. If the plant also uses 8C-TAOX11 analog output carriers or 8C-TDOL11 digital output modules in the same cabinet, inspect those simultaneously — shared power supplies and backplane segments mean a fault in one area can stress adjacent modules.

For facilities with aging Experion PKS installations, consider stocking a minimum of two 8C-TDIL11 units per control cabinet cluster, alongside one spare Series C I/O power supply module and a set of replacement fuses for the field power distribution circuits. This three-component buffer covers the most common failure modes without requiring a full cabinet spare.

Site Replacement Workflow

The 8C-TDIL11 supports hot-swap replacement on the Series C I/O platform, allowing module exchange without shutting down the C300 controller or the associated control strategies — provided the replacement is performed correctly and the module configuration is pre-loaded in the Experion database.

Step 1 — Pre-replacement verification: Confirm the replacement module’s firmware revision is compatible with the installed C300 controller firmware. Mismatched firmware between the DI module and the controller can prevent automatic recognition after insertion. Check the Experion Control Builder module properties for the required firmware baseline.

Step 2 — Field signal isolation: Before removing the faulty module, document the current state of all 8 input channels in the Experion Station display. If any channels are in an active or energized state, coordinate with the field operations team to ensure that removing the module will not trigger a spurious interlock or safety function. For SIL-rated loops, follow the plant’s Management of Change (MOC) procedure.

Step 3 — Module extraction and insertion: Release the module locking tab on the Series C carrier, slide the 8C-TDIL11 out, and insert the replacement unit. The module will begin its self-diagnostic sequence automatically. Monitor the Experion Station for the module to transition from “Not Responding” to “OK” status — this typically takes 15–45 seconds.

Step 4 — Channel verification: After the module is recognized, verify each of the 8 input channels against known field device states. Use the Experion Control Builder I/O diagnostic view to confirm channel-level signal integrity. Document the replacement in the plant’s maintenance management system (CMMS) with the module serial number and date.

This workflow minimizes process disruption and ensures the replacement is traceable for future audits and reliability analysis.

Spare Parts Support FAQ

Q1: Is the 8C-TDIL11 compatible with both the C300 and the older C200 controller platforms?
The 8C-TDIL11 is designed for the Experion PKS Series C I/O platform, which is natively compatible with the C300 controller. Compatibility with C200 or earlier controller generations depends on the I/O link configuration and firmware versions in use at your site. We recommend confirming the controller-to-I/O link compatibility via your Experion system documentation or contacting our technical team with your controller firmware version before ordering.

Q2: What is included in the support terms confirmed by quotation, and what does pre-shipment testing cover?
The support terms confirmed by quotation cover manufacturing defects and operational failure under normal service conditions from the date of shipment. Pre-shipment testing includes power-on self-diagnostic verification, channel continuity checks, and backplane interface validation. Units that do not pass functional testing are not dispatched. Support requests are processed with a replacement-first policy to minimize your downtime.

Q3: How many units should a facility stock as part of a long-term spare parts strategy?
For a facility with 3–6 Series C I/O clusters, a minimum stock of 2–3 units of the 8C-TDIL11 is recommended. High-criticality applications — such as safety interlock inputs or continuous process control loops — warrant a higher buffer. Annual consumption data from your CMMS, combined with the module’s mean time between failures (MTBF) data from Honeywell’s reliability documentation, should drive your reorder point calculation.

Q4: Can you support long-term supply agreements for this module?
Yes. We maintain multi-region stock of the 8C-TDIL11 and can support blanket purchase orders, scheduled releases, and consignment arrangements for facilities with predictable annual consumption. Long-term supply agreements include priority allocation during periods of market shortage, which is particularly relevant for legacy Experion PKS components that are no longer in active production at the OEM level.
