Honeywell 8C-TAOXA1 Maintenance-Proven Spare for Factory Uptime

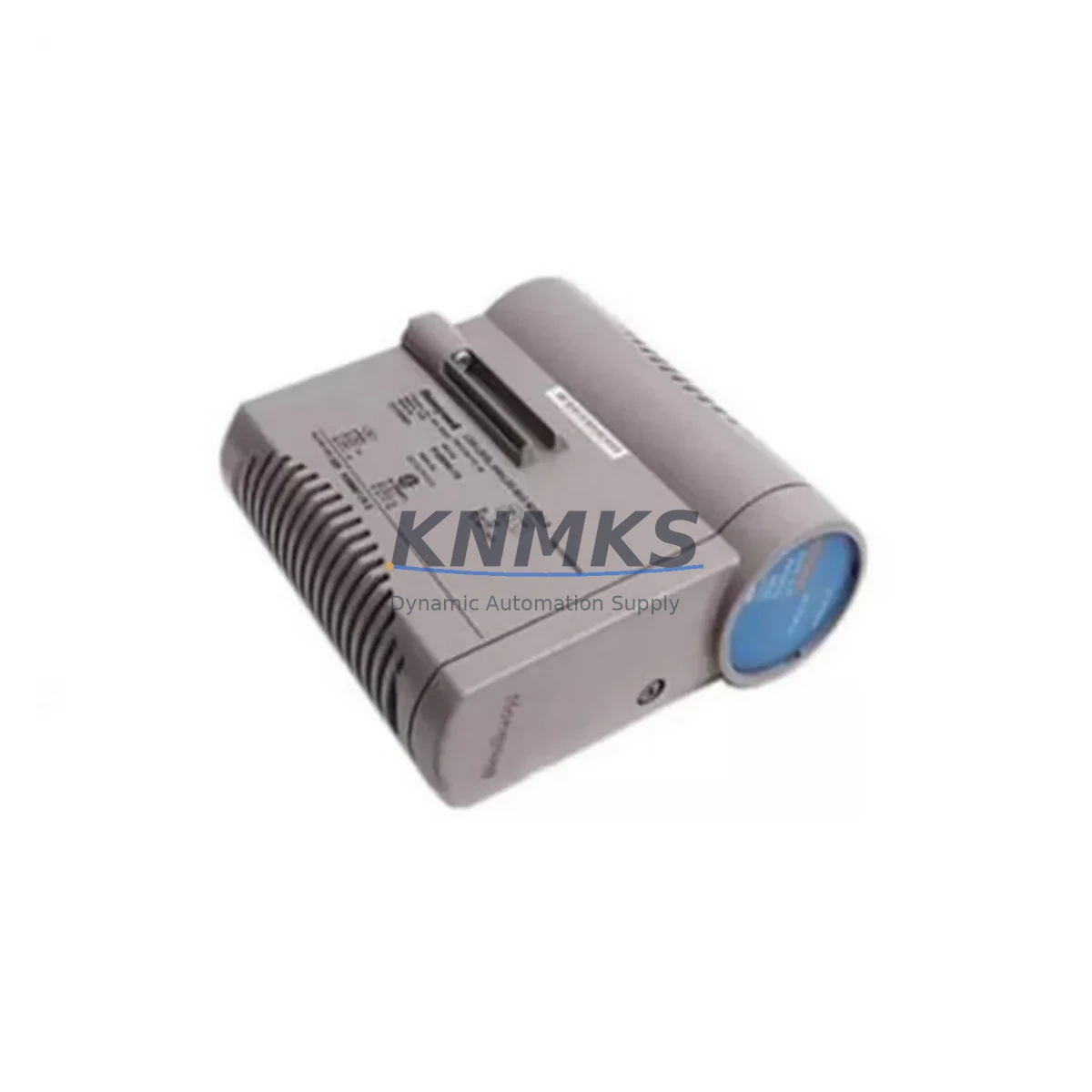

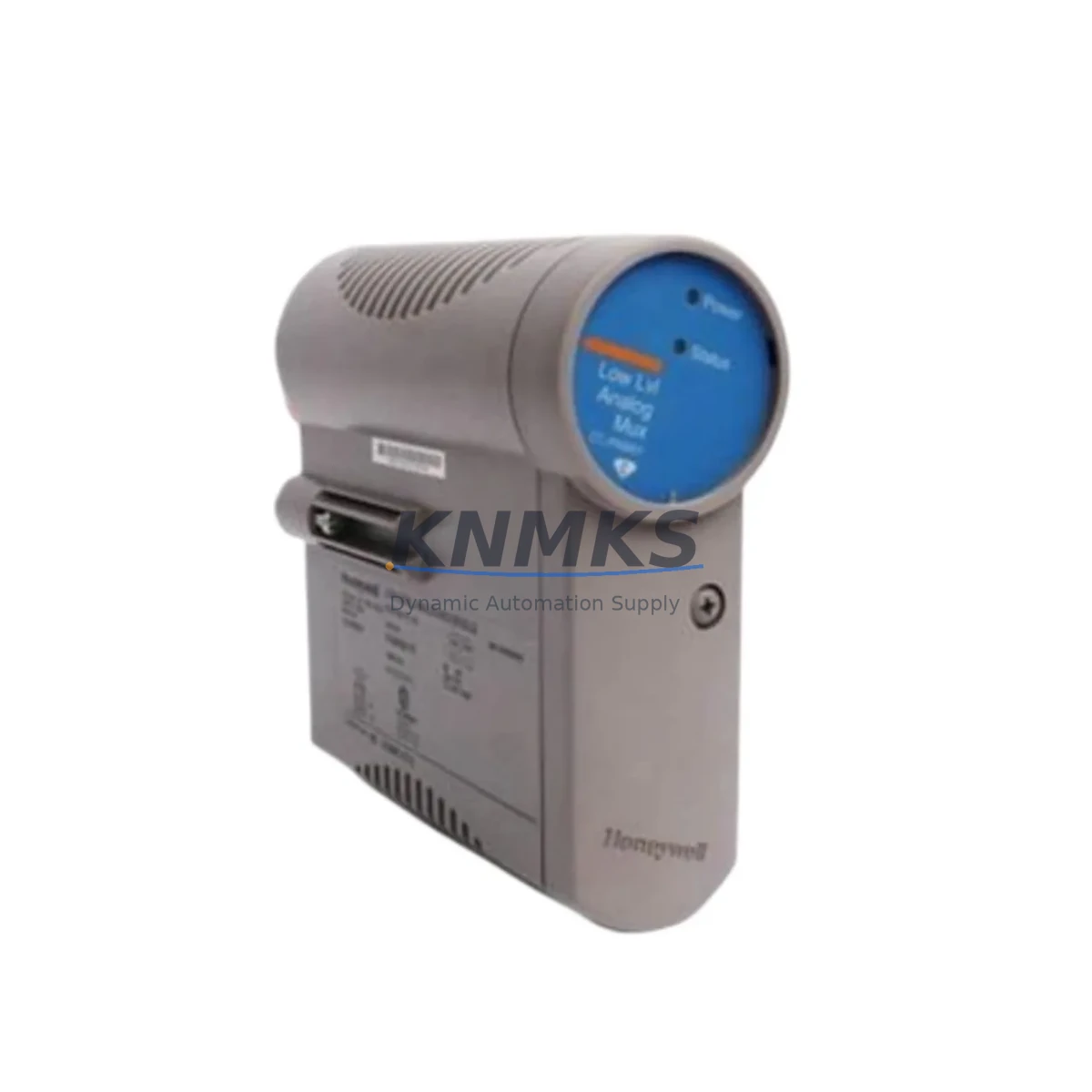

The Honeywell 8C-TAOXA1 (Part No. 51307135-175) is an 8-channel analog output module engineered for the Experion PKS C300 DCS platform. In continuous-process industries — refining, petrochemical, power generation, and advanced manufacturing — the C300 controller cabinet is the nerve center of loop control. When an analog output module degrades or fails, the downstream impact is immediate: valve positioning errors, flow deviations, and unplanned shutdowns. Stocking a verified replacement of the 8C-TAOXA1 is not optional maintenance planning — it is a fundamental requirement for any facility committed to sub-four-hour MTTR targets.

Each unit supplied by KNMKS is sourced from authorized channels, subjected to pre-shipment functional verification, and dispatched with a support terms confirmed by quotation. Global logistics coverage ensures that maintenance engineers in North America, Europe, and Asia-Pacific receive the module within the lead times required to meet planned and emergency maintenance windows.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 8C-TAOXA1 in a live C300 cabinet is a structured task that extends well beyond swapping the module itself. Maintenance engineers should treat the replacement event as a cabinet-level inspection opportunity. Before powering down the affected I/O Link segment, verify that the C300 Controller Module (such as the CC-PCNT01 or equivalent) is operating within normal CPU and memory utilization thresholds — a degraded controller can mask analog output faults and cause misdiagnosis.

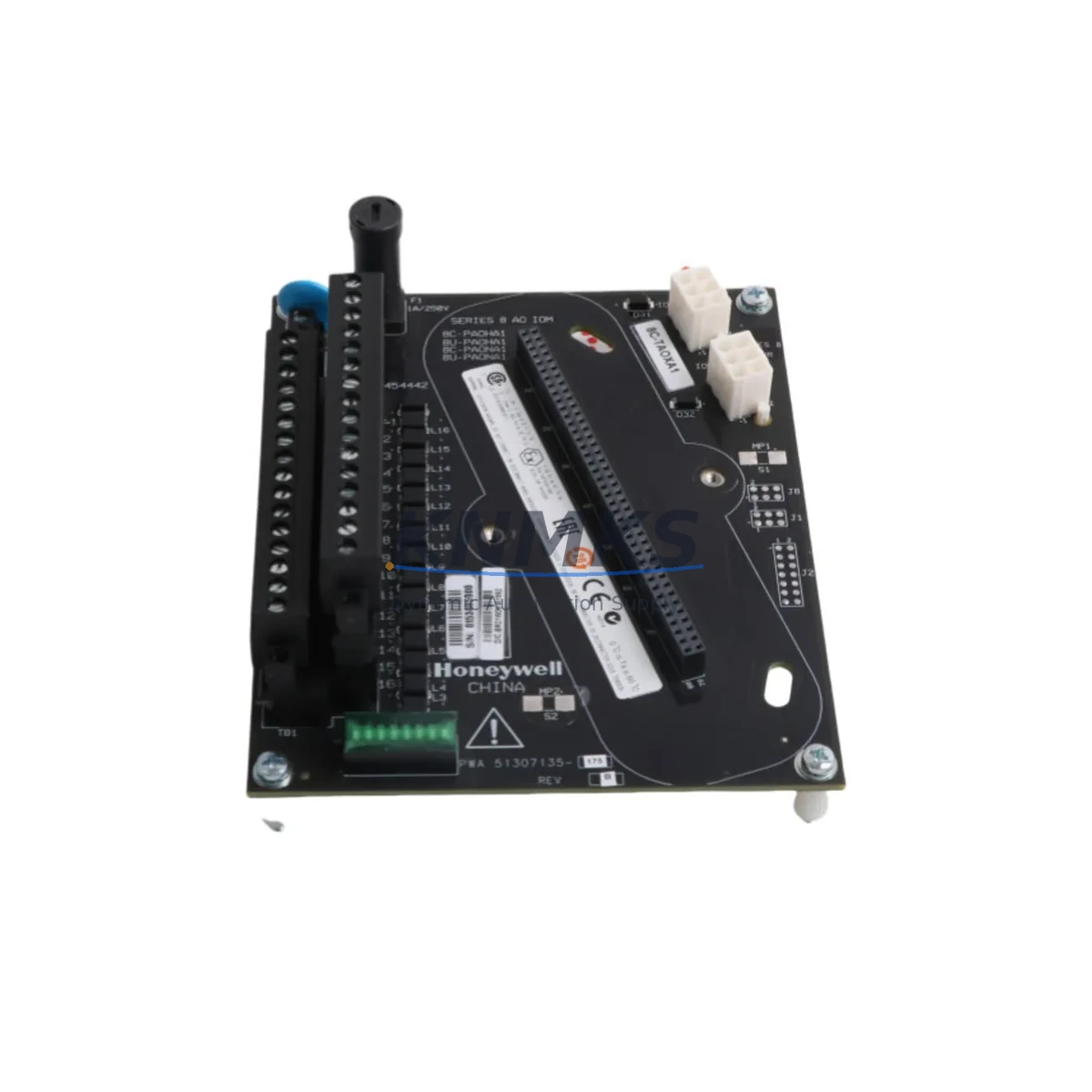

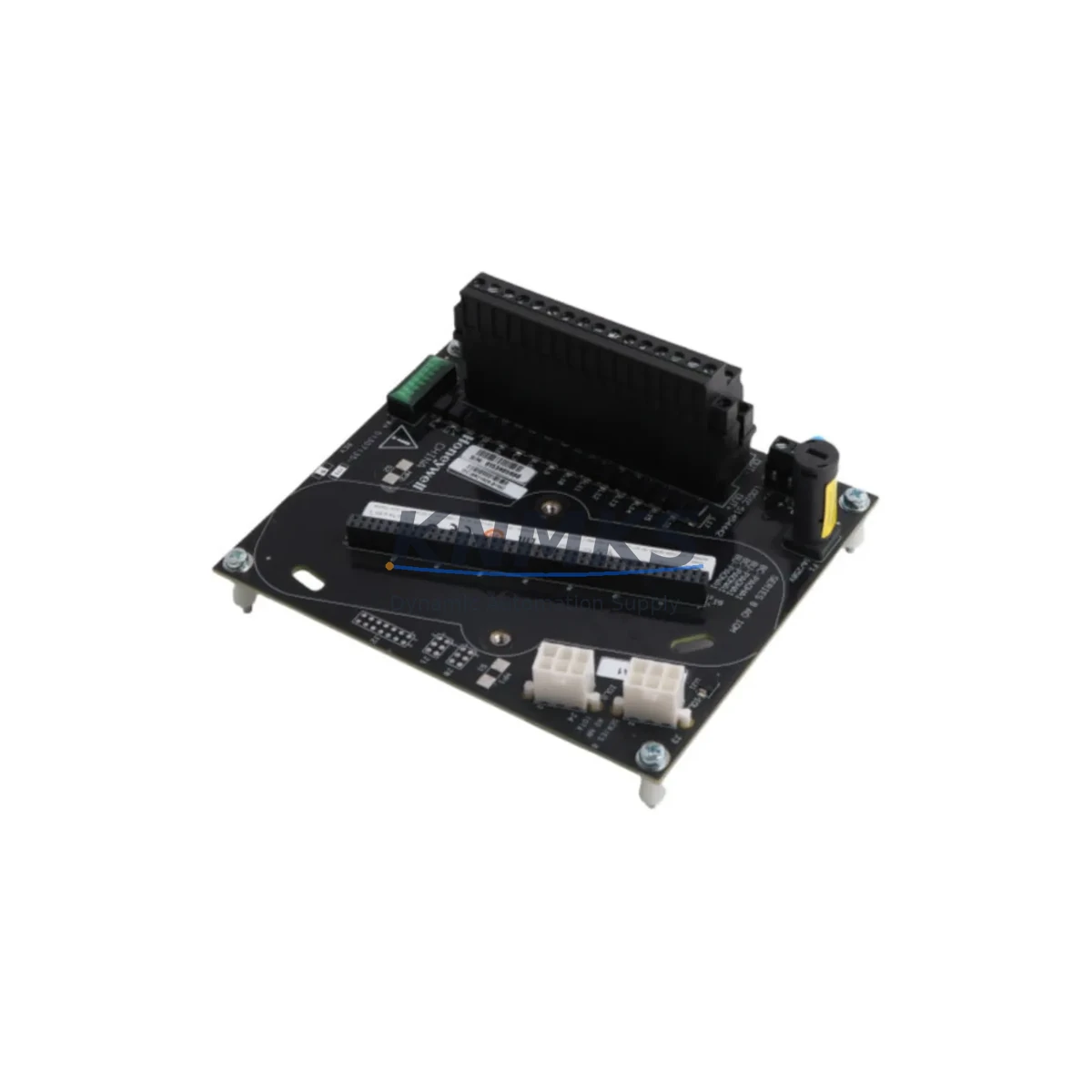

Inspect the FIM (Field Interface Module) carrier and backplane connectors for oxidation, mechanical damage, or loose seating. The FIM carrier provides the physical and electrical interface between the 8C-TAOXA1 and the C300 I/O Link; a compromised carrier will cause intermittent channel faults even with a new module installed. Alongside the analog output module, check the 24 VDC loop power supply feeding the field instruments — degraded loop power is a common root cause of 4–20 mA signal drift that is incorrectly attributed to the output module itself.

For HART-enabled loops, verify that the HART multiplexer or HART pass-through configuration in the Experion PKS server is correctly mapped to the replacement module’s channel assignments. Misconfigured HART addressing after a module swap is a frequent source of post-maintenance alarms. Additionally, inspect terminal blocks and field wiring terminations on the associated marshalling cabinet — corroded or loose terminals introduce resistance that distorts the 4–20 mA signal and can cause valve positioning errors within weeks of a module replacement.

Where the facility operates redundant C300 controller pairs, confirm that the redundancy synchronization status is healthy before and after the module swap. If the site uses Honeywell Safety Manager or a Safety Instrumented System (SIS) with cross-wired analog outputs, coordinate the replacement with the SIS engineer to avoid inadvertent safety function impairment. Finally, review the fuse and surge protection devices on the loop power distribution panel — a blown fuse or degraded MOV is often the upstream cause of the analog output module failure and must be addressed before the replacement module is commissioned.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module’s slot address in Experion PKS Station. Export the current I/O configuration and channel tag assignments as a backup. Verify that the replacement 8C-TAOXA1 (51307135-175) part number matches the installed revision level required by the FIM carrier firmware.

Step 2 — Safe Isolation: Place all affected control loops in manual mode at the DCS operator station. Notify field operators of the impending output freeze. If the loops control critical valves or pumps, coordinate with operations to hold process conditions within safe limits during the swap window.

Step 3 — Module Removal and Inspection: Remove the faulty 8C-TAOXA1 using the module extraction handle. Inspect the backplane connector pins on both the module and the FIM carrier for bent pins, debris, or corrosion. Clean with appropriate contact cleaner if required before installing the replacement.

Step 4 — Replacement Installation: Seat the new 8C-TAOXA1 firmly into the FIM carrier slot. The module should latch positively without excessive force. Power is restored automatically via the backplane upon seating — no separate power cycling of the carrier is required in most C300 configurations.

Step 5 — Commissioning and Loop Check: Monitor the Experion PKS faceplate for each channel. Confirm that all 8 channels report healthy status and that HART device descriptors are recognized where applicable. Perform a live loop check on at least two channels by commanding a known output value and verifying the corresponding field instrument response. Return all loops to automatic mode only after successful loop verification.

Step 6 — Documentation: Record the replacement in the site CMMS (Computerized Maintenance Management System) with the new module’s serial number, installation date, and post-replacement loop check results. Update the spare parts inventory to trigger a replenishment order for the consumed 8C-TAOXA1 unit.

Spare Parts Support FAQ

Q1: Is the 8C-TAOXA1 51307135-175 compatible with both C300 and C300E controller configurations?
The 8C-TAOXA1 is designed for the Honeywell Experion PKS C300 I/O architecture. Compatibility with C300E configurations depends on the FIM carrier revision and the Experion PKS software version installed at the site. KNMKS recommends providing your FIM carrier part number and Experion PKS release version when ordering to allow pre-shipment compatibility confirmation.

Q2: What does the support terms confirmed by quotation cover, and how is it enforced?
The support terms confirmed by quotation cover functional failure of the module under normal operating conditions from the date of dispatch. Units that fail within the confirmed support period are eligible for replacement or credit. KNMKS conducts pre-shipment functional testing on all analog output modules; test records are available upon request. Support requests require the original dispatch documentation and a brief fault description.

Q3: How should facilities manage long-term supply risk for the 8C-TAOXA1 given Honeywell’s product lifecycle policies?
Honeywell periodically transitions Experion PKS hardware to limited availability or end-of-life status. Facilities operating C300-based systems should maintain a minimum buffer of one to two 8C-TAOXA1 modules per active FIM carrier in their on-site spare parts inventory. KNMKS supports long-term supply agreements and forward-stocking arrangements for high-criticality modules, enabling procurement engineers to lock in availability and pricing across multi-year maintenance cycles.

Q4: Can the 8C-TAOXA1 be tested before installation to confirm it is functional?
Yes. KNMKS performs pre-shipment functional verification on all analog output modules prior to dispatch. For sites with in-house test benches, the module can be bench-tested using a compatible FIM carrier and a C300 controller in a non-production environment. Channel output accuracy should be verified against the 4–20 mA specification using a calibrated loop calibrator before the module is installed in a live cabinet.
