Honeywell 8C-TAIX51 Spare Part for C300 Factory Uptime

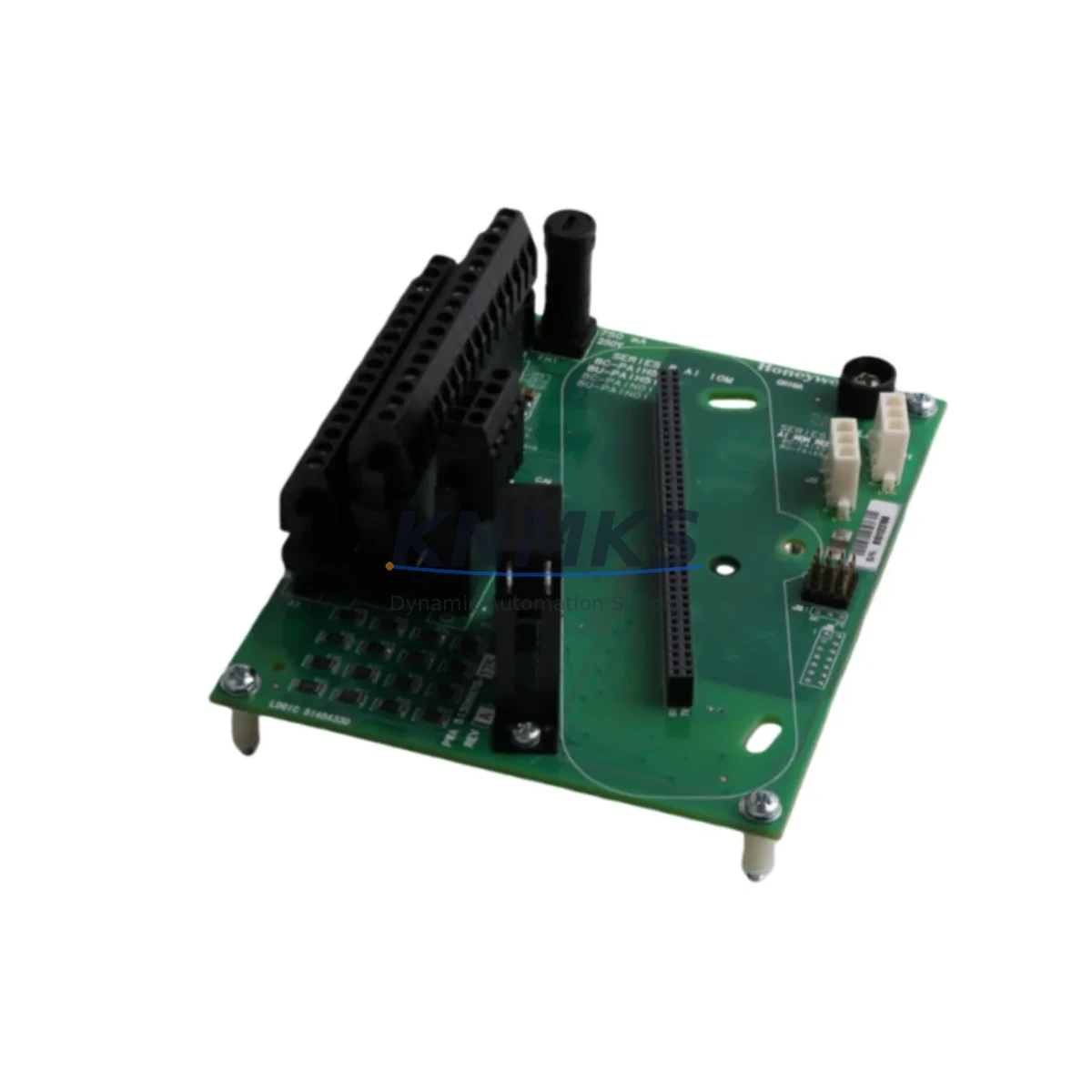

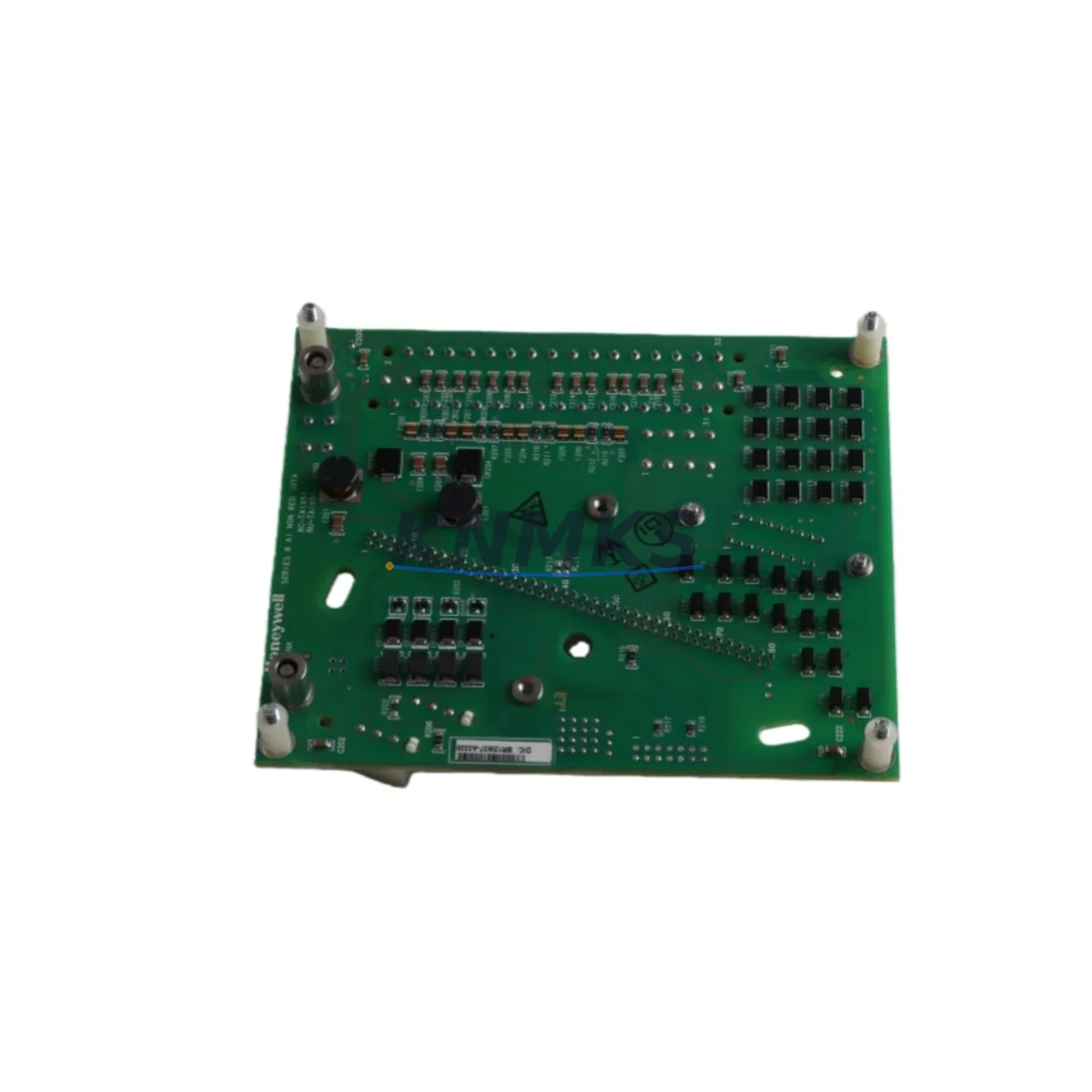

The Honeywell 8C-TAIX51 is a maintenance-proven digital input termination assembly designed for the Honeywell C300 Controller and Experion PKS distributed control system. For maintenance engineers managing continuous process operations in petrochemical, refining, power generation, and manufacturing facilities, this module represents a critical spare that directly supports plant uptime and control system integrity. Sourced as an original Honeywell component, each unit is inspection-tested prior to shipment and backed by a support terms confirmed by quotation, ensuring confidence in every replacement cycle.

Whether you are executing a planned annual turnaround, responding to an unscheduled fault isolation event, or building a strategic spare parts inventory for aging Experion PKS cabinets, the 8C-TAIX51 provides a direct, compatible replacement that eliminates the configuration risk associated with non-original substitutes. Procurement engineers can rely on confirmed long-term supply availability, competitive lead times, and pre-shipment functional verification to reduce sourcing risk and protect capital project schedules.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a digital input channel fault is detected on the Honeywell C300 system — whether through Experion PKS alarm management, routine I/O diagnostics, or a field instrument signal loss — the 8C-TAIX51 termination assembly is typically the first component to inspect and replace. However, experienced maintenance engineers know that a single module fault rarely occurs in isolation. A thorough fault isolation and replacement workflow should also include inspection of the following associated components within the same control cabinet and I/O loop.

The 8C-PAIM01 I/O Link Interface Module, which provides the communication backbone between the C300 controller and the I/O subsystem, should be verified for link integrity and firmware status whenever a termination assembly is replaced. Similarly, the CC-TAIX01 or equivalent I/O FTA (Field Termination Assembly) wiring blocks connected to the same I/O chassis should be inspected for terminal corrosion, loose field wiring, and correct signal polarity.

Power distribution within the control cabinet is equally critical. The CC-PWR01 24 VDC power supply module feeding the I/O chassis should be load-tested and output voltage verified before commissioning a replacement 8C-TAIX51. Fuse blocks and individual channel fuses on the field termination side must be checked for continuity — a blown fuse on a field circuit is a common root cause of digital input channel faults that can be misdiagnosed as module failure.

For facilities running Experion PKS with redundant C300 controllers, the C300 Controller Module itself and its associated IOTA (I/O Termination Assembly) backplane connections should be inspected for seating integrity. Loose backplane connectors are a known cause of intermittent I/O faults in high-vibration environments such as compressor stations and turbine control rooms. Additionally, any signal isolators or barriers installed between the field instruments and the 8C-TAIX51 input channels — particularly in hazardous area installations — should be tested for correct output levels and isolation resistance.

For older Experion PKS installations approaching end-of-support milestones, maintaining a cabinet-level spare kit that includes the 8C-TAIX51 alongside the 8C-TAOX51 digital output termination assembly and relevant communication modules ensures that your maintenance team can execute rapid, confident replacements during both planned shutdowns and emergency callouts.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the fault is isolated to the 8C-TAIX51 by reviewing Experion PKS I/O diagnostics and checking field instrument signal continuity at the FTA terminal block. Document the current channel configuration and I/O assignment before removal.

Step 2 — Safe isolation: Place the affected I/O module in bypass or manual mode via the Experion PKS console. De-energize the field circuit at the appropriate isolation point. Do not remove the module under live field voltage.

Step 3 — Module removal and replacement: Disengage the 8C-TAIX51 from the I/O chassis backplane using the module release latch. Seat the replacement unit firmly until the backplane connector is fully engaged. No tools are required for standard hot-swap capable chassis configurations — verify your specific chassis revision supports hot-swap before proceeding.

Step 4 — Configuration restore: The Experion PKS system will automatically recognize the replacement module and restore the channel configuration from the controller database. Verify all 8 input channels report correct status in the Experion Station display before returning the loop to automatic control.

Step 5 — Post-replacement documentation: Record the replacement in your CMMS (Computerized Maintenance Management System), update the spare parts inventory, and flag the removed module for bench testing or return-to-vendor evaluation. This workflow typically achieves full loop restoration within 15–30 minutes, minimizing process impact and supporting your plant’s mean-time-to-repair (MTTR) targets.

Spare Parts Support FAQ

Q1: Is the 8C-TAIX51 compatible with all Experion PKS revisions?
The 8C-TAIX51 is designed for the Honeywell C300 I/O subsystem and is compatible with Experion PKS R310 and later releases. For installations running earlier firmware, compatibility should be confirmed against the Honeywell C300 I/O Compatibility Matrix. We recommend providing your current Experion PKS revision when placing an order so our technical team can confirm suitability before shipment.

Q2: What pre-shipment testing is performed on each unit?
Every 8C-TAIX51 unit undergoes functional verification prior to dispatch, including channel continuity checks, isolation resistance testing, and backplane connector inspection. A test report is available upon request. All units are shipped in anti-static packaging with physical protection to prevent transit damage.

Q3: Can you support long-term or blanket purchase orders for ongoing maintenance programs?
Yes. We support long-term supply agreements and blanket PO arrangements for maintenance teams managing multi-year spare parts programs. Pricing stability, reserved stock allocation, and priority dispatch are available for qualified accounts. Contact admin@knmks.com to discuss your annual consumption requirements and establish a supply framework.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a support terms claim, we provide advance replacement dispatch to minimize your downtime exposure, with the defective unit returned for evaluation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

8C-TAIX51
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 8C-TAIX51
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
