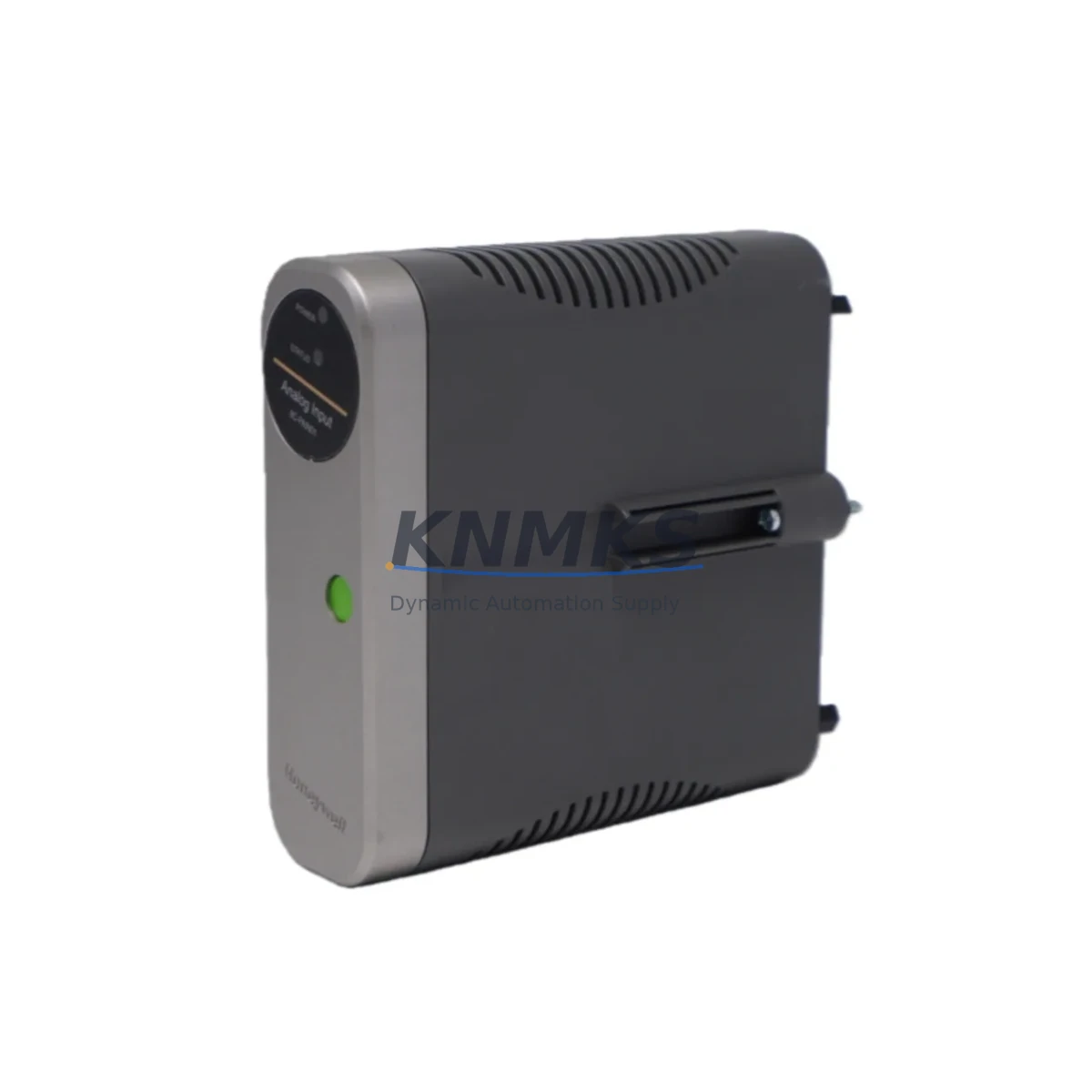

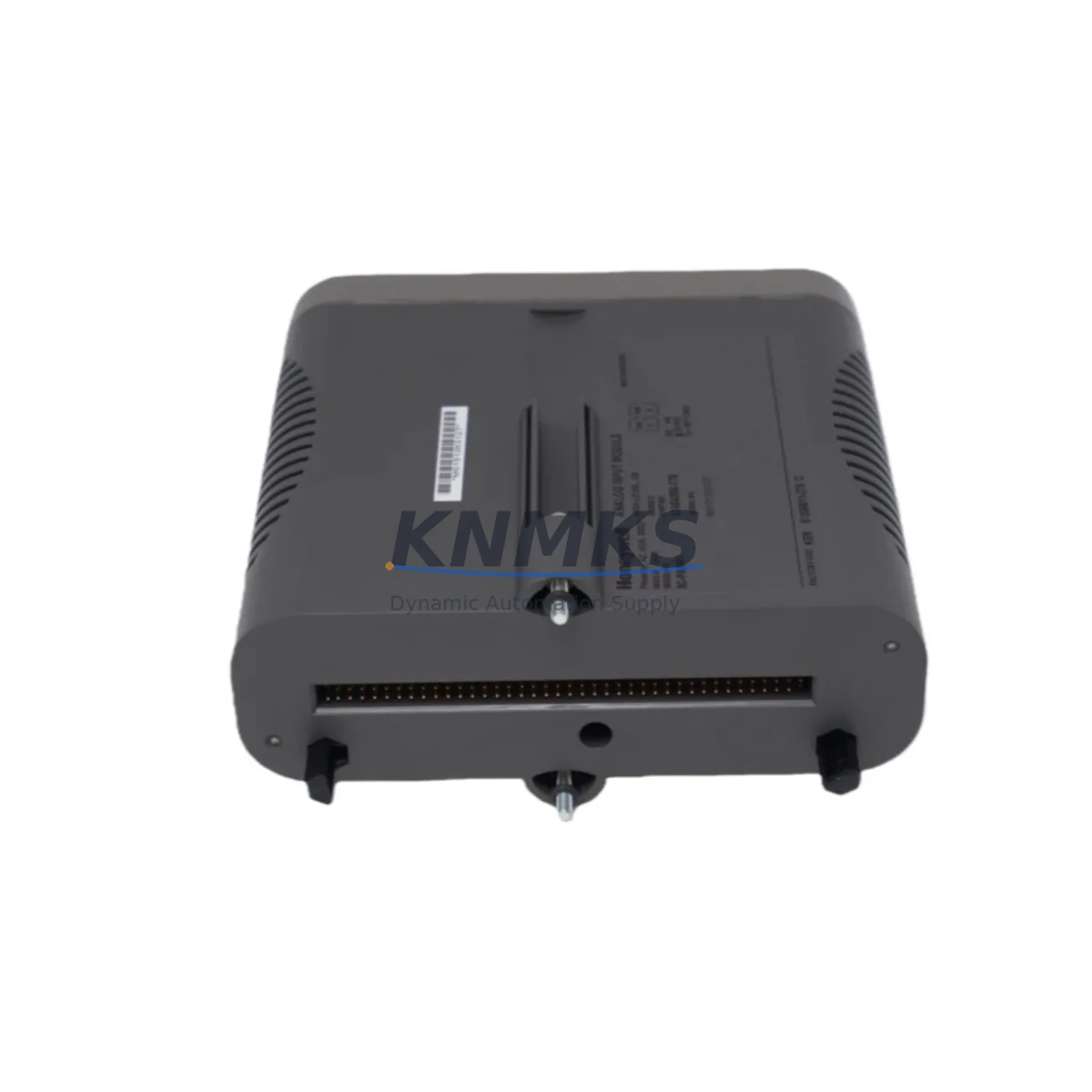

Honeywell 8C-PAIN01 Migration-Ready Analog Input Module

Overview

Honeywell 8C-PAIN01 Migration-Ready Analog Input Module: Legacy System Retrofit & Compatibility Upgrade

The Honeywell 8C-PAIN01 is an 8-channel analog input module engineered for the Experion PKS C300 Controller platform, and it stands as one of the most reliable drop-in solutions for facilities undertaking legacy control system migrations. Whether your plant is retiring aging TDC-3000 hardware, decommissioning obsolete HC900 I/O racks, or transitioning from a third-party DCS to Honeywell’s Experion architecture, the 8C-PAIN01 provides a proven, field-validated path forward — without requiring a complete I/O infrastructure overhaul.

Designed to accept standard 4–20 mA HART signals, the 8C-PAIN01 integrates directly into the C300 Series FIM (Field Interface Module) backplane. Each channel supports HART pass-through communication, enabling simultaneous process variable acquisition and device diagnostics — a critical capability when migrating from older analog-only systems where HART was not previously utilized. During retrofit planning, engineers should verify that existing field wiring gauge, loop impedance, and terminal block configurations are compatible with the module’s input specifications before energizing the new assembly.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 8C-PAIN01 begins well before the module arrives on-site. The first step is a thorough audit of the existing I/O cabinet: document every analog input channel currently in service, confirm the field device signal type (4–20 mA, voltage, or thermocouple), and identify whether HART communication was previously enabled or suppressed at the marshalling panel. In many legacy installations, HART was wired but never activated — the 8C-PAIN01 gives you the opportunity to unlock that capability during the upgrade.

When planning the physical installation, confirm that the target C300 I/O chassis has sufficient available slots. The 8C-PAIN01 occupies a single slot in the CIOM-A or CIOM-B backplane. If the existing cabinet is fully populated, you may need to introduce an additional I/O chassis or redistribute modules — a process that also requires updating the Experion Control Builder configuration to reflect the new slot assignments. Alongside the 8C-PAIN01, many retrofit projects also incorporate the Honeywell 8C-TAIX11 terminal assembly, which provides the screw-terminal field wiring interface and simplifies the transition from legacy marshalling wiring to the new I/O structure.

Power budget verification is another non-negotiable step. The C300 chassis power supply — often the Honeywell CC-PWR01 or equivalent — must have sufficient headroom to support the additional I/O load introduced by the 8C-PAIN01 and any other modules being added during the same retrofit window. Overloading the chassis power supply is a common cause of intermittent faults during post-retrofit commissioning, and it is far easier to address during the planning phase than after installation.

For sites migrating from older serial-based DCS architectures, the communication infrastructure also requires attention. The C300 controller communicates over Fault Tolerant Ethernet (FTE), which means legacy RS-485 or proprietary fieldbus links must be bridged or replaced. In some cases, a Honeywell ControlNet or PROFIBUS gateway module is retained in the control cabinet to maintain communication with field devices that cannot be immediately re-wired, allowing a phased migration approach that avoids a full plant shutdown. The 8C-PAIN01 fits naturally into this phased strategy — it can be installed and configured in parallel with the existing system before the final cutover.

HMI screen updates are frequently underestimated during retrofit planning. When the 8C-PAIN01 replaces a legacy analog input card, the tag names, engineering unit ranges, and alarm setpoints in the Experion Station HMI must be verified and updated to match the new module’s channel configuration. Failure to align HMI displays with the new I/O mapping is one of the most common sources of operator confusion during the first weeks after a retrofit cutover. Coordinate with the control system engineer to ensure that all affected faceplate displays, trend groups, and alarm pages are reviewed before the system goes live.

Signal isolators — such as the Honeywell STT850 or equivalent DIN-rail signal conditioners — may also be required if the field wiring runs are long or if there is a risk of ground loop interference between the legacy marshalling panel and the new C300 I/O chassis. Incorporating signal isolation at the marshalling level protects the 8C-PAIN01 input circuits and ensures measurement accuracy is maintained after the retrofit.

Downtime Control During System Migration

Minimizing unplanned downtime is the central concern of any industrial control system retrofit, and the 8C-PAIN01 is well-suited to a structured, low-risk cutover strategy. The recommended approach is to pre-configure the module offline — using Experion Control Builder in simulation mode — so that all channel assignments, HART device tags, engineering unit scaling, and alarm limits are fully defined before the module is physically installed in the cabinet. This offline preparation dramatically reduces the time the control system is in an unverified state during the actual cutover window.

During the cutover itself, work channel by channel rather than transferring all field wiring simultaneously. Terminate one field device at a time on the new 8C-TAIX11 terminal assembly, verify the signal reading in Experion Station, and confirm HART communication before moving to the next channel. This methodical approach allows the operations team to maintain visibility of the process throughout the migration and to identify wiring errors or address conflicts before they affect production.

Preserve the original program logic by exporting a full backup of the Experion Control Builder project — including all CEE (Control Execution Environment) strategies, module configurations, and historian tag assignments — before making any changes to the live system. Store this backup on an isolated engineering workstation and verify its integrity. If the retrofit encounters an unexpected issue, this backup provides a reliable rollback path that can restore the previous configuration without requiring a full system rebuild.

For critical process loops, consider implementing a temporary bypass or manual control mode during the cutover window. Coordinate with the operations team to identify which loops can tolerate a brief interruption and which require continuous control. Loops that cannot be interrupted should be addressed last, after the team has gained confidence with the new 8C-PAIN01 installation through the less critical channels. This risk-stratified approach keeps the plant running safely while the retrofit progresses.

Retrofit Support FAQ

Q1: Is the 8C-PAIN01 a direct replacement for legacy Honeywell TDC-3000 analog input cards?
The 8C-PAIN01 is not a pin-for-pin drop-in replacement for TDC-3000 I/O cards, as the TDC-3000 uses a different backplane architecture. However, it is the correct replacement module for the C300 Experion PKS platform, which is Honeywell’s designated migration target for TDC-3000 systems. The field wiring from the legacy marshalling panel can typically be re-terminated to the 8C-TAIX11 terminal assembly with minimal modification, making the 8C-PAIN01 the practical end-point of a TDC-3000 to Experion migration.

Q2: What commissioning steps are required after installing the 8C-PAIN01?
After physical installation, the module must be assigned to the correct slot address in Experion Control Builder and downloaded to the C300 controller. Each channel should then be verified by applying a known 4–20 mA test signal and confirming the engineering unit reading in Experion Station. HART communication should be tested using the Experion HART Device Manager or a handheld HART communicator. Finally, all alarm setpoints and historian tags associated with the affected channels should be reviewed and confirmed before returning the loops to automatic control.

Q3: Can the 8C-PAIN01 be used in a mixed I/O chassis alongside other C300 modules?
Yes. The 8C-PAIN01 is fully compatible with other C300 Series I/O modules in the same chassis, including analog output modules, digital input/output modules, and HART multiplexer modules. Slot assignment is flexible within the CIOM-A and CIOM-B backplane, subject to the chassis power budget. Confirm total chassis power consumption before finalizing the module layout.

Q4: What support terms and pre-shipment testing does KNMKS provide for the 8C-PAIN01?
Every 8C-PAIN01 unit supplied by KNMKS is tested before shipment to verify module functionality, channel integrity, and communication readiness. All units are covered by a support terms confirmed by quotation from the date of delivery. KNMKS maintains stock inventory to support urgent retrofit and emergency replacement requirements, with fast dispatch available for time-critical plant maintenance situations. For availability and lead time, contact admin@knmks.com or call +86 18359268345.
