Honeywell 8C-PAIH51 Migration-Ready HART AI Module

Overview

Honeywell 8C-PAIH51 Migration-Ready HART AI Module for Legacy Control Systems

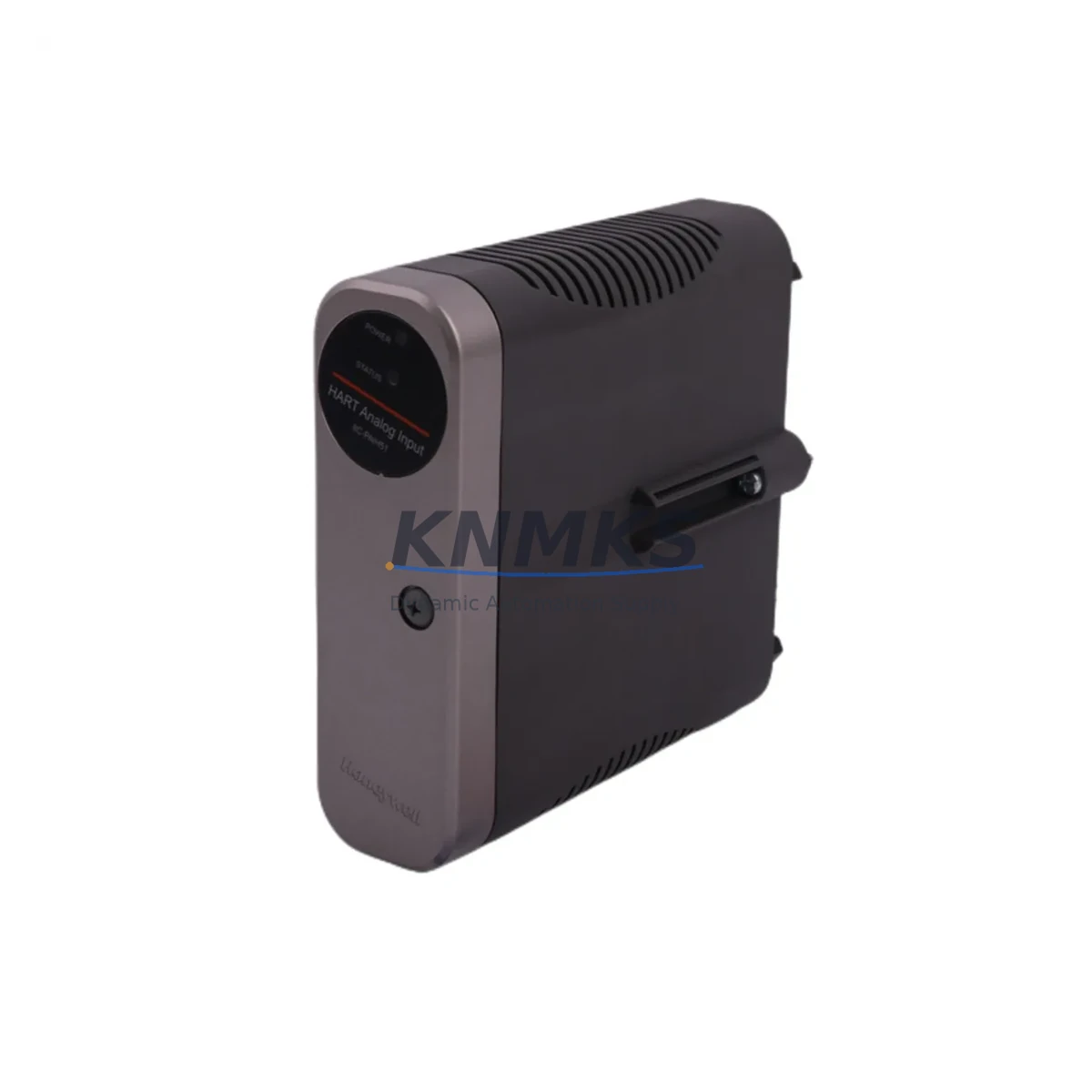

The Honeywell 8C-PAIH51 (Part No. 51454352-175) is an 8-channel HART-enabled Analog Input module designed for the Experion PKS Series C I/O platform. As legacy TDC 3000, PlantScape, and early Experion R100–R300 systems approach end-of-support, the 8C-PAIH51 has become a critical component in DCS modernization projects — offering a direct migration path that preserves existing field wiring, HART device configurations, and control logic without requiring a full system overhaul.

This module supports 4–20 mA HART signals across all eight channels simultaneously, enabling engineers to retain existing smart transmitters — including Honeywell STT850 temperature transmitters and ST 800 pressure transmitters — while upgrading the controller backbone to Experion PKS R500 or later. The module installs into the Series C I/O Link carrier, which is compatible with the standard C300 Controller and IOLIM (I/O Link Interface Module), making it a preferred choice for phased migration strategies where minimizing downtime is paramount.

Before deploying the 8C-PAIH51 in a retrofit project, engineers should verify several key parameters: confirm that the existing Series C carrier rail and backplane connectors are undamaged and correctly seated; validate that the C300 Controller firmware is at a revision level that supports the 8C-PAIH51 module type (typically R500.1 or above); and review the HART pass-through configuration in Experion Control Builder to ensure that secondary HART variables are correctly mapped to the historian and HMI faceplates. If the site is migrating from an older PMIO or LLMUX-based architecture, additional I/O termination adapter panels may be required to match the existing field cable pinout.

Power budget planning is essential during any Series C I/O expansion. Each 8C-PAIH51 draws power from the Series C Power Supply — typically the 8C-PCNT01 or 8C-PCNT02 — and engineers must confirm that the aggregate module load does not exceed the carrier’s rated capacity. In high-density cabinets where multiple analog input, analog output (such as the 8C-PAOH01), and digital I/O modules (such as the 8C-PDID51 or 8C-PDOD51) share the same carrier, a detailed power audit is mandatory before adding or replacing modules.

Communication link integrity is another critical checkpoint. The 8C-PAIH51 communicates over the Series C I/O Link, which connects back to the IOLIM. During migration, verify that the I/O Link cable lengths and termination resistors comply with Honeywell’s installation specifications, and that the IOLIM firmware is compatible with the module revision being installed. Any mismatch in firmware or module addressing can result in the module appearing offline in Experion Station, requiring a cold restart of the I/O Link segment — a situation that directly impacts production continuity.

For sites running Honeywell’s FDM (Field Device Manager) or Asset Management Services, the 8C-PAIH51’s HART pass-through capability allows continued HART communication to field devices without additional multiplexers. This is particularly valuable when migrating from older HART multiplexer-based architectures, as it eliminates a layer of hardware while maintaining full device diagnostics visibility in the control room.

All units supplied by KNMKS are sourced from verified industrial channels, subjected to functional power-on testing, and shipped with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions. Each module is inspected for connector integrity, firmware label verification, and physical condition prior to dispatch. global delivery details confirmed by RFQ is available, with export documentation provided for international orders.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 8C-PAIH51 begins well before the module arrives on site. The engineering team should extract the existing I/O list from the legacy system — whether a TDC 3000 Data Hiway node or a PlantScape SCADA cabinet — and cross-reference each analog input channel against the new Experion PKS tag database. This process often reveals opportunities to consolidate channels, eliminate redundant HART multiplexers, and simplify the field junction box wiring.

In practice, a typical Series C I/O cabinet supporting a process unit might include the 8C-PAIH51 for analog inputs, the 8C-PAOH01 for analog outputs to control valves, and the 8C-PDID51 for digital status inputs from motor control centers. The cabinet’s power distribution is managed by the 8C-PCNT02 power conditioner, and the entire I/O segment communicates back to the C300 Controller via the IOLIM. When replacing modules in this architecture, it is important to document the existing module slot assignments and I/O Link node addresses before removing any hardware, as the C300 Controller will generate fault alarms for any module that does not respond at its expected address during startup.

For sites that also need to upgrade HMI graphics, the migration from legacy GUS (Global User Station) displays to Experion Station requires that all analog input tags referenced in the old displays are correctly mapped to the new Experion tag database. The 8C-PAIH51’s channel configuration in Control Builder must match the historian collection rate and alarm limits previously defined in the legacy system to avoid nuisance alarms during the cutover period.

Where field cable lengths exceed the standard HART loop resistance budget, signal isolators or loop-powered barriers may be required between the field device and the 8C-PAIH51 input terminals. This is a common requirement in older plants where cable runs were designed for non-HART 4–20 mA signals and the total loop resistance — including cable, barriers, and module input impedance — must be recalculated for HART compliance.

Downtime Control During System Migration

Minimizing production downtime during a DCS migration requires a structured cutover plan that isolates risk at each stage. For the 8C-PAIH51, the recommended approach is a parallel wiring strategy: install the new Series C carrier and pre-configure the 8C-PAIH51 module in Control Builder while the legacy I/O remains in service. Field cables are then transferred one channel at a time during a planned maintenance window, with each channel verified against the process value displayed in Experion Station before the next channel is moved.

Before the cutover window, all C300 Controller logic associated with the migrated analog inputs should be downloaded and verified in a simulation environment. Control Builder’s offline simulation mode allows engineers to confirm that PID loop tuning parameters, alarm setpoints, and HART secondary variable mappings are correctly configured without affecting the live process. This step is particularly important for cascade control loops where the 8C-PAIH51 provides the process variable input to a C300 regulatory control block.

During the cutover itself, the site’s safety instrumented system (SIS) should be reviewed to confirm that any SIS inputs sourced from the same field devices are not affected by the I/O migration. If the plant uses a Honeywell Safety Manager or a third-party SIS, the SIS I/O should remain on its dedicated wiring and should not share terminals with the 8C-PAIH51 channels. After the cutover, a full functional test of each migrated channel — including HART command response, alarm activation, and historian data collection — should be completed and documented before the maintenance window is closed.

KNMKS provides pre-shipment functional testing for all 8C-PAIH51 units, reducing the risk of a DOA module causing an unplanned extension of the maintenance window. Units are dispatched with test records available on request, and expedited shipping options are available for urgent breakdown situations.

Retrofit Support FAQ

Q: Is the 8C-PAIH51 (51454352-175) a direct drop-in replacement for older Honeywell Series C HART AI modules?
A: Yes. The 8C-PAIH51 is designed for the Experion PKS Series C I/O Link carrier and is compatible with the C300 Controller running R500.1 firmware or above. It replaces earlier Series C HART AI revisions on a slot-for-slot basis, provided the carrier and IOLIM firmware are at compatible revisions. No field wiring changes are required if the existing termination panel is a standard Series C type.

Q: What commissioning steps are required after installing the 8C-PAIH51 in an existing Experion PKS system?
A: After physical installation, open Control Builder and perform a hardware scan to confirm the module is recognized at the correct I/O Link node address. Verify that each channel’s engineering unit range, HART tag assignment, and alarm limits match the process design basis. Confirm that HART pass-through is enabled if FDM or Asset Management Services are in use. Finally, validate historian collection and HMI faceplate display for each channel before returning the loop to automatic control.

Q: Can the 8C-PAIH51 be used to replace PMIO or LLMUX-based analog inputs from TDC 3000 or PlantScape systems?
A: The 8C-PAIH51 is a Series C I/O module and cannot be installed directly into TDC 3000 or PlantScape hardware racks. However, it is the correct replacement module when migrating those legacy systems to an Experion PKS Series C architecture. The migration requires installing a new Series C carrier and C300 Controller, after which the 8C-PAIH51 provides the analog input capability for the migrated process loops.

Q: Does KNMKS provide support terms and stock availability for the 8C-PAIH51?
A: Yes. All 8C-PAIH51 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions. Units are held availability confirmed by RFQ and subject to pre-shipment functional testing. Expedited shipping is available for breakdown and emergency procurement situations. Contact our team for real-time stock confirmation and lead time.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

8C-PAIH51 51454352-175
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 8C-PAIH51 51454352-175
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
