Honeywell 80363972-100 Maintenance-Proven Spare Part for Factory Uptime

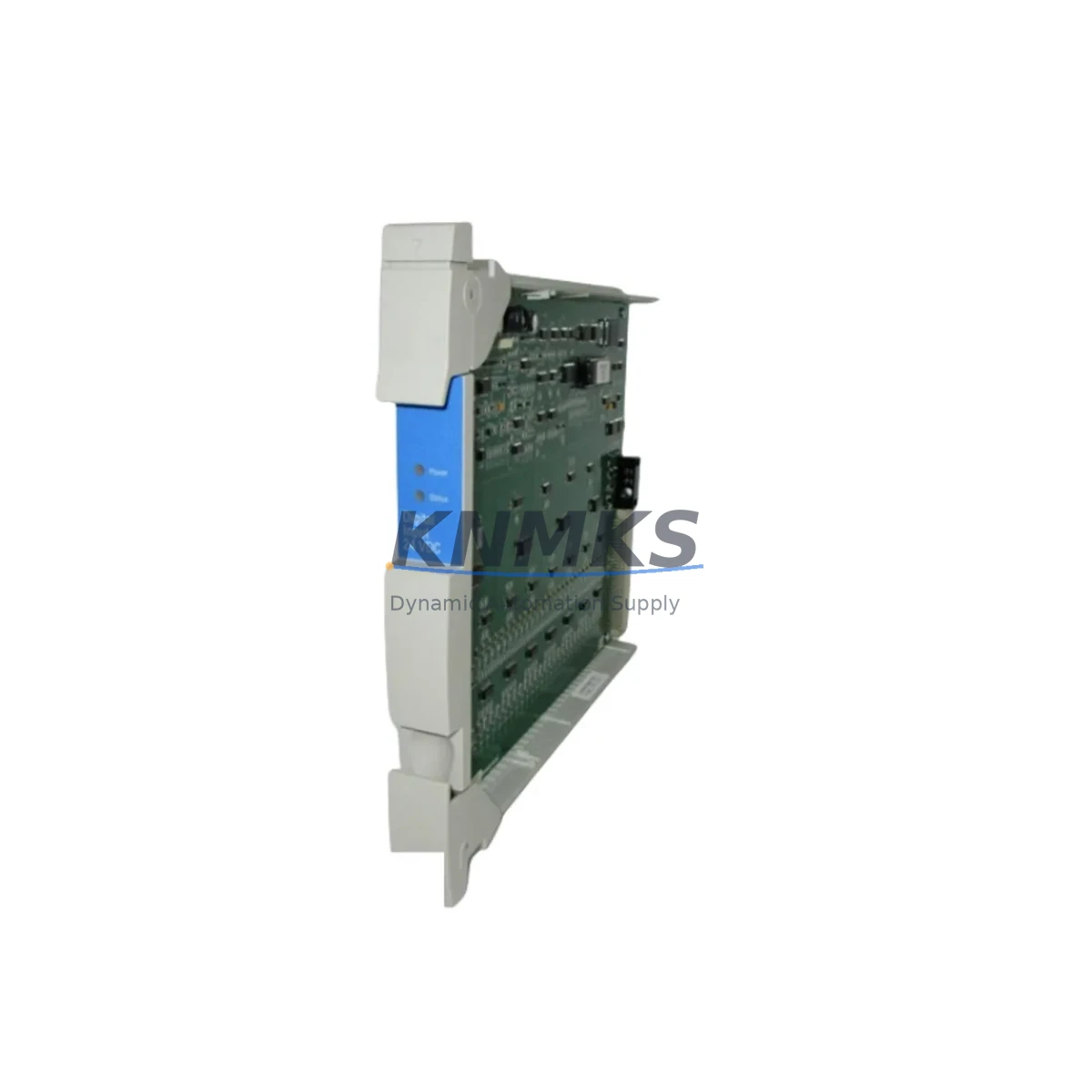

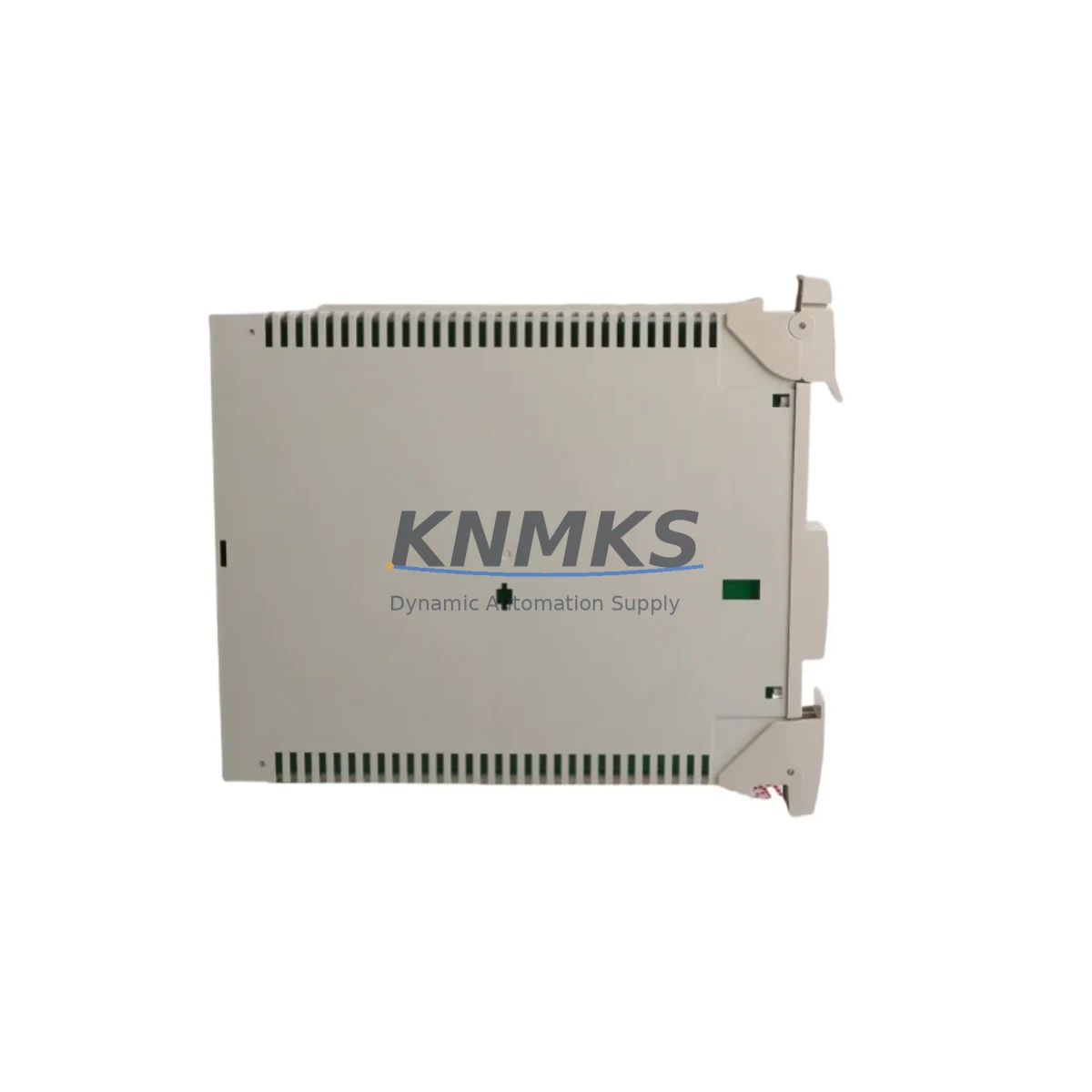

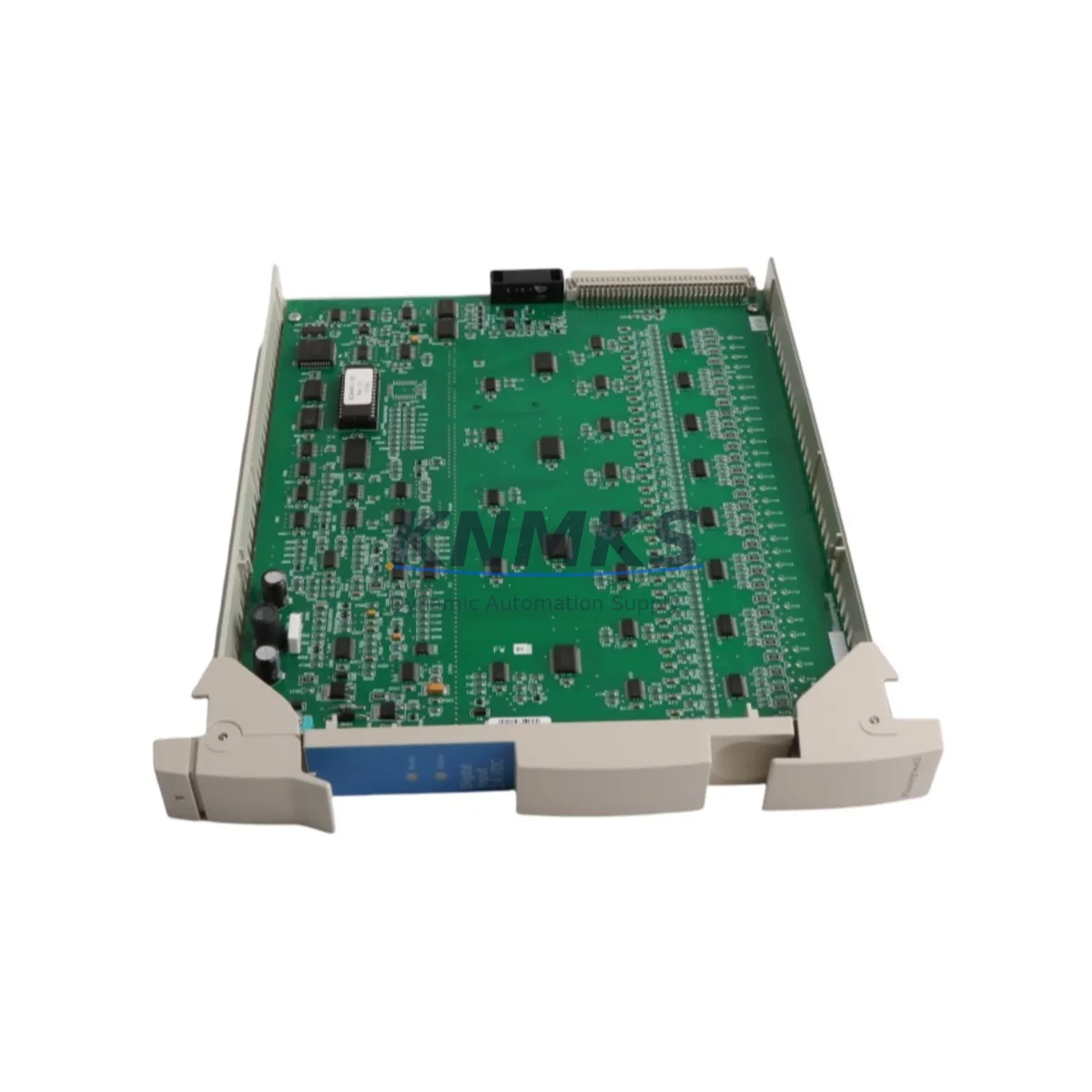

The Honeywell 80363972-100 is an original DCS Digital Input Module engineered for continuous-duty industrial environments. Designed for integration within the Honeywell Experion PKS platform — including C200 and C300 controller architectures as well as legacy TPS (TotalPlant Solution) systems — this module serves as a critical field signal acquisition component in process control cabinets across refining, petrochemical, power generation, and advanced manufacturing facilities.

For maintenance engineers managing aging DCS infrastructure, the 80363972-100 represents a direct-replacement solution that eliminates the need for costly system requalification. Its compatibility with established Experion PKS backplane configurations means that field replacement can be completed within a standard maintenance window, restoring digital input capacity without firmware reconfiguration or I/O mapping changes in most validated installations.

Procurement engineers sourcing spare parts for multi-site operations will find the 80363972-100 a reliable candidate for long-term inventory planning. Given the extended service life of Honeywell Experion PKS deployments — many of which remain in active production for 15–25 years — maintaining a verified stock of this module reduces exposure to emergency sourcing risk and unplanned downtime costs.

All units supplied by KNMKS undergo pre-shipment functional verification, are shipped with full traceability documentation, and are covered by a support terms confirmed by quotation against manufacturing defects and operational failure under normal use conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the Honeywell 80363972-100 during scheduled or corrective maintenance, a thorough inspection of the surrounding control cabinet components is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should treat this replacement as an opportunity to audit the full digital input circuit.

Begin by verifying the 24 VDC field power supply feeding the DI module. A degraded or undersized power supply — such as a Honeywell CC-PWRR01 or equivalent redundant power module — can cause intermittent input faults that mimic module failure. Confirm output voltage stability under load before commissioning the replacement module.

Inspect all field wiring terminations at the associated terminal blocks. Loose or corroded connections on the I/O terminal assembly are a common root cause of digital input signal loss, particularly in high-vibration or high-humidity environments. Re-torque all terminals to specification and apply contact protection where appropriate.

Check the Experion PKS backplane connector for bent pins, oxidation, or mechanical damage. A compromised backplane slot will cause the replacement 80363972-100 to report faults immediately upon insertion. If backplane damage is confirmed, the affected I/O carrier or chassis section should be replaced concurrently.

For systems using signal isolators between field devices and the DI module — particularly in intrinsically safe (IS) or ATEX-rated zones — verify that the isolator output levels remain within the module’s input threshold specifications. Aging isolators can drift out of tolerance and produce false-open or false-closed readings on the new module.

Review the status of any inline fuses or circuit protection devices on the field-side wiring. Blown fuses are frequently overlooked during module replacement and will prevent the new 80363972-100 from acquiring valid input signals. Replace any suspect fuses with correctly rated components per the original design documentation.

If the affected control loop interfaces with a Honeywell C200 or C300 controller module, confirm that the controller firmware version supports the installed I/O module revision. Mismatched firmware revisions can cause I/O scanning errors that are difficult to distinguish from hardware faults. Consult the Experion PKS compatibility matrix before finalizing the replacement.

For facilities running hybrid architectures that include Honeywell PMIO or Series C I/O alongside newer Experion PKS nodes, ensure that the replacement module is installed in the correct chassis segment and that the I/O assignment in the control builder configuration reflects the physical slot location accurately.

Annual maintenance schedules should include a full inspection of the communication modules and redundancy links within the same cabinet. Faults in the FTE (Fault Tolerant Ethernet) network or in the controller redundancy pair can mask I/O module health status and delay fault detection. Proactive replacement of aging communication components reduces diagnostic ambiguity during future corrective maintenance events.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the failed module part number against the installed base record. Verify that the replacement 80363972-100 matches the required hardware revision. Cross-reference with the Experion PKS system configuration database to confirm I/O channel assignments.

Step 2 — Safe Isolation: Place the affected I/O module in bypass or force mode within the Experion PKS control builder, or coordinate with the control room to inhibit alarms on the affected channels. De-energize the field-side circuit per site LOTO (Lockout/Tagout) procedures before physical removal.

Step 3 — Module Removal: Release the module locking mechanism on the backplane carrier. Extract the 80363972-100 using the module handle — avoid applying lateral force to the backplane connector. Inspect the vacated slot for debris or connector damage before insertion of the replacement.

Step 4 — Replacement Installation: Insert the new 80363972-100 firmly into the backplane slot until the locking tab engages. Re-energize the field-side circuit and restore normal I/O scanning in the control builder. Confirm that all input channels report expected states within the Experion PKS operator station.

Step 5 — Post-Replacement Validation: Perform a point-by-point functional check of all digital input channels on the replaced module. Document the replacement in the site maintenance management system (CMMS) with the new module serial number and installation date. Update the spare parts inventory record accordingly.

This workflow is applicable to both planned annual turnaround replacements and emergency corrective maintenance scenarios. KNMKS recommends maintaining a minimum of one spare 80363972-100 per Experion PKS cabinet cluster to support a target recovery time of under two hours for unplanned DI module failures.

Spare Parts Support FAQ

Q1: Is the KNMKS-supplied 80363972-100 compatible with all Experion PKS revisions?
The 80363972-100 is designed for use across the Honeywell Experion PKS platform, including C200, C300, and legacy TPS configurations. Compatibility with specific firmware revisions should be verified against the Honeywell Experion PKS I/O compatibility matrix for your installed controller version. KNMKS technical support can assist with revision-level verification prior to order confirmation.

Q2: What pre-shipment testing does KNMKS perform on this module?
Each 80363972-100 unit undergoes functional power-on verification and input channel continuity testing prior to shipment. Units are inspected for physical integrity, connector condition, and firmware label consistency. A test report is available upon request for quality-critical procurement requirements.

Q3: What is the recommended spare parts holding quantity for multi-site operations?
For facilities operating three or more Experion PKS cabinets, KNMKS recommends a minimum holding of two to three 80363972-100 units per site. For multi-site operations with centralized spare parts management, a regional buffer stock of five to ten units supports a 12–24 month consumption horizon and reduces emergency procurement lead times to zero.

Q4: Does KNMKS support long-term supply agreements for the 80363972-100?
Yes. KNMKS offers structured long-term supply agreements covering 12–36 month forward inventory commitments for the 80363972-100 and related Experion PKS I/O modules. These agreements include price stability provisions, priority allocation, and dedicated account management. Contact admin@knmks.com to discuss terms aligned with your annual maintenance budget cycle.
