Honeywell 51451432-020 Maintenance-Proven Spare Part for Factory Uptime

Overview

Honeywell 51451432-020 Maintenance-Proven Spare Part for Factory Uptime

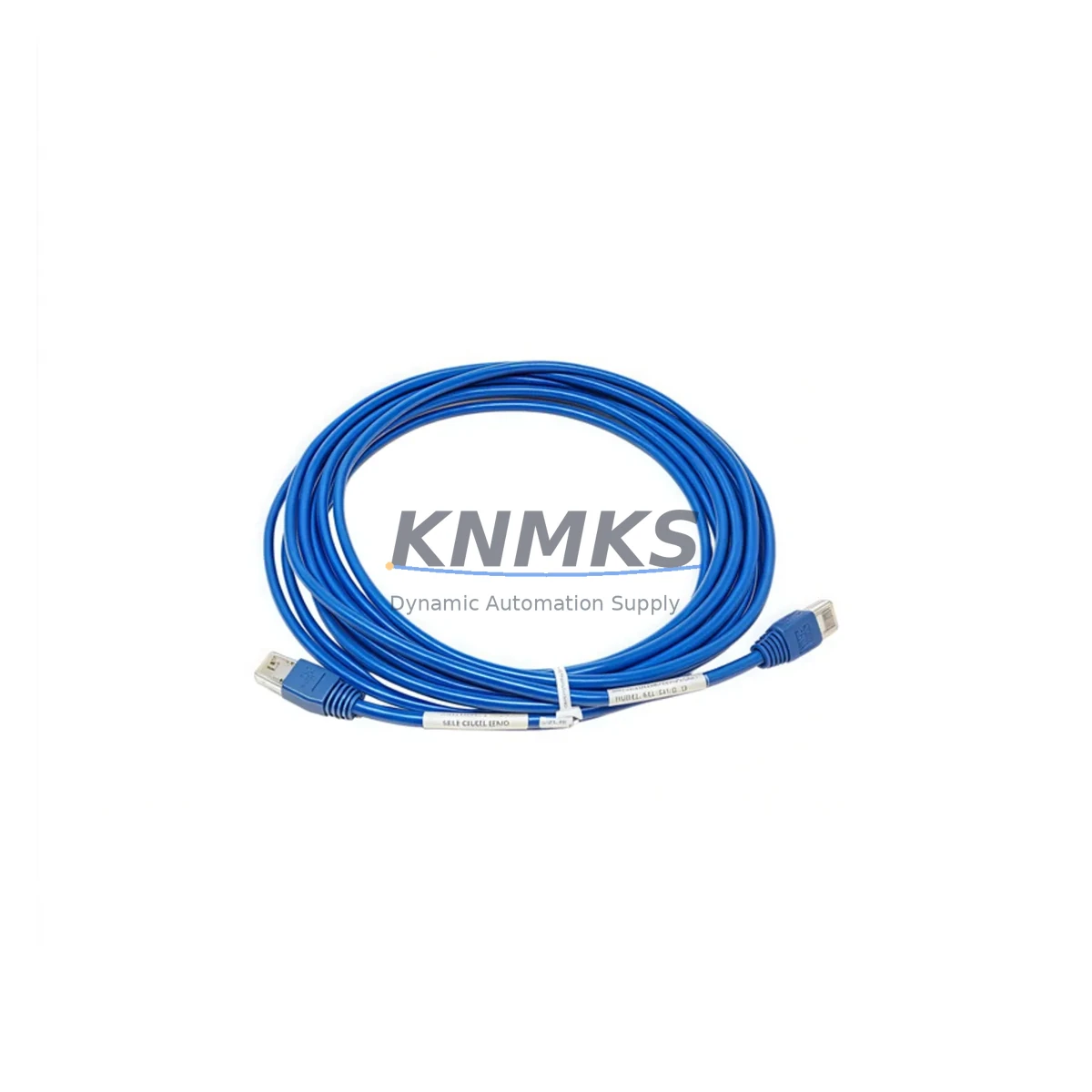

The Honeywell 51451432-020 is an original Ethernet cable assembly engineered for the Experion PKS distributed control system platform. Designed to sustain reliable data communication between controllers, I/O modules, and network infrastructure nodes, this cable is a critical link in maintaining continuous plant operations. For maintenance engineers managing aging DCS installations or executing planned turnarounds, having a verified, tested spare of the 51451432-020 on the shelf is a fundamental risk-reduction strategy. Unplanned communication failures caused by degraded or damaged cables can cascade into full process shutdowns — a scenario that a properly stocked spare parts inventory is designed to prevent.

From a procurement engineering perspective, sourcing original Honeywell cables rather than generic substitutes ensures full compatibility with Experion PKS network topology requirements, including correct impedance matching, shielding specifications, and connector pin-out integrity. The 51451432-020 is built to Honeywell’s industrial-grade standards, supporting the high-reliability communication demands of process automation environments including refining, petrochemical, power generation, and pharmaceutical manufacturing.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a communication fault in an Experion PKS system, the 51451432-020 Ethernet cable is often among the first components to inspect. Cable degradation — caused by repeated flexing, rodent damage, connector oxidation, or EMI-induced insulation breakdown — can produce intermittent packet loss that is difficult to diagnose without physical inspection and substitution testing.

A thorough site replacement workflow should not stop at the cable itself. Maintenance teams should simultaneously verify the condition of the associated Honeywell C300 Controller communication ports, checking for bent pins or corroded RJ45 sockets. The Honeywell FIM4 or FIM8 Field Interface Module connected to the same network segment should be inspected for firmware status and link-light indicators. If the fault is isolated to a specific I/O loop, the corresponding Honeywell SM Series I/O modules should be checked for proper seating and communication acknowledgment.

For control cabinet-level inspection, engineers should also examine the Honeywell Power Supply Module (51405047-175 or equivalent) feeding the controller rack, as voltage instability can cause false communication errors that mimic cable faults. The Experion PKS network switch or managed Ethernet switch port connected to the 51451432-020 should be tested for port health, VLAN configuration integrity, and duplex mismatch. In facilities running legacy Experion R310 or R400 systems, the Honeywell ACE (Application Control Environment) node network interface should also be validated during the same maintenance window to avoid repeat callouts.

Procurement engineers building annual MRO spare parts lists should treat the 51451432-020 as a consumable-class item — low unit cost relative to downtime risk, with a recommended minimum stock of two units per DCS cluster. Pairing this cable with a spare Honeywell 51304485-100 or equivalent termination panel connector ensures that a complete cable-to-panel replacement can be executed without waiting for additional parts delivery.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the Experion PKS Station alarm summary to identify the affected node or FIM. Confirm the fault is communication-layer (not I/O or process variable) before proceeding to physical inspection.

Step 2 — Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. For hot-swap capable nodes, confirm whether the controller supports online cable replacement without process interruption. For non-redundant nodes, coordinate with operations for a controlled hold.

Step 3 — Physical Inspection: Remove the suspect 51451432-020 cable. Inspect both ends for connector damage, pin deformation, or visible insulation cracking. Use a cable tester to confirm continuity and shielding integrity before condemning the cable.

Step 4 — Replacement Installation: Install the new 51451432-020 from verified stock. Ensure connectors are fully seated and locking tabs are engaged. Avoid sharp bend radii near connectors — maintain a minimum bend radius of 4× cable diameter.

Step 5 — System Verification: Restore power and observe Experion PKS Station for node re-registration. Confirm green link status on both the controller port and the network switch port. Run a 5-minute communication quality check before returning the loop to automatic control.

Step 6 — Documentation: Record the replacement in the plant CMMS (Computerized Maintenance Management System) with the old cable’s condition notes. Update the spare parts inventory to trigger reorder of the consumed 51451432-020 unit.

Spare Parts Support FAQ

Q1: Is the 51451432-020 compatible with all Experion PKS versions?
The 51451432-020 is designed for use across the Experion PKS platform family, including R310, R400, R410, R430, and R501 releases. Compatibility is determined by the physical connector interface and network protocol (standard Industrial Ethernet), which remain consistent across these versions. For installations running pre-R310 legacy Experion systems, confirm the controller’s Ethernet port specification before ordering.

Q2: How is the cable tested before shipment?
Each 51451432-020 unit is tested for continuity, shielding integrity, and connector pin-out correctness prior to dispatch. Units are packaged in anti-static, moisture-resistant packaging to prevent transit damage. A test report is available upon request for quality-critical procurement processes.

Q3: What is the recommended inventory strategy for this cable?
For facilities operating a single Experion PKS cluster (up to 8 FIM modules), a minimum stock of 2 units is recommended. Larger installations with multiple controller pairs or geographically distributed I/O should maintain 4–6 units. Given the cable’s role as a single point of failure for node communication, the cost of holding spare stock is negligible compared to the cost of an unplanned shutdown pending parts delivery.

Q4: What support terms and long-term supply support is provided?
All 51451432-020 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and premature failure under normal operating conditions. KNMKS maintains long-term stock of Honeywell Experion PKS spare parts to support facilities operating systems beyond Honeywell’s standard product lifecycle. For annual maintenance contracts or bulk procurement, contact our team for volume pricing and guaranteed lead-time agreements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

51451432-020
Experion PKS Series

Product Family

Communication Modules

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Network range

Ethernet, fieldbus and gateway modules

Common needs

Protocol, port and controller family

Project support

Machine networking and data integration

Inquiry Support

• Industrial Ethernet and fieldbus module inquiry
• Protocol compatibility review
• Integration project inquiry support

What to Send Us

• Brand and exact model number: Honeywell 51451432-020
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
