Honeywell 51405039-175 CC-PA0H01 Migration-Ready Analog Output

Overview

Honeywell 51405039-175 CC-PA0H01 Migration-Ready Analog Output for Legacy Control Systems

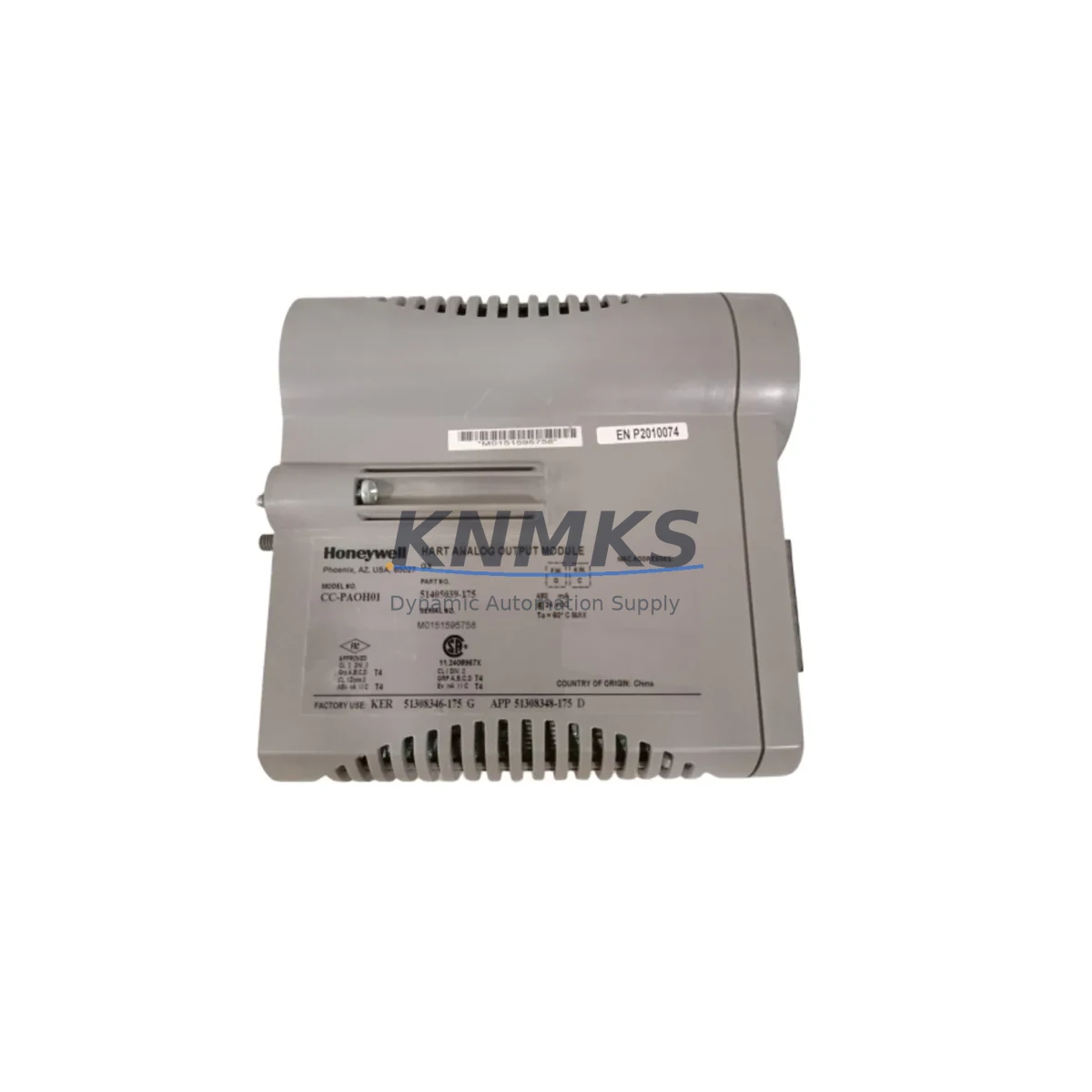

The Honeywell 51405039-175 CC-PA0H01 is an 8-channel analog output module designed for the Experion PKS C300 Controller platform. As legacy DCS installations across petrochemical, power generation, and water treatment facilities approach end-of-life, this module serves as a validated, migration-ready replacement for aging analog output assemblies in existing control cabinets. Each unit is pre-shipment tested, backed by a support terms confirmed by quotation, and available from stock to minimize procurement lead times during planned or emergency retrofit projects.

When integrating the CC-PA0H01 into an existing Experion PKS architecture, engineers must verify the C300 controller firmware version to confirm module compatibility. The CC-PA0H01 communicates over the FTE (Fault Tolerant Ethernet) backplane bus; any mismatch between the module firmware and the C300 controller revision can result in initialization failures or loss of output channel recognition. Prior to installation, confirm that the IOLINK revision on the target C300 matches the module’s supported range, and that the associated CC-TCF01 or CC-TCF02 termination carrier is correctly seated and torqued to specification.

Output channel wiring must be validated against the existing field termination assembly. The CC-PA0H01 delivers 4–20 mA analog output signals across all eight channels, and each channel’s loop resistance must remain within the rated compliance voltage range. During retrofit, technicians should document the existing channel-to-tag mapping from the Experion Configuration Studio before removing the legacy module, ensuring that the replacement module’s channel assignments are correctly re-mapped without disrupting the HMI faceplate displays or historian tag bindings.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the CC-PA0H01 into an aging Experion PKS installation requires a structured pre-outage planning process. Begin by auditing the existing C300 chassis to confirm available slot positions and verify that the power supply module — typically a CC-PWR001 or equivalent redundant power supply — can support the additional load of the replacement analog output module. Overloaded chassis power budgets are a common cause of intermittent module faults in retrofit projects and must be resolved before the new module is commissioned.

The termination carrier wiring should be photographed and documented before disconnection. Field cables connected to the CC-TCF01 or CC-TCF02 carrier must be labeled by channel number and loop tag to prevent cross-wiring during reinstallation. If the existing carrier shows signs of corrosion or terminal wear, replacing it alongside the CC-PA0H01 is strongly recommended to avoid introducing new fault points into the upgraded system.

For facilities running parallel redundant C300 controllers, the CC-PA0H01 supports redundant IOLINK configurations. Confirm that both the primary and secondary C300 controllers recognize the new module before releasing the system to automatic control. In installations where the C300 communicates upstream to a Honeywell Safety Manager or a third-party safety PLC via Modbus or OPC-DA, verify that the analog output channel scaling and engineering unit conversion factors are correctly preserved after the module swap to prevent process upsets at the safety system boundary.

Where the retrofit scope extends beyond a single module, engineers often address adjacent components in the same outage window. Common companion items in C300-based retrofit projects include the CC-SCMB02 serial communication module for legacy serial device integration, the CC-IP0101 PROFIBUS DP interface module for field device networks, and the CC-TAIX01 analog input termination carrier for simultaneous input channel upgrades. Addressing these components together reduces total outage windows and simplifies post-retrofit loop testing.

Downtime Control During System Migration

Minimizing unplanned downtime during a CC-PA0H01 module replacement requires a disciplined pre-outage checklist and a clear rollback plan. Before the scheduled maintenance window, export the full C300 controller configuration from Experion Configuration Studio and archive it to a secure offline location. This backup preserves all channel parameter blocks, PID tuning constants, and interlock logic associated with the analog output module, enabling rapid restoration if the replacement module encounters an unexpected initialization error.

During the swap, place all affected output channels in manual mode at the DCS operator station before powering down the chassis slot. This prevents process upsets caused by the output channels defaulting to zero or last-value hold during the module removal sequence. After inserting the CC-PA0H01 and confirming the module status LED indicates normal operation, bring each channel back to automatic control individually, verifying the field device response at each step before proceeding to the next channel.

For critical process loops — such as flow control valves or pressure regulators — coordinate with the field operations team to confirm that manual bypass valves are in position before the DCS output is interrupted. This field-side preparation is as important as the DCS-side configuration work and is frequently overlooked in retrofit planning. A well-coordinated migration of the CC-PA0H01 can typically be completed within a two-to-four hour maintenance window, including loop verification and historian re-binding, when pre-outage documentation is thorough.

Retrofit Support FAQ

Q1: Is the 51405039-175 CC-PA0H01 a direct replacement for older Honeywell analog output modules in the C300 platform?
Yes. The CC-PA0H01 is designed as a slot-compatible replacement within the Experion PKS C300 I/O chassis. However, engineers must verify the chassis firmware revision and IOLINK version compatibility before installation. Channel tag re-mapping in Configuration Studio is required after the physical swap to restore full DCS functionality.

Q2: What wiring changes are required when replacing the analog output module?
If the existing CC-TCF01 or CC-TCF02 termination carrier is in good condition, no field wiring changes are required — the carrier remains in place and the module is swapped at the backplane. If the carrier is being replaced simultaneously, all field cables must be re-terminated according to the original channel-to-tag documentation. Always verify loop continuity and insulation resistance before returning channels to service.

Q3: How is compatibility with the Experion PKS firmware verified before ordering?
Provide your C300 controller firmware revision and Experion PKS software release number when placing your order. Our technical team will confirm CC-PA0H01 compatibility against Honeywell’s published module compatibility matrix and advise on any firmware update requirements prior to shipment.

Q4: What does the support terms confirmed by quotation cover, and how are units tested before shipment?
All CC-PA0H01 units are functionally tested prior to shipment, including channel output verification across the full 4–20 mA range and backplane communication checks. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. Units showing damage from incorrect installation, overvoltage, or environmental exposure outside rated specifications are not covered. Contact admin@knmks.com for support requests or pre-shipment test report requests.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

51405039-175 CC-PA0H01
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 51405039-175 CC-PA0H01
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
