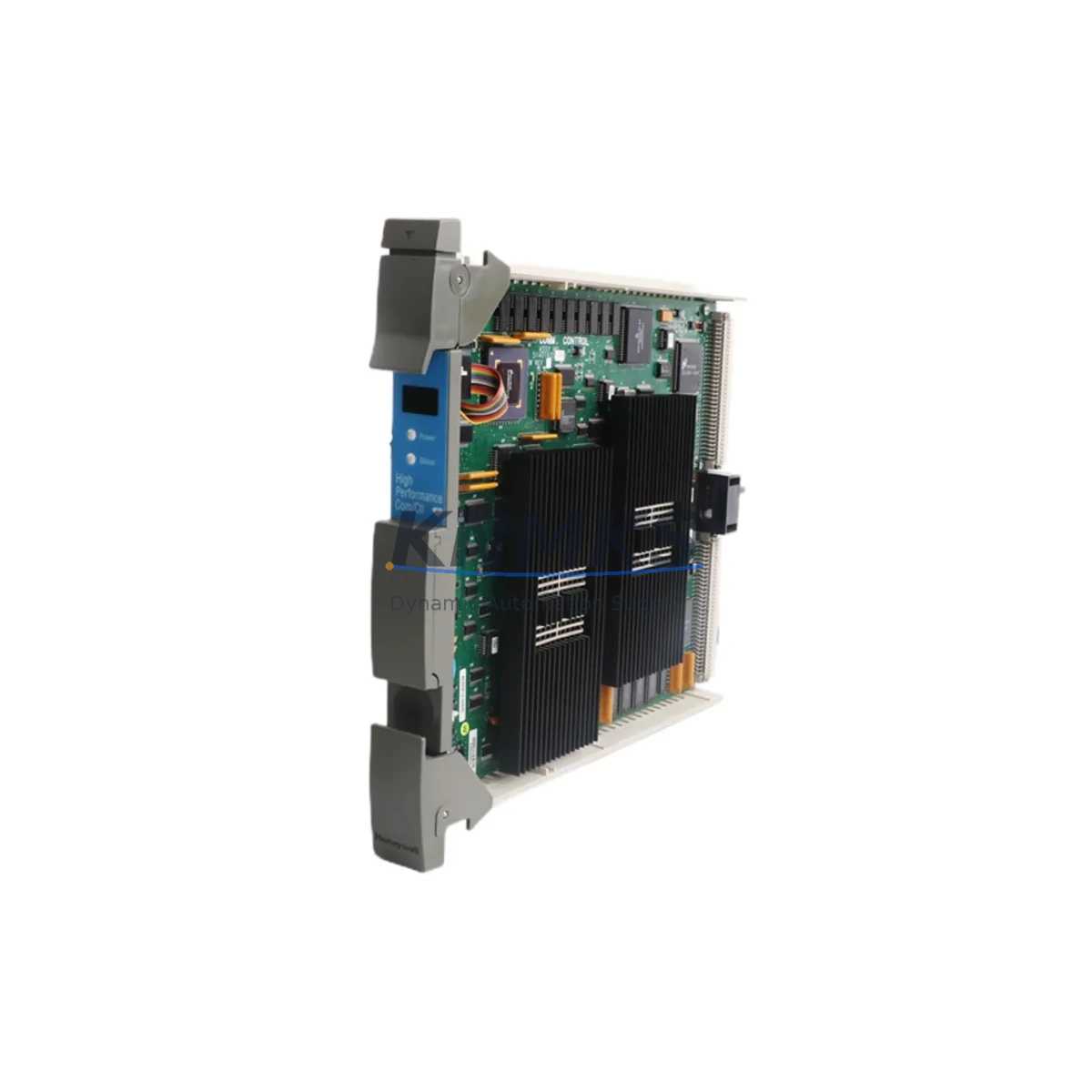

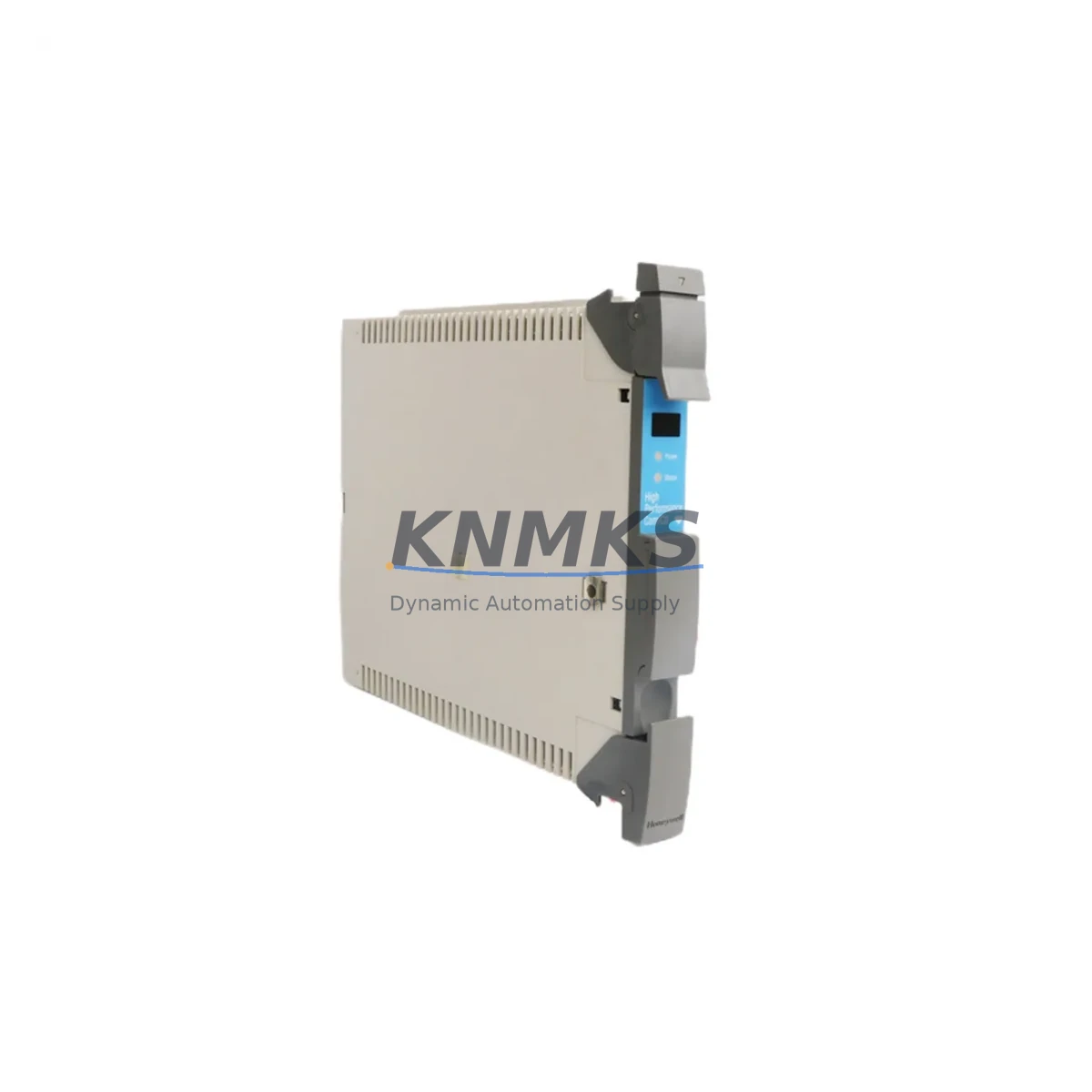

Honeywell 51401635-150 Migration-Ready LCN Controller

Overview

Honeywell 51401635-150 Migration-Ready LCN Controller: Legacy System Retrofit & Compatibility Upgrade

The Honeywell 51401635-150 is a Local Control Network (LCN) Communication Controller engineered for the TDC 3000 distributed control platform. As Honeywell’s TDC 3000 series approaches end-of-life and spare part availability tightens, the 51401635-150 has become a critical component for facilities managing aging control infrastructure across refining, petrochemical, power generation, and continuous process industries. This module is stocked, tested, and shipped with a support terms confirmed by quotation to support planned and emergency retrofit projects.

Whether you are executing a phased migration from TDC 3000 to Experion PKS, consolidating redundant LCN segments, or simply replacing a failed communication node to restore production continuity, the 51401635-150 provides a verified drop-in solution that minimizes engineering rework and reduces unplanned downtime risk.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 51401635-150 retrofit begins well before the module arrives on-site. Engineers should audit the existing LCN segment topology, document all node addresses currently active on the coaxial bus, and verify that the replacement module’s firmware revision is consistent with the network’s operating version. In TDC 3000 environments where the Honeywell AM (Application Module) or HPM (High-Performance Process Manager) serves as the primary controller, the LCN communication layer is the backbone that links operator stations, history modules, and field I/O. A mismatch in LCN firmware or an incorrect node address assignment can cause the entire segment to drop, making pre-installation verification non-negotiable.

Power budget confirmation is equally critical. The TDC 3000 power supply modules — such as the Honeywell 51109814-175 or equivalent PSU cards — must have sufficient headroom to support the replacement LCN controller without triggering overcurrent protection. Review the cabinet’s power distribution layout and measure actual rail voltages under load before insertion.

For facilities also managing I/O expansion during the same outage window, the Honeywell 51304485-100 or similar HPM I/O link modules may be installed in parallel, allowing engineers to extend field I/O capacity without disrupting the existing LCN segment. If the retrofit scope includes communication protocol migration — for example, transitioning legacy serial-linked operator stations to Ethernet-based Experion PKS nodes — the Honeywell 51401566-100 LCN Interface Module or equivalent gateway hardware should be staged and configured in advance.

HMI screen re-binding is a frequently underestimated task. After the 51401635-150 is seated and the LCN segment is restored, operators must verify that all associated HMI displays — whether running on legacy Universal Stations or migrated Experion Flex Stations — correctly resolve tag references to the new node. Any orphaned tags will appear as bad-quality reads and must be re-mapped in the system database before returning the unit to automatic control.

Where signal isolation is required between legacy 4–20 mA field loops and the new control node, inline signal isolators or Honeywell-compatible I/O termination assemblies should be confirmed as part of the bill of materials. Programming cable compatibility — particularly for engineers using Honeywell’s Control Builder or legacy LCN configuration tools — should also be validated against the replacement module’s communication port specification before the maintenance window begins.

Downtime Control During System Migration

Minimizing production impact during a TDC 3000 LCN controller swap requires a structured pre-outage checklist. Before powering down the affected node, export a full backup of the existing LCN configuration, including node tables, tag databases, and any custom function blocks resident on the module. Store this backup on an isolated engineering workstation — not on the network being modified — to ensure recovery capability if the replacement module requires re-initialization.

Where process conditions allow, consider placing affected control loops in manual mode at the field level rather than at the DCS level. This preserves the last-known setpoint at the final control element and reduces the risk of process upsets during the communication gap. For critical loops — such as reactor temperature, column pressure, or compressor surge control — coordinate with operations to confirm safe manual operating ranges before the swap begins.

Once the 51401635-150 is installed and powered, perform an LCN segment scan to confirm the module is visible to all peer nodes. Validate communication with the AM or HPM controller, confirm historian data continuity, and verify alarm annunciation before releasing loops back to automatic. Document the as-found and as-left node configuration for the site’s maintenance management system. A structured commissioning record also supports support terms claim processing if any issue arises within the 12-month coverage period.

For sites managing multiple simultaneous replacements across a TDC 3000 system, stagger the swap sequence by LCN segment to avoid taking down more than one communication path at a time. This approach preserves partial system visibility for operators and allows the control room to maintain situational awareness throughout the retrofit window.

Retrofit Support FAQ

Q: Is the 51401635-150 a direct replacement for earlier 51401635-series revisions?
A: The 51401635-150 is the current production revision and is backward-compatible with earlier -100 and -125 suffix variants in standard TDC 3000 rack configurations. Confirm firmware revision alignment with your site’s LCN network manager before installation to avoid node table conflicts.

Q: What commissioning steps are required after installation?
A: After seating the module, assign the correct LCN node address via the front-panel DIP switches or configuration tool, perform a segment scan to confirm network visibility, re-bind any HMI tags associated with the replaced node, and verify historian and alarm continuity before returning loops to automatic control.

Q: How is the module tested before shipment?
A: Each 51401635-150 unit undergoes functional verification prior to dispatch, including power-on self-test, communication port integrity check, and visual inspection for component condition. Units are shipped with test documentation. The support terms confirmed by quotation cover defects in materials and workmanship from the date of shipment.

Q: What is the typical lead time and stock availability?
A: The 51401635-150 is maintained availability confirmed by RFQ to support both planned retrofit projects and emergency replacement requirements. Standard orders ship within 1–3 business days. Contact our team for availability confirmation on volume orders or expedited shipment requests.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

51401635-150
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 51401635-150
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
