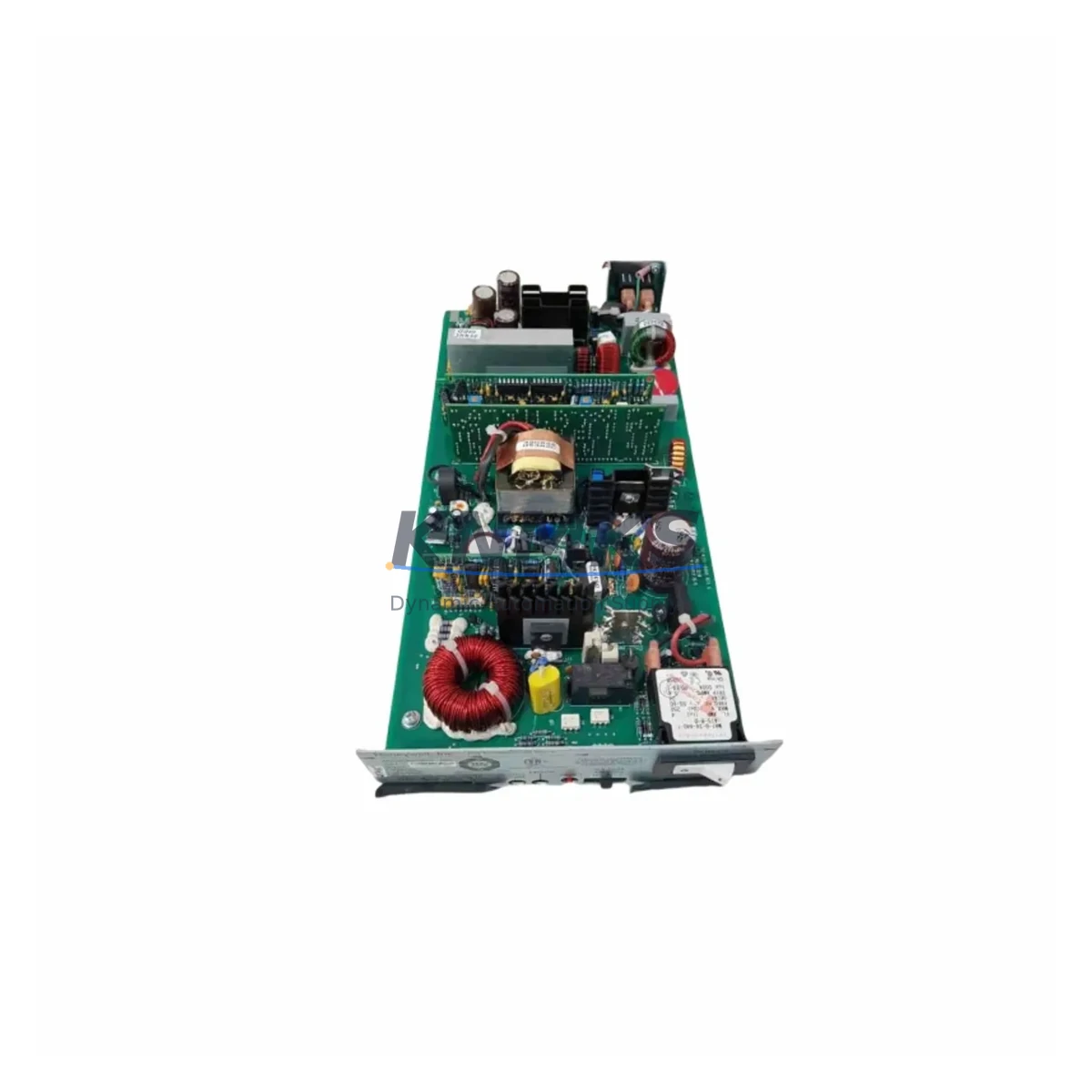

Honeywell 51305489-500 Fail-Safe DCS Power Supply

Overview

Honeywell 51305489-500 Fail-Safe DCS Power Supply: Fault Protection for Critical Industrial Control Reliability

The Honeywell 51305489-500 is a fail-safe DCS power supply module engineered for continuous, uninterrupted operation in the most demanding industrial control environments. Designed for integration within Honeywell TDC 3000 and Experion PKS distributed control systems, this module delivers regulated, conditioned power to field controllers, I/O subsystems, and safety-critical process loops where any power interruption carries significant operational and safety consequences.

In continuous production facilities — petrochemical refineries, power generation plants, mineral processing operations, and water treatment infrastructure — the power supply is the foundation of control cabinet integrity. The 51305489-500 addresses the full spectrum of power-related failure modes: input voltage fluctuation, output ripple, surge transients, inrush current spikes, and thermal runaway. Its regulated DC output maintains stable voltage rails across all connected modules, preventing signal drift in analog I/O cards, logic errors in controller CPUs, and false trips in safety interlock circuits.

The module is built with high-frequency switching topology and internal EMI filtering, making it resilient in environments with heavy motor drives, variable frequency drives (VFDs), arc furnaces, and high-power switching equipment operating in close proximity. In steel mills, port crane control rooms, and offshore platform control cabinets, electromagnetic interference is a persistent threat to control system availability. The 51305489-500’s shielded design and common-mode noise rejection capability ensure that connected modules — including the Honeywell 51304485-100 Universal I/O Module and 51309276-175 Advanced Process Manager (APM) — receive clean, stable power regardless of the electromagnetic environment.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust DCS control cabinet protection strategy extends well beyond the power supply itself. The 51305489-500 serves as the regulated power backbone, but its effectiveness is amplified when paired with complementary protection and control components within the same cabinet architecture.

In high-availability Experion PKS installations, the power supply module works in conjunction with the Honeywell 51309276-175 Advanced Process Manager to maintain deterministic scan cycles even during input power disturbances. The APM’s internal watchdog logic depends on a stable power rail — any ripple or dropout that falls outside tolerance can trigger a controller fault and initiate an unplanned process shutdown. The 51305489-500’s tight output regulation directly protects this critical dependency.

For field I/O protection, the Honeywell 51304485-100 Universal I/O Module and associated 51401491-100 I/O Link Interface Module rely on conditioned backplane power to maintain accurate analog signal conversion. Signal drift caused by power instability is one of the leading causes of false alarms and nuisance trips in process control loops. By supplying clean, regulated voltage to these I/O subsystems, the 51305489-500 directly reduces the risk of measurement error in temperature, pressure, and flow control loops.

In safety instrumented system (SIS) architectures, where the Honeywell FSC (Fail-Safe Controller) platform or Safety Manager modules are deployed alongside the DCS, power supply redundancy and quality are mandatory requirements under IEC 61511. The 51305489-500 supports redundant power configurations, enabling hot-standby operation where a secondary supply takes over instantaneously upon primary failure — eliminating single points of failure in the power distribution layer.

Cabinet thermal management is equally critical. In high-density control cabinets housing multiple I/O racks, communication gateways, and the Honeywell 51190493-100 Power Distribution Module, heat accumulation can accelerate component aging and increase failure rates. The 51305489-500’s efficient switching design minimizes internal heat dissipation, contributing to lower cabinet ambient temperatures and extended mean time between failures (MTBF) for all co-located components.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In crude distillation units, hydrocracker control rooms, and compressor train automation panels, the 51305489-500 sustains uninterrupted power to DCS controllers managing high-pressure, high-temperature process loops. A power supply failure in these environments can trigger emergency shutdowns, flare events, or safety system activations — all of which carry significant production and safety costs. The module’s surge protection and overcurrent limiting prevent cascade failures when large motor loads switch on the same electrical bus.

Power Generation and Grid Infrastructure: Thermal power plants, hydroelectric stations, and substation automation systems demand power supply modules that can operate reliably through grid disturbances, generator synchronization transients, and load-shedding events. The 51305489-500’s transient voltage clamping and regulated output ensure that turbine control systems and excitation controllers maintain stable operation during these high-stress electrical events.

Mining and Mineral Processing: Underground mining control systems and surface processing plant automation face extreme vibration, dust ingress, and wide temperature swings. The 51305489-500’s industrial-grade construction and thermal derating protection make it suitable for deployment in these harsh environments, where replacement logistics are complex and unplanned downtime is exceptionally costly.

Water and Wastewater Treatment: Municipal water treatment facilities and industrial effluent management systems operate continuously, with DCS-controlled dosing, filtration, and pumping processes that cannot tolerate control interruptions. The module’s humidity tolerance and corrosion-resistant design support reliable operation in the high-moisture environments typical of water treatment control rooms.

Metallurgy and Steel Production: Electric arc furnace control systems, rolling mill automation, and continuous casting process controllers generate intense electromagnetic interference. The 51305489-500’s EMI filtering capability is specifically valuable in these environments, protecting connected DCS modules from the high-frequency noise generated by large power electronics and induction heating systems.

Port and Maritime Automation: Port crane control systems, ship loading automation, and offshore platform DCS installations require power supply modules that can withstand salt-laden air, vibration from vessel movement, and the electrical noise generated by large variable-speed drives. The 51305489-500’s robust design and wide operating temperature range support reliable deployment in these demanding maritime and port environments.

Safety and Quality FAQ

Q: What support terms coverage is provided for the Honeywell 51305489-500?
A: Every 51305489-500 unit is covered by a support terms confirmed by quotation from the date of shipment. Coverage includes full replacement or repair for any confirmed manufacturing defect or functional failure under normal operating conditions. Support requests are processed promptly to minimize any impact on your production continuity.

Q: What pre-shipment testing is performed on each unit?
A: Each 51305489-500 undergoes 100% functional testing under load conditions prior to dispatch. Testing verifies output voltage regulation, ripple levels, overcurrent protection response, and thermal performance. A test report is available upon request for quality documentation and incoming inspection purposes.

Q: Is the 51305489-500 compatible with both TDC 3000 and Experion PKS systems?
A: Yes. The 51305489-500 is designed for use within Honeywell’s TDC 3000 and Experion PKS DCS architectures, including High-Performance Manager (HPM) and Advanced Process Manager (APM) cabinet configurations. Compatibility with specific chassis revisions and firmware versions should be confirmed against your system’s engineering documentation. Our technical team can assist with compatibility verification prior to order.

Q: What is the long-term supply availability for this module?
A: We maintain dedicated stock of the 51305489-500 to support emergency replacement, planned maintenance, and capital spares programs. Global rapid dispatch is available for urgent requirements. For long-term supply agreements or multi-unit procurement, contact our sales team to discuss scheduled delivery and inventory reservation options.
