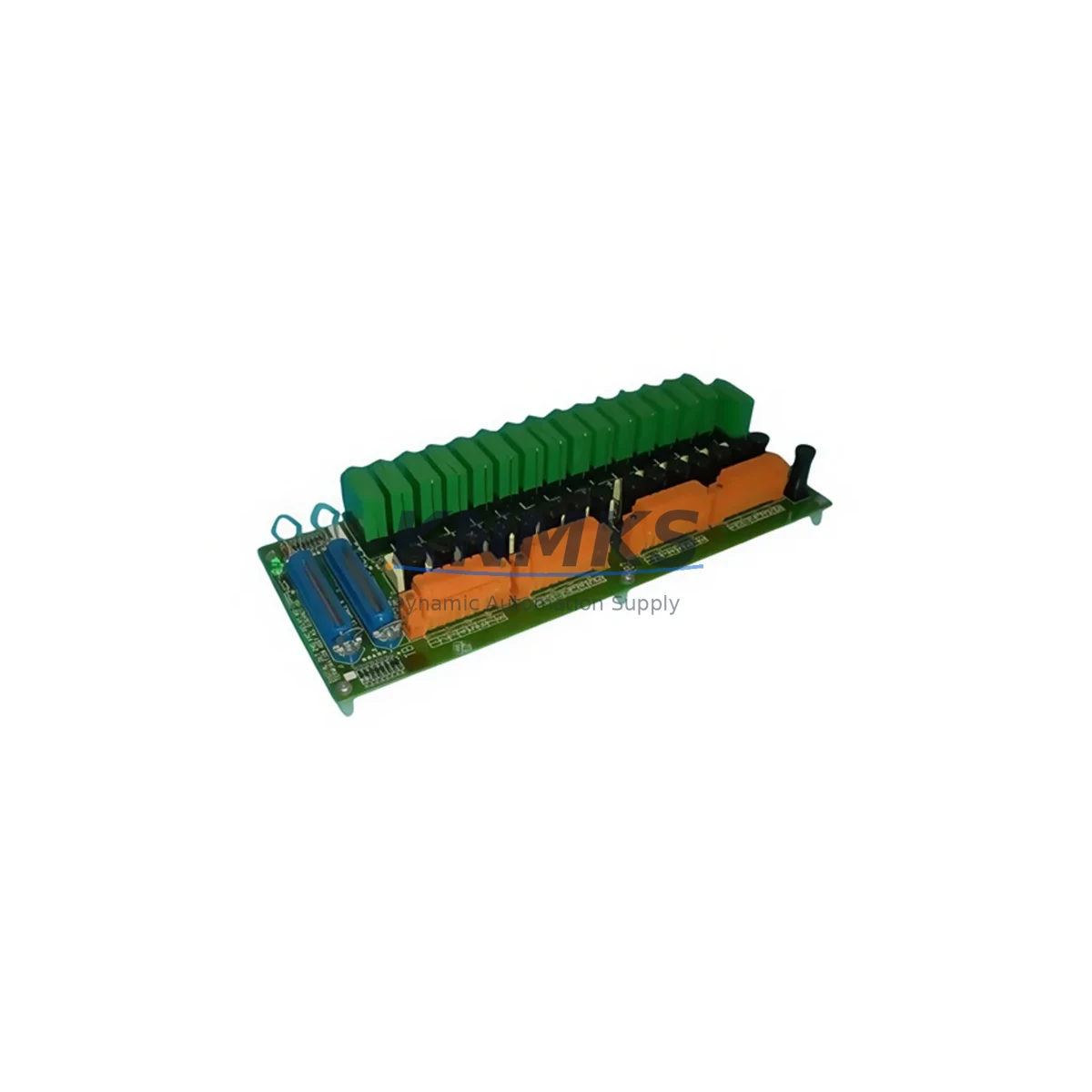

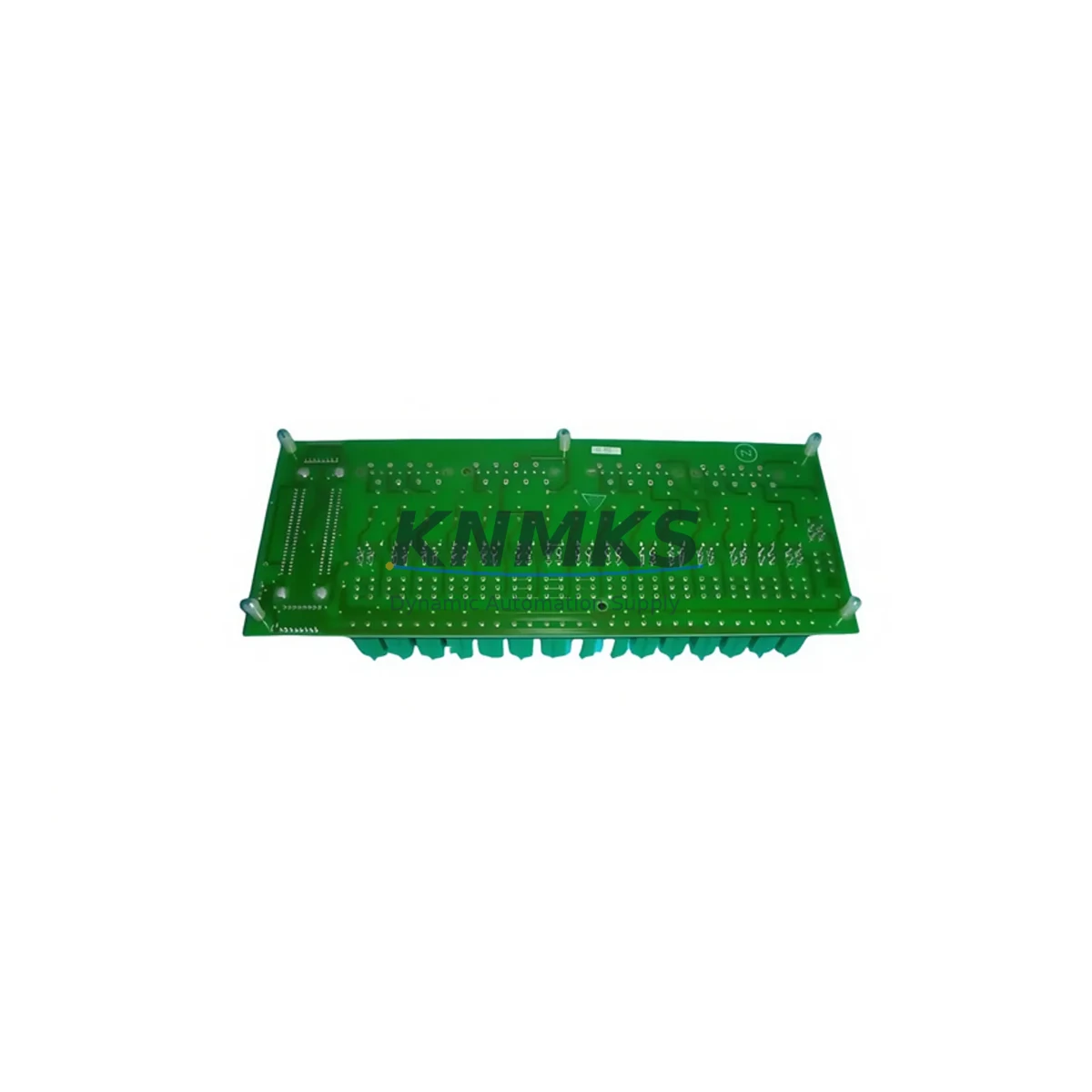

Honeywell 51304427-100 MU-TDOR22 Migration-Ready Digital Output

Overview

Honeywell 51304427-100 MU-TDOR22 Migration-Ready Digital Output Module: Legacy System Migration and Compatible Upgrade

The Honeywell 51304427-100 MU-TDOR22 is a high-reliability digital output module engineered for seamless integration into Experion PKS and TDC 3000 distributed control systems. As legacy automation infrastructure ages and original spare parts become increasingly scarce, the MU-TDOR22 stands out as a proven migration-ready replacement that preserves existing wiring, terminal assignments, and backplane slot configurations — dramatically reducing the engineering effort and downtime risk associated with control system modernization projects.

Whether you are managing a planned retrofit of an aging refinery DCS, responding to an unplanned failure in a critical process unit, or executing a phased upgrade of a legacy control cabinet, the 51304427-100 MU-TDOR22 delivers the electrical compatibility, firmware alignment, and mechanical form factor required to restore system operation with minimal disruption to production continuity.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Honeywell 51304427-100 MU-TDOR22 into an existing control architecture requires careful pre-installation planning across several dimensions. Engineers undertaking a TDC 3000 to Experion PKS migration or a like-for-like spare part replacement should begin by auditing the power supply capacity of the affected I/O cabinet. The MU-TDOR22 draws power from the chassis backplane, and the existing Honeywell MC-PDOX02 or equivalent power conditioner module must be verified to have sufficient headroom to support the replacement module alongside all co-resident I/O cards.

Terminal block wiring should be documented and photographed prior to removal of the legacy module. In most standard Experion PKS and TDC 3000 installations, the MU-TDOR22 uses a standardized terminal assignment that allows direct reconnection without modification, but field conditions — particularly in older cabinets that have undergone previous partial upgrades — may introduce non-standard wiring configurations that require engineering review.

Backplane slot addressing is a critical step that is frequently overlooked in rushed replacement scenarios. The module address must be confirmed in the DCS configuration database before the replacement unit is powered on. Mismatched module addresses will cause the controller — typically a Honeywell C300 Controller or legacy HPM (High-Performance Process Manager) — to generate fault alarms and may prevent the I/O point from being recognized by the control strategy.

For sites running Honeywell’s Control Builder or Station engineering tools, the existing control module configuration and HMI faceplate assignments should be exported and backed up before any hardware change. In Experion PKS environments, the associated HMI display pages built in HMIWeb Display Builder typically reference tag names rather than hardware addresses, which means that a correctly addressed replacement MU-TDOR22 will restore HMI functionality without requiring display page edits — a significant time saving during emergency replacements.

Communication link integrity should also be verified after module installation. In systems where the digital output module interfaces with a Honeywell FTE (Fault Tolerant Ethernet) network segment or a legacy LCN (Local Control Network) backbone, the network switch port assignments and redundancy configuration should be confirmed to be intact. Additionally, if the control cabinet includes a Honeywell ControlNet or Modbus gateway for third-party device integration, the I/O mapping tables should be reviewed to ensure the replaced module’s output points are correctly reflected in the gateway configuration.

Finally, installation space confirmation is essential in densely populated control cabinets. The MU-TDOR22 occupies a standard single-slot position in the Honeywell I/O chassis, but adjacent modules — including signal isolators, marshalling terminal blocks, and cable management accessories — must not obstruct module insertion or prevent proper backplane connector seating.

Downtime Control During System Migration

Minimizing production downtime during a digital output module replacement is a primary concern for operations and maintenance teams. The Honeywell 51304427-100 MU-TDOR22 supports a structured hot-standby replacement workflow in redundant I/O configurations, allowing the failed or end-of-life module to be swapped without interrupting the associated control loop — provided the system has been configured with redundant I/O pairs and the redundancy switchover has been validated prior to the maintenance window.

For non-redundant I/O installations, the recommended approach is to pre-configure the replacement MU-TDOR22 offline using a spare chassis or bench test environment, verify module addressing and output channel functionality against a known-good reference configuration, and then execute the physical swap during a planned short-duration outage. Pre-staging the module in this manner typically reduces the in-cabinet replacement time to under 30 minutes, significantly limiting exposure to uncontrolled process conditions.

Protecting the original program logic is equally important. Before any hardware change, the current DCS control strategy should be downloaded and archived from the Experion PKS server or the legacy TDC 3000 engineering workstation. This archive serves as the recovery baseline in the event that the replacement module triggers unexpected controller behavior during initial power-on. In practice, the MU-TDOR22’s compatibility with existing Experion PKS firmware means that program logic is preserved and re-downloaded automatically by the controller upon module recognition — but having a verified backup eliminates recovery uncertainty.

Field control continuity can be further protected by placing the affected control loops in manual mode at the DCS operator station before initiating the module swap. This prevents the controller from attempting to drive outputs through a module that is temporarily offline during the physical replacement, avoiding unintended actuator movement or process upsets. Once the replacement MU-TDOR22 is seated, addressed, and recognized by the controller, the loops can be returned to automatic mode in a controlled sequence, with field personnel confirming output response at each actuator before the next loop is transferred.

Retrofit Support FAQ

Q: Is the Honeywell 51304427-100 MU-TDOR22 a direct drop-in replacement for the original MU-TDOR22 installed in my TDC 3000 system?
A: In the majority of standard TDC 3000 and Experion PKS installations, the 51304427-100 MU-TDOR22 is a direct slot-compatible replacement. Terminal wiring, backplane connector, and module form factor are consistent with the original specification. We recommend verifying the chassis generation and firmware revision of your controller before installation to confirm full compatibility.

Q: What commissioning steps are required after installing the replacement module?
A: After physical installation, the module address must be confirmed in the DCS configuration database. The controller will perform an automatic recognition sequence; engineers should monitor the system alarm summary for any address conflict or I/O fault indications. Output channel functionality should be verified by commanding each output point from the DCS operator station and confirming field device response before returning loops to automatic control.

Q: Does the MU-TDOR22 require any wiring modifications when replacing a failed module in an existing cabinet?
A: In standard installations, no wiring modifications are required. The terminal block assignment of the 51304427-100 MU-TDOR22 is consistent with the original module specification. However, if the existing cabinet has been previously modified or if non-standard field wiring has been applied, a wiring audit against the original as-built drawings is recommended before reconnection.

Q: What support terms and pre-shipment testing does KNMKS provide for the MU-TDOR22?
A: Every Honeywell 51304427-100 MU-TDOR22 supplied by KNMKS is covered by a support terms confirmed by quotation against manufacturing defects and functional failure. Each unit undergoes pre-shipment functional testing to verify output channel operation, backplane interface integrity, and power consumption within specification. In-stock units are available for same-day or next-business-day dispatch, with export documentation provided for international shipments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

51304427-100 MU-TDOR22
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 51304427-100 MU-TDOR22
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
