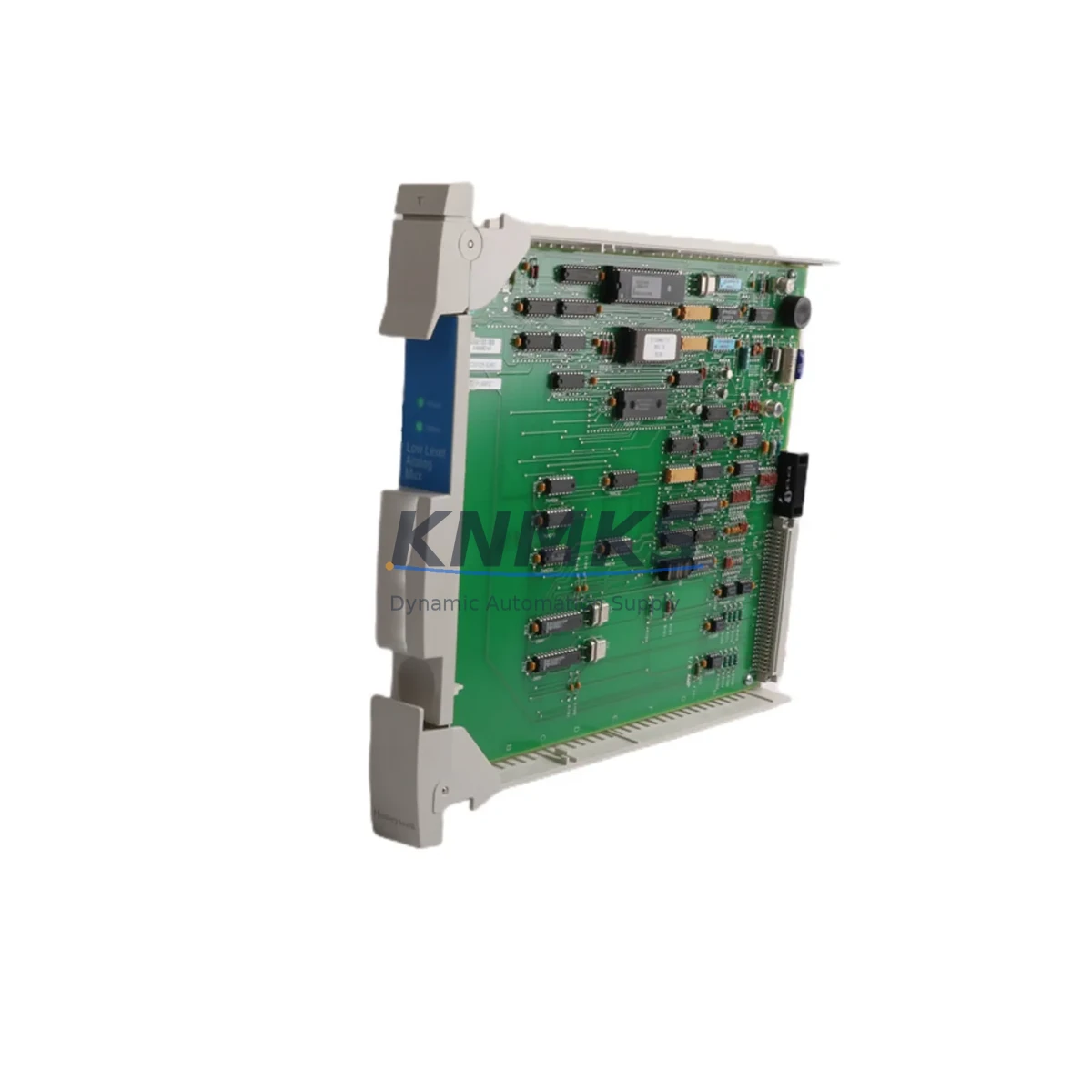

Honeywell 51304362-100 MU-PLAM02 Maintenance-Proven Spare Part

Overview

Honeywell 51304362-100 MU-PLAM02 Maintenance-Proven Spare Part for Factory Uptime

The Honeywell 51304362-100 MU-PLAM02 is an original analog multiplexer module designed for the TDC 3000 Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in refining, petrochemical, power generation, and continuous manufacturing environments. As a maintenance-proven spare part, the MU-PLAM02 plays a critical role in sustaining analog signal integrity across field instrumentation loops, ensuring that process variables such as temperature, pressure, flow, and level are accurately acquired and transmitted to the controller layer without interruption.

For maintenance engineers managing aging TDC 3000 installations, the MU-PLAM02 is a high-priority line item on any annual inspection checklist. Analog multiplexer modules are subject to cumulative thermal stress, connector wear, and signal drift over years of continuous operation. A degraded MU-PLAM02 can manifest as intermittent analog readings, unexplained process alarms, or complete loss of field signal visibility — all of which can trigger unplanned shutdowns or compromise process safety. Stocking a verified replacement unit is the most effective way to minimize mean time to repair (MTTR) when these symptoms appear.

Procurement engineers sourcing TDC 3000 spare parts face a well-known challenge: Honeywell has progressively discontinued legacy TDC 3000 hardware, making original modules increasingly difficult to source through standard distribution channels. KNMKS maintains verified stock of the 51304362-100 MU-PLAM02, with each unit inspected and function-tested prior to shipment. All units are supplied with a support terms confirmed by quotation covering manufacturing defects and operational failure under normal installation conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the MU-PLAM02 during a planned outage or emergency corrective maintenance event, experienced DCS engineers know that the analog multiplexer module does not operate in isolation. A thorough cabinet inspection should accompany any MU-PLAM02 swap to prevent repeat failures and ensure the restored loop performs reliably through the next maintenance interval.

Begin by verifying the integrity of the MC-TAIH02 or MC-TAIX02 analog input termination assemblies connected to the multiplexer. Corroded or loose field wiring terminations at these assemblies are a common root cause of signal anomalies that are incorrectly attributed to the multiplexer module itself. Inspect all terminal screws for torque and check for moisture ingress or oxidation on the terminal block contacts.

Next, confirm that the Honeywell PM I/O Link or equivalent backplane communication path is functioning correctly. A degraded backplane connector or a failing MU-PLIM02 or MU-PLIM12 I/O Link Interface Module can cause the replacement MU-PLAM02 to report communication faults even after installation. Swap or reseat the I/O link interface if diagnostic LEDs indicate a link error after module replacement.

Power supply stability is equally critical. The TDC 3000 cabinet power distribution should be checked at the MC-PDPY22 or equivalent 24 VDC power distribution module to confirm that supply voltage is within tolerance. Voltage sag or ripple on the cabinet bus can cause analog modules to produce erratic readings or fail prematurely. If the power module is approaching end-of-life, plan its replacement concurrently with the MU-PLAM02 to avoid a second unplanned outage.

For sites running hybrid TDC 3000 / Experion PKS architectures, also inspect the C200 or C300 Controller Module communication health and verify that the analog input tags associated with the MU-PLAM02 channels are correctly mapped in the control database. A module replacement that is not followed by a database verification step can result in incorrect engineering unit scaling or alarm limit mismatches that go undetected until the next process upset.

Finally, review the condition of any signal isolators or intrinsic safety barriers installed between the field instruments and the MU-PLAM02 termination assembly. Zener barriers and galvanic isolators have finite service lives and can introduce loop resistance changes that affect analog accuracy. Replacing the multiplexer module without addressing a degraded isolator will not fully restore loop performance.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the exact part number (51304362-100) and revision level against the installed module label. Cross-reference with the TDC 3000 cabinet drawing and I/O assignment list to identify all analog channels served by this module. Notify the control room operator and place affected loops in manual mode before proceeding.

Step 2 — Safe removal: Follow Honeywell TDC 3000 maintenance procedures for card extraction. Ensure the cabinet is not de-energized unless required by site safety rules — most TDC 3000 I/O modules support hot-swap within the card cage, but confirm this with your site-specific safety documentation before proceeding.

Step 3 — Module installation: Insert the replacement MU-PLAM02 into the correct card slot. Verify that the module seats fully and that the ejector levers are locked. Observe the module status LEDs during power-up — a solid green RUN indicator confirms successful initialization and backplane communication.

Step 4 — Loop verification: Return affected loops to automatic mode one at a time. Verify that each analog input channel reads correctly against a known field reference (e.g., HART communicator or calibrator). Document as-found and as-left readings in the maintenance management system.

Step 5 — Spare replenishment: Log the consumed spare and initiate a replenishment purchase order to restore minimum stock levels. For sites with more than one TDC 3000 cabinet, maintaining at least two MU-PLAM02 units on the shelf is recommended to cover simultaneous failures during peak production periods.

This workflow applies equally to sites migrating from older TDC 3000 hardware toward Experion PKS or hybrid architectures. The MU-PLAM02 remains fully compatible with legacy TDC 3000 backplanes and does not require firmware updates or configuration changes when replacing a like-for-like unit, making it one of the lowest-risk spare part swaps in the TDC 3000 ecosystem.

Spare Parts Support FAQ

Q1: Is the 51304362-100 MU-PLAM02 compatible with all TDC 3000 cabinet configurations?
The MU-PLAM02 is designed for use within the Honeywell TDC 3000 platform and is compatible with standard TDC 3000 backplane and card cage assemblies. Compatibility should be verified against your specific cabinet revision and I/O link configuration. KNMKS technical support can assist with compatibility confirmation prior to order placement.

Q2: What testing is performed before shipment?
Each MU-PLAM02 unit undergoes visual inspection and functional verification prior to dispatch. Units are checked for physical integrity, connector condition, and basic operational status. A test report is available upon request. All units are shipped with anti-static packaging and are covered by a support terms confirmed by quotation from the date of delivery.

Q3: Can KNMKS support long-term or blanket purchase orders for TDC 3000 spare parts?
Yes. KNMKS supports long-term supply agreements for critical DCS spare parts including the MU-PLAM02 and related TDC 3000 modules. Blanket orders and scheduled delivery programs are available for maintenance teams managing multi-site or multi-cabinet TDC 3000 installations. Contact our sales team to discuss volume pricing and supply continuity arrangements.

Q4: What is the recommended spare parts inventory strategy for the MU-PLAM02?
For facilities with active TDC 3000 systems, a minimum of one to two MU-PLAM02 units per cabinet is recommended as a baseline spare holding. Sites with high process criticality or limited access to emergency sourcing should consider holding three or more units. Given the discontinued status of TDC 3000 hardware from Honeywell’s standard catalog, early procurement is strongly advised to avoid extended lead times during unplanned outages.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

51304362-100 MU-PLAM02
Assorted Series

Product Family

I/O Modules

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

I/O range

Digital, analog and remote I/O modules

Common needs

Channel count, signal and bus type

Project support

PLC expansion and distributed control

Inquiry Support

• Digital and analog signal matching
• Remote station and rack expansion support
• Spare module inquiry for downtime recovery

What to Send Us

• Brand and exact model number: Honeywell 51304362-100 MU-PLAM02
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
