Honeywell 51204160-175 MC-TDIY22 Spare for Uptime: Maintenance-Proven DCS Digital Input Module for Continuous Factory Operation

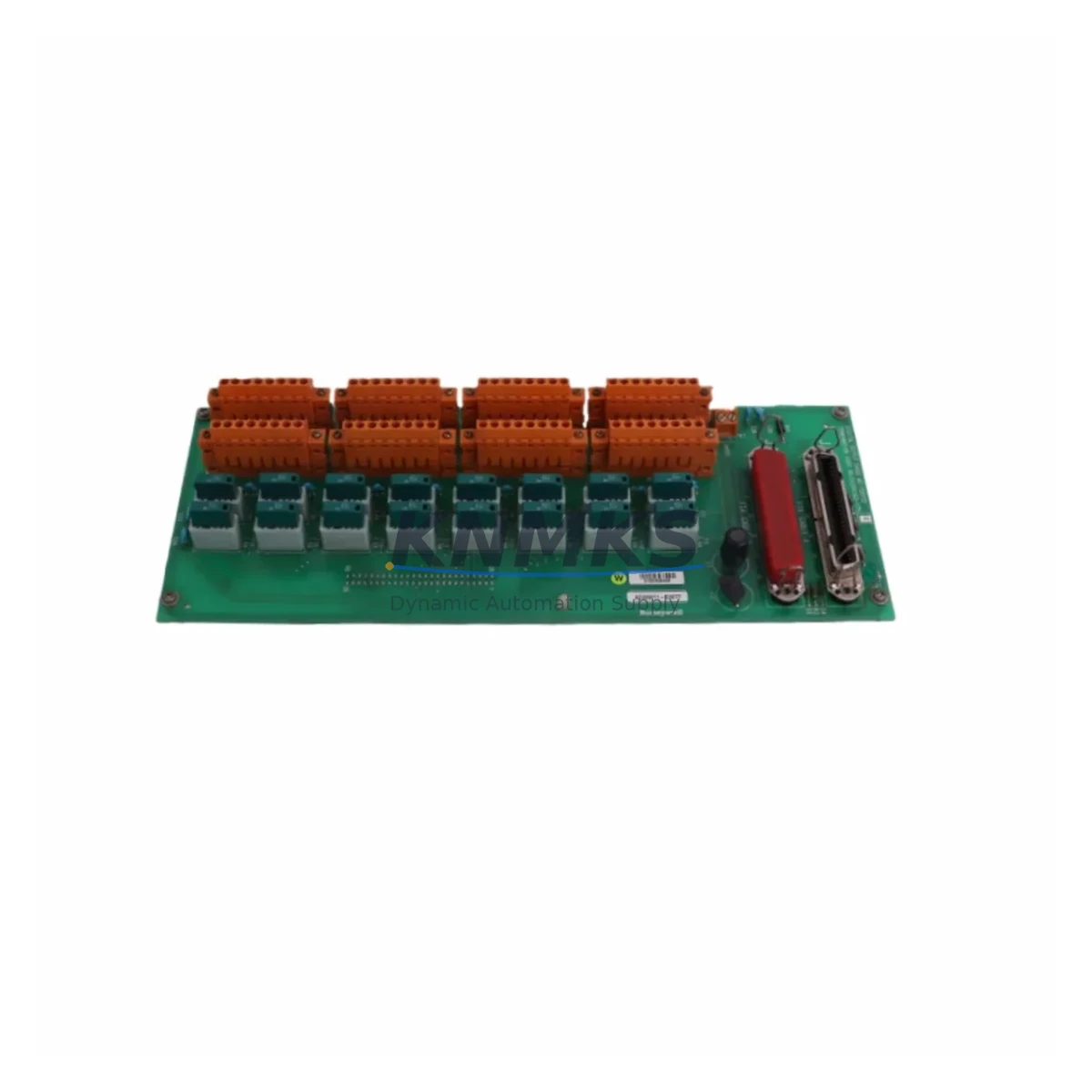

The Honeywell MC-TDIY22 (P/N 51204160-175) is a 24-channel digital input module engineered for the TDC 3000 Distributed Control System platform. Designed for long-lifecycle process automation environments — including refining, petrochemical, power generation, and continuous manufacturing — this module serves as a critical field interface between plant-floor discrete signals and the TDC 3000 control network. Sourced as an original Honeywell spare, each unit is tested prior to shipment and backed by a support terms confirmed by quotation, making it a reliable choice for both emergency replacement and planned maintenance stock.

Maintenance engineers and spare parts procurement teams working with legacy TDC 3000 installations rely on the MC-TDIY22 to sustain system availability without costly platform migrations. Whether you are responding to an unplanned I/O failure, executing a scheduled annual overhaul, or building a site-level spare parts buffer, this module delivers the original hardware compatibility required to restore control loop integrity quickly and confidently.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the MC-TDIY22 in a TDC 3000 cabinet, a disciplined maintenance engineer will treat the module swap as an opportunity to audit the surrounding electrical environment. The 24-channel digital input bus draws power from the local I/O power supply — typically a Honeywell MC-PDIY22 or equivalent 24 VDC I/O power module — and any degradation in supply voltage regulation can cause intermittent input read errors that mimic module failure. Always verify supply rail stability before condemning the DI module itself.

Field wiring terminations on the associated terminal assembly (such as the MC-TAIH02 or MC-TAIH04 series) should be inspected for corrosion, loose screws, and insulation breakdown, particularly in high-humidity or chemically aggressive plant environments. Signal isolation barriers and intrinsic safety barriers installed upstream of the DI inputs — common in Zone 1 or Zone 2 hazardous areas — should be tested for loop integrity and replaced on a scheduled basis independent of the module itself.

The MC-TDIY22 communicates over the TDC 3000 I/O Link backplane. If the module replacement does not resolve the fault, the next diagnostic step is to inspect the backplane connector pins and the I/O Link cable assembly for continuity and shielding integrity. In multi-cabinet HPM configurations, the High-Performance Process Manager (HPM) card and its associated I/O Link interface card should be verified for firmware compatibility with the replacement module revision level.

For sites running hybrid TDC 3000 / TPS architectures, the Local Control Network (LCN) node cards and the Universal Station (US) or Application Module (AM) that poll this I/O point should be confirmed as operationally healthy. A failed DI read at the LCN level can sometimes be traced to a faulty LCN cable segment or a degraded LCN tap rather than the field module. Keeping a spare LCN tap and a tested MC-TDIY22 in the same maintenance kit reduces mean-time-to-repair (MTTR) significantly.

Fusing on the field-side 24 VDC distribution rail — typically individual channel fuses or group fuses on the terminal assembly — should be checked and replaced with OEM-rated fuses during any planned maintenance window. Substituting non-rated fuses is a common source of nuisance trips that are misdiagnosed as module failures.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a Permit to Work (PTW) and isolate the affected I/O card cage slot per site LOTO procedures. Confirm that the process loop controlled by this DI group is in manual or safe state at the operator station.

Step 2 — Module Extraction: With power removed from the card cage slot (or using hot-swap procedures if supported by your HPM revision), extract the MC-TDIY22 by releasing the front-panel locking lever. Label the module with the fault date and slot address for traceability.

Step 3 — Visual and Electrical Pre-Check: Inspect the replacement MC-TDIY22 for shipping damage, connector pin condition, and revision label. Confirm the part number 51204160-175 matches the slot’s hardware configuration record in your TDC 3000 engineering database.

Step 4 — Installation and Seating: Insert the replacement module firmly until the backplane connector is fully engaged and the locking lever clicks. Restore slot power and observe the module status LED sequence — a solid green indicates successful initialization on the I/O Link.

Step 5 — Functional Verification: From the Universal Station or Engineering Console, force-read each of the 24 DI channels against known field signal states. Document the verification results in the site maintenance log before returning the loop to automatic control.

Step 6 — Spare Stock Update: Record the consumed spare in your site inventory management system and initiate a replenishment order to maintain the recommended on-hand buffer of at least one MC-TDIY22 per HPM cabinet cluster.

Spare Parts Support FAQ

Q1: Is the MC-TDIY22 (51204160-175) compatible with both TDC 3000 and TPS (TotalPlant Solution) systems?
Yes. The MC-TDIY22 is designed for the TDC 3000 I/O architecture, which is the hardware foundation of the TotalPlant Solution (TPS) platform. It is compatible with HPM-based I/O card cages across both TDC 3000 and TPS installations, provided the backplane revision and I/O Link firmware are within the supported range documented in Honeywell’s hardware compatibility matrix.

Q2: What pre-shipment testing is performed on each unit?
Every MC-TDIY22 dispatched from our inventory undergoes functional testing that verifies channel-level input response, backplane communication handshake, and power consumption within OEM specification. A test report is available upon request. All units are shipped with ESD-protective packaging and are covered by a support terms confirmed by quotation from the date of shipment.

Q3: How should procurement engineers manage long-term supply risk for this module?
The TDC 3000 platform is in its extended lifecycle phase, and OEM production of certain modules has been discontinued or is subject to long lead times. We recommend maintaining a minimum buffer stock of one to two MC-TDIY22 units per site, with a replenishment trigger set at the first unit consumed. We offer long-term supply agreements and can reserve allocated stock for multi-year maintenance contracts, reducing procurement risk for sites committed to TDC 3000 operation beyond 2030.

Q4: Can the MC-TDIY22 be used as a direct replacement for earlier revision levels of the same module?
In most cases, yes — Honeywell maintains backward compatibility across revision levels of the MC-TDIY22 within the same I/O Link generation. However, sites running very early TDC 3000 firmware should verify the module revision against the HPM compatibility table before installation. Our technical team can assist with revision-level compatibility confirmation prior to shipment at no additional charge.
