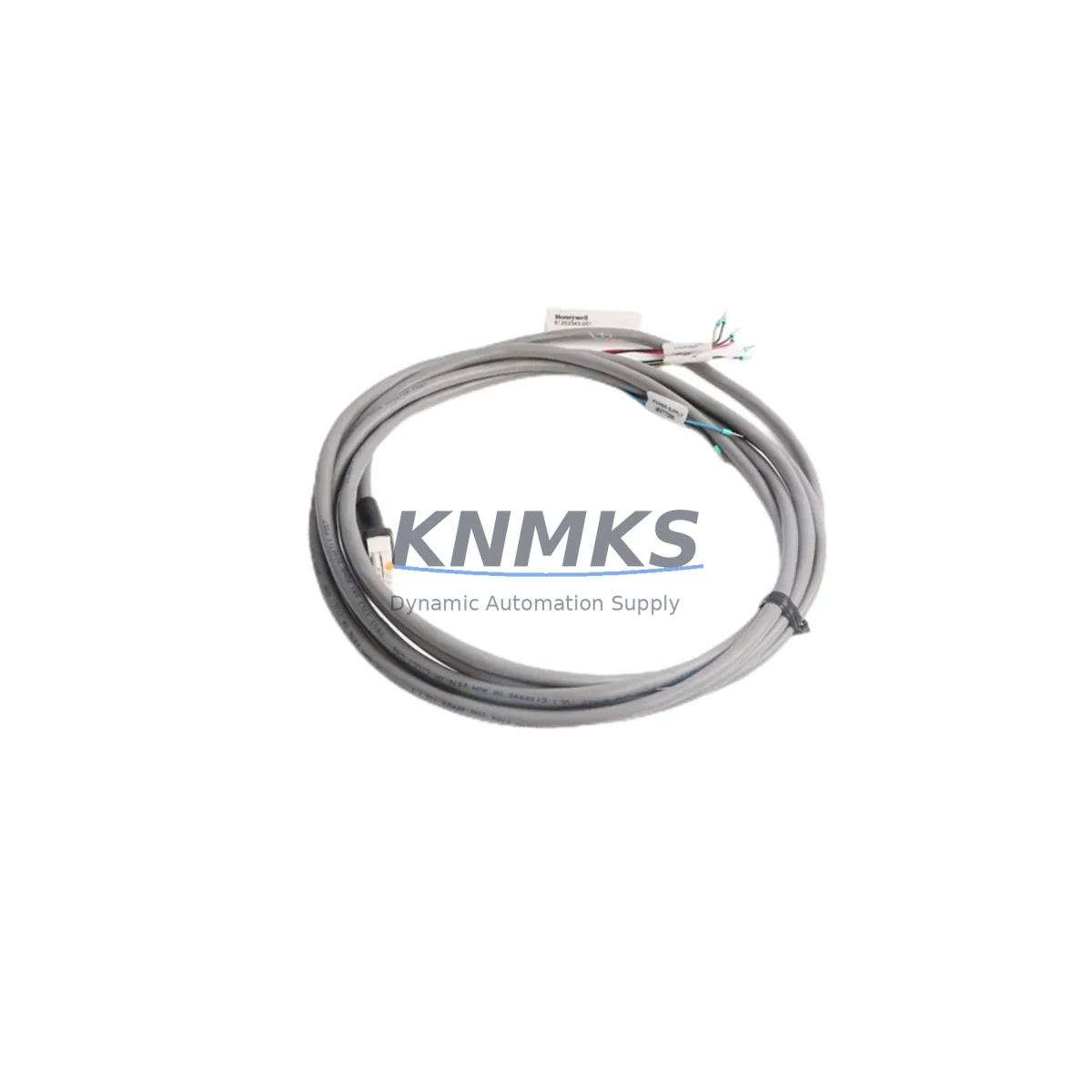

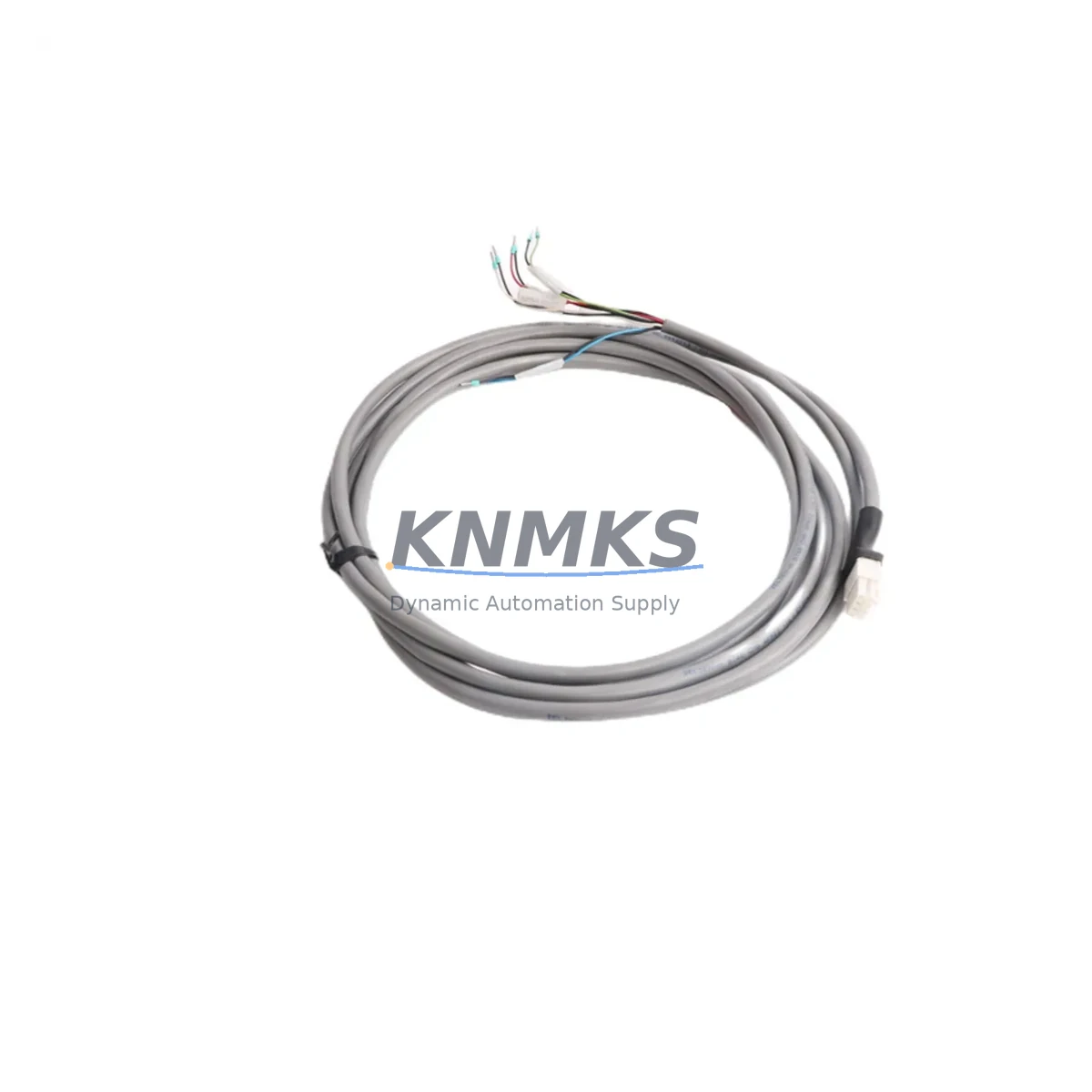

Honeywell 51202343-001 Migration-Ready PSU Status Cable for Legacy DCS

Overview

Honeywell 51202343-001 Migration-Ready PSU Status Cable for Legacy DCS

The Honeywell 51202343-001 is a PSU Status Cable designed for the Experion PKS Distributed Control System platform. As industrial facilities transition away from aging DCS infrastructure, this cable assembly plays a critical role in maintaining power supply monitoring continuity during control cabinet upgrades, partial system retrofits, and full platform migrations. Whether you are replacing a failed unit in an active production environment or sourcing a long-lead spare to extend the operational life of your existing Experion PKS installation, the 51202343-001 provides a verified drop-in replacement path with no modification to existing wiring harnesses or cabinet layouts.

Facilities running legacy Honeywell TDC 3000 or PlantScape systems that have partially migrated to Experion PKS frequently encounter the challenge of maintaining PSU status signaling across mixed-generation hardware. The 51202343-001 bridges this gap, ensuring that power supply fault detection and status reporting remain intact throughout the transition period. Engineers responsible for control system lifecycle management should confirm the cable’s connector pinout against the target PSU module — typically the Honeywell CC-PWRR01 redundant power supply or equivalent chassis power units — before installation to avoid signal inversion or open-circuit faults during commissioning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Honeywell 51202343-001 into a retrofit project requires a structured pre-installation review. The following considerations apply to the most common migration scenarios encountered in process plants, power generation facilities, and continuous manufacturing environments.

Power Supply Capacity Verification: Before replacing the PSU status cable, confirm that the existing power supply module — such as the Honeywell 51199929-100 power supply unit or a compatible redundant PSU — is operating within rated load capacity. Overloaded power supplies can generate intermittent status faults that are incorrectly attributed to cable failure. Document the current draw of all modules installed in the chassis, including any Honeywell CC-TDIL01 digital input modules or CC-TAOX11 analog output modules that may have been added during incremental I/O expansion.

Terminal Wiring and Backplane Interface: The 51202343-001 connects between the PSU module and the chassis backplane. During installation, inspect the backplane connector for oxidation or mechanical damage — a common issue in cabinets that have operated for more than ten years without preventive maintenance. If the backplane shows signs of wear, consider scheduling replacement of the Honeywell 51401288-100 chassis backplane assembly during the same maintenance window to avoid a repeat outage.

Module Addressing and Program Compatibility: PSU status cables do not carry I/O data and do not affect module addressing or controller program logic. However, if the retrofit involves replacing the PSU module itself alongside the cable, re-verify the module slot assignments in the Experion PKS Control Builder configuration. Changes to power supply slot assignments can trigger alarm floods in the Honeywell Experion PKS HMI Station if the system database is not updated prior to restart.

Communication Link Integrity: In systems where the PSU status is monitored via the Honeywell FTE (Fault Tolerant Ethernet) network, confirm that the status reporting path remains intact after cable replacement. FTE-connected nodes should be pinged from the Experion server before and after the swap to confirm no disruption to the supervisory communication layer.

Installation Space and Cable Routing: The 51202343-001 is a short-run internal cable. Confirm that the replacement cable length matches the original routing path within the control cabinet. Excess cable length should be managed with cable ties to prevent interference with adjacent modules, particularly Honeywell CC-SCMB01 serial communication modules or programming cables connected to the controller’s RS-232 port during firmware update procedures.

Firmware Version Compatibility: This cable assembly is passive and carries no firmware dependency. However, if the retrofit coincides with a firmware upgrade of the C200 or C300 controller, follow Honeywell’s recommended firmware upgrade sequence to avoid controller faults during the transition. Confirm the target firmware version is compatible with all installed I/O modules before initiating the upgrade.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any DCS retrofit project. The Honeywell 51202343-001 replacement can typically be completed within a planned maintenance window of 30 to 60 minutes, provided all preparatory steps are completed in advance.

Pre-Swap Checklist: Before removing the existing cable, capture a full screenshot or export of the current PSU status display in the Experion PKS Operations Station. This provides a baseline for post-swap verification. Back up the current controller configuration using Control Builder’s export function to protect against accidental configuration loss during the maintenance window.

Hot-Swap Considerations: The PSU status cable is not hot-swappable in most Experion PKS chassis configurations. Plan for a controlled power-down of the affected chassis. In redundant PSU configurations, it may be possible to transfer load to the secondary power supply before disconnecting the primary PSU status cable, reducing the impact on field I/O continuity. Coordinate with the operations team to place the affected control loops in manual mode before initiating the swap.

Post-Swap Verification: After installing the 51202343-001, restore power to the chassis and confirm that the PSU status indicator in the Experion PKS system display returns to normal. Check the system event log for any new alarms generated during the restart sequence. Verify that all I/O modules in the chassis have re-established communication with the controller and that field device readings are within expected ranges before returning control loops to automatic mode.

Outgoing Test and Quality Assurance: All 51202343-001 units supplied by KNMKS are subject to pre-shipment continuity and insulation resistance testing. Test reports are available upon request. Units are shipped in anti-static packaging with individual part number labeling to facilitate incoming inspection at the customer’s facility.

Retrofit Support FAQ

Q1: Is the Honeywell 51202343-001 a direct replacement for the original OEM part?
Yes. The 51202343-001 supplied by KNMKS is a verified replacement for the original Honeywell OEM part number. Connector type, cable length, and pinout are matched to the original specification. No wiring modification or adapter is required for installation in Experion PKS chassis.

Q2: What commissioning steps are required after replacing the PSU status cable?
After installation, restore chassis power and confirm PSU status is reported correctly in the Experion PKS Operations Station. Review the system event log for any fault codes generated during restart. If the replacement was performed alongside a PSU module swap, re-verify module slot assignments in Control Builder and confirm FTE network connectivity from the Experion server.

Q3: Do you maintain stock of the 51202343-001 for urgent replacement orders?
Yes. KNMKS maintains inventory of the 51202343-001 to support urgent spare part requirements. Standard lead time for in-stock units is 3–7 business days for international shipments. Express shipping options are available for critical production environments. Contact admin@knmks.com or call +86 18359268345 to confirm current stock availability.

Q4: What support terms coverage applies to the 51202343-001?
All 51202343-001 units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failures under normal operating conditions. KNMKS provides replacement or documented resolution support for any unit that fails within the confirmed support period, subject to inspection. Pre-shipment test reports are available upon request to support incoming quality inspection at the customer’s facility.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

51202343-001
Experion PKS Series

Product Family

Power Supplies

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Power range

DIN rail and switching power supplies

Common needs

Voltage, current and mounting style

Project support

Control cabinet and panel-builder inquiries

Inquiry Support

• 24VDC and cabinet power selection support
• Stable power support for PLC and HMI systems
• Batch inquiry support for panel builders

What to Send Us

• Brand and exact model number: Honeywell 51202343-001
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
