Honeywell 51202329-200 Maintenance-Proven Spare Part for Factory Uptime

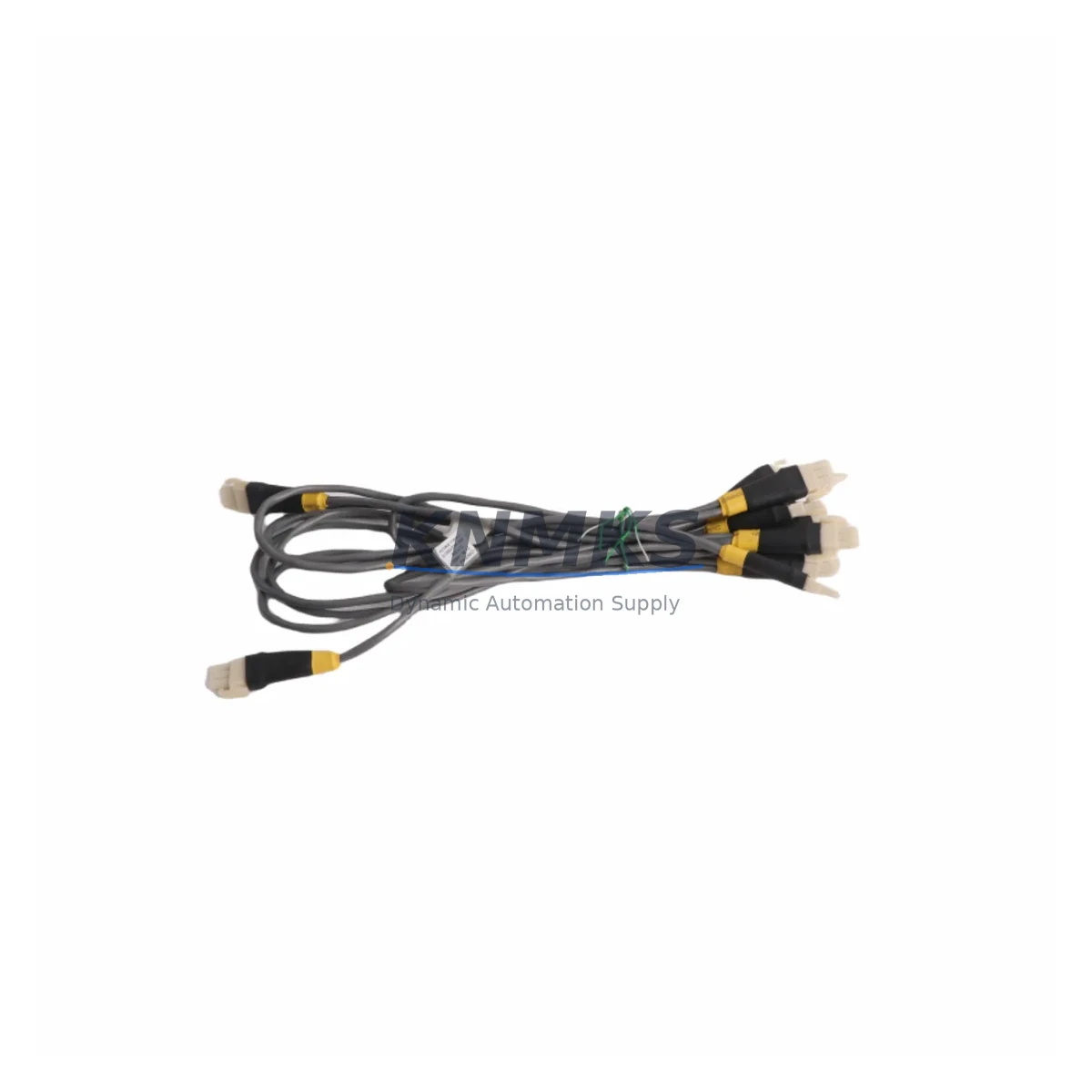

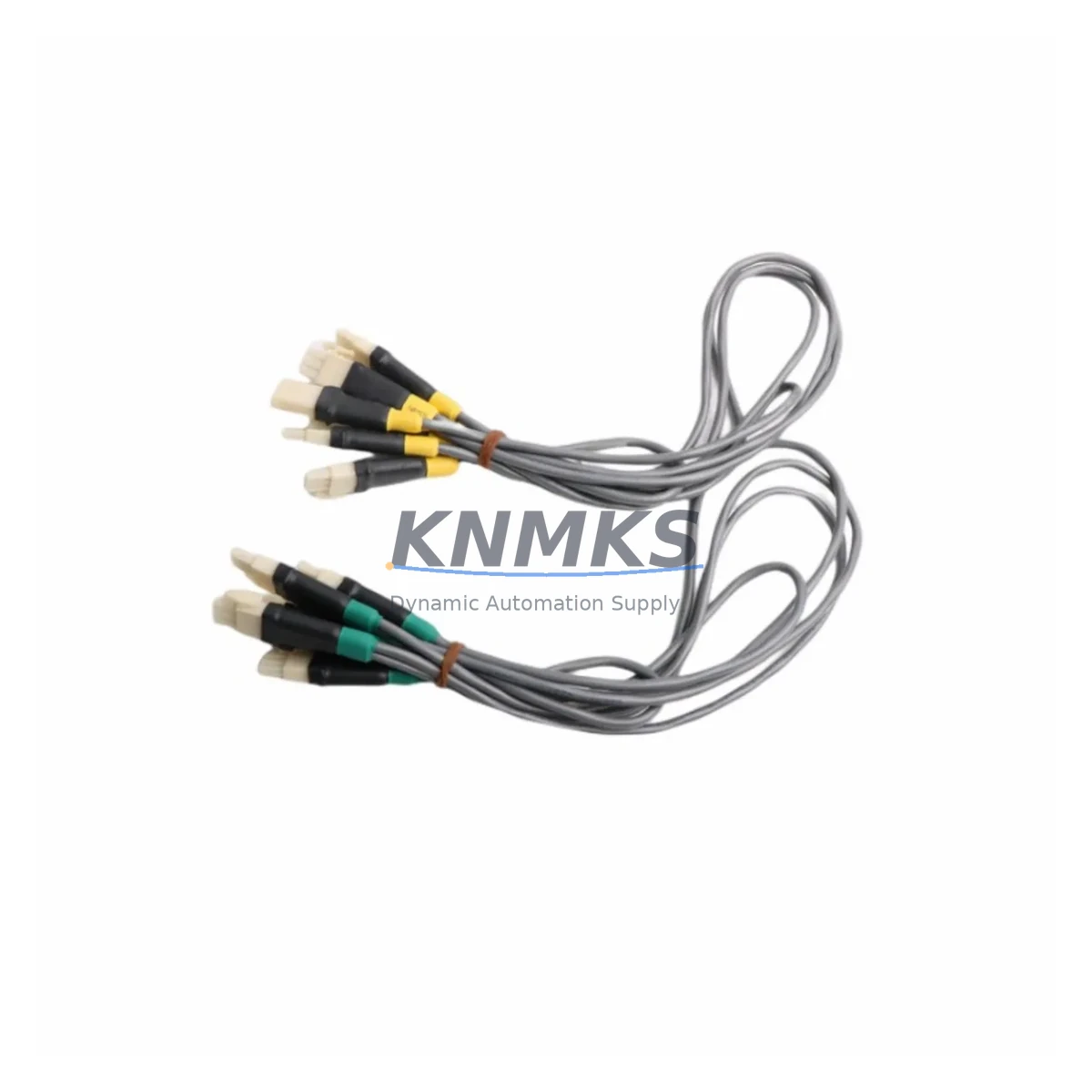

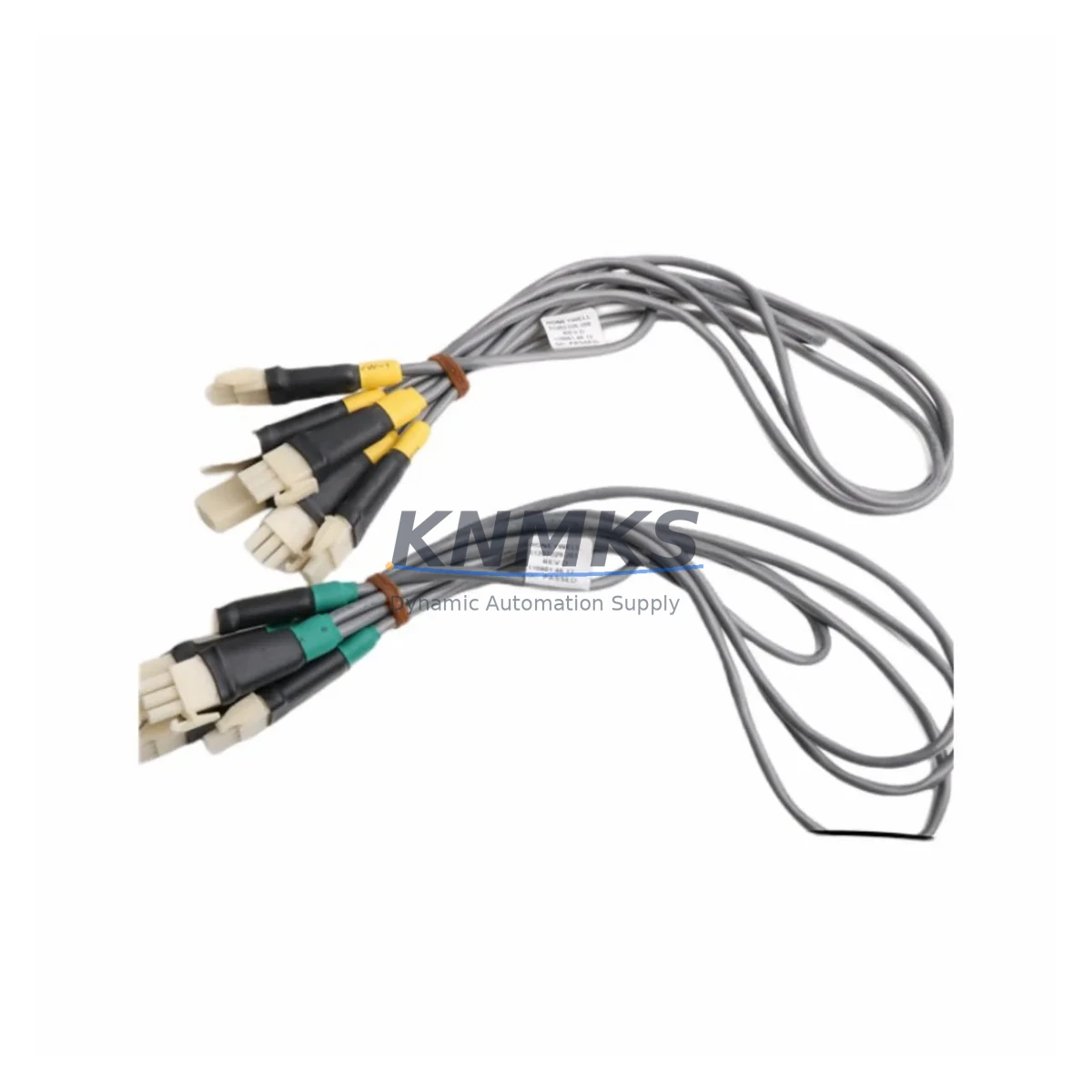

The Honeywell 51202329-200 is an original I/O Link Cable Assembly engineered for the Experion PKS C200 and C300 distributed control system platforms. In process industries where continuous operation is non-negotiable — refining, petrochemical, power generation, and advanced manufacturing — this cable assembly forms a critical signal path between the controller chassis and remote I/O modules. A degraded or failed 51202329-200 can interrupt scan cycles, trigger spurious alarms, and force unplanned shutdowns. Maintaining a verified spare on the shelf is the single most effective way to compress mean time to repair (MTTR) and protect production continuity.

Every unit supplied by KNMKS is sourced from authorized channels, individually inspected, and pre-shipment tested against Honeywell’s original electrical specifications before dispatch. Each spare ships with a support terms confirmed by quotation and full traceability documentation, giving maintenance engineers and procurement teams the confidence to plan scheduled outages and respond to emergency failures without lead-time risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 51202329-200 I/O Link Cable Assembly is flagged during a control cabinet inspection or fault diagnostic, experienced maintenance engineers know that the cable itself is rarely the only component under stress. The Experion PKS I/O subsystem is an interconnected architecture, and a thorough site assessment should extend to adjacent components before the replacement unit is commissioned.

Start with the C200 or C300 Process Controller module seated in the same chassis — verify firmware revision, check for fault LEDs, and confirm the controller is not logging communication retries that predate the cable failure. Next, inspect the Remote I/O (RIO) modules at the field end of the cable run: terminal block seating, corrosion on connector pins, and shield continuity are common failure contributors in humid or vibration-prone environments. The I/O Link Terminator at the end of the daisy-chain should also be verified; a missing or degraded terminator causes reflections that mimic cable faults.

Power quality is a frequent root cause that goes unexamined. Confirm that the Honeywell Power Supply module feeding the I/O chassis is within voltage tolerance and that its output ripple is within specification — an aging power supply can stress cable insulation and connector contacts over time. Check the 24 VDC field power distribution to I/O modules for voltage drop across long cable runs. If the control cabinet includes a Honeywell FIM (Field Interface Module) or IOLIM (I/O Link Interface Module), inspect its status indicators and connection integrity as part of the same maintenance window.

For sites running Experion PKS with Series C Safety Manager integration, verify that the safety I/O network is isolated from the process I/O link and that no cross-wiring has occurred during previous maintenance activities. Finally, review the Experion PKS Server or Application Station event log for historical communication errors on the affected I/O link — this data helps distinguish a sudden cable failure from a slow-developing insulation or connector degradation that warrants a broader cable audit across the cabinet.

Procurement teams should treat the 51202329-200 as a Tier-1 critical spare: one unit minimum on-site, with a replenishment order triggered immediately upon consumption. For multi-unit DCS installations, a ratio of one spare per four active cable assemblies is a practical starting point for annual budget planning.

Site Replacement Workflow

1. Isolate and document. Before removing the 51202329-200, capture the current I/O link status from the Experion PKS Station — note which I/O modules are reporting faults and record the cable routing, connector orientation, and any cable tie or label positions. Photograph the installation if the cabinet layout is complex.

2. De-energize safely. Follow site LOTO (Lockout/Tagout) procedures. The I/O link cable carries low-voltage signaling, but the surrounding cabinet may have live 24 VDC or 120/240 VAC circuits. Confirm isolation before disconnecting.

3. Remove and inspect connectors. Disconnect both ends of the 51202329-200. Inspect the mating connectors on the controller chassis and the RIO module for bent pins, corrosion, or debris. Clean with approved contact cleaner if necessary. Do not reinstall a new cable into a damaged connector — address the connector first.

4. Install the replacement unit. Route the new 51202329-200 following the original cable path. Avoid sharp bends at connector exits and maintain separation from high-voltage wiring. Seat both connectors fully and verify the locking mechanism engages.

5. Re-energize and verify. Restore power and observe the I/O link status on the Experion PKS Station. All previously faulted I/O modules should return to normal scan within one to two controller scan cycles. If faults persist, the issue is upstream (controller or power supply) or downstream (RIO module or terminator) — not the cable.

6. Update maintenance records. Log the replacement in the site CMMS with the new unit’s serial number, installation date, and test result. Schedule the next cable inspection at the next annual shutdown or 8,760-hour interval, whichever comes first.

Spare Parts Support FAQ

Q1: Is the 51202329-200 compatible with both C200 and C300 controllers in the Experion PKS platform?
Yes. The 51202329-200 I/O Link Cable Assembly is designed for use across the Experion PKS C200 and C300 controller families. Always verify the cable length variant matches your cabinet layout before ordering. KNMKS can confirm compatibility against your system configuration upon request.

Q2: What pre-shipment testing is performed on each unit?
Every 51202329-200 supplied by KNMKS undergoes electrical continuity testing, insulation resistance verification, and connector integrity inspection prior to dispatch. A test report is available on request. Units that do not meet Honeywell’s original specification are not shipped.

Q3: What does the support terms confirmed by quotation cover, and how is a claim processed?
The support terms confirmed by quotation cover manufacturing defects and electrical failures under normal operating conditions. If a unit fails within the confirmed support period, contact admin@knmks.com with the order reference and a description of the fault. KNMKS will arrange a replacement dispatch or credit, typically within 5 business days of fault confirmation.

Q4: Can KNMKS support long-term supply agreements for the 51202329-200?
Yes. KNMKS maintains multi-region stock of the 51202329-200 and can support blanket purchase orders, annual supply agreements, and emergency call-off arrangements. For sites with multiple Experion PKS installations or planned multi-year maintenance programs, contact admin@knmks.com to discuss volume pricing and guaranteed stock reservation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

51202329-200
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 51202329-200
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
