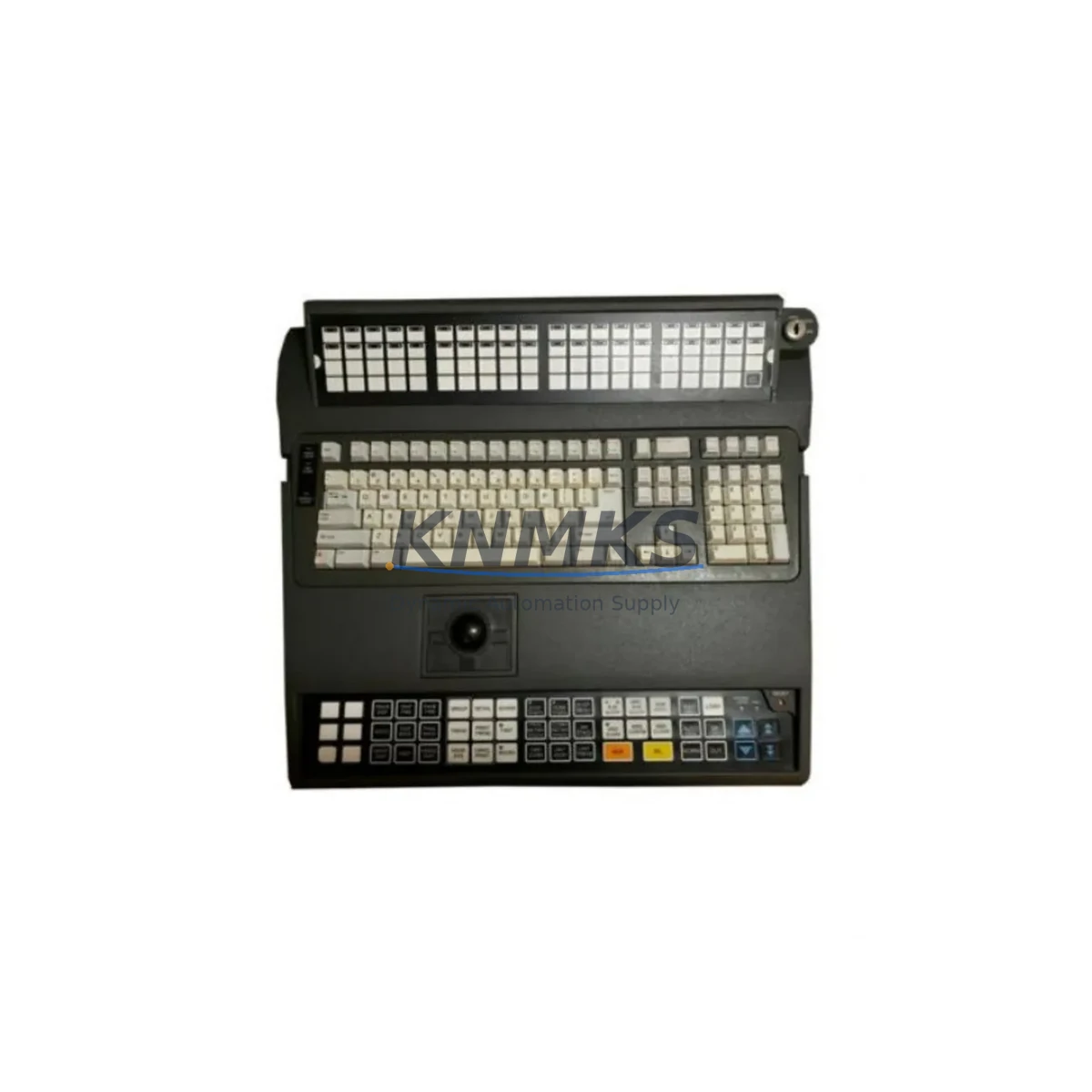

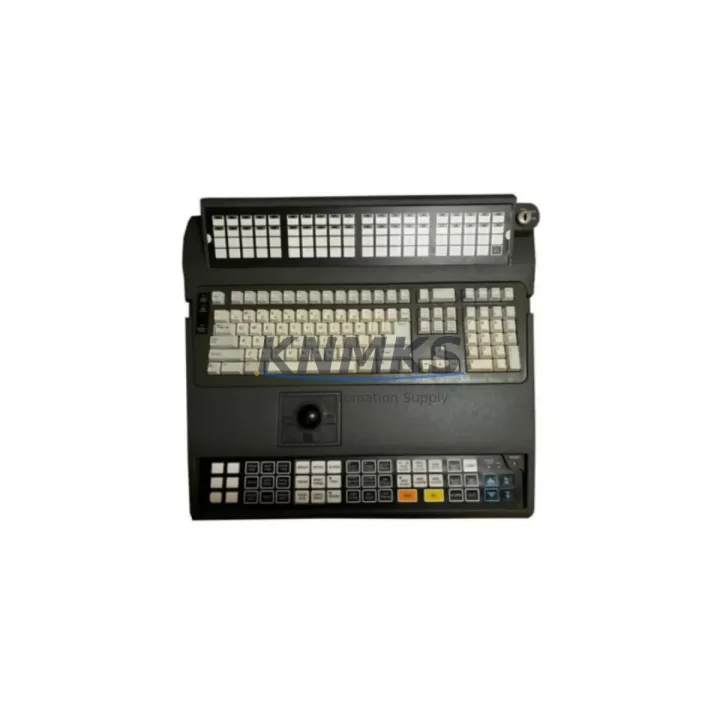

Honeywell 51196694-300 Migration-Ready HMI Keypad for Legacy Control Systems

Overview

Honeywell 51196694-300 Migration-Ready HMI Keypad for Legacy Control Systems

The Honeywell 51196694-300 is a migration-ready HMI keypad engineered for direct integration into Experion PKS distributed control environments. As legacy operator stations and Series C control hardware approach end-of-life, facilities running TDC 3000, PlantScape, or early Experion R100–R310 platforms face increasing pressure to source verified replacement components without triggering full-system overhauls. The 51196694-300 addresses this challenge by providing a mechanically and electrically compatible drop-in keypad assembly that preserves existing operator workflows, panel cutout dimensions, and HMI screen navigation logic.

For engineers managing brownfield upgrades, the keypad’s compatibility with Experion PKS C300 controller nodes and associated FIM (Fieldbus Interface Module) infrastructure means that replacement can be executed during a scheduled maintenance window rather than a full production shutdown. The unit interfaces directly with the Experion Station (ES) and Operator Station (OS) hardware layers, maintaining existing alarm acknowledgment sequences, faceplate navigation, and trend display keystrokes without requiring HMI screen reconfiguration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 51196694-300 into an active Experion PKS environment requires systematic pre-installation verification across several interdependent subsystems. Begin by auditing the existing Experion Station power supply — typically a Honeywell PS-24 or equivalent 24 VDC regulated supply — to confirm that the additional keypad load falls within the available current budget. Undersized power rails are a common source of intermittent keypad response failures in legacy panel upgrades.

Next, inspect the backplane and rack assembly. Facilities running older Experion cabinets may use the HC-FPCB01 or HC-FPCB02 backplane variants; confirm that the keypad connector pinout on the 51196694-300 matches the station-side receptacle before proceeding. In cases where the existing backplane uses a non-standard locking tab, a transition bracket may be required to secure the new keypad assembly without modifying the panel structure.

Terminal wiring should be documented and photographed before disconnecting the legacy keypad. The 51196694-300 uses the same terminal block layout as its predecessors, but wire labeling on older installations is frequently inconsistent. Cross-reference against the original Experion Station wiring diagram to confirm signal assignments for the alarm acknowledge, operator call, and display select lines.

For facilities also upgrading communication infrastructure, the 51196694-300 is compatible with FTE (Fault Tolerant Ethernet) dual-ring topologies. If the migration path includes replacing legacy Honeywell EHPM (Ethernet Highway Port Module) units or transitioning from a single-ring to dual-ring FTE architecture, the keypad replacement can be staged concurrently with network reconfiguration to minimize total downtime. Similarly, if the project scope includes adding Honeywell PMIO (Process Manager I/O) modules or expanding the I/O count via additional FIM cards, the keypad swap can be sequenced as the first step in a phased cabinet upgrade.

HMI screen compatibility should be validated in a staging environment before live cutover. Experion PKS operator displays built on older Display Builder or Station Display configurations may reference keypad function key assignments that differ between the -100, -200, and -300 hardware revisions. Load the target station’s display configuration into an offline Experion simulation node and verify that all function key mappings, alarm acknowledgment sequences, and faceplate navigation paths respond correctly with the new keypad firmware profile.

Downtime Control During System Migration

Minimizing unplanned downtime during a keypad replacement on a live Experion PKS system requires a structured cutover plan. The recommended approach is to perform the physical swap during a scheduled process hold or low-production window, with the Experion server in a monitored state and all active alarms acknowledged and documented before disconnecting the legacy unit.

Before removal, export the current station configuration from Experion Configuration Studio and archive the display assignment file. This ensures that if the replacement keypad requires a firmware update to align with the station’s Experion release level, the original configuration can be restored without manual re-entry. Stations running Experion R400 or later support online firmware verification via the Station Maintenance Console, allowing the engineer to confirm firmware compatibility before the keypad is physically installed.

To protect existing program logic during the transition, place the associated C300 controller in a controlled hold state using the Experion Control Builder’s checkpoint function. This preserves all active setpoints, PID tuning parameters, and interlock states in non-volatile memory, allowing the controller to resume normal execution immediately after the keypad is reconnected and the station is brought back online. Avoid performing keypad replacements while the controller is in an active alarm or fault state, as this increases the risk of missed alarm acknowledgments during the transition window.

Post-installation, perform a full functional check: verify key actuation response on all operator-facing function keys, confirm alarm acknowledge and operator call signals are received at the Experion server, and validate that all HMI display pages load correctly from the new keypad. Document the commissioning results and update the site’s spare parts register to reflect the installed revision level of the 51196694-300.

Retrofit Support FAQ

Q1: Is the 51196694-300 a direct replacement for the 51196694-200 and 51196694-100?
Yes. The 51196694-300 is the current production revision and is mechanically and electrically compatible with the -100 and -200 variants. No panel modification or wiring change is required for a direct swap. Verify the station firmware version is R310 or above before installation to ensure full function key compatibility.

Q2: What commissioning steps are required after installation?
After physical installation, power on the station and confirm the keypad is recognized by the Experion Station Maintenance Console. Perform a full key actuation test, verify alarm acknowledge and operator call signal routing, and confirm all HMI display pages are accessible. If the station was in a checkpoint hold state, release the C300 controller and verify process variable readback before returning to normal operation.

Q3: Can the 51196694-300 be used in a TDC 3000 environment?
Direct installation into a TDC 3000 Universal Station requires a compatibility adapter due to differences in the backplane connector and communication protocol. For TDC 3000 environments, confirm whether the project scope includes a full Experion PKS migration or a partial upgrade. In full migration scenarios, the 51196694-300 is the recommended keypad for the replacement Experion Operator Station.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. All units are function-tested prior to dispatch, including key actuation verification, connector integrity inspection, and LED response confirmation. Support requests are processed via [email protected] with proof of purchase and a description of the observed fault.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

51196694-300
Experion PKS Series

Product Family

HMI & Displays

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Display range

Operator panels and touch screens

Common needs

Screen size, interface and version matching

Project support

Retrofit, spare unit and panel replacement

Inquiry Support

• Panel size and interface confirmation
• Replacement unit inquiry for discontinued HMIs
• Protective packaging for display shipment

What to Send Us

• Brand and exact model number: Honeywell 51196694-300
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
