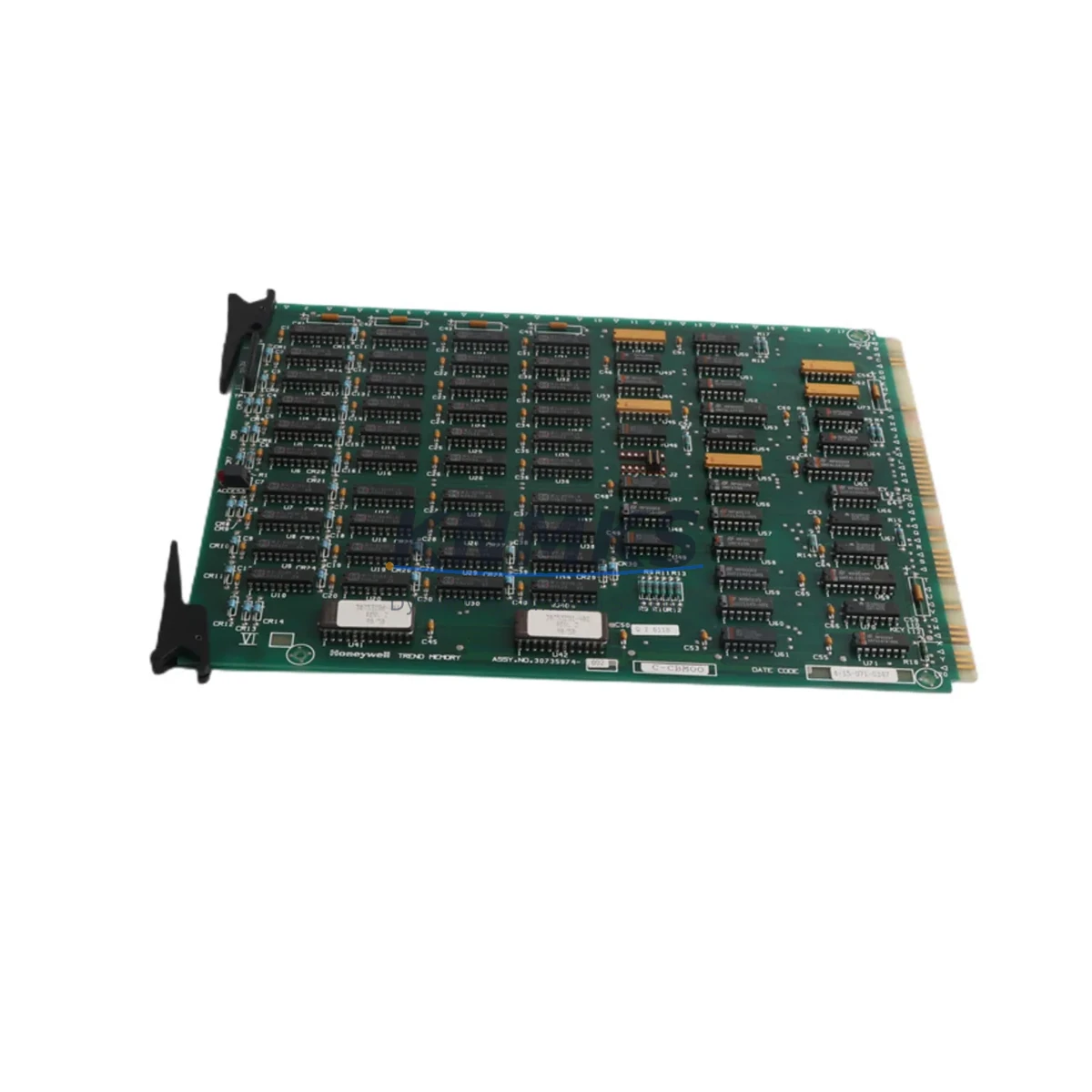

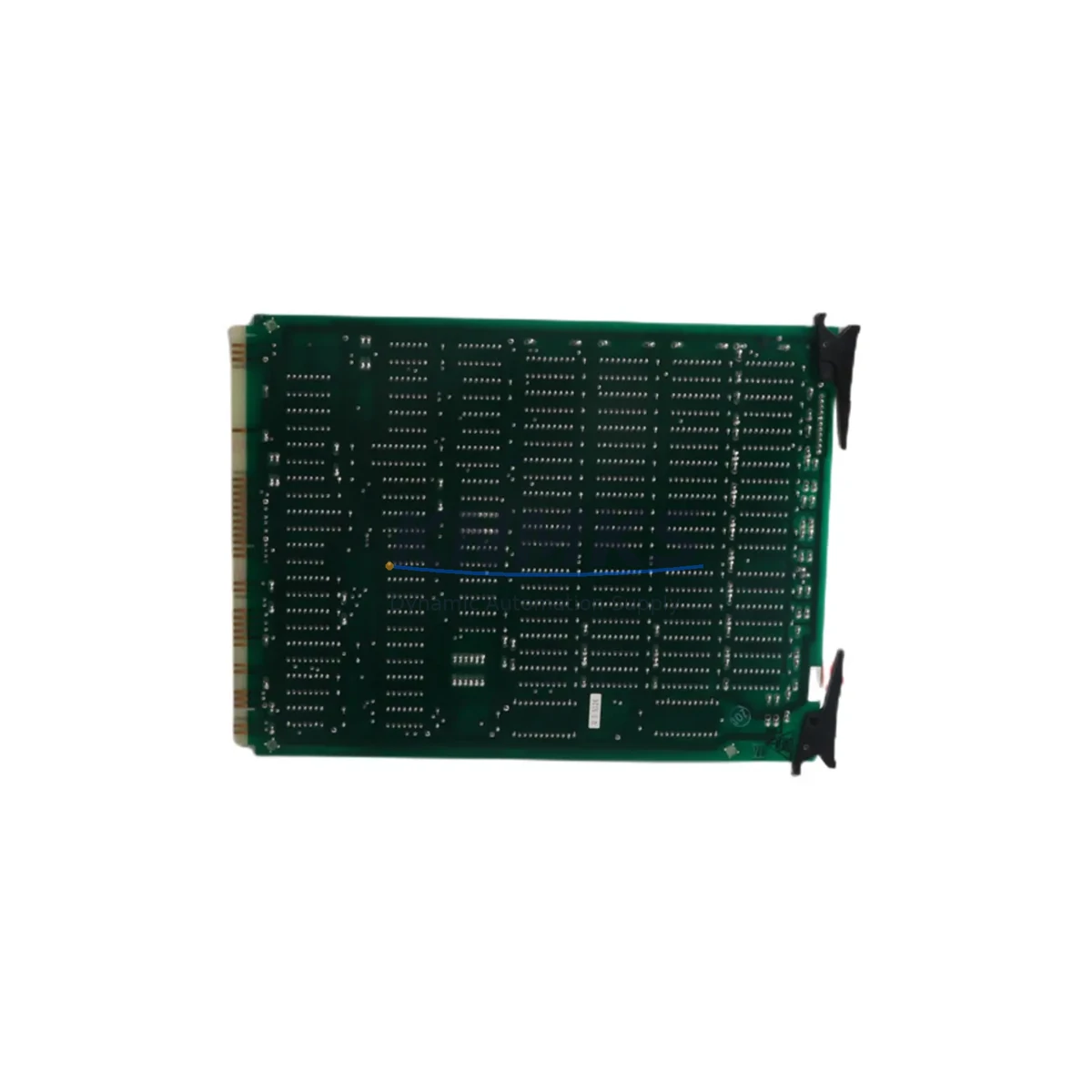

Honeywell 30735974-002 Retrofit-Ready Trend Memory Card for Experion PKS

Overview

Honeywell 30735974-002 Retrofit-Ready Trend Memory Card for Experion PKS: Legacy System Migration & Compatibility Upgrade

The Honeywell 30735974-002 is a Trend Memory Card engineered for the Experion PKS (Process Knowledge System) distributed control platform. As legacy DCS installations age and original spare parts reach end-of-life, the 30735974-002 serves as a verified drop-in replacement for facilities operating aging Experion PKS nodes, C300 Controller clusters, and associated I/O subsystems. Whether you are executing a planned control system modernization or responding to an unplanned component failure, this module provides a reliable, compatibility-confirmed path to restoring and extending system operation without requiring a full platform migration.

Honeywell’s Experion PKS architecture is widely deployed across refining, petrochemical, power generation, and pharmaceutical process industries. Many of these installations were commissioned in the early 2000s and are now encountering obsolescence challenges — particularly around memory and historian components such as the Trend Memory Card. The 30735974-002 addresses this directly, offering a functionally equivalent replacement that preserves existing trend data configurations, controller logic, and HMI display mappings without requiring re-engineering of the underlying control strategy.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the Honeywell 30735974-002 into an existing Experion PKS environment requires systematic pre-installation planning. Before removing the legacy Trend Memory Card, engineers should document all active trend groups, historian collection intervals, and associated tag lists. The Experion PKS C300 Controller manages the real-time control logic that feeds process data into the trend historian; any interruption to the C300’s scan cycle during the swap must be carefully managed to avoid process upsets.

On the I/O side, facilities typically rely on Honeywell HLAI (High-Level Analog Input) modules and LLAI (Low-Level Analog Input) modules mounted in Series C I/O Link chassis to feed live process values into the historian. Confirming that these I/O modules remain online and correctly addressed during the memory card replacement is essential for data continuity. Similarly, the Experion PKS FIM (Fieldbus Interface Module) — where FOUNDATION Fieldbus or PROFIBUS devices are integrated — should be verified to ensure that field device data streams are not interrupted during the retrofit window.

Control cabinet space is another practical consideration. The 30735974-002 occupies a standard Experion PKS module slot; however, if the target chassis is also hosting Honeywell Power Supply modules (such as the CC-PWR01 or equivalent), engineers should confirm that the chassis power budget accommodates the full module complement without derating. In older installations, power supply modules may already be operating near capacity, and adding or swapping memory modules can affect overall chassis stability.

For facilities that also operate Honeywell Experion PKS SCADA or Station nodes, the HMI trend display configuration should be backed up prior to the swap. Trend display faceplate bindings in the Experion Station are linked to historian tag paths; if the memory card replacement triggers a historian re-initialization, these bindings may need to be re-validated. Having a current export of the Station display database significantly reduces post-installation commissioning time.

Finally, where Honeywell SM (Series C Safety Manager) modules or safety I/O are co-located in the same control room, the retrofit plan should include a formal Management of Change (MOC) review to ensure that the memory card swap does not inadvertently affect safety system data logging or alarm historian functions.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a Trend Memory Card in a live Experion PKS environment. The recommended approach is to schedule the swap during a planned maintenance window, with the process unit in a stable, low-demand state. Before beginning, create a full backup of the Experion PKS server configuration, including the historian database, trend group definitions, and controller checkpoint files. This ensures that if the replacement module requires re-initialization, the original configuration can be restored rapidly.

During the physical swap, the C300 Controller and associated I/O subsystems can typically remain powered, as the Trend Memory Card is not in the primary control execution path. However, trend data collection will be interrupted for the duration of the swap. Operators should be informed in advance so that manual logging or alternative data capture methods can be activated if process documentation requirements demand continuous historian coverage.

Post-installation, the commissioning sequence should include: module recognition confirmation in the Experion PKS server console, trend group re-association, historian collection restart, and HMI trend display validation at the Experion Station. A full functional test — verifying that all previously configured trend tags are collecting data at the correct intervals — should be completed before returning the system to normal operation. With proper preparation, total downtime for this replacement is typically under two hours, and the original control program logic is fully preserved throughout the process.

Retrofit Support FAQ

Q1: Is the Honeywell 30735974-002 a direct replacement for the original Trend Memory Card in my Experion PKS system?
A: Yes. The 30735974-002 is designed as a functionally equivalent replacement for the original Experion PKS Trend Memory Card. It installs into the same backplane slot and is compatible with the standard Experion PKS communication and historian architecture. Post-installation, trend group re-association may be required depending on your system’s historian configuration.

Q2: What pre-installation checks should I perform before swapping the Trend Memory Card?
A: Before installation, verify chassis power supply capacity, confirm available slot assignment in the Experion PKS server configuration, back up all trend group definitions and historian tag lists, and document current HMI trend display bindings. Ensure the replacement module’s firmware is compatible with your installed Experion PKS server revision.

Q3: Has this module been tested before shipment?
A: Yes. All units undergo functional verification prior to dispatch. Each 30735974-002 is inspected for physical integrity and basic operational readiness. A support terms confirmed by quotation is included with every unit, covering manufacturing defects and functional failures under normal operating conditions.

Q4: What is the typical lead time and do you maintain stock?
A: We maintain inventory of the Honeywell 30735974-002 to support urgent replacement requirements. Standard orders ship within 1–3 business days. For large-quantity or project-based procurement, please contact our sales team to confirm availability and lead time commitments.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

30735974-002
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 30735974-002
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
