Honeywell 2MLR-M06P Fail-Safe DCS Rack Base

Overview

Honeywell 2MLR-M06P Fail-Safe DCS Rack Base: Fault Protection and Critical Industrial Field Reliability

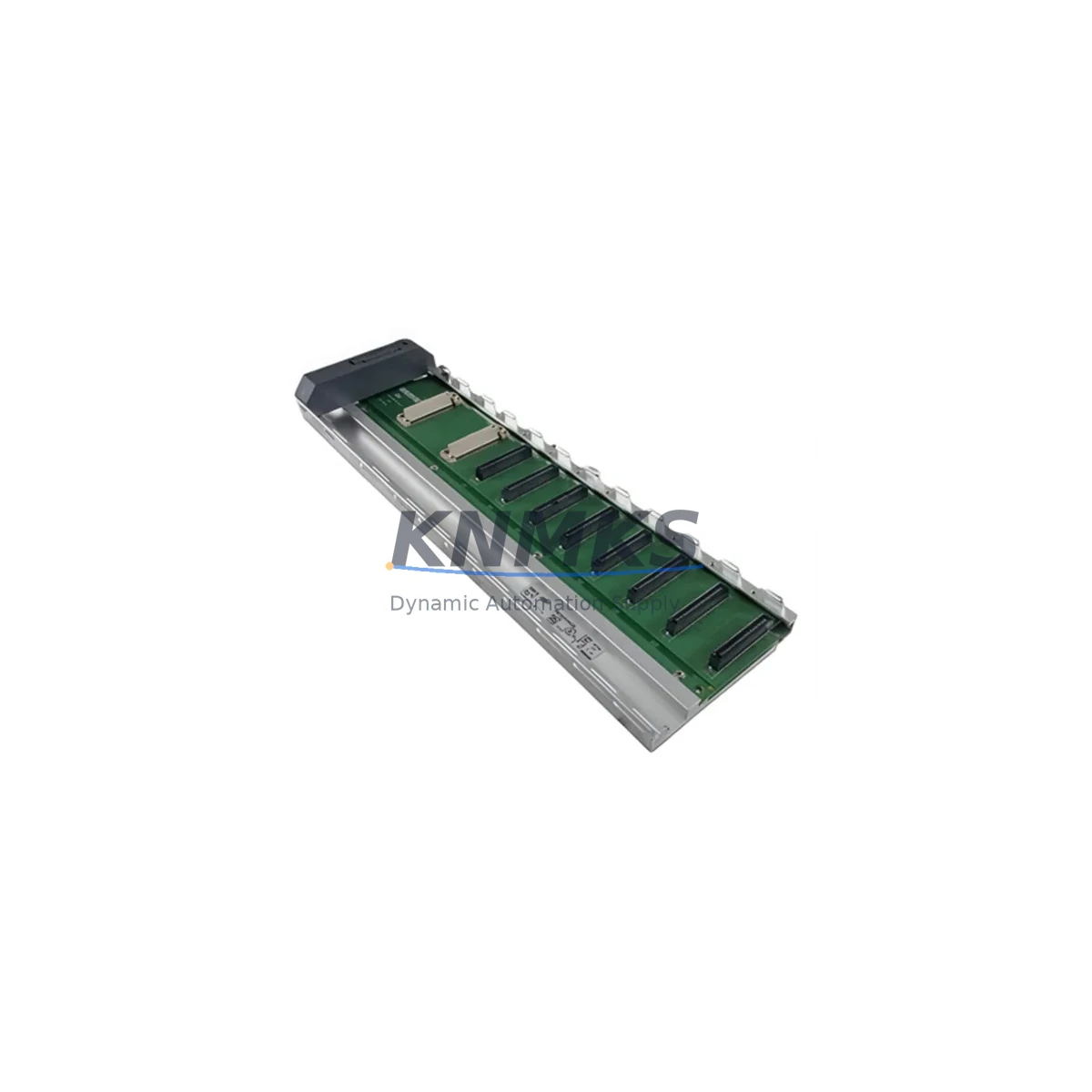

The Honeywell 2MLR-M06P is a 6-slot DCS rack base unit engineered for the Experion PKS distributed control system platform. Designed to serve as the structural and electrical backbone of the control cabinet, this rack base delivers fail-safe mechanical and electrical integration for I/O modules, communication cards, and controller assemblies in the most demanding continuous production environments. Whether deployed in petrochemical processing, power generation, metallurgical smelting, or water treatment facilities, the 2MLR-M06P provides the stable, interference-resistant foundation that mission-critical control loops depend on.

In high-stakes industrial environments — where unplanned downtime translates directly into production loss, safety incidents, and regulatory exposure — the integrity of the rack base is not a secondary concern. The 2MLR-M06P addresses this reality through robust backplane bus architecture that minimizes signal drift, eliminates inter-module communication anomalies, and maintains consistent power distribution across all installed modules. Its design actively reduces the risk of nuisance trips, spurious outputs, and control interruptions caused by vibration, thermal cycling, or transient voltage events common in heavy industrial cabinets.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 2MLR-M06P rack base does not operate in isolation — its reliability is amplified when integrated within a well-engineered control cabinet protection architecture. In Experion PKS deployments, the rack base typically hosts the Honeywell CC-PCNT01 process controller module and CC-TDIL01 digital input modules, which together form the core of the control loop. Ensuring stable backplane communication between these modules is essential to prevent false trip signals and missed interlock activations in safety-critical sequences.

On the power supply side, pairing the 2MLR-M06P with a Honeywell CC-PWR01 redundant power supply module eliminates single-point power failure risk. In cabinets where power quality is compromised by variable-frequency drives, large motor starters, or welding equipment operating nearby, the combination of a surge-rated power supply and the 2MLR-M06P’s transient-suppressed backplane provides a two-layer defense against voltage spikes that could corrupt module memory or trigger unintended outputs.

For communication integrity, the rack base supports the installation of Honeywell CC-SCMB02 system communication modules, which maintain FTE (Fault Tolerant Ethernet) network redundancy. In environments with high electromagnetic interference — such as substations, arc furnace control rooms, or offshore platform control centers — maintaining clean, uninterrupted FTE communication is the difference between controlled shutdown and uncontrolled process excursion. The 2MLR-M06P’s shielded backplane architecture directly supports this communication stability.

In safety instrumented system (SIS) adjacent applications, the rack base is often installed alongside Honeywell FSC (Fail Safe Controller) modules or Safety Manager I/O racks, where the physical separation and grounding integrity of each rack base directly affects SIL (Safety Integrity Level) compliance. Proper rack base selection and installation is therefore not merely a mechanical decision — it is a safety architecture decision with regulatory implications.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous hydrocarbon processing, the 2MLR-M06P supports DCS rack assemblies managing reactor temperature control, pressure relief interlock logic, and emergency shutdown (ESD) pre-alarm sequences. The rack base’s vibration tolerance and thermal stability ensure uninterrupted module communication even in environments subject to pump-induced vibration and ambient temperatures approaching 55°C in non-air-conditioned relay rooms.

Power Generation and Grid Substations: Turbine control systems and boiler management systems rely on DCS rack bases that can withstand the high electromagnetic fields generated by large transformers and bus bars. The 2MLR-M06P’s EMI-resistant backplane design makes it suitable for installation in substation control buildings where conventional rack bases may experience intermittent communication faults.

Mining and Mineral Processing: Conveyor interlock systems, crusher control panels, and flotation cell automation in mining operations demand control hardware that performs reliably in dusty, humid, and vibration-intensive conditions. The 2MLR-M06P, installed within sealed control enclosures, provides the stable I/O module platform needed to maintain continuous production without spurious trips caused by environmental contamination of the backplane.

Water and Wastewater Treatment: SCADA-integrated DCS systems in water treatment facilities use rack bases like the 2MLR-M06P to host flow control, dosing pump management, and alarm annunciation modules. In these applications, long-term reliability and low maintenance burden are paramount, as field technician access is often limited and unplanned downtime affects public utility service delivery.

Metallurgy and Steel Production: Electric arc furnace control, rolling mill automation, and ladle metallurgy systems operate in extreme thermal and electromagnetic environments. The 2MLR-M06P’s robust construction supports reliable DCS operation in these conditions, reducing the risk of control interruption during critical heat cycles where a single spurious trip can result in significant material loss and equipment damage.

Port and Marine Applications: Ship-to-shore crane control systems, ballast water management, and vessel engine room automation increasingly rely on Honeywell Experion PKS platforms. The 2MLR-M06P’s compact form factor and environmental tolerance make it suitable for marine control cabinet installations where space is constrained and humidity control is imperfect.

Safety and Quality FAQ

Q1: What support terms coverage does the Honeywell 2MLR-M06P carry?
Every 2MLR-M06P unit supplied by KNMKS is backed by a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are processed promptly, with replacement units dispatched from in-stock inventory to minimize field downtime.

Q2: How is the 2MLR-M06P tested before shipment?
All units undergo a comprehensive pre-shipment inspection protocol that includes visual inspection for physical damage, backplane bus continuity verification, power rail integrity testing, and slot connector condition assessment. Units that do not pass all test criteria are quarantined and not dispatched. A test report is available upon request for critical project applications.

Q3: Is the 2MLR-M06P compatible with all Honeywell Experion PKS module generations?
The 2MLR-M06P is designed for the Honeywell Experion PKS platform and is compatible with the standard C-series I/O module family, including digital input, digital output, analog input, and analog output modules. For specific compatibility with legacy or next-generation Experion modules, KNMKS technical support can verify compatibility based on your system’s firmware version and module configuration prior to order confirmation.

Q4: Can KNMKS support long-term and repeat supply of the 2MLR-M06P for ongoing maintenance programs?
Yes. KNMKS maintains dedicated inventory of the 2MLR-M06P and other Honeywell Experion PKS components to support planned maintenance schedules, emergency spare parts programs, and capital project procurement. Long-term supply agreements and priority allocation for critical infrastructure customers are available. Contact our sales team to discuss your ongoing requirements and establish a supply framework that eliminates last-minute procurement risk.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

2MLR-M06P
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 2MLR-M06P
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
