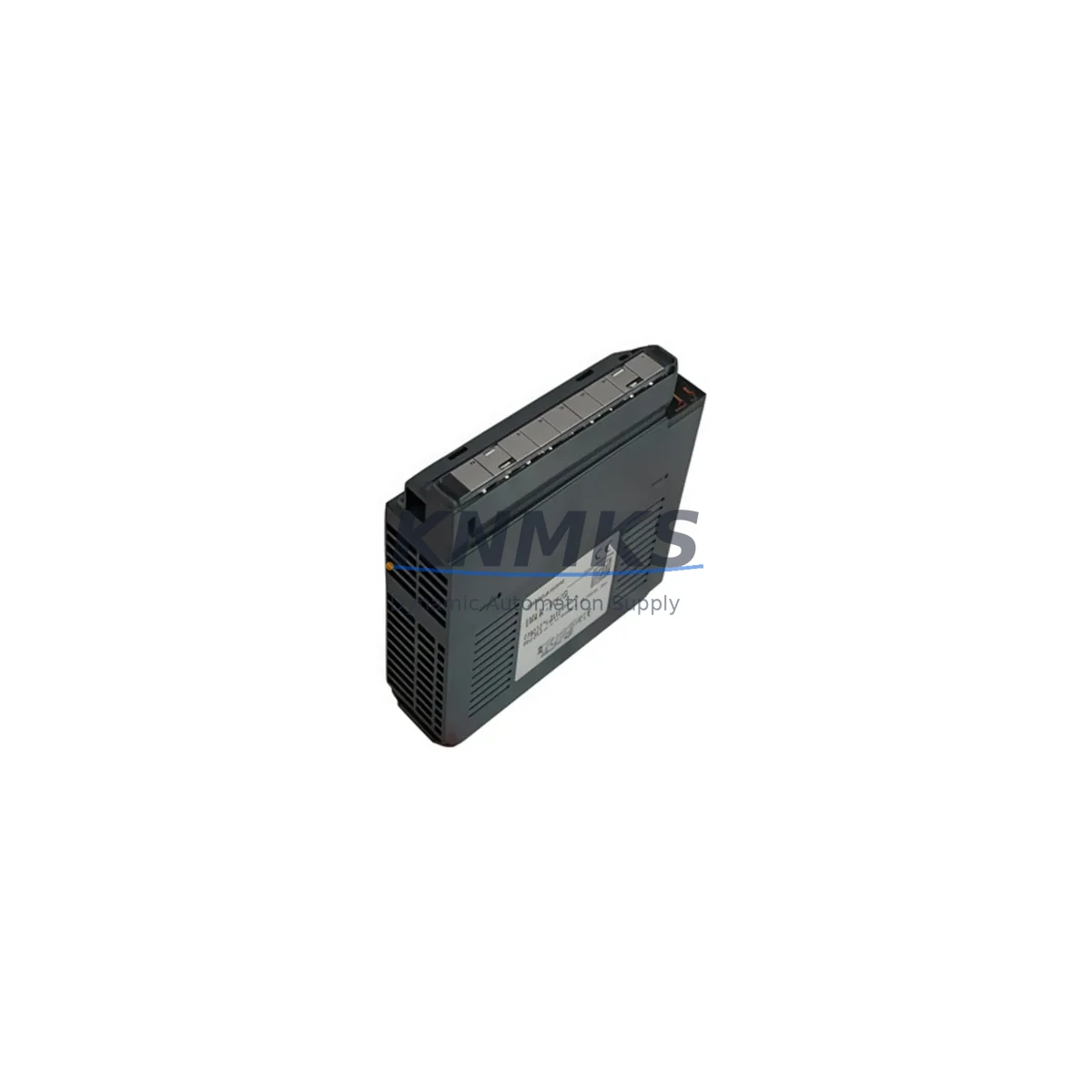

Honeywell 2MLQ-RY1D Fail-Safe Relay Output Module

Overview

Honeywell 2MLQ-RY1D Fail-Safe Relay Output Module: Fault-Tolerant Control for Critical Industrial Sites

The Honeywell 2MLQ-RY1D is a ruggedized relay output module engineered for fail-safe performance in the most demanding industrial control environments. Designed for seamless integration with the Honeywell Experion PKS and TDC-3000 distributed control systems, this module delivers deterministic switching reliability across continuous production lines, critical safety interlocks, and high-load control cabinets where unplanned downtime carries severe operational and safety consequences.

In industries where control interruption is not an option — petrochemical refining, electric power generation, metallurgical processing, water treatment, and port logistics — the 2MLQ-RY1D provides the switching integrity and environmental resilience that safety engineers demand. Its relay contact architecture ensures positive-break isolation, minimizing the risk of spurious actuation or signal drift that can cascade into process upsets or safety system failures.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 2MLQ-RY1D does not operate in isolation — its fail-safe value is fully realized when deployed as part of a coordinated control cabinet protection strategy. In high-electromagnetic-interference environments such as variable-frequency drive (VFD) rooms, arc furnace control panels, and substation automation cabinets, the relay output module works in concert with the Honeywell FSC (Fail-Safe Controller) safety CPU to maintain interlock integrity even under severe electrical noise. The FSC’s redundant processing architecture ensures that relay command signals reaching the 2MLQ-RY1D are validated before actuation, eliminating spurious trips caused by communication anomalies.

Power quality is equally critical. Pairing the 2MLQ-RY1D with a Honeywell 621-0020RC Power Supply Module or equivalent DCS-rated 24 VDC power supply with active voltage regulation ensures that relay coil energization remains stable during grid fluctuations, generator switchovers, or capacitor bank switching events — all common sources of voltage sag in heavy industrial facilities. For installations in dusty, humid, or high-temperature environments such as cement plants or coastal chemical terminals, the Honeywell 51304485-150 I/O Link Module provides the communication backbone that keeps field device status accurately reflected in the DCS, reducing the risk of undetected output failures.

In safety instrumented systems (SIS) designed to IEC 61511, the 2MLQ-RY1D is frequently deployed alongside Honeywell FSC Digital Input Modules to form complete safety loops — from field sensor through logic solver to final element. This closed-loop architecture supports proof-test procedures and diagnostic coverage requirements mandated by SIL 2 and SIL 3 safety integrity levels. For cabinet thermal management in high-density I/O racks, integrating Honeywell Experion rack fan tray assemblies prevents the thermal derating that can compromise relay contact ratings over extended operation cycles.

Critical Industrial Safety Applications

Petrochemical & Refining: In crude distillation units, hydrocracker reactors, and LNG terminal loading arms, the 2MLQ-RY1D controls emergency shutdown (ESD) valve actuators and pump motor starters. Its positive-break relay contacts provide the hard-wired de-energize-to-trip (DTT) action required by IEC 61511 and API 670 machinery protection standards, ensuring that process isolation is achieved even in the event of DCS communication failure.

Electric Power Generation & Transmission: At coal-fired, gas turbine, and hydroelectric generating stations, relay output modules like the 2MLQ-RY1D interface with generator protection relays, transformer tap changers, and breaker control circuits. The module’s high contact isolation voltage prevents ground loops that could cause nuisance tripping or, worse, failure to trip during a genuine fault condition.

Mining & Mineral Processing: Underground conveyor systems, crusher drives, and slurry pump stations operate in environments with extreme vibration, coal dust, and moisture ingress. The 2MLQ-RY1D’s robust relay construction and compatibility with Honeywell’s sealed I/O enclosures make it a reliable choice for belt-slip detection interlocks and emergency stop circuits in these harsh conditions.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on precise chemical dosing pump control and UV disinfection system interlocks. The 2MLQ-RY1D’s dry contact outputs provide galvanic isolation between the DCS and field actuators, preventing corrosive chemical environments from propagating electrical faults back into the control system.

Metallurgy & Steel Production: In electric arc furnace (EAF) melt shops and continuous casting lines, the 2MLQ-RY1D manages electrode positioning contactors and cooling water flow control valves. Its surge suppression capability is essential in these environments, where EAF switching generates transients that can destroy unprotected I/O modules within weeks of installation.

Port & Marine Automation: Ship-to-shore crane control systems and bulk material handling terminals demand relay output modules that can withstand salt-laden air, wide temperature swings, and the mechanical vibration of heavy lifting equipment. The 2MLQ-RY1D’s industrial-grade construction supports continuous operation in these coastal and offshore environments.

Safety and Quality FAQ

Q1: What support terms coverage does the Honeywell 2MLQ-RY1D carry?
Every 2MLQ-RY1D shipped by KNMKS is backed by a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are processed promptly with replacement or repair, minimizing your site’s exposure to extended downtime.

Q2: What pre-shipment testing is performed on each unit?
All 2MLQ-RY1D modules undergo functional verification testing prior to dispatch, including relay coil energization checks, contact continuity measurement, and insulation resistance testing. Units sourced as refurbished are additionally subjected to burn-in testing to screen for early-life failures before reaching your facility.

Q3: Is the 2MLQ-RY1D compatible with both Experion PKS and legacy TDC-3000 systems?
Yes. The 2MLQ-RY1D is designed for cross-platform compatibility within the Honeywell DCS ecosystem, supporting both the current Experion PKS architecture and legacy TDC-3000 installations. This makes it an ideal replacement module for sites undergoing phased migration from TDC-3000 to Experion without requiring full I/O rack replacement.

Q4: Can KNMKS guarantee long-term supply for ongoing maintenance and spare parts programs?
KNMKS maintains dedicated inventory of Honeywell DCS modules including the 2MLQ-RY1D to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. Contact our technical sales team to discuss consignment stock arrangements or scheduled delivery programs tailored to your site’s maintenance calendar.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Honeywell
Honeywell

Model / Series

2MLQ-RY1D
Experion PKS Series

Product Family

PLCs & Controllers

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Control platform

PLC, PAC and modular controllers

Common needs

CPU, rack, power and I/O expansion

Project support

Replacement, cabinet build and maintenance

Inquiry Support

• Model cross-checking before quotation
• CPU, power, rack and expansion module matching
• Support for replacement and project inquiry

What to Send Us

• Brand and exact model number: Honeywell 2MLQ-RY1D
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
