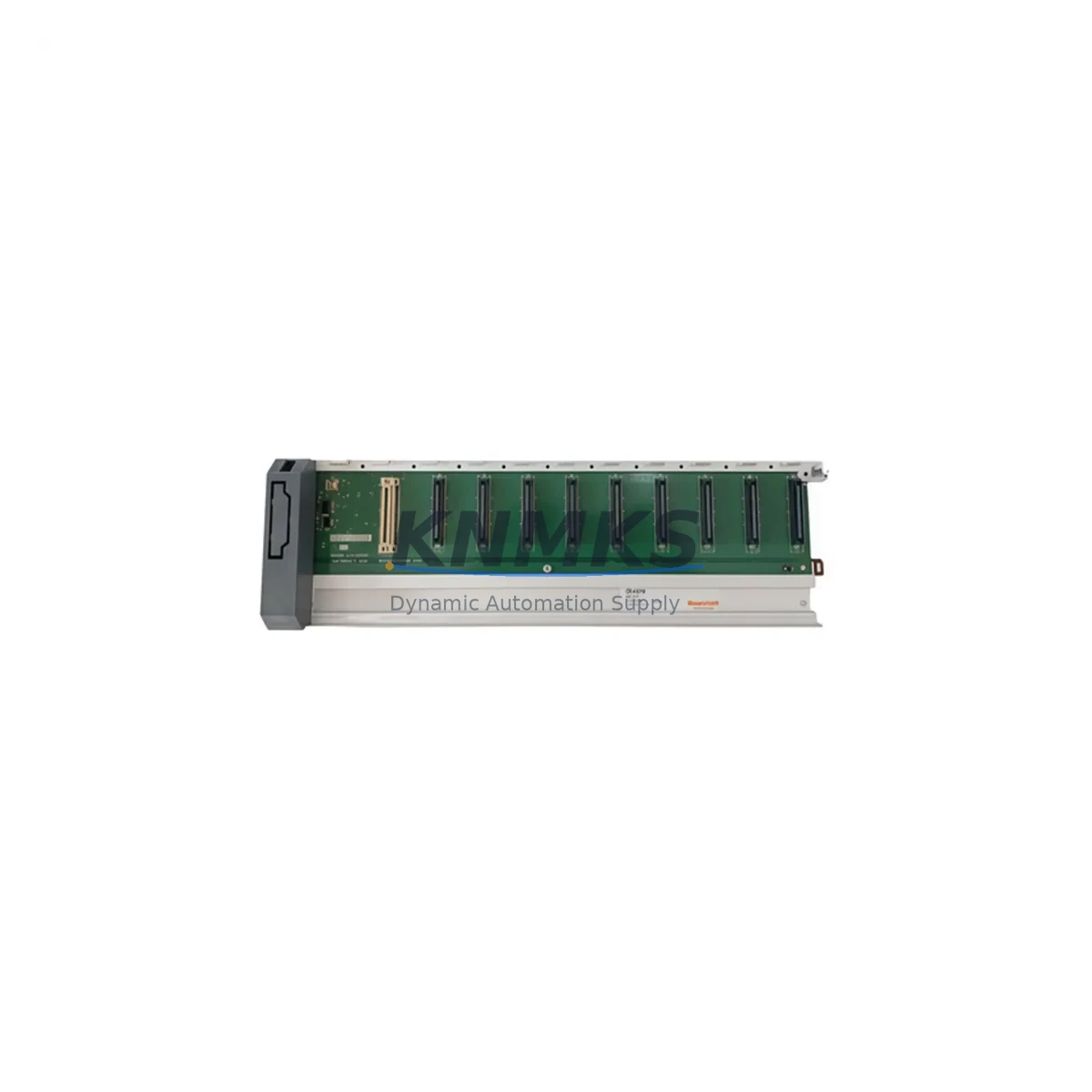

Honeywell 2MLB-M08A-CC Migration-Ready DCS Base: Legacy System Retrofit & Compatibility Upgrade

The Honeywell 2MLB-M08A-CC is an 8-slot DCS controller base designed for the Experion PKS platform, purpose-built to serve as a direct migration solution for facilities operating legacy C200 and C300 control architectures. As distributed control systems age beyond their supported lifecycle, the 2MLB-M08A-CC provides a structurally compatible, firmware-verified replacement path that minimizes engineering rework and preserves existing control logic investments. Whether you are managing a phased plant modernization, responding to an end-of-life parts shortage, or executing an emergency spare replacement, this base module delivers the mechanical and electrical compatibility required to restore system integrity with confidence.

Engineers undertaking a retrofit with the 2MLB-M08A-CC must verify several critical parameters before installation. Power supply capacity is the first checkpoint: the base draws from the rack-mounted power supply, and any existing Honeywell CC-PWR01 or CC-PWR02 power module must be confirmed to meet the aggregate load of all populated I/O and controller modules. Terminal wiring from field instruments connects through marshalling panels and I/O termination assemblies; technicians should audit each channel’s signal type against the installed Honeywell CC-TDIL01 or CC-TDOR01 termination boards to confirm compatibility before energizing. Backplane interface alignment is equally important — the 2MLB-M08A-CC uses the standard Experion PKS backplane connector pinout, but physical slot addressing must be re-confirmed in Control Builder if the base is replacing a unit from a different chassis generation.

Module addressing within the Experion PKS environment requires attention during migration. If the replacement base is installed in a different physical rack position than the original, the module address assignments in the controller configuration must be updated to reflect the new slot mapping. Failure to do so will result in I/O communication faults at startup. Program compatibility between the legacy C200 controller and the target C300 environment should be validated using Honeywell’s Control Builder migration utilities, which can flag function block incompatibilities before go-live. HMI display bindings in Experion Station must also be reviewed — tag references tied to the old module address will require remapping if the rack position changes.

Communication link integrity is another migration-critical factor. The 2MLB-M08A-CC supports FTE (Fault Tolerant Ethernet) dual-network redundancy, and the FTE switch infrastructure — typically Honeywell’s dedicated FTE network switches — must be confirmed to support the firmware version running on the replacement controller. Installation space confirmation is straightforward for like-for-like replacements within the same control cabinet, but cross-generation migrations may encounter differences in DIN rail mounting depth or cabinet door clearance that require mechanical adaptation.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit around the 2MLB-M08A-CC base begins with a complete bill-of-materials audit of the existing control cabinet. In most Experion PKS installations, the base module works in conjunction with a C300 controller module, redundant FTE network interface cards, and a mix of analog and digital I/O modules such as the CC-PAIH01 analog input module and CC-PDOB01 digital output module. These I/O modules plug directly into the base slots and inherit their channel configuration from the controller’s database — meaning that if the base is replaced without updating the slot map, the I/O modules will appear offline in Experion Station until the configuration is reconciled.

Power budget planning is non-negotiable. Each populated slot draws current from the rack power supply, and a fully loaded 8-slot base with redundant controllers and high-density I/O modules can approach the rated output of a single CC-PWR01 unit. For high-availability applications, a redundant power supply configuration using a second CC-PWR02 module is strongly recommended. The power modules connect to the base via dedicated power connectors on the backplane — these connectors should be inspected for corrosion or mechanical damage before the new base is installed.

Communication module placement within the base also affects migration planning. FTE network interface modules must occupy specific slots as defined by the Experion PKS hardware configuration guide. If the legacy installation used a non-standard slot assignment — common in older C200 installations that were field-modified — the migration to the 2MLB-M08A-CC provides an opportunity to normalize the slot layout to the current Honeywell recommended configuration. This normalization simplifies future maintenance and reduces the risk of configuration errors during subsequent expansions.

For facilities that also operate Honeywell Safety Manager or Safety Manager SC systems in the same control room, the migration plan should account for the safety network interface and any cross-system communication links. The 2MLB-M08A-CC base itself does not carry safety-rated I/O, but the FTE network it connects to may carry both standard and safety traffic depending on the site architecture. Coordination with the safety system engineer is required before any FTE network changes are made during the migration window.

Downtime Control During System Migration

Minimizing unplanned downtime during a DCS base replacement requires a structured pre-migration checklist and a clearly defined rollback procedure. Before the maintenance window opens, the existing controller configuration should be exported from Control Builder and archived to a secure engineering workstation. This export captures the full function block diagram, module assignments, tag database, and alarm configuration — providing a complete restore point if the migration encounters an unexpected fault.

During the physical swap, field instrument signals should be isolated at the marshalling panel rather than disconnected at the I/O termination assemblies. This approach preserves the wiring integrity of the termination boards and eliminates the risk of miswiring during reconnection. Once the 2MLB-M08A-CC base is installed and the controller and I/O modules are seated, the system should be powered up in a controlled sequence: power supply first, controller second, I/O modules last. This sequence allows the controller to initialize its FTE network links before attempting to communicate with field devices.

Post-installation commissioning should follow a structured channel-by-channel I/O verification procedure. Each analog input channel should be loop-tested from the field instrument to confirm signal integrity and scaling. Digital output channels should be functionally tested against the process equipment interlocks before the system is returned to automatic control. HMI displays in Experion Station should be reviewed for any unresolved tag references or communication alarms that indicate incomplete configuration migration. The entire commissioning sequence — from power-up to return-to-service — can typically be completed within a planned 4–8 hour maintenance window for a single-rack migration, provided the pre-migration preparation work has been completed thoroughly.

All units supplied by KNMKS are pre-tested prior to shipment and covered by a support terms confirmed by quotation from the date of delivery. In-stock inventory is available for immediate dispatch, supporting both planned maintenance schedules and emergency replacement requirements.

Retrofit Support FAQ

Q: Is the 2MLB-M08A-CC a direct replacement for the legacy C200 base module?
A: The 2MLB-M08A-CC is designed for the Experion PKS platform and is compatible with C300 controller modules. Migration from a C200-based system requires a controller upgrade to C300 in addition to the base replacement. Honeywell’s Control Builder migration tools support the function block conversion process. Contact our technical team for a site-specific compatibility assessment.

Q: What wiring changes are required when installing the 2MLB-M08A-CC?
A: For like-for-like base replacements within the same rack generation, field wiring at the marshalling panel and I/O termination assemblies typically does not require modification. The backplane connector and slot layout are standardized across the Experion PKS base family. However, if the replacement involves a different rack position or cabinet, terminal block labeling and cable routing should be verified against the as-built wiring documentation.

Q: How is the unit tested before shipment?
A: Each 2MLB-M08A-CC unit undergoes functional testing prior to dispatch, including backplane continuity verification, power connector inspection, and visual examination for mechanical damage. Units are shipped with original or equivalent protective packaging. A test report is available upon request for critical infrastructure applications.

Q: What does the support terms confirmed by quotation cover?
A: The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. KNMKS provides replacement or repair at no charge for warranted failures, with priority processing for production-critical applications.
