Honeywell 10208/2/1 Migration-Ready Relay Output for Legacy FSC

Overview

Honeywell 10208/2/1 Migration-Ready Relay Output for Legacy FSC Systems

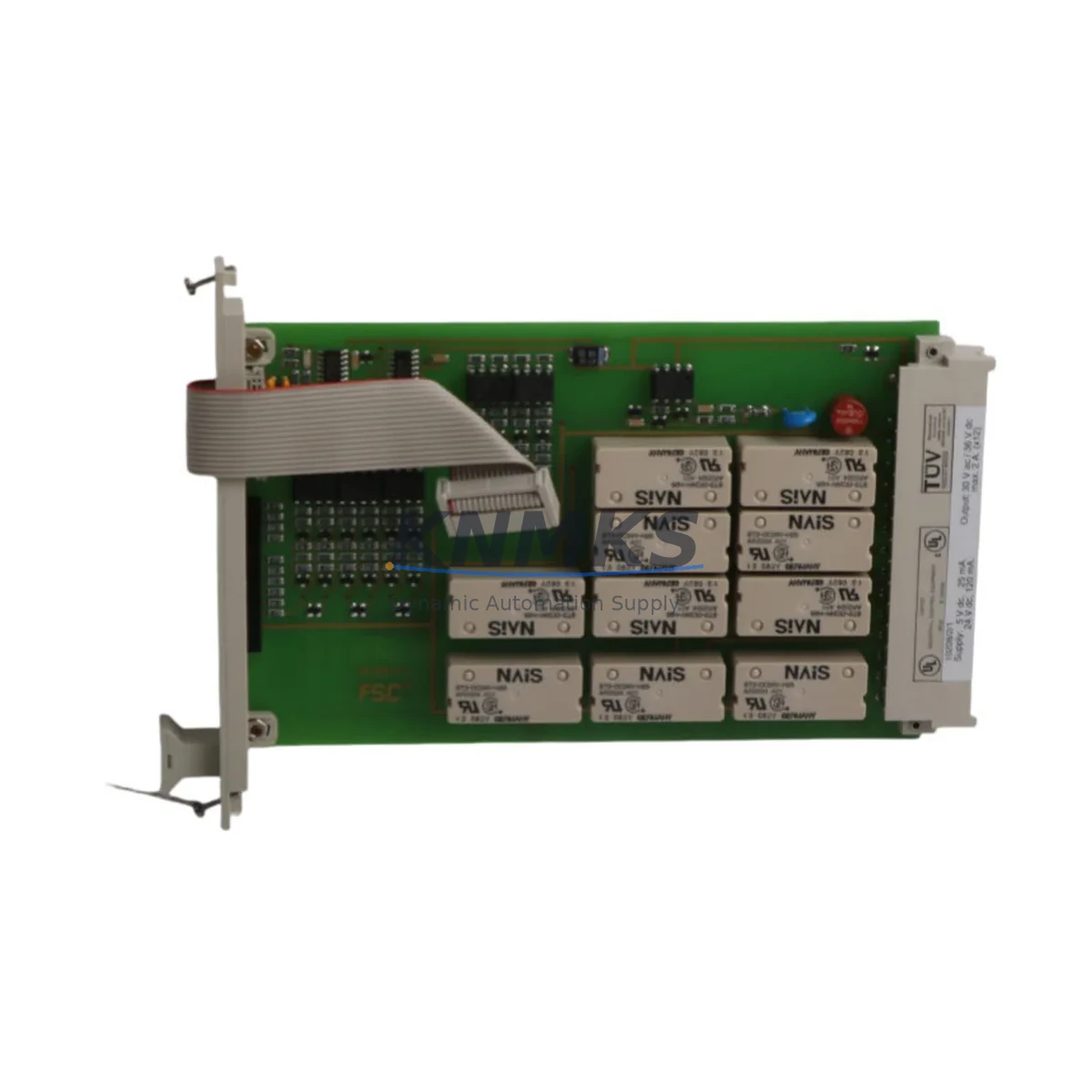

The Honeywell 10208/2/1 is a relay output module designed for the Honeywell FSC (Fail Safe Controller) Safety Manager platform — one of the most widely deployed Safety Instrumented Systems (SIS) in the global process and petrochemical industries. As the FSC platform approaches end-of-life and spare parts availability tightens, the 10208/2/1 has become a critical component for engineers managing legacy safety loops, planning phased system upgrades, or executing emergency replacements during unplanned shutdowns.

This module provides relay-based digital output capability within the FSC rack architecture, interfacing directly with field devices such as solenoid valves, motor starters, and shutdown actuators. Its role in safety-critical output circuits makes sourcing a verified, tested replacement unit essential — particularly in facilities where the FSC system cannot be taken offline for extended periods.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 10208/2/1 within an operating FSC system requires careful pre-planning to avoid unintended safety function impairment. Before initiating the swap, engineers should confirm the available power budget on the FSC power supply module — typically the Honeywell 10005/1/1 or 10005/2/1 — since adding or replacing output modules can affect total rack current draw. The FSC backplane must be inspected for slot availability and physical condition, particularly in older installations where connector wear may affect signal integrity.

Terminal wiring to the 10208/2/1 should be documented and photographed prior to removal. Relay output modules in FSC systems are commonly wired to solenoid valve coils or interposing relay panels; confirming the contact voltage and current rating of the replacement unit against the field load is a mandatory step. In systems where the FSC communicates upstream via Modbus or Profibus to a DCS such as a Honeywell Experion PKS or a third-party SCADA, the I/O status of the replaced module should be verified at the HMI level after reinstatement to confirm that output tags are reading correctly.

For facilities running parallel migration from FSC to a newer SIS platform — such as the Honeywell Safety Manager SC — the 10208/2/1 often remains in service during the transition period, supporting legacy safety loops while new I/O modules are commissioned in parallel. In these phased migration scenarios, it is common to also source the FSC 10002/3/1 rack assembly, the 10006/1/1 digital input module, and the 10004/1/1 communication interface module to maintain a complete spare parts inventory for the duration of the cutover. Ensuring continuity of the FSC system during this window is critical to maintaining SIL compliance without requiring a full safety shutdown.

Signal isolation requirements should also be reviewed: in some FSC installations, signal isolators or barriers are installed between the 10208/2/1 relay outputs and field devices in hazardous areas. These isolators must be confirmed compatible with the replacement module’s relay contact specifications. Programming cable access to the FSC CPU for any required configuration verification should be arranged in advance, using the appropriate Honeywell FSC programming interface.

Downtime Control During System Migration

Minimizing downtime during a 10208/2/1 replacement begins with a thorough pre-outage checklist. The existing relay output states should be recorded — either via the FSC diagnostic display or through the connected DCS historian — so that post-replacement verification can confirm that all outputs have returned to their correct states. Where possible, the replacement should be scheduled during a planned maintenance window aligned with the facility’s proof-test interval, avoiding the need for an unplanned safety shutdown.

The FSC platform supports hot-swap of certain module types depending on system configuration and safety integrity level requirements; however, relay output modules such as the 10208/2/1 typically require the affected safety loop to be placed in bypass or manual override before the module is removed. Coordination with the control room operator is essential to ensure that the bypass is correctly applied and that the affected process area is in a safe state before work begins.

Once the replacement 10208/2/1 is installed and the terminal wiring reconnected, a systematic loop test should be performed: energize each relay output individually, confirm field device response, and verify that the FSC diagnostic system reports no module faults. The proof-test record and maintenance log should be updated to reflect the replacement, and the bypass removed only after all outputs have been confirmed functional. This structured approach protects the original program logic, maintains field control continuity, and reduces the risk of introducing new faults during the retrofit.

Retrofit Support FAQ

Q: Is the 10208/2/1 a direct replacement for all relay output variants in the FSC platform?
A: The 10208/2/1 is a specific relay output module variant within the Honeywell FSC range. Before ordering, confirm the exact part number of the module being replaced, as the FSC platform includes multiple relay output variants with differing contact ratings and channel counts. Our team can assist with cross-referencing if you provide the existing module label details.

Q: Does the replacement module require any firmware update or re-configuration of the FSC CPU?
A: For a like-for-like replacement of the 10208/2/1, no firmware update or CPU re-download is required. The FSC logic and I/O configuration reside in the CPU module; the relay output module itself contains no user-programmable firmware. However, a functional loop test and output verification are always recommended after any module swap.

Q: What wiring checks should be performed before installing the replacement module?
A: Verify relay contact voltage and current ratings against the connected field load. Inspect terminal block condition and confirm correct wiring polarity. If signal isolators or intrinsic safety barriers are installed in the output circuit, confirm their compatibility with the replacement module’s contact specifications. Document all wiring before removal.

Q: What does the support terms confirmed by quotation cover, and is pre-shipment testing included?
A: Every 10208/2/1 unit is function-tested prior to dispatch to verify relay operation and module integrity. The support terms confirmed by quotation cover functional defects arising under normal operating conditions from the date of shipment. Units showing physical damage from incorrect installation or overvoltage conditions are assessed on a case-by-case basis. Contact [email protected] for support requests or technical support.
