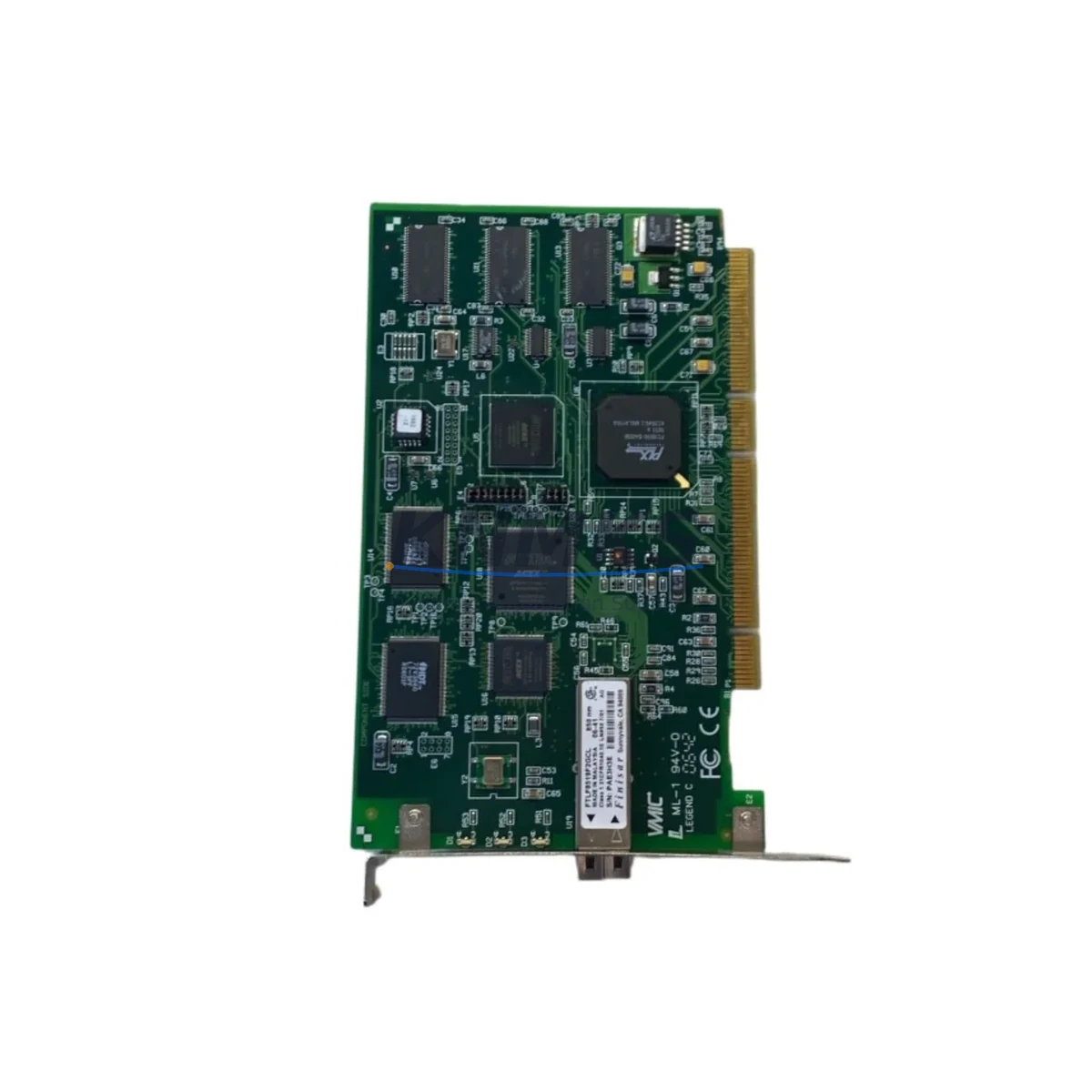

GE VMIPCI-5565-110000 Fail-Safe Reflective Memory Module

Overview

GE VMIPCI-5565-110000 Fail-Safe Reflective Memory Module: Fault Protection for Critical Industrial Control Reliability

In continuous-process industries where a single millisecond of control interruption can cascade into unplanned shutdowns, equipment damage, or personnel hazards, the GE VMIPCI-5565-110000 Reflective Memory Module delivers the deterministic, fail-safe shared-memory performance that safety-critical architectures demand. Engineered by GE Intelligent Platforms under the VMIPCI-5565 series, this 64 MB PCI-bus node uses a fiber-optic ring topology to achieve ultra-low-latency, broadcast-based data sharing across distributed control nodes — without the protocol overhead, collision risk, or single-point-of-failure vulnerabilities inherent in conventional Ethernet-based inter-node communication.

For control engineers specifying redundant DCS backbones, high-speed SCADA interlocks, or safety instrumented system (SIS) data highways, the VMIPCI-5565-110000 addresses the most demanding reliability requirements: deterministic sub-microsecond update cycles, hardware-level surge immunity, and stable operation across the full industrial temperature and vibration envelope. Whether deployed in a petrochemical distributed control cabinet, a power-generation turbine protection rack, or a mining hoist safety interlock panel, this module is designed to keep the control loop closed — even when the environment fights back.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A reflective memory node does not operate in isolation — its reliability is only as strong as the surrounding control cabinet ecosystem. In high-stakes installations, the VMIPCI-5565-110000 is typically deployed alongside complementary protection and control components that collectively eliminate single points of failure across power, communication, and I/O layers.

On the power supply side, redundant 24 VDC rail modules — such as the GE IS200EPCTG1A power conditioning board or equivalent DIN-rail redundancy modules — ensure that voltage sags, micro-interruptions, and inrush transients from adjacent motor starters never reach the PCI backplane. Upstream, a properly rated surge protection device (SPD) on the AC feed and a UPS bypass module rated for the full cabinet load provide the first line of defense against grid-borne disturbances in substations and heavy industrial facilities.

For the fiber-optic ring itself, proper cable management and the use of industrial-grade ST or LC fiber patch panels with IP67-rated bulkhead connectors prevent the signal degradation caused by dust ingress, moisture condensation, and mechanical vibration — conditions routinely encountered in cement plants, offshore platforms, and food-processing facilities. Where the ring must traverse long inter-cabinet distances, fiber repeater or media converter modules compatible with the VMIPCI-5565 optical budget maintain signal integrity without introducing latency jitter.

On the host controller side, the VMIPCI-5565-110000 is frequently paired with GE Fanuc Series 90-70 PLC CPU modules or GE PACSystems RX7i rack controllers, where the reflective memory node acts as the high-speed data highway between redundant CPU pairs. In SIS architectures, a GE IS200TRLYH1B relay output module or equivalent safety relay board handles the final actuator command, while the reflective memory layer ensures both the primary and hot-standby controllers share identical process images at all times — eliminating the divergence that causes spurious trips or dangerous failures to danger.

Cabinet thermal management is equally critical. In high-density racks running multiple PCI nodes, forced-air cooling modules and cabinet thermostat controllers prevent the ambient temperature from exceeding the module’s 55 °C ceiling, protecting both the VMIPCI-5565-110000 and adjacent analog I/O cards from heat-induced signal drift and premature component aging.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous catalytic cracking units and ethylene crackers, the VMIPCI-5565-110000 serves as the shared-memory backbone between the primary DCS controller and the emergency shutdown system (ESD) controller. Its fiber-optic isolation eliminates ground-loop interference from high-voltage motor drives and prevents the conducted EMI generated by variable-frequency drives from corrupting the interlock data highway. A single fiber break on the ring does not interrupt data flow — the ring self-heals, maintaining the process variable mirror that the ESD logic depends on for safe state decisions.

Power Generation & Turbine Protection: Gas and steam turbine protection systems require sub-millisecond response times for overspeed, vibration, and flame-out trips. The deterministic broadcast architecture of the VMIPCI-5565-110000 ensures that speed and vibration data written by the turbine I/O controller is available to the protection logic controller within a single ring cycle — no polling delays, no arbitration latency. This is the performance profile that turbine OEMs and power plant integrators specify when designing IEC 61511-compliant protection layers.

Mining & Hoisting: Underground mine hoist control systems operate in environments with extreme vibration, coal dust, and high humidity. The optical isolation of the VMIPCI-5565-110000’s fiber ring means that the high-voltage switching transients from hoist motor contactors — which routinely destroy copper-based communication links — have zero coupling path into the reflective memory data. Hoist position, load, and speed data remain coherent across all control nodes throughout the full duty cycle.

Water & Wastewater Treatment: Large pumping stations and treatment plants rely on distributed SCADA architectures where multiple RTU/PLC nodes must share tank levels, flow rates, and valve positions in real time. The VMIPCI-5565-110000 eliminates the polling latency and network congestion that Ethernet-based historian links introduce, providing a dedicated, deterministic data plane for the control layer while the SCADA historian operates independently on the IT network.

Metallurgy & Steel: Rolling mill and continuous casting control systems demand microsecond-level synchronization between tension control, speed reference, and thickness measurement nodes. The reflective memory ring architecture directly supports this requirement, and the module’s industrial temperature rating ensures stable operation in the radiant-heat environment of a melt shop or reheat furnace control room.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the VMIPCI-5565-110000?
The support terms confirmed by quotation cover all hardware defects, functional failures, and compatibility issues identified under normal industrial operating conditions. If the module fails to initialize on a compatible PCI host, exhibits memory errors, or shows fiber-optic transceiver degradation within the confirmed support period, we provide free replacement or repair. Support requests are processed with priority turnaround to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every VMIPCI-5565-110000 unit undergoes functional verification prior to shipment: PCI bus enumeration, full 64 MB memory read/write integrity check, fiber-optic transmit power measurement, and ring loopback communication test. Units that do not pass all checkpoints are quarantined and not shipped. A test record is available upon request for quality-documentation purposes.

Q3: Is this module compatible with legacy VMIC 5565 VME nodes and third-party PCI hosts?
The VMIPCI-5565-110000 is fully compatible with other nodes in the GE VMIPCI-5565 and legacy VMIC 5565 series, including VME-bus variants, allowing mixed-bus ring configurations. Compatibility with third-party PCI hosts depends on the host OS and driver support — GE Intelligent Platforms provides Windows and Linux drivers, and VxWorks BSP support is available for real-time applications. Contact our technical team with your host platform details for a compatibility confirmation before ordering.

Q4: Can you guarantee long-term supply and replacement support for this discontinued or hard-to-source module?
Yes. We maintain dedicated inventory of the VMIPCI-5565-110000 and related VMIPCI-5565 series nodes specifically to support installed-base customers whose systems cannot be easily migrated. Our sourcing team actively manages stock levels to ensure availability for emergency replacements, planned maintenance spares, and multi-unit project orders. Lead times for in-stock units are typically 1–3 business days for express shipment.
