GE IS220YDOAS1A Migration-Ready Discrete Output Module

Overview

GE IS220YDOAS1A Migration-Ready Discrete Output Module: Legacy Control System Retrofit & Upgrade

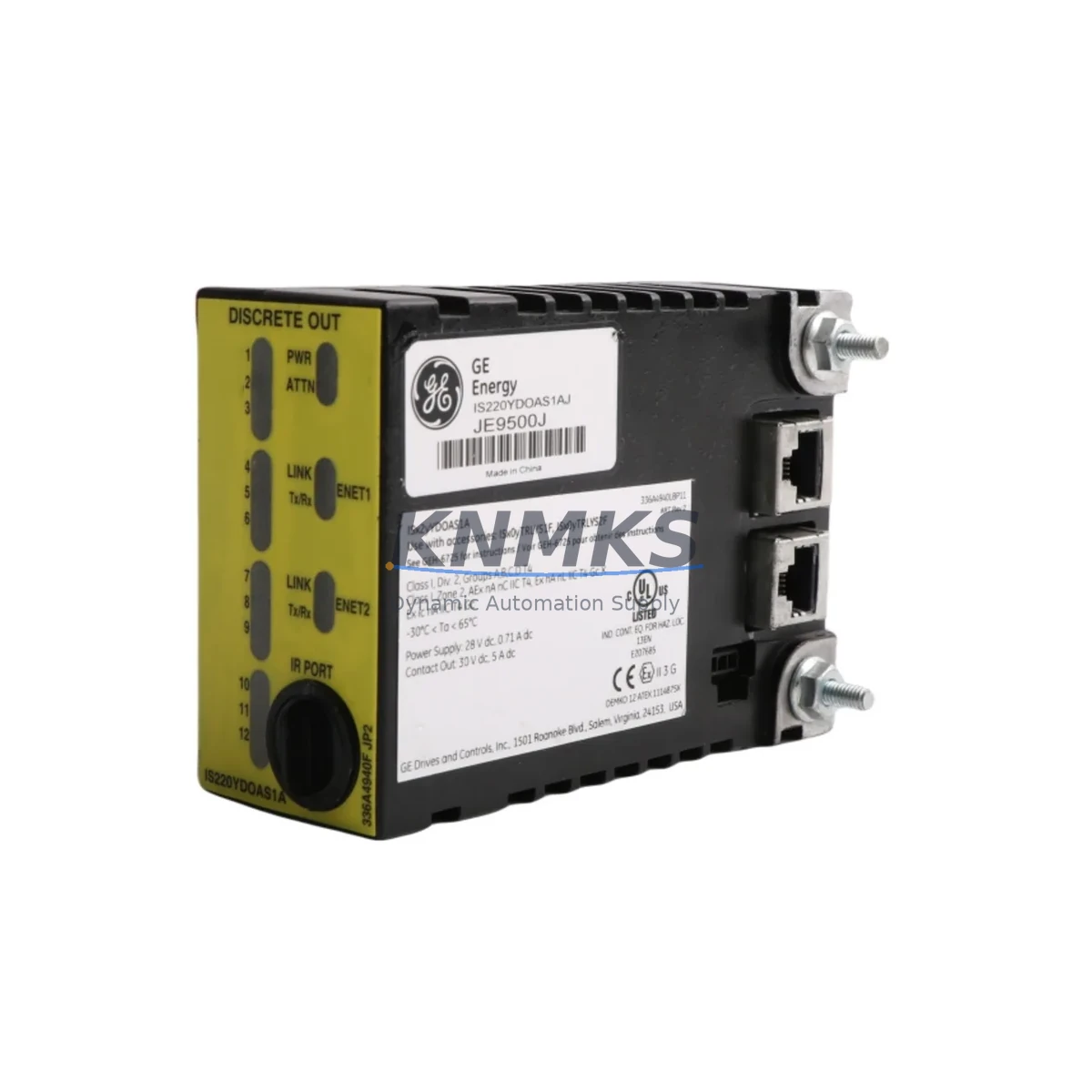

The GE IS220YDOAS1A is a 24 VDC discrete output I/O pack designed for the Mark VIe Distributed Control System platform. As legacy Mark V and Mark VI turbine control systems approach end-of-life, the IS220YDOAS1A serves as a validated, drop-in migration path for plant engineers managing gas turbine, steam turbine, and combined-cycle unit upgrades. With IONET Ethernet-based I/O communication, the module integrates directly into existing Mark VIe controller racks without requiring changes to the primary control logic or HMI tag structure, significantly reducing retrofit engineering hours and unplanned downtime exposure.

Each IS220YDOAS1A unit shipped by KNMKS is fully tested against GE factory acceptance criteria, covered by a support terms confirmed by quotation, and sourced from verified surplus and OEM channels. In-stock inventory supports emergency replacement, planned outage windows, and long-term blanket-stock programs for power generation and industrial facilities worldwide.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the IS220YDOAS1A into a brownfield Mark VIe system requires a structured pre-outage engineering review. Begin by auditing the existing I/O rack layout to confirm available single-width slots and verify that the rack’s IS215PSAAL1A power supply module can sustain the additional discrete output load without exceeding its rated current capacity. Power budget miscalculation is one of the most common causes of post-retrofit instability in Mark VIe installations.

Terminal wiring is the next critical checkpoint. The IS220YDOAS1A mates with a dedicated terminal board — typically the IS200YDOAS1A or IS200YTBRS1A — and field wiring must be mapped against the original Mark V or Mark VI terminal drawings to identify any conductor gauge, shielding, or grounding differences. Where legacy systems used hardwired relay logic, the migration to IONET-based discrete output requires confirming that the IONET Ethernet switch (such as the IS420ESWAH1A managed switch) is correctly configured with the appropriate VLAN and QoS settings to prioritize I/O traffic.

For plants running mixed-generation control architectures — for example, a Mark VIe controller managing both legacy Mark VI I/O packs and new IS220-series modules — the ToolboxST configuration must be carefully reviewed to avoid I/O address conflicts. Engineers should also verify that the IS215UCVEH2A or IS215UCVEH2B controller module firmware is at a revision level that supports the IS220YDOAS1A pack type. Mismatched firmware between the controller and I/O pack is a known source of communication faults that can be mistaken for hardware failure.

Where the retrofit scope extends to HMI modernization, the IS220YDOAS1A’s preserved tag structure allows Cimplicity or iFIX screens to remain largely unchanged, reducing HMI re-engineering cost. Signal isolators may be required at the terminal board level when field devices operate at voltage levels outside the module’s native 24 VDC range, and programming cables such as the IS200CABPG1B are useful for local ToolboxST access during commissioning without requiring a full network connection to the engineering workstation.

Downtime Control During System Migration

Minimizing production impact during a Mark VIe discrete output module replacement depends on three factors: pre-staging, logic protection, and parallel verification. KNMKS recommends that replacement IS220YDOAS1A units be bench-tested and firmware-verified before the outage window begins. This eliminates the risk of discovering a configuration issue during a live outage when time pressure is highest.

Before removing the failed or end-of-life module, export the full ToolboxST I/O configuration and save a timestamped backup of the controller application program. This protects the original control logic and ensures that any accidental configuration change during the swap can be rolled back within minutes. Where the plant operates in simplex control mode, coordinate with the operations team to place the affected turbine or process unit in a safe hold state before disconnecting the I/O pack.

For redundant Mark VIe architectures (TMR or dual-redundant configurations), the IS220YDOAS1A can often be replaced on a hot-standby basis by transferring control to the redundant controller path, replacing the module, re-establishing IONET communication, and verifying output states before returning to normal voting logic. This approach can reduce effective downtime to under 30 minutes for a single module swap. After reinsertion, use ToolboxST’s online diagnostic view to confirm that the module is communicating correctly, all output channels are in the expected state, and no latent alarms are present before releasing the unit back to automatic control.

Retrofit Support FAQ

Q1: Is the IS220YDOAS1A a direct drop-in replacement for IS220YDOAS1B or IS220YDOAS1C?
The IS220YDOAS1A is functionally equivalent to later dash-number revisions (1B, 1C) in most Mark VIe applications. However, confirm the terminal board compatibility and ToolboxST pack type assignment before substituting across dash numbers, as GE occasionally introduced minor hardware revisions that affect firmware compatibility.

Q2: What commissioning steps are required after installing the IS220YDOAS1A?
After physical installation, connect to ToolboxST, assign the correct I/O pack address, download the application configuration, and perform a channel-by-channel output verification using the force output function in diagnostic mode. Confirm IONET link status (green LED) and validate that all downstream field devices respond correctly before releasing to automatic control.

Q3: Can the IS220YDOAS1A be used in a Mark VI system with an IONET upgrade?
The IS220YDOAS1A is designed exclusively for the Mark VIe platform and its IONET Ethernet I/O bus. It is not compatible with the Mark VI’s older serial IONet architecture. A full Mark VI-to-Mark VIe migration — including controller replacement with an IS215UCVEH2A and IONET switch installation — is required before the IS220YDOAS1A can be deployed.

Q4: What does the support terms confirmed by quotation cover, and what is your stock availability?
All IS220YDOAS1A units shipped by KNMKS carry a support terms confirmed by quotation covering functional performance, IONET communication integrity, and output channel operation from the date of shipment. Units are availability confirmed by RFQ and available for same-week dispatch. For blanket-stock programs or emergency AOG requirements, contact our team directly to confirm lead time and reserve allocation.
