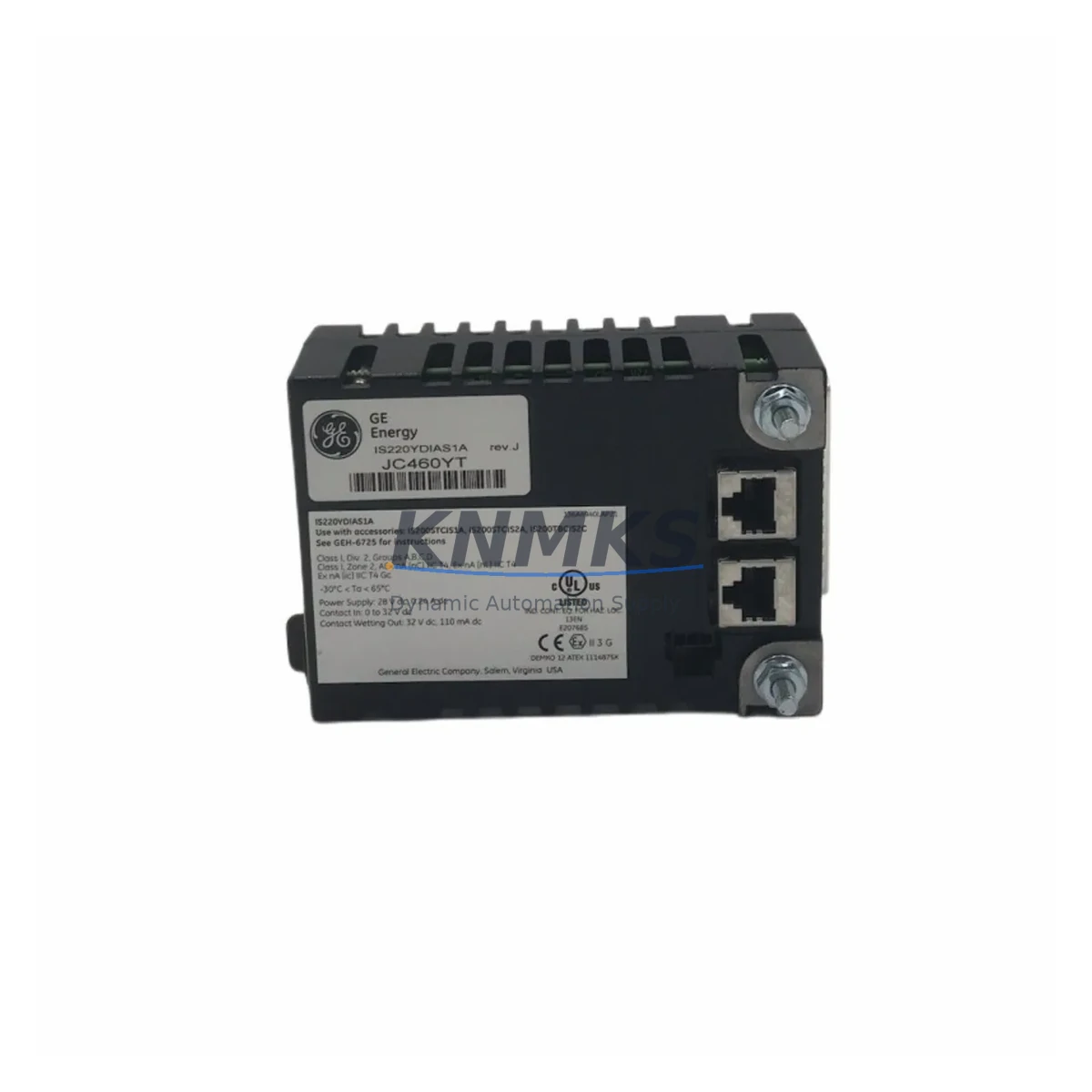

GE IS220YDIAS1A Maintenance-Proven Spare Part for Factory Uptime

Overview

GE IS220YDIAS1A Maintenance-Proven Spare Part for Factory Uptime

The GE IS220YDIAS1A is a 24-channel digital input module engineered for the Mark VIe Distributed Control System platform — one of GE Vernova’s most widely deployed turbine and process control architectures across power generation, oil & gas, and heavy industrial facilities. As a critical I/O interface between field instrumentation and the Mark VIe controller backplane, the IS220YDIAS1A handles discrete signal acquisition from limit switches, proximity sensors, valve position feedback, and protective relay contacts. Its failure or degradation directly impacts turbine trip logic, process interlocks, and safety shutdown sequences, making it a high-priority spare in any maintenance-driven inventory strategy.

KNMKS stocks the IS220YDIAS1A as a verified original spare, sourced through established industrial supply channels and subject to pre-shipment functional testing. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and operational failures under normal service conditions. Global dispatch is available with typical lead times of 3–7 business days, supporting both emergency breakdown recovery and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the IS220YDIAS1A in a live Mark VIe cabinet is rarely an isolated task. Maintenance engineers and procurement teams should treat this module as part of a broader I/O health review. When a digital input channel fault is logged — whether through a Mark VIe diagnostic alarm, a ToolboxST configuration mismatch, or a field technician’s point-by-point check — the surrounding electrical environment deserves equal scrutiny before the new module is commissioned.

Begin with the IS220YDIAS1A’s associated terminal board, typically an IS200YDIAS1A or equivalent YDIAS terminal assembly. Corroded terminals, loose field wiring, or damaged ribbon connectors between the terminal board and the I/O module are common root causes of intermittent channel faults that are incorrectly attributed to the module itself. Inspect and torque all field terminations before installing the replacement unit.

The 24 VDC field power supply feeding the digital input circuits should be verified for voltage stability and ripple. A degraded IS200EPSMG1A or equivalent Mark VIe power supply module can introduce noise that mimics channel failures across multiple digital input modules simultaneously. If more than two channels on the IS220YDIAS1A show simultaneous faults, the power supply rail is the first suspect.

For TMR (Triple Modular Redundant) configurations, the IS220YDIAS1A operates in a voted triplicated arrangement. Replacing one module in a TMR set without verifying the health of the companion IS220YDIAS1A modules in the R, S, and T controllers introduces asymmetric voting risk. Procurement teams supporting TMR turbine control systems should maintain a minimum of one spare IS220YDIAS1A per TMR set in their on-site buffer stock.

Communication integrity on the IONet segment connecting the IS220YDIAS1A to the Mark VIe controller should be confirmed after module swap. Managed Ethernet switches used in the IONet ring — such as those in the IS200 series communication infrastructure — can develop port faults that prevent the replacement module from being recognized by ToolboxST. A brief IONet diagnostic scan post-installation is standard practice.

Where the IS220YDIAS1A interfaces with protective relay outputs or emergency shutdown (ESD) logic, the associated IS220YAICS1A analog input modules and IS220YTCCS1A communication modules in the same rack should be inspected for firmware version alignment. Mismatched firmware between I/O modules in the same Mark VIe rack can cause diagnostic suppression or delayed fault annunciation. Annual firmware audits using ToolboxST are recommended as part of the planned outage checklist.

Finally, fuse and surge protection components on the terminal board side — including any field-side fuse blocks and transient voltage suppressors — should be replaced as a matter of course during any digital input module swap on systems operating in high-EMI environments such as gas turbine enclosures or large motor control centers.

Site Replacement Workflow

The IS220YDIAS1A is a hot-swap-capable module in Simplex Mark VIe configurations, but field replacement in TMR systems requires coordination with the control system’s voting logic to avoid spurious trips. The following workflow reflects best practice for minimizing downtime during an unplanned replacement:

Step 1 — Confirm Fault Isolation: Use ToolboxST Diagnostics to confirm the fault is isolated to the IS220YDIAS1A and not to the terminal board, field wiring, or IONet switch port. Document the faulted channel numbers and their associated field device tags.

Step 2 — Notify Operations: For TMR systems, notify the control room that one leg of the voted I/O is being replaced. Confirm that the process is in a safe state or that the remaining two TMR legs are healthy before proceeding.

Step 3 — Module Extraction: Power down the I/O rack slot if required by site safety procedures. Disconnect the ribbon cable from the terminal board. Remove the IS220YDIAS1A by releasing the module locking tabs. Handle with ESD precautions.

Step 4 — Install Replacement: Seat the replacement IS220YDIAS1A firmly into the rack slot. Reconnect the terminal board ribbon cable. Verify the module LED status indicators show normal initialization sequence (typically green POWER, flashing STATUS during boot).

Step 5 — ToolboxST Verification: From the ToolboxST workstation, confirm the replacement module is recognized, firmware version matches the rack configuration, and all 24 channels report healthy status. Perform a point-by-point I/O check against the field device list if time permits.

Step 6 — Return to Service: For TMR systems, confirm voted logic is restored across all three legs. Log the replacement in the site maintenance management system (CMMS) with the module serial number, installation date, and post-replacement test results.

This workflow applies equally to planned annual outage replacements, where the IS220YDIAS1A is proactively swapped based on operating hours or age rather than a confirmed fault — a practice increasingly adopted by facilities targeting zero-unplanned-downtime KPIs.

Spare Parts Support FAQ

Q1: Is the IS220YDIAS1A compatible with both TMR and Simplex Mark VIe configurations?
Yes. The IS220YDIAS1A is designed for use in both TMR (Triple Modular Redundant) and Simplex Mark VIe I/O racks. In TMR systems, three modules operate in a voted configuration across the R, S, and T controllers. In Simplex systems, a single module handles all 24 digital input channels. Confirm your rack type and slot assignment in ToolboxST before ordering to ensure the correct quantity.

Q2: What pre-shipment testing does KNMKS perform on the IS220YDIAS1A?
Each IS220YDIAS1A unit undergoes functional channel verification prior to dispatch. This includes power-on initialization checks, channel continuity verification, and visual inspection for physical damage or component anomalies. Units that do not pass testing are not shipped. All shipped units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: Can KNMKS support long-term supply agreements for the IS220YDIAS1A?
Yes. For facilities operating multiple Mark VIe systems or managing multi-unit power plant fleets, KNMKS offers long-term supply arrangements with reserved stock allocation, priority dispatch, and fixed pricing for contracted volumes. Contact our sales team to discuss annual spare parts programs tailored to your maintenance schedule and buffer stock requirements.

Q4: What is the recommended buffer stock quantity for the IS220YDIAS1A?
For a single Mark VIe Simplex system, a minimum of one spare IS220YDIAS1A is recommended. For TMR configurations, maintain at least one spare per TMR set (three modules per turbine unit). Facilities with multiple turbine units or extended OEM lead times — which can reach 16–26 weeks for new production — should consider a 12-month forward stock position based on historical failure rates and criticality of the controlled process.

—
