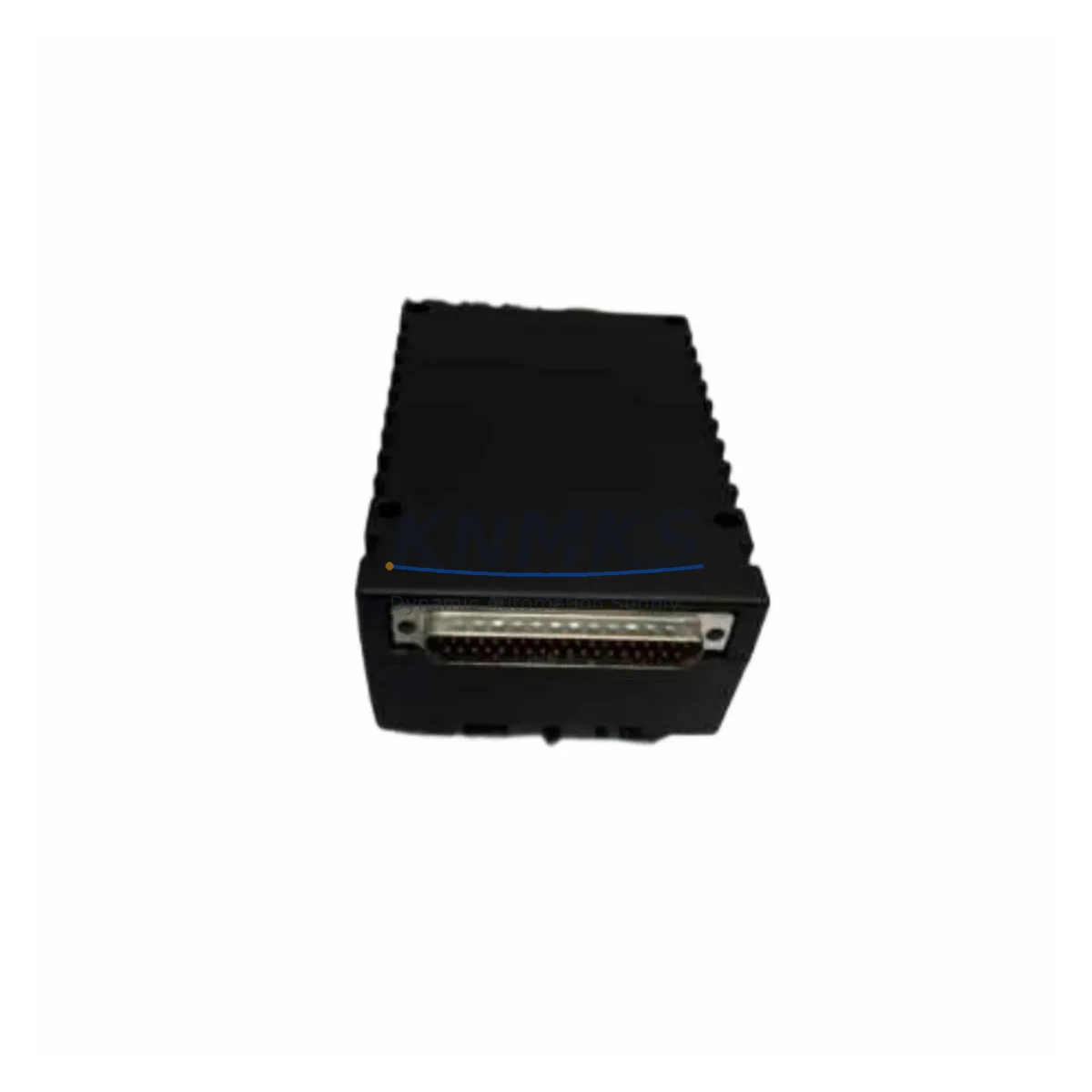

The GE IS220PVIBH1AD is a Vibration Monitoring I/O Module designed for the Mark VIe turbine control platform. As a critical component in continuous-process industries — including power generation, oil & gas, petrochemical, and heavy manufacturing — this module plays a central role in real-time vibration signal acquisition, machinery health monitoring, and protective trip logic. Maintaining a verified spare of the IS220PVIBH1AD in your site inventory is one of the most effective strategies for reducing unplanned downtime and protecting rotating equipment assets.

For maintenance engineers managing gas turbines, steam turbines, or compressor trains running on GE Mark VIe architecture, the IS220PVIBH1AD is a non-negotiable item on the critical spare parts list. Its role in vibration channel acquisition means that a failed or degraded module can trigger nuisance trips, mask real machinery faults, or — in worst-case scenarios — leave rotating equipment unprotected. Procurement engineers sourcing this module should prioritize original GE-manufactured units with full traceability, avoiding grey-market substitutes that may lack firmware compatibility or calibration certification.

At KNMKS, every IS220PVIBH1AD unit is sourced from verified supply channels, inspected upon receipt, and tested prior to shipment. We maintain long-term stock availability to support both emergency replacement and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the IS220PVIBH1AD in the field, a disciplined maintenance workflow requires more than a simple module swap. Vibration monitoring systems are tightly integrated with the broader Mark VIe I/O architecture, and a thorough site inspection should cover all associated components to prevent repeat failures and ensure signal integrity.

Begin by verifying the condition of the IS220PVIBH1AD terminal board (typically the TRPVIB or equivalent termination assembly). Probe wiring, shielding continuity, and connector seating should be checked before the new module is powered. Damaged or corroded terminal boards are a common root cause of recurring vibration channel faults and are frequently overlooked during emergency replacements.

Next, inspect the Mark VIe I/O backplane and rack power distribution. The IS220PVIBH1AD draws power from the backplane; any degraded backplane connector or intermittent power rail can cause the replacement module to exhibit the same fault symptoms as the failed unit. Confirm that the IS215VCMIH2C VME Communication Module or equivalent controller card is operating normally and that IONet communication to the I/O pack is stable before declaring the replacement successful.

For sites running redundant vibration monitoring configurations, also verify the status of the paired IS220PVIBH1AD in the redundant I/O pack. A single-module failure in a redundant pair often goes undetected until the second module degrades, at which point the system loses protective coverage entirely. Scheduling inspection of both modules during the same maintenance window is strongly recommended.

Power quality in the control cabinet should also be assessed. The IS200EPCTG1A Power Distribution Board and associated DC/DC converters supply regulated voltage to the I/O packs. Voltage ripple or transient spikes on the 28 VDC rail are a known cause of premature I/O module failure in Mark VIe systems. If multiple I/O modules have failed within a short period, power quality investigation should be prioritized.

Finally, review the IS220PSCAH1B Speed and Acceleration I/O Module and any associated IS220PTCCH1C Thermocouple I/O Modules in the same cabinet. In turbine protection applications, vibration, speed, and temperature channels are interdependent — a trip event or nuisance alarm often involves signals from multiple I/O module types. Ensuring all related modules are in good condition reduces the risk of cascading faults during restart after an emergency replacement.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the IS220PVIBH1AD part number and revision level against the site’s as-built documentation. Verify that the replacement unit’s firmware revision is compatible with the installed Mark VIe controller version. GE Mark VIe systems are revision-sensitive; mismatched firmware can prevent the module from being recognized by the controller.

Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. Place the Mark VIe controller in the appropriate maintenance mode to prevent spurious trips during module removal. For redundant configurations, confirm that the healthy redundant module is active before removing the faulted unit.

Step 3 — Physical replacement: Remove the faulted IS220PVIBH1AD from the I/O pack. Inspect the backplane connector for bent pins or contamination. Seat the replacement module firmly and verify the connector engagement. Reconnect all probe cables to the terminal board, confirming correct channel assignment per the site wiring diagram.

Step 4 — Power-up and diagnostics: Restore power and observe the module’s LED status indicators. Access the Mark VIe ToolboxST diagnostic interface to confirm that all vibration channels are reading within expected ranges. Compare live readings against historical baseline values to validate sensor and wiring integrity.

Step 5 — Return to service: Clear any latched alarms in the Mark VIe controller. Restore the system to normal operating mode. Document the replacement in the site maintenance log, including the module serial number, date, and technician ID. Retain the faulted module for failure analysis if required by site reliability protocols.

This structured workflow minimizes restart time, reduces the risk of repeat failures, and ensures that the replacement IS220PVIBH1AD is fully validated before the turbine or compressor is returned to load.

Spare Parts Support FAQ

Q1: Is the IS220PVIBH1AD compatible with all Mark VIe controller revisions?
The IS220PVIBH1AD is designed for the GE Mark VIe platform. Compatibility with specific controller revisions depends on the firmware version loaded on the module. KNMKS can advise on firmware revision matching based on your site’s controller version — please provide your Mark VIe controller part number and software version at the time of inquiry to ensure a compatible unit is supplied.

Q2: What is included with each IS220PVIBH1AD shipment?
Each unit is shipped with a pre-shipment functional test report. Units are packaged in anti-static ESD-safe materials with protective foam inserts. A support terms confirmed by quotation certificate is included. Optional documentation such as calibration records or factory test data can be requested at the time of order.

Q3: How should the IS220PVIBH1AD be stored as a long-term spare?
Store in a climate-controlled environment at 15°C–25°C with relative humidity below 60%, non-condensing. Keep in the original ESD-safe packaging. Avoid storage near strong magnetic fields or high-vibration areas. For long-term storage exceeding 24 months, a periodic power-on functional check is recommended to verify module health before deployment.

Q4: Can KNMKS support ongoing supply for multiple IS220PVIBH1AD units?
Yes. KNMKS maintains standing inventory and long-term supply agreements for GE Mark VIe spare parts, including the IS220PVIBH1AD. We support both emergency single-unit orders and annual blanket purchase orders for planned maintenance programs. Lead times for in-stock units are typically 3–5 business days for international shipment. Contact our team to discuss volume pricing and supply continuity agreements.
