GE IS200AEBEG1AAB Migration-Ready Analog Ethernet Board

Overview

GE IS200AEBEG1AAB Migration-Ready Analog Ethernet Board for Legacy Control Systems

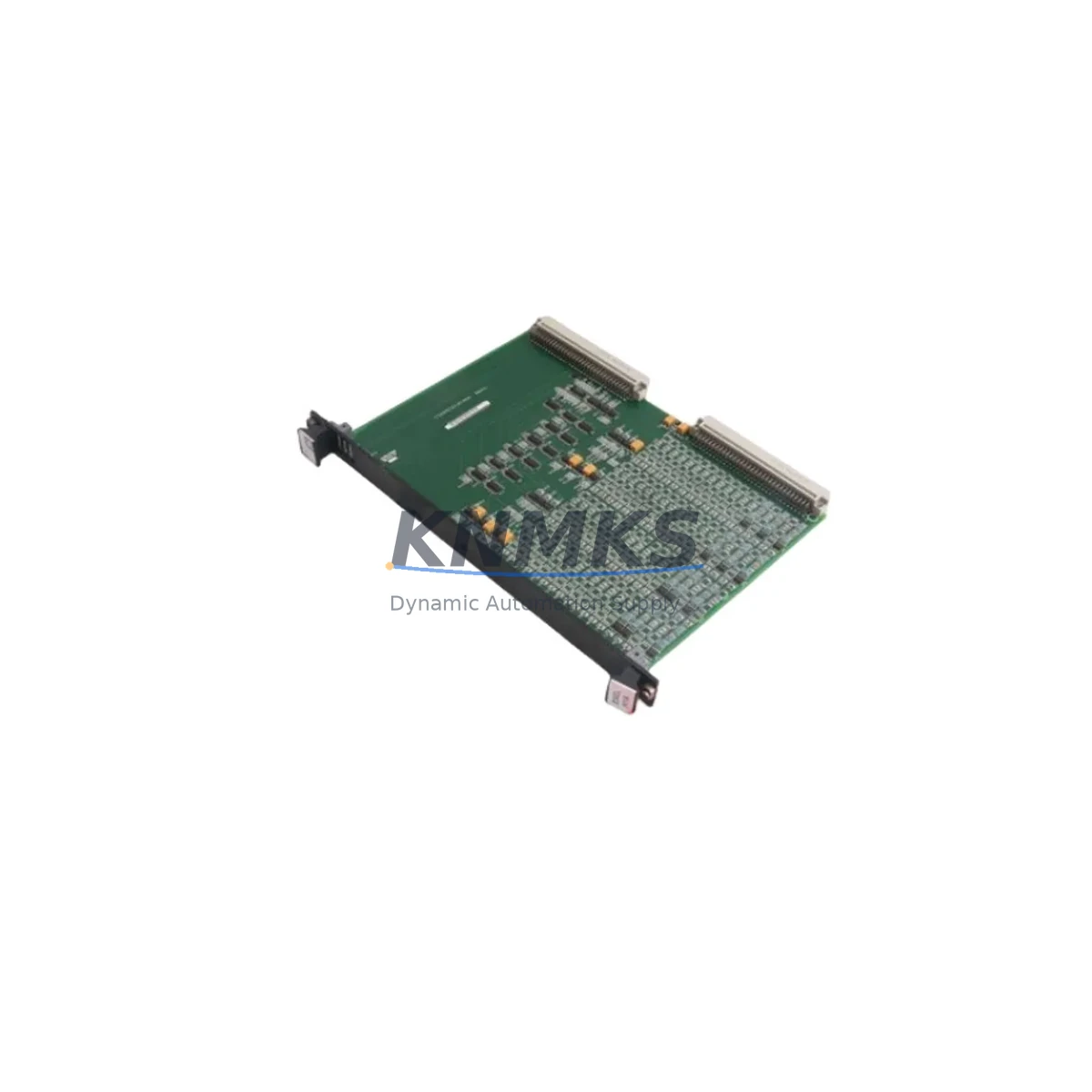

The GE IS200AEBEG1AAB is a combined analog input/output and Ethernet communication board designed for the GE Mark VI turbine control platform. As legacy Mark VI systems approach end-of-life support cycles, the IS200AEBEG1AAB remains one of the most critical spare parts for facilities managing gas turbines, steam turbines, and combined-cycle power generation assets. Whether you are executing a like-for-like board replacement, upgrading a degraded control cabinet, or migrating from an older Mark V architecture to Mark VI, this board provides the analog signal conditioning and Ethernet backbone connectivity required to maintain uninterrupted turbine supervisory control.

Each unit supplied by KNMKS is sourced from verified industrial channels, pre-shipment tested under simulated load conditions, and backed by a support terms confirmed by quotation covering functional defects. Our inventory is maintained to support both emergency breakdown replacements and planned maintenance schedules, with typical lead times suitable for outage windows.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the IS200AEBEG1AAB into an existing Mark VI control cabinet requires a structured retrofit plan that accounts for the full signal chain — from field instruments through the I/O rack to the controller and HMI. Before removing the failed or degraded board, engineers should document all active analog channel assignments, verify the JR1 and JR2 terminal board wiring against the original engineering drawings, and confirm that the replacement module’s hardware revision is compatible with the installed Mark VI controller firmware.

In many retrofit scenarios, the IS200AEBEG1AAB is installed alongside complementary modules within the same I/O rack. The IS200VTURH1B vibration terminal unit is frequently present in the same cabinet for turbine shaft monitoring, and its wiring harness must not be disturbed during the analog board swap. Similarly, the IS200TRLYH1B relay output terminal board may share the same rack assembly and requires independent verification of its terminal connections before the cabinet is re-energized.

For facilities migrating from Mark V to Mark VI, the IS200AEBEG1AAB often replaces legacy DS200 series analog boards. In these cross-generation migrations, the power supply module — typically the IS200EPSMH1A or equivalent Mark VI power entry module — must be confirmed to deliver adequate current capacity for the new I/O complement. Insufficient power budget is a common cause of intermittent faults following board replacements in aging control cabinets.

Ethernet connectivity through the IS200AEBEG1AAB relies on the Mark VI IONet network, which connects I/O packs to the controller via the IS215UCVEH or IS215UCVEM controller boards. Before commissioning, verify that the IONet switch — often a managed industrial Ethernet switch within the control cabinet — has an available port and that the IP address scheme is consistent with the existing network configuration. Any address conflict on the IONet will prevent the replacement board from being recognized by ToolboxST during the post-installation configuration step.

HMI screens connected to the Mark VI system via the Unit Data Highway (UDH) should be reviewed after the board swap to confirm that all analog trend displays and alarm setpoints referencing channels on the IS200AEBEG1AAB are functioning correctly. In some installations, the Cimplicity HMI or equivalent SCADA interface may require a point database refresh if the module address has changed during the replacement process.

Downtime Control During System Migration

Minimizing turbine downtime during a Mark VI board replacement requires preparation that begins well before the planned outage window. The most effective approach is to pre-configure the replacement IS200AEBEG1AAB offline using ToolboxST, loading the existing I/O configuration file from the controller backup so that the module is ready to assume its address and channel assignments immediately upon installation. This eliminates the need for live configuration during the outage and reduces the risk of parameter entry errors under time pressure.

Before the outage begins, the control system engineer should export the current ToolboxST project, verify that all analog channel calibration data is captured in the project file, and confirm that the HMI alarm suppression list is prepared to prevent nuisance alarms during the transition. The original program logic in the Mark VI controller does not require modification for a like-for-like IS200AEBEG1AAB replacement, preserving the existing control sequences, permissive logic, and protection trip setpoints without reprogramming.

During the physical swap, field wiring should be transferred terminal-by-terminal using the documented pinout, with each connection verified against the engineering drawing before the cabinet door is closed. After power restoration, the IONet communication link should be confirmed in ToolboxST before releasing the turbine to automatic control. A brief analog output verification — stepping each channel through its calibrated range — confirms signal integrity before the unit is returned to service. KNMKS pre-shipment testing covers this functional verification on every IS200AEBEG1AAB unit dispatched, reducing the risk of discovering a defective board during the outage window.

Retrofit Support FAQ

Q1: Is the IS200AEBEG1AAB a direct drop-in replacement for earlier IS200-series analog boards in the Mark VI rack?
In most cases, yes — the IS200AEBEG1AAB occupies a standard Mark VI I/O module slot and uses the same JR1/JR2 terminal board interface. However, hardware revision compatibility with the installed controller firmware should be confirmed using the GE Mark VI compatibility matrix or by consulting the ToolboxST hardware catalog before ordering.

Q2: What commissioning steps are required after installing the IS200AEBEG1AAB?
After physical installation, the module must be recognized and addressed in ToolboxST. Verify the IONet communication link, confirm the module address matches the project configuration, and perform an analog channel calibration check. If the module address has changed from the previous installation, update the ToolboxST project and download the revised configuration to the controller before returning the turbine to service.

Q3: Can the IS200AEBEG1AAB be used in a Mark V to Mark VI migration project?
The IS200AEBEG1AAB is a Mark VI native module and is not directly interchangeable with Mark V DS200-series boards. In a Mark V to Mark VI migration, the IS200AEBEG1AAB is installed as part of the new Mark VI I/O complement, replacing the analog functions previously handled by the Mark V I/O boards. Field wiring re-termination to the Mark VI JR terminal boards is required, and the control application must be re-engineered in ToolboxST.

Q4: Does KNMKS provide pre-shipment testing and support terms coverage for the IS200AEBEG1AAB?
Yes. Every IS200AEBEG1AAB unit is functionally tested prior to shipment under simulated operating conditions. All units are covered by a support terms confirmed by quotation from the date of shipment, covering functional defects. In-stock units are available for immediate dispatch to support planned outages and emergency breakdown replacements.
