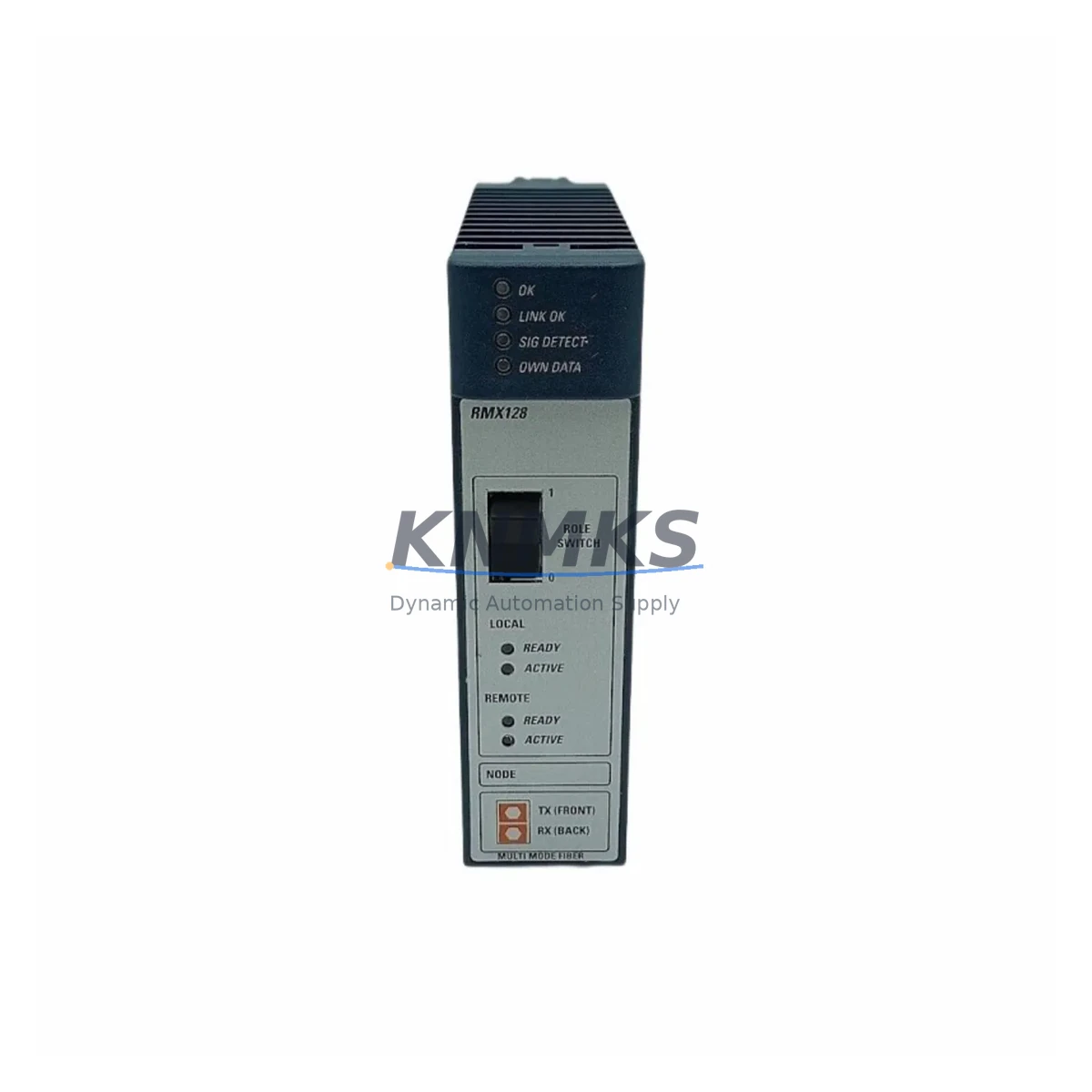

GE IC695RMX128 Fail-Safe Redundancy Module for RX3i

Overview

GE IC695RMX128 Fail-Safe Redundancy Module for RX3i

The GE IC695RMX128 is a Redundancy Memory Exchange Module designed for the PACSystems RX3i control platform, engineered to deliver continuous, fail-safe operation in the most demanding industrial environments. As a core component of GE’s hot-standby CPU redundancy architecture, the IC695RMX128 synchronizes program memory, I/O data tables, and register values between the primary and secondary CPUs in real time — ensuring seamless bumpless transfer if the primary controller experiences a fault, power interruption, or hardware failure.

In critical production environments where an unplanned control interruption carries significant safety, financial, or regulatory consequences, the IC695RMX128 provides the backbone of a proven redundancy strategy. Whether deployed in continuous chemical processing, power generation switchgear control, water treatment SCADA systems, or high-throughput manufacturing lines, this module eliminates the single point of failure that standard simplex PLC architectures cannot address. Its deterministic memory synchronization cycle ensures that the standby CPU is always ready to assume control within milliseconds — without operator intervention and without loss of process state.

For facilities operating legacy GE Series 90-70 or early RX3i installations, the IC695RMX128 is a validated upgrade path that preserves existing ladder logic, function block programs, and HMI tag structures. Engineers migrating from older redundancy configurations — including systems previously using the IC697RCM711 or early Series 90-70 redundancy coprocessors — will find that the RX3i redundancy architecture supported by the IC695RMX128 offers substantially improved synchronization speed, diagnostic transparency, and integration with modern Ethernet-based supervisory networks.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the IC695RMX128 as part of a comprehensive control cabinet protection strategy requires careful coordination of several interdependent components. The module operates within a redundant RX3i rack pair, each chassis typically housing a GE IC695CPE330 or IC695CPU320 controller alongside dedicated I/O and communications modules. The redundancy link between the two racks is established through the IC695RMX128 installed in both the primary and secondary chassis, with the synchronization fiber or copper interconnect routed to minimize exposure to cabinet vibration and thermal cycling.

Power supply selection is critical in redundancy applications. Each RX3i rack in a hot-standby pair should be fed by an independent power source, typically using the IC695PSA040 40W AC power supply or the IC695PSD040 DC-input variant, with separate circuit breakers and surge protection devices on each feed. This prevents a single power event from simultaneously disabling both the primary and standby controllers — a scenario that would defeat the purpose of the redundancy architecture entirely.

On the communications side, the IC695ETM001 Ethernet module is commonly paired with the IC695RMX128 in redundancy-configured systems, providing SRTP, Modbus TCP, and EGD communications that remain active through a switchover event. For installations requiring PROFIBUS DP integration with field devices such as variable frequency drives, valve positioners, or remote I/O drops, the IC695PBM300 PROFIBUS Master module maintains its network master role through the redundancy transfer without requiring re-initialization of the field device network.

In cabinets subject to high ambient temperatures, dust ingress, or vibration — common in steel mills, cement plants, and offshore platforms — additional thermal management and IP-rated enclosure sealing should be verified before commissioning. The IC695RMX128 itself is rated for operation up to 60°C, but sustained operation near this limit in combination with high-density I/O modules and communication cards can elevate internal rack temperatures beyond safe thresholds. Cabinet cooling audits and airflow modeling are recommended as part of any redundancy retrofit project.

Critical Industrial Safety Applications

The IC695RMX128 is deployed across a wide range of safety-critical and high-availability industrial applications where control continuity is non-negotiable.

In petrochemical and refinery environments, the module supports emergency shutdown interlock systems and compressor anti-surge control loops where a controller fault without automatic failover could trigger a process trip, flare event, or safety system activation. The hot-standby architecture ensures that the interlock logic remains active and responsive even during planned maintenance on the primary CPU rack.

In power generation and substation automation, the IC695RMX128 is used in turbine control, excitation system monitoring, and load dispatch applications. Utilities operating combined-cycle gas turbines or hydroelectric generators rely on redundant PACSystems RX3i configurations to maintain governor and protection relay coordination without introducing single-point failure risk into the control layer.

In water and wastewater treatment facilities, the module supports SCADA-integrated pump station control, chemical dosing automation, and filtration process management. Regulatory requirements in many jurisdictions mandate continuous control availability for drinking water treatment systems, making hot-standby redundancy a compliance requirement rather than simply a reliability preference.

In mining and mineral processing, the IC695RMX128 is found in conveyor drive control systems, crusher automation, and flotation cell management — applications where an uncontrolled stop can cause material blockages, equipment damage, or personnel safety hazards. The bumpless transfer capability of the RX3i redundancy system ensures that drive speed references and process setpoints are maintained through any controller switchover event.

In port and terminal automation, including ship-to-shore crane control and automated stacking crane systems, the module provides the control continuity required to safely manage suspended loads and high-inertia drive systems without interruption.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the IC695RMX128?
Every IC695RMX128 unit supplied by KNMKS is covered by a support terms confirmed by quotation from the date of shipment. Prior to dispatch, each module undergoes a full functional verification process including power-on self-test, backplane communication check, and redundancy link initialization testing. Units that do not pass verification are not shipped. Support requests are handled directly with dedicated technical support.

Q2: Is the IC695RMX128 compatible with all PACSystems RX3i CPU variants?
The IC695RMX128 is compatible with RX3i CPUs that support the redundancy feature set, including the IC695CPU320 and IC695CPE330. Compatibility requires that both the primary and secondary CPUs are running matching firmware versions and that the Proficy Machine Edition project is configured for redundancy operation. CPU firmware version requirements should be confirmed against the GE PACSystems RX3i Redundancy CPU User Manual (GFK-2308) before installation.

Q3: Can the IC695RMX128 be installed without shutting down the entire control system?
In a properly configured hot-standby redundancy system, the IC695RMX128 in the standby rack can be replaced while the primary controller maintains process control. However, this procedure requires that the standby CPU be taken offline in a controlled manner, the module replaced, and the standby rack re-synchronized before it resumes its protective role. Full system shutdown is not required, but the replacement window should be planned during a period of stable process conditions to minimize risk during the brief period when redundancy protection is reduced.

Q4: What is the long-term supply availability for the IC695RMX128?
KNMKS maintains verified inventory of the IC695RMX128 to support both immediate replacement needs and long-term spare parts programs. For facilities managing extended asset lifecycles on PACSystems RX3i platforms, we recommend establishing a consignment or reserved stock arrangement to ensure availability as the module approaches end-of-production status. Contact our sales team to discuss multi-unit procurement, lead time commitments, and lifecycle support options.
