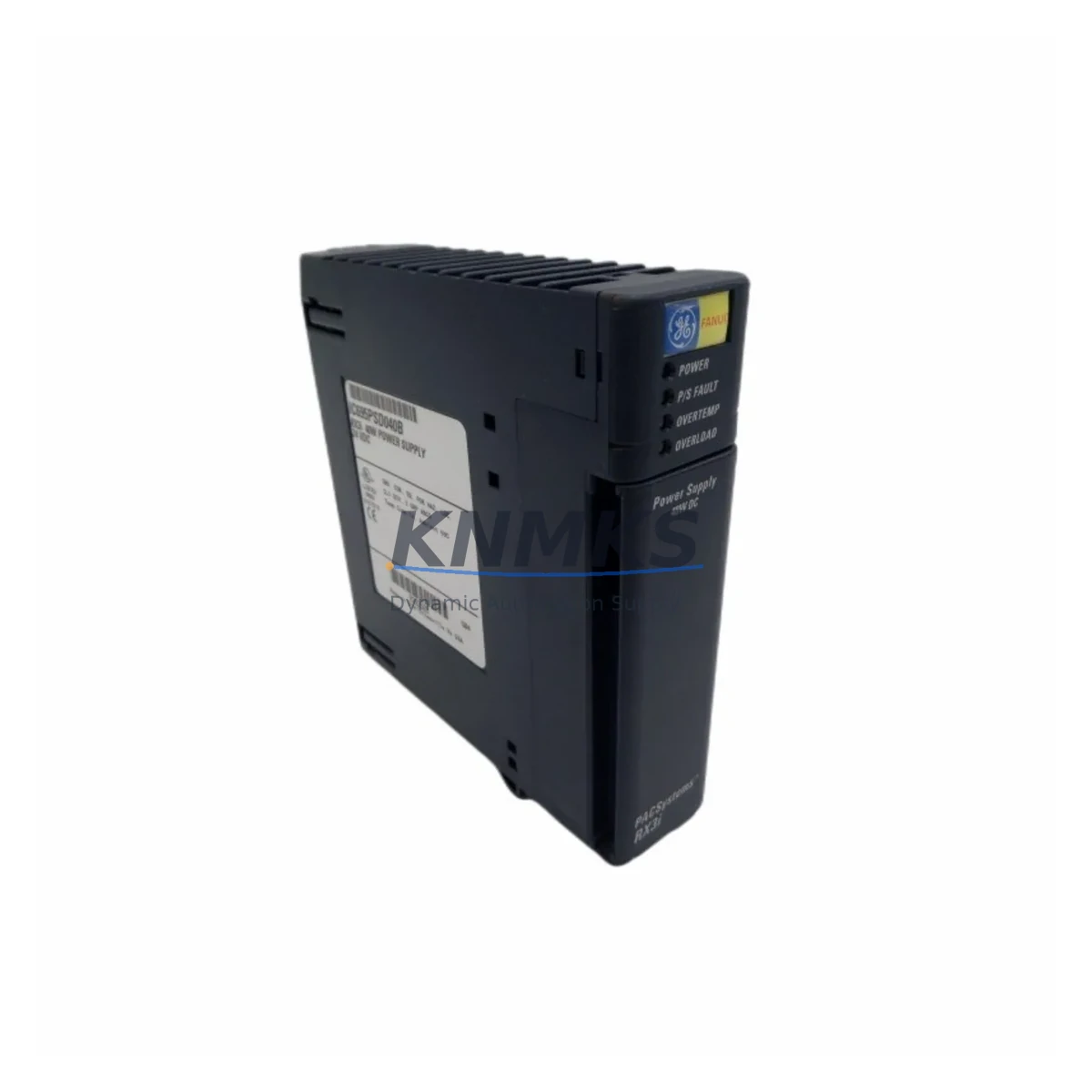

The GE IC695PSD040 is a 40W backplane power supply module designed for the GE PACSystems RX3i control platform. As a critical power distribution component within the RX3i rack architecture, the IC695PSD040 supplies regulated DC power to all installed I/O, CPU, and communication modules. In high-availability manufacturing environments — including automotive assembly, food and beverage processing, water treatment, and discrete parts manufacturing — a failed or degraded backplane power supply is one of the fastest paths to unplanned downtime. Stocking a verified original IC695PSD040 spare is a foundational element of any responsible maintenance strategy for RX3i-based control systems.

This unit is sourced as an original GE (Emerson Automation Solutions) spare part, electrically tested prior to shipment, and backed by a support terms confirmed by quotation. It is compatible with the full range of IC695 series rack configurations and is a direct replacement for aging or failed PSD040 modules without requiring firmware changes, rack reconfiguration, or CPU re-commissioning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the IC695PSD040, the power supply module should never be treated in isolation. The RX3i backplane power supply feeds every module installed in the rack, meaning a degraded PSD040 can cause intermittent faults across CPU modules such as the IC695CPE305 or IC695CPE330, produce erratic behavior in analog and digital I/O modules, and generate spurious communication errors on IC695ETM001 Ethernet modules or IC695PBM300 PROFIBUS master modules.

During any planned IC695PSD040 replacement, the following components and subsystems should be inspected or tested concurrently:

• 24V DC input wiring and terminal blocks: Verify input cable integrity, terminal torque, and absence of corrosion. A loose or high-resistance input connection will cause the PSD040 to operate outside its rated input range, shortening service life.
• Rack backplane connector: Inspect the IC695 rack backplane (e.g., IC695CHS012) for bent pins, contamination, or mechanical damage before seating the replacement module.
• Upstream fusing and circuit protection: Confirm that the 24V DC supply circuit feeding the PSD040 is protected by an appropriately rated fuse or circuit breaker. Replace any discolored or suspect fuses as part of the same maintenance window.
• Co-installed I/O modules: After power restoration, verify that all installed I/O modules — including mixed analog/digital configurations — report correct status in the RX3i CPU diagnostics. Modules such as IC695ALG600 analog input modules are sensitive to supply rail stability and should be confirmed fault-free.
• Communication and network modules: Re-validate Ethernet, PROFIBUS, or serial communication module link status after power cycling. Communication modules may require a brief re-initialization period following a cold restart.
• HMI and SCADA connectivity: Confirm that any connected HMI panels or SCADA systems re-establish communication with the RX3i CPU within expected timeframes after the maintenance window closes.

For facilities operating multiple RX3i racks or redundant control architectures, it is best practice to maintain at least one IC695PSD040 spare per control cabinet cluster. Procurement engineers should evaluate annual consumption rates and factor in lead time variability for legacy GE PACSystems components when setting reorder points. Sourcing from a verified supplier with pre-shipment electrical testing and a documented support terms confirmed by quotation significantly reduces the risk of receiving non-functional or counterfeit units.

Site Replacement Workflow

The IC695PSD040 is a direct plug-in replacement for any failed or end-of-life PSD040 module within a compatible RX3i rack. No firmware update, CPU re-commissioning, or rack reconfiguration is required when replacing a like-for-like unit. The recommended on-site replacement procedure is as follows:

1. Coordinate a planned maintenance window with operations to minimize production impact. Where redundant control paths exist, confirm failover is active before proceeding.
2. De-energize the 24V DC input to the rack at the upstream circuit breaker or fuse block. Verify absence of voltage with a calibrated meter before touching any rack components.
3. Remove the failed IC695PSD040 by releasing the module locking tabs and sliding the unit out of the power supply slot. Inspect the backplane connector on the rack for damage before proceeding.
4. Seat the replacement IC695PSD040 firmly into the power supply slot until the locking tabs engage. Confirm the module is fully seated against the backplane.
5. Restore 24V DC input power and observe the module status LEDs. A healthy PSD040 will indicate normal output within seconds of power application.
6. Verify CPU and I/O module status via the RX3i programming software (Proficy Machine Edition or equivalent). Confirm all I/O points, communication links, and program execution are nominal before releasing the system to production.
7. Document the replacement in the site maintenance log, including the date, replaced module serial number, and post-replacement test results.

This workflow applies equally to emergency unplanned replacements. Because the IC695PSD040 requires no software configuration, a trained maintenance technician can complete a swap in under 30 minutes, making rapid spare availability the single most important factor in minimizing downtime duration.

Spare Parts Support FAQ

Q1: Is this IC695PSD040 an original GE / Emerson part, and how is it tested before shipment?
Yes. This unit is sourced as an original GE (Emerson Automation Solutions) IC695PSD040 backplane power supply. Each unit undergoes electrical testing prior to dispatch to verify output voltage regulation and module integrity. A support terms confirmed by quotation is included with every shipment.

Q2: Will the IC695PSD040 work as a direct replacement without reprogramming the RX3i CPU?
Yes. The IC695PSD040 is a passive power supply module with no firmware or configuration data stored on the unit. Replacing a failed PSD040 with a new unit of the same part number requires no CPU reprogramming, no I/O reconfiguration, and no changes to the rack layout. The system will resume normal operation after power restoration.

Q3: How should procurement engineers manage long-term supply risk for IC695PSD040 spares?
GE PACSystems RX3i components are in the mature-to-legacy phase of their product lifecycle. Procurement engineers should assess installed base size, historical failure rates, and planned system lifespan when determining safety stock levels. Sourcing from a supplier with documented inventory, pre-shipment testing, and a support terms confirmed by quotation reduces the risk of receiving non-functional units. Long-term supply agreements or periodic replenishment orders are advisable for facilities with large RX3i installations.

Q4: What is covered under the support terms confirmed by quotation, and what is the process if a unit fails after delivery?
The support terms confirmed by quotation cover manufacturing defects and electrical failures under normal operating conditions. If a unit fails within the confirmed support period, contact our sales team at [email protected] with the order reference and a description of the fault. We will arrange a replacement or refund in accordance with our support terms policy. Units damaged by incorrect installation, overvoltage, or environmental conditions outside the rated specification are not covered.
