GE IC695ALG312 Maintenance-Proven Spare Part for Factory Uptime

Overview

GE IC695ALG312 Maintenance-Proven Spare Part for Factory Uptime

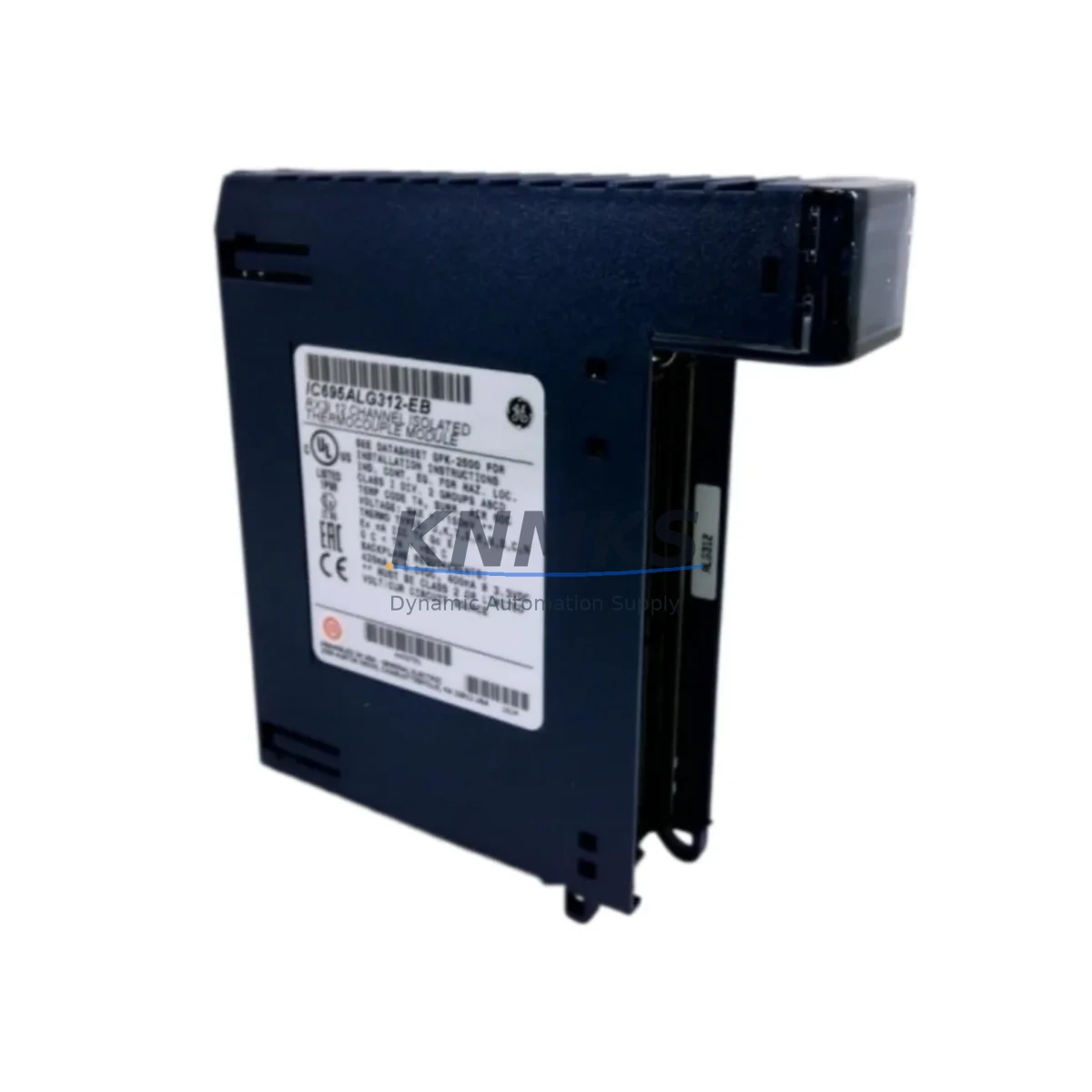

The GE IC695ALG312 is a 12-channel isolated thermocouple analog input module designed for the GE PACSystems RX3i platform. As a critical component in temperature measurement and process control loops, this module is widely deployed across power generation, petrochemical, food processing, and discrete manufacturing facilities. Sourced as an original spare, each IC695ALG312 unit available through KNMKS undergoes functional verification prior to shipment, ensuring that your maintenance team receives a module ready for immediate installation without the uncertainty of untested surplus stock.

For maintenance engineers managing aging PACSystems RX3i control cabinets, the IC695ALG312 represents one of the highest-priority spare parts to keep on hand. Thermocouple input modules are subject to channel drift, isolation degradation, and connector wear over extended service cycles. When a single channel fails or the module begins reporting erratic temperature readings, the fastest path to production recovery is a pre-verified replacement module — not a repair cycle that can take weeks. Procurement engineers sourcing this module should confirm compatibility with the RX3i backplane revision in use, as well as the firmware version running on the CPE305, CPE310, or CPE400 CPU module installed in the same rack.

During a planned or emergency replacement of the IC695ALG312, experienced maintenance teams treat the event as an opportunity to inspect the broader analog input subsystem. The IC694ALG220 and IC694ALG221 voltage/current analog input modules installed in adjacent slots should be checked for similar drift symptoms. The IC695PSA040 or IC695PSD040 power supply module feeding the backplane should be load-tested to confirm it is delivering stable 5 VDC and 24 VDC rails — a marginal power supply is a common root cause of intermittent analog module faults. Terminal blocks and field wiring connected to the thermocouple inputs should be inspected for oxidation, loose terminations, and shield grounding continuity, as poor grounding is the leading cause of noise-induced measurement errors in thermocouple circuits.

For facilities running redundant or multi-rack RX3i configurations, the IC695RMX128 redundancy memory transfer module and the IC695ETM001 Ethernet communications module should be verified for proper operation after any backplane module swap. Communication interruptions during module replacement can trigger spurious alarms in the SCADA or DCS layer, so coordinating the replacement window with the control room operator is standard practice. If the facility uses a GE Proficy HMI/SCADA system, confirming that the tag database reflects the correct channel assignments for the replacement module prevents post-maintenance data mapping errors.

KNMKS maintains ready stock of the IC695ALG312 to support both emergency breakdown orders and planned annual maintenance procurement. All units are shipped with full functional test documentation, and a support terms confirmed by quotation cover defects in materials and workmanship from the date of delivery. For facilities with long-term maintenance contracts or multi-site procurement programs, KNMKS offers volume pricing and reserved inventory arrangements to ensure supply continuity for critical spare parts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a PACSystems RX3i system housing the IC695ALG312 requires a systems-level view of the control cabinet. The module does not operate in isolation — its measurement accuracy and reliability depend on the quality of power delivery from the IC695PSA040 power supply, the integrity of the backplane connectors on the IC695CHS012 chassis, and the noise immunity of the field wiring routed to the thermocouple terminals.

Maintenance engineers should include the IC695ALG312 in the annual calibration and inspection schedule alongside the IC694ALG220 analog input modules used for voltage and current signals in the same control loop. If the facility uses signal isolators or signal conditioners between field thermocouples and the module inputs, those isolators should be tested for output accuracy and replaced on a five-year cycle regardless of apparent condition. Fuse protection on the 24 VDC field power circuits feeding transmitters in the same cabinet should be inspected and replaced if any signs of heat discoloration are present on the fuse holders.

For systems where the IC695ALG312 feeds temperature data into a PID control loop managed by the CPE310 or CPE400 CPU, a module replacement event should be followed by a loop tuning verification to confirm that the new module’s channel offsets match the previous module within acceptable tolerance. The IC695ETM001 Ethernet module used for remote monitoring should be checked to confirm that the replacement did not cause any I/O table mapping shifts that could affect remote HMI displays or historian data collection.

Procurement engineers building a spare parts inventory for RX3i-based systems should consider stocking at least one IC695ALG312 per production line, along with a matched set of terminal block connectors and thermocouple extension wire of the correct alloy type. Long lead times on specialty analog input modules make reactive procurement a significant downtime risk, particularly for facilities operating 24/7 continuous process lines where a single module failure can halt an entire production unit.

Site Replacement Workflow

Replacing the IC695ALG312 in a live PACSystems RX3i system follows a structured sequence to minimize downtime and prevent configuration errors. Before removing the module, the maintenance engineer should capture the current channel configuration using the GE Proficy Machine Edition programming software, exporting the hardware configuration file as a backup. This ensures that the replacement module can be configured identically to the original without relying on memory or paper records.

With the RX3i rack powered down or the slot isolated using the hot-swap procedure supported by the RX3i backplane, the original IC695ALG312 is removed and the replacement module is seated firmly in the same slot. The field wiring connector is transferred from the old module to the new module, and the terminal assignments are verified against the as-built wiring diagram before power is restored. After power-up, the CPU should be placed in STOP mode while the hardware configuration is downloaded to confirm that the new module is recognized correctly by the controller.

Once the hardware configuration download is complete and the module status LEDs indicate normal operation, the CPU is returned to RUN mode and the process values on all 12 channels are compared against the expected readings from the field thermocouples. Any channel showing an out-of-range or unexpected reading should be investigated for wiring continuity before the maintenance event is closed. The replacement event should be documented in the facility’s CMMS with the module serial number, installation date, and test results to support future maintenance planning and support terms tracking.

For facilities replacing older IC693ALG392 or IC694ALG392 thermocouple modules with the IC695ALG312 as part of a platform upgrade, the wiring connector pinout differences must be verified before installation. The RX3i platform offers improved channel isolation and higher resolution compared to the Series 90-30 predecessor modules, but the field wiring termination scheme may differ and must be confirmed against the IC695ALG312 installation manual.

Spare Parts Support FAQ

Q: Is the IC695ALG312 compatible with all PACSystems RX3i backplane configurations?
A: The IC695ALG312 is compatible with all standard RX3i universal backplanes, including the IC695CHS007 (7-slot), IC695CHS012 (12-slot), and IC695CHS016 (16-slot) chassis. It is not compatible with the older Series 90-30 (IC693) backplanes. Always verify the backplane model number before ordering to confirm physical and electrical compatibility.

Q: How does KNMKS verify the IC695ALG312 before shipment?
A: Each IC695ALG312 unit is functionally tested prior to shipment using a compatible RX3i test rack. The test procedure verifies backplane communication, channel response across multiple thermocouple input types, and isolation integrity. A test report is included with each shipment, and all units are shipped in ESD-safe packaging with appropriate cushioning for international freight.

Q: What is the support terms coverage and what does it include?
A: KNMKS provides a support terms confirmed by quotation from the date of delivery covering defects in materials and workmanship. If a module fails during the confirmed support period under normal operating conditions, KNMKS will provide a replacement unit or issue a refund at the customer’s discretion. The support terms does not cover damage caused by incorrect installation, overvoltage conditions, or physical mishandling after delivery.

Q: Can KNMKS support long-term or recurring procurement for the IC695ALG312?
A: Yes. KNMKS maintains ongoing inventory of the IC695ALG312 and can support blanket purchase orders, reserved stock arrangements, and scheduled delivery programs for facilities with annual maintenance budgets or multi-site procurement requirements. Contact our sales team to discuss volume pricing and supply continuity agreements tailored to your maintenance schedule.
